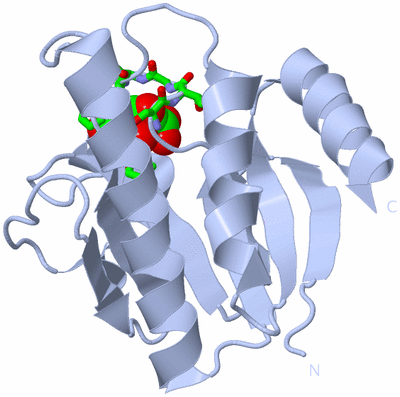

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF MACRO DOMAIN OF VENEZUELAN EQUINE ENCEPHALITIS VIRUS

Authors :  S. Jamal, H. Malet, B. Coutard, B. Canard
Date :  24 Mar 09  (Deposition) - 21 Jul 09  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Macro Domain, X Domain, Venezuelan Equine Encephalitis Virus, Alphavirus, Virus, Vizier. Viral Enzymes Involved In Replication, Atp-Binding, Cell Membrane, Cell Projection, Endosome, Helicase, Hydrolase, Lipoprotein, Lysosome, Membrane, Methyltransferase, Mrna Capping, Mrna Processing, Multifunctional Enzyme, Nucleotide- Binding, Nucleotidyltransferase, Nucleus, Palmitate, Phosphoprotein, Protease, Rna Replication, Rna-Binding, Rna-Directed Rna Polymerase, Thiol Protease, Transferase, Viral Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  H. Malet, B. Coutard, S. Jamal, H. Dutartre, N. Papageorgiou, M. Neuvonen, T. Ahola, N. Forrester, E. A. Gould, D. Lafitte, F. Ferron J. Lescar, A. E. Gorbalenya, X. De Lamballerie, B. Canard
The Crystal Structures Of Chikungunya And Venezuelan Equine Encephalitis Virus Nsp3 Macro Domains Define A Conserved Adenosine Binding Pocket
J. Virol. V. 83 6534 2009
PubMed-ID: 19386706  |  Reference-DOI: 10.1128/JVI.00189-09

(-) Compounds

Molecule 1 - NON-STRUCTURAL PROTEIN 3
    ChainsA, B
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPDEST14
    Expression System StrainROSETTA (DE3) PLYSS
    Expression System Taxid562
    Expression System VectorGATEWAY
    FragmentSEQUENCE DATABASE RESIDUES 1330-1489
    GeneNSP3
    Organism ScientificVENEZUELAN EQUINE ENCEPHALITIS VIRUS
    Organism Taxid36385
    StrainP676
    SynonymNSP3, NON-STRUCTURAL PROTEIN 3', NSP3'

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit AB
Biological Unit 1 (1x)A
Biological Unit 2 (1x) B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric Unit (1, 1)
No.NameCountTypeFull Name
1BCN1Ligand/IonBICINE
Biological Unit 1 (1, 1)
No.NameCountTypeFull Name
1BCN1Ligand/IonBICINE
Biological Unit 2 (0, 0)
No.NameCountTypeFull Name
1BCN-1Ligand/IonBICINE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREALA A:22 , GLY A:30 , SER A:110 , THR A:111 , GLY A:112 , ILE A:113 , PHE A:114 , HOH A:286 , HOH A:293BINDING SITE FOR RESIDUE BCN A 167

(-) SS Bonds  (1, 1)

Asymmetric Unit
No.Residues
1A:34 -B:34

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3GQE)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3GQE)

(-) PROSITE Motifs  (1, 1)

Asymmetric Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1MACROPS51154 Macro domain profile.POLN_EEVVP1320-1489  1A:1-160
Biological Unit 1 (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1MACROPS51154 Macro domain profile.POLN_EEVVP1320-1489  1A:1-160
Biological Unit 2 (, 0)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1MACROPS51154 Macro domain profile.POLN_EEVVP1320-1489  0-

(-) Exons   (0, 0)

(no "Exon" information available for 3GQE)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:162
 aligned with POLN_EEVVP | P36328 from UniProtKB/Swiss-Prot  Length:2492

    Alignment length:175
                                  1324      1334      1344      1354      1364      1374      1384      1394      1404      1414      1424      1434      1444      1454      1464      1474      1484
          POLN_EEVVP   1315 LTNIYTGSRLHEAGCAPSYHVVRGDIATATEGVIINAANSKGQPGGGVCGALYKKFPESFDLQPIEVGKARLVKGAAKHIIHAVGPNFNKVSEVEGDKQLAEAYESIAKIVNDNNYKSVAIPLLSTGIFSGNKDRLTQSLNHLLTALDTTDADVAIYCRDKKWEMTLKEAVARRE 1489
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..-------------..eeeeee.hhhhh...eeeeee.......hhhhhhhhhhhhhhh.........eeee......eeeee.......hhhhhhhhhhhhhhhhhhhhhhh...eeeee............hhhhhhhhhhhhhh....eeeeee.hhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----MACRO  PDB: A:1-160 UniProt: 1320-1489                                                                                                                                     PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                3gqe A   -1 MK-------------APSYHVVRGDIATATEGVIINAANSKGQPGGGVCGALYKKFPESFDLQPIEVGKARLVKGAAKHIIHAVGPNFNKVSEVEGDKQLAEAYESIAKIVNDNNYKSVAIPLLSTGIFSGNKDRLTQSLNHLLTALDTTDADVAIYCRDKKWEMTLKEAVARRE  160
                             |       -     |   5        15        25        35        45        55        65        75        85        95       105       115       125       135       145       155
                             0             1

Chain B from PDB  Type:PROTEIN  Length:158
 aligned with POLN_EEVVP | P36328 from UniProtKB/Swiss-Prot  Length:2492

    Alignment length:158
                                  1339      1349      1359      1369      1379      1389      1399      1409      1419      1429      1439      1449      1459      1469      1479
          POLN_EEVVP   1330 APSYHVVRGDIATATEGVIINAANSKGQPGGGVCGALYKKFPESFDLQPIEVGKARLVKGAAKHIIHAVGPNFNKVSEVEGDKQLAEAYESIAKIVNDNNYKSVAIPLLSTGIFSGNKDRLTQSLNHLLTALDTTDADVAIYCRDKKWEMTLKEAVAR 1487
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee.hhhhh...eeeee............hhhhhhhhhhh.........eeee.....eeeee........hhhhhhhhhhhhhhhhhhhhhhhh..eeeee............hhhhhhhhhhhhhh....eeeeee.hhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE MACRO  PDB: - UniProt: 1320-1489                                                                                                                               PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                3gqe B    1 APSYHVVRGDIATATEGVIINAANSKGQPGGGVCGALYKKFPESFDLQPIEVGKARLVKGAAKHIIHAVGPNFNKVSEVEGDKQLAEAYESIAKIVNDNNYKSVAIPLLSTGIFSGNKDRLTQSLNHLLTALDTTDADVAIYCRDKKWEMTLKEAVAR  158
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3GQE)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3GQE)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3GQE)

(-) Gene Ontology  (41, 41)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (POLN_EEVVP | P36328)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0005525    GTP binding    Interacting selectively and non-covalently with GTP, guanosine triphosphate.
    GO:0003723    RNA binding    Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
    GO:0003968    RNA-directed 5'-3' RNA polymerase activity    Catalysis of the reaction: nucleoside triphosphate + RNA(n) = diphosphate + RNA(n+1); uses an RNA template, i.e. the catalysis of RNA-template-directed extension of the 3'-end of an RNA strand by one nucleotide at a time.
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0008234    cysteine-type peptidase activity    Catalysis of the hydrolysis of peptide bonds in a polypeptide chain by a mechanism in which the sulfhydryl group of a cysteine residue at the active center acts as a nucleophile.
    GO:0004386    helicase activity    Catalysis of the reaction: NTP + H2O = NDP + phosphate, to drive the unwinding of a DNA or RNA helix.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0008174    mRNA methyltransferase activity    Catalysis of the transfer of a methyl group from S-adenosyl-L-methionine to a nucleoside residue in an mRNA molecule.
    GO:0008168    methyltransferase activity    Catalysis of the transfer of a methyl group to an acceptor molecule.
    GO:0017111    nucleoside-triphosphatase activity    Catalysis of the reaction: a nucleoside triphosphate + H2O = nucleoside diphosphate + phosphate.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0016779    nucleotidyltransferase activity    Catalysis of the transfer of a nucleotidyl group to a reactant.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
    GO:0004651    polynucleotide 5'-phosphatase activity    Catalysis of the reaction: 5'-phosphopolynucleotide + H2O = polynucleotide + phosphate.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0006370    7-methylguanosine mRNA capping    Addition of the 7-methylguanosine cap to the 5' end of a nascent messenger RNA transcript.
    GO:0006396    RNA processing    Any process involved in the conversion of one or more primary RNA transcripts into one or more mature RNA molecules.
    GO:0080009    mRNA methylation    The posttranscriptional addition of methyl groups to specific residues in an mRNA molecule.
    GO:0006397    mRNA processing    Any process involved in the conversion of a primary mRNA transcript into one or more mature mRNA(s) prior to translation into polypeptide.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0032259    methylation    The process in which a methyl group is covalently attached to a molecule.
    GO:0098507    polynucleotide 5' dephosphorylation    The process of removing one or more phosphate groups from the 5' end of a polynucleotide.
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
    GO:0039523    suppression by virus of host RNA polymerase II activity    Any process in which a virus stops, prevents, or reduces the frequency, rate or extent of host RNA polymerase II activity.
    GO:0039657    suppression by virus of host gene expression    Any process in which a virus stops, prevents, or reduces the frequency, rate or extent of gene expression in the host organism. Gene expression is the process in which a gene's coding sequence is converted into a mature gene product or products (proteins or RNA). This includes the production of an RNA transcript as well as any processing to produce a mature RNA product or an mRNA (for protein-coding genes) and the translation of that mRNA into protein. Some protein processing events may be included when they are required to form an active form of a product from an inactive precursor form.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
    GO:0001172    transcription, RNA-templated    The cellular synthesis of RNA on a template of RNA.
    GO:0039694    viral RNA genome replication    The replication of a viral RNA genome.
    GO:0016032    viral process    A multi-organism process in which a virus is a participant. The other participant is the host. Includes infection of a host cell, replication of the viral genome, and assembly of progeny virus particles. In some cases the viral genetic material may integrate into the host genome and only subsequently, under particular circumstances, 'complete' its life cycle.
cellular component
    GO:0030430    host cell cytoplasm    The cytoplasm of a host cell.
    GO:0044174    host cell endosome    A membrane-bounded organelle that carries materials newly ingested by endocytosis. It passes many of the materials to host cell lysosomes for degradation.
    GO:0044175    host cell endosome membrane    The lipid bilayer surrounding a host cell endosome.
    GO:0044176    host cell filopodium    Thin, stiff protrusion extended by the leading edge of a motile host cell such as a crawling fibroblast or amoeba, or an axonal growth cone; usually approximately 0.1 um wide, 5-10 um long, can be up to 50 um long in axon growth cones; contains a loose bundle of about 20 actin filaments oriented with their plus ends pointing outward.
    GO:0044188    host cell lysosomal membrane    The lipid bilayer surrounding the host cell lysosome and separating its contents from the host cell cytoplasm.
    GO:0044187    host cell lysosome    A small lytic vacuole that has cell cycle-independent morphology and is found in most host animal cells and that contains a variety of hydrolases, most of which have their maximal activities in the pH range 5-6. The contained enzymes display latency if properly isolated. About 40 different lysosomal hydrolases are known and host cell lysosomes have a great variety of morphologies and functions.
    GO:0033644    host cell membrane    Double layer of lipid molecules as it encloses host cells, and, in eukaryotes, many organelles; may be a single or double lipid bilayer; also includes associated proteins. The host is defined as the larger of the organisms involved in a symbiotic interaction.
    GO:0042025    host cell nucleus    A membrane-bounded organelle as it is found in the host cell in which chromosomes are housed and replicated. The host is defined as the larger of the organisms involved in a symbiotic interaction.
    GO:0020002    host cell plasma membrane    The plasma membrane surrounding a host cell.
    GO:0044157    host cell projection    A prolongation or process extending from a host cell, e.g. a flagellum or axon.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    BCN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3gqe)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3gqe
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  POLN_EEVVP | P36328
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  POLN_EEVVP | P36328
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        POLN_EEVVP | P363283gqo

(-) Related Entries Specified in the PDB File

3gpg CRYSTAL STRUCTURE OF CHIKUNGUNYA MACRO DOMAIN
3gpo CRYSTAL STRUCTURE OF CHIKUNGUNYA MACRO DOMAIN IN COMPLEX WITH ADP-RIBOSE
3gpq
