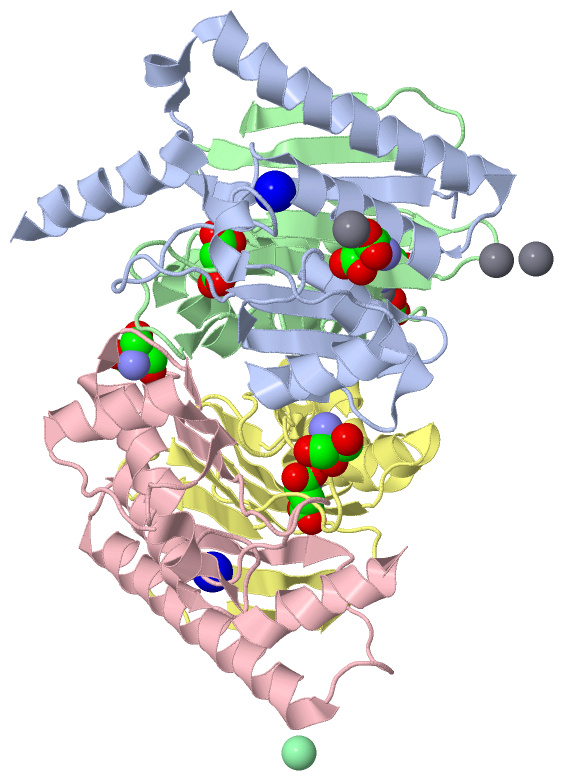

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF E. COLI ISOASPARTYL AMINOPEPTIDASE/L-ASPARAGINASE IN COMPLEX WITH L-ASPARTATE

Authors :  K. Michalska, K. Brzezinski, M. Jaskolski
Date :  07 Oct 07  (Deposition) - 30 Oct 07  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A,B,C,D
Keywords :  Isoaspartyl Peptidase, Asparaginase, Ntn-Hydrolase, Autoproteolysis, L-Aspartate/Calcium Cluster, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  K. Michalska, K. Brzezinski, M. Jaskolski
Crystal Structure Of Isoaspartyl Aminopeptidase In Complex With L-Aspartate
J. Biol. Chem. V. 280 28484 2005
PubMed-ID: 15946951  |  Reference-DOI: 10.1074/JBC.M504501200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - L-ASPARAGINASE
    ChainsA, C
    EC Number3.4.19.5, 3.5.1.1
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPET11D
    Expression System StrainBL21(DE3)PLYSS
    Expression System Taxid562
    Expression System Vector TypePLASMID
    FragmentN-TERMINAL SUBUNIT (ALPHA), UNP RESIDUES 2-161
    GeneYBIK (IAAA)
    Organism ScientificESCHERICHIA COLI
    Organism Taxid83333
    Other DetailsTHE N-TERMINAL METHIONINE HAS BEEN REMOVED BY AN INTRACELLULAR AMINOPEPTIDASE (E. COLI). DURING EXPRESSION AND PURIFICATION, THE PROTEIN UNDERGOES AUTOPROTEOLYTIC CLEAVAGE INTO ALPHA AND BETA SUBUNITS. THE RESIDUES 162-178 WERE NOT PRESENT IN THE CRYSTALLIZED MATERIAL DUE TO PARTIAL, NON-SPECIFIC DEGRADATION AT THE C-TERMINUS. THE NUMBER OF MISSING RESIDUES WAS DETERMINED BY MASS SPECTROMETRY
    StrainK12
    SynonymL-ASPARAGINASE SUBUNIT ALPHA, L-ASPARAGINE AMIDOHYDROLASE

Molecule 2 - L-ASPARAGINASE
    ChainsB, D
    EC Number3.4.19.5, 3.5.1.1
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPET11D
    Expression System StrainBL21(DE3)PLYSS
    Expression System Taxid562
    Expression System Vector TypePLASMID
    FragmentC-TERMINAL SUBUNIT (BETA), UNP RESIDUES 179-315
    GeneYBIK (IAAA)
    Organism ScientificESCHERICHIA COLI
    Organism Taxid83333
    Other DetailsDURING EXPRESSION AND PURIFICATION, THE PROTEIN UNDERGOES AUTOPROTEOLYTIC CLEAVAGE INTO ALPHA AND BETA SUBUNITS. THE RESIDUES 316-321 WERE NOT PRESENT IN THE CRYSTALLIZED MATERIAL DUE TO PARTIAL, NON-SPECIFIC DEGRADATION AT THE C-TERMINUS. THE NUMBER OF MISSING RESIDUES WAS DETERMINED BY MASS SPECTROMETRY
    StrainK12
    SynonymL-ASPARAGINASE SUBUNIT BETA, L-ASPARAGINE AMIDOHYDROLASE

 Structural Features

(-) Chains, Units

  1234
Asymmetric/Biological Unit ABCD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (5, 15)

Asymmetric/Biological Unit (5, 15)
No.NameCountTypeFull Name
1ASP5Mod. Amino AcidASPARTIC ACID
2CA5Ligand/IonCALCIUM ION
3CL1Ligand/IonCHLORIDE ION
4NA2Ligand/IonSODIUM ION
5TRS2Ligand/Ion2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL

(-) Sites  (0, 0)

(no "Site" information available for 2ZAL)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2ZAL)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2ZAL)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2ZAL)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2ZAL)

(-) Exons   (0, 0)

(no "Exon" information available for 2ZAL)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:161
 aligned with IAAA_ECOLI | P37595 from UniProtKB/Swiss-Prot  Length:321

    Alignment length:164
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161
           IAAA_ECOLI     2 GKAVIAIHGGAGAISRAQMSLQQELRYIEALSAIVETGQKMLEAGESALDVVTEAVRLLEECPLFNAGIGAVFTRDETHELDACVMDGNTLKAGAVAGVSHLRNPVLAARLVMEQSPHVMMIGEGAENFAFARGMERVSPEIFSTSLRYEQLLAARKEGATVLD 165
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeeeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhh..................eeeeeee.....eeeeeee....hhhhhhhhhhhhh...eeehhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhh---. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2zal A   2 GKAVIAIHGGAGAISRAQMSLQQELRYIEALSAIVETGQKMLEAGESALDVVTEAVRLLEECPLFNAGIGAVFTRDETHELDACVMDGNTLKAGAVAGVSHLRNPVLAARLVMEQSPHVMMIGEGAENFAFARGMERVSPEIFSTSLRYEQLLAARKEGA---D 503
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161   |
                                                                                                                                                                                         161 503

Chain B from PDB  Type:PROTEIN  Length:138
 aligned with IAAA_ECOLI | P37595 from UniProtKB/Swiss-Prot  Length:321

    Alignment length:138
                                   188       198       208       218       228       238       248       258       268       278       288       298       308
           IAAA_ECOLI   179 TVGAVALDLDGNLAAATSTGGMTNKLPGRVGDSPLVGAGCYANNASVAVSCTGTGEVFIRALAAYDIAALMDYGGLSLAEACERVVMEKLPALGGSGGLIAIDHEGNVALPFNTEGMYRAWGYAGDTPTTGIYREKGD 316
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeeeee.....eeeeeee.........ee.........eee....eeeeeeehhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh...eeeeeee....ee......eeeeeeee.....eeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2zal B 179 TVGAVALDLDGNLAAATSTGGMTNKLPGRVGDSPLVGAGCYANNASVAVSCTGTGEVFIRALAAYDIAALMDYGGLSLAEACERVVMEKLPALGGSGGLIAIDHEGNVALPFNTEGMYRAWGYAGDTPTTGIYREDDD 504
                                   188       198       208       218       228       238       248       258       268       278       288       298       308    ||||
                                                                                                                                                                313|||
                                                                                                                                                                 501||
                                                                                                                                                                  502|
                                                                                                                                                                   504

Chain C from PDB  Type:PROTEIN  Length:156
 aligned with IAAA_ECOLI | P37595 from UniProtKB/Swiss-Prot  Length:321

    Alignment length:156
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151
           IAAA_ECOLI     2 GKAVIAIHGGAGAISRAQMSLQQELRYIEALSAIVETGQKMLEAGESALDVVTEAVRLLEECPLFNAGIGAVFTRDETHELDACVMDGNTLKAGAVAGVSHLRNPVLAARLVMEQSPHVMMIGEGAENFAFARGMERVSPEIFSTSLRYEQLLAAR 157
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...eeeeeeee........hhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhh..................eeeeeee.....eeeeeee....hhhhhhhhhhhhh...eeehhhhhhhhhhh.....hhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2zal C   2 GKAVIAIHGGAGAISRAQMSLQQELRYIEALSAIVETGQKMLEAGESALDVVTEAVRLLEECPLFNAGIGAVFTRDETHELDACVMDGNTLKAGAVAGVSHLRNPVLAARLVMEQSPHVMMIGEGAENFAFARGMERVSPEIFSTSLRYEQLLAAR 157
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151

Chain D from PDB  Type:PROTEIN  Length:136
 aligned with IAAA_ECOLI | P37595 from UniProtKB/Swiss-Prot  Length:321

    Alignment length:136
                                   188       198       208       218       228       238       248       258       268       278       288       298       308
           IAAA_ECOLI   179 TVGAVALDLDGNLAAATSTGGMTNKLPGRVGDSPLVGAGCYANNASVAVSCTGTGEVFIRALAAYDIAALMDYGGLSLAEACERVVMEKLPALGGSGGLIAIDHEGNVALPFNTEGMYRAWGYAGDTPTTGIYREK 314
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) Asparaginase_2-2zalD01 D:179-500                                                                                                         Pfam domains (1)
           Pfam domains (2) Asparaginase_2-2zalD02 D:179-500                                                                                                         Pfam domains (2)
           Pfam domains (3) Asparaginase_2-2zalD03 D:179-500                                                                                                         Pfam domains (3)
           Pfam domains (4) Asparaginase_2-2zalD04 D:179-500                                                                                                         Pfam domains (4)
         Sec.struct. author .eeeeee.....eeeeeee.........ee.........eee....eeeeeeehhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh...eeeeeee....ee......eeeeeeee.....eeeee... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2zal D 179 TVGAVALDLDGNLAAATSTGGMTNKLPGRVGDSPLVGAGCYANNASVAVSCTGTGEVFIRALAAYDIAALMDYGGLSLAEACERVVMEKLPALGGSGGLIAIDHEGNVALPFNTEGMYRAWGYAGDTPTTGIYRED 500
                                   188       198       208       218       228       238       248       258       268       278       288       298       308    ||
                                                                                                                                                                313|
                                                                                                                                                                 500

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2ZAL)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2ZAL)

(-) Pfam Domains  (1, 4)

Asymmetric/Biological Unit
(-)
Clan: NTN (93)

(-) Gene Ontology  (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C,D   (IAAA_ECOLI | P37595)
molecular function
    GO:0004067    asparaginase activity    Catalysis of the reaction: L-asparagine + H2O = L-aspartate + NH3.
    GO:0008798    beta-aspartyl-peptidase activity    Catalysis of the cleavage of a beta-linked aspartic residue from the N-terminus of a polypeptide.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
biological process
    GO:0016540    protein autoprocessing    Processing which a protein carries out itself. This involves actions such as the autolytic removal of residues to generate the mature form of the protein.
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
