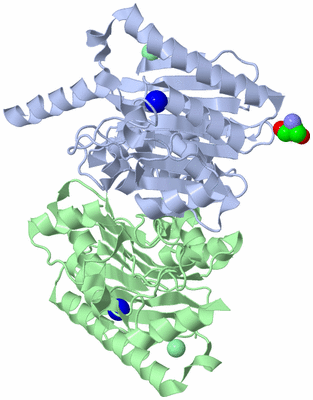

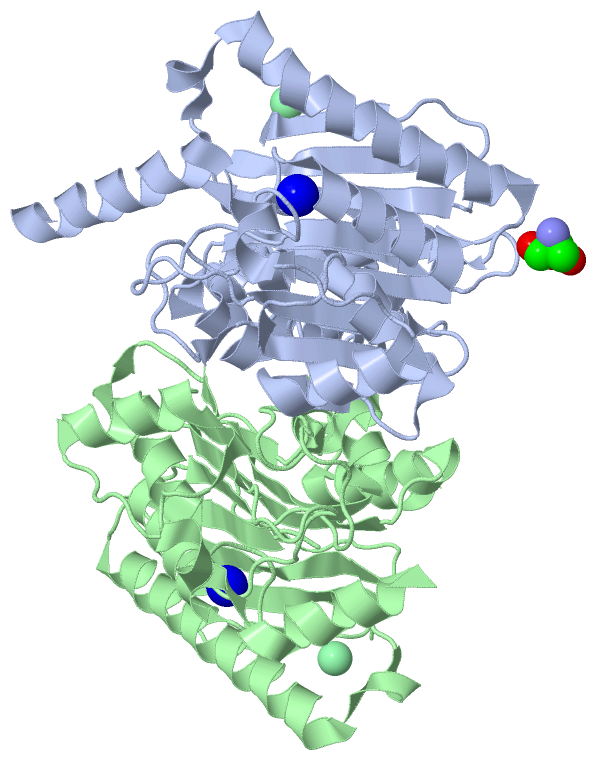

Asym./Biol. Unit (Jmol Viewer)

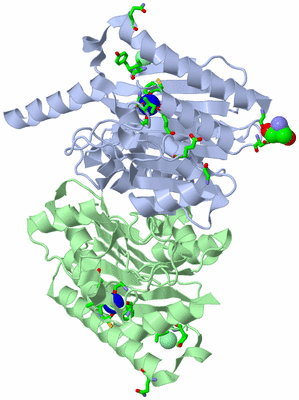

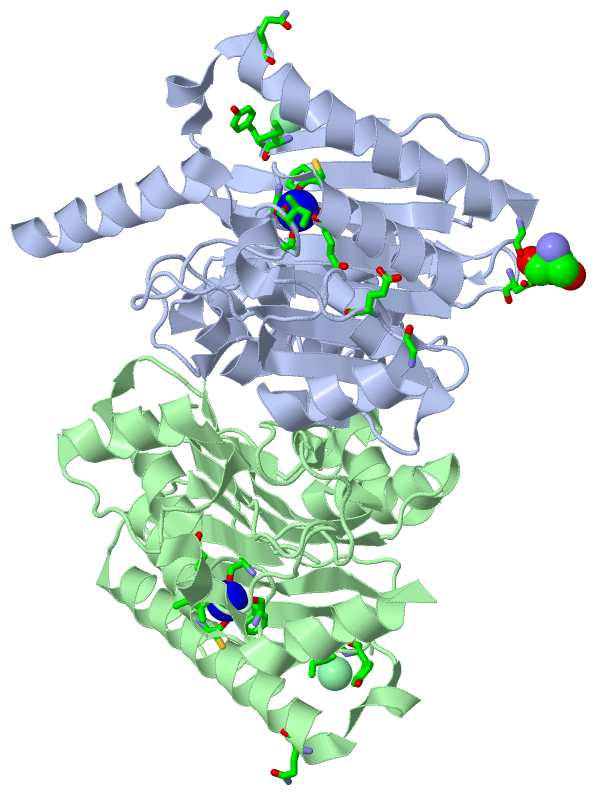

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   ORTHORHOMBIC CRYSTAL STRUCTURE OF PRECURSOR E. COLI ISOASPARTYL PEPTIDASE/L-ASPARAGINASE (ECAIII) WITH ACTIVE-SITE T179A MUTATION

Authors :   K. Michalska, A. Hernandez-Santoyo, M. Jaskolski

Date :   07 Oct 07 (Deposition) - 25 Mar 08 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.01

Chains :   Asym./Biol. Unit : A,B

Keywords :   Isoaspartyl Peptidase, Asparaginase, Ntn-Hydrolase, Autoproteolysis, Precursor, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   K. Michalska, D. Borek, A. Hernandez-Santoyo, M. Jaskolski
Crystal Packing Of Plant-Type L-Asparaginase From Escherichia Coli
Acta Crystallogr. , Sect. D V. 64 309 2008
PubMed-ID: 18323626 | Reference-DOI: 10.1107/S0907444907068072
(for further references see the PDB file header)

Molecule 1 - L-ASPARAGINASE PRECURSOR
	Chains	:	A, B
	EC Number	:	3.4.19.5, 3.5.1.1
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET11D
	Expression System Strain	:	BL21(DE3)PLYSS
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Gene	:	YBIK (IAAA)
	Mutation	:	YES
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	83333
	Other Details	:	THE N-TERMINAL METHIONINE HAS BEEN REMOVED BY AN INTRACELLULAR AMINOPEPTIDASE (E. COLI).
	Strain	:	K12
	Synonym	:	L-ASPARAGINE AMIDOHYDROLASE

		1	2
Asymmetric/Biological Unit	:	A	B

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (3, 5)

No.	Name	Count	Type	Full Name
1	CL	2	Ligand/Ion	CHLORIDE ION
2	NA	2	Ligand/Ion	SODIUM ION
3	TRS	1	Ligand/Ion	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL

Asymmetric Unit (5, 5)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	LEU A:60 , GLU A:61 , CYS A:63 , PHE A:66 , ALA A:68 , ILE A:70	BINDING SITE FOR RESIDUE NA A 322
2	AC2	SOFTWARE	ILE A:310 , TYR A:311 , GLN B:23	BINDING SITE FOR RESIDUE CL A 323
3	AC3	SOFTWARE	LEU B:60 , GLU B:61 , CYS B:63 , PHE B:66 , ALA B:68 , ILE B:70	BINDING SITE FOR RESIDUE NA B 322
4	AC4	SOFTWARE	GLN A:23 , ILE B:310 , TYR B:311	BINDING SITE FOR RESIDUE CL B 323
5	AC5	SOFTWARE	GLY A:46 , GLY A:135 , GLU A:137 , ASP A:188 , GLY A:253	BINDING SITE FOR RESIDUE TRS A 1

(no "SS Bond" information available for 2ZAK)

(no "Cis Peptide Bond" information available for 2ZAK)

(no "SAP(SNP)/Variant" information available for 2ZAK)

(no "PROSITE Motif" information available for 2ZAK)

(no "Exon" information available for 2ZAK)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:298
 aligned with IAAA_ECOLI | P37595 from UniProtKB/Swiss-Prot  Length:321

    Alignment length:312
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311
           IAAA_ECOLI     2 GKAVIAIHGGAGAISRAQMSLQQELRYIEALSAIVETGQKMLEAGESALDVVTEAVRLLEECPLFNAGIGAVFTRDETHELDACVMDGNTLKAGAVAGVSHLRNPVLAARLVMEQSPHVMMIGEGAENFAFARGMERVSPEIFSTSLRYEQLLAARKEGATVLDHSGAPLDEKQKMGTVGAVALDLDGNLAAATSTGGMTNKLPGRVGDSPLVGAGCYANNASVAVSCTGTGEVFIRALAAYDIAALMDYGGLSLAEACERVVMEKLPALGGSGGLIAIDHEGNVALPFNTEGMYRAWGYAGDTPTTGIYRE 313
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...eeeeeeeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhh..................eeeeeee....eeeeeeee....hhhhhhhhhhhhh...eeehhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhh--------------..eeeeee.....eeeeeee.........ee.........eee....eeeeeeehhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh...eeeeeee....ee......eeeeeeee.....eeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2zak A   2 GKAVIAIHGGAGAISRAQMSLQQELRYIEALSAIVETGQKMLEAGESALDVVTEAVRLLEECPLFNAGIGAVFTRDETHELDACVMDGNTLKAGAVAGVSHLRNPVLAARLVMEQSPHVMMIGEGAENFAFARGMERVSPEIFSTSLRYEQLLAARKEGATV--------------GAVGAVALDLDGNLAAATSTGGMTNKLPGRVGDSPLVGAGCYANNASVAVSCTGTGEVFIRALAAYDIAALMDYGGLSLAEACERVVMEKLPALGGSGGLIAIDHEGNVALPFNTEGMYRAWGYAGDTPTTGIYRE 313
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161 |       -      |181       191       201       211       221       231       241       251       261       271       281       291       301       311
                                                                                                                                                                                           163            178

Chain B from PDB  Type:PROTEIN  Length:293
 aligned with IAAA_ECOLI | P37595 from UniProtKB/Swiss-Prot  Length:321

    Alignment length:312
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311
           IAAA_ECOLI     2 GKAVIAIHGGAGAISRAQMSLQQELRYIEALSAIVETGQKMLEAGESALDVVTEAVRLLEECPLFNAGIGAVFTRDETHELDACVMDGNTLKAGAVAGVSHLRNPVLAARLVMEQSPHVMMIGEGAENFAFARGMERVSPEIFSTSLRYEQLLAARKEGATVLDHSGAPLDEKQKMGTVGAVALDLDGNLAAATSTGGMTNKLPGRVGDSPLVGAGCYANNASVAVSCTGTGEVFIRALAAYDIAALMDYGGLSLAEACERVVMEKLPALGGSGGLIAIDHEGNVALPFNTEGMYRAWGYAGDTPTTGIYRE 313
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
           Pfam domains (1) Asparaginase_2-2zakB01 B:2-313                                                                                                                                                                                                                                                                                           Pfam domains (1)
           Pfam domains (2) Asparaginase_2-2zakB02 B:2-313                                                                                                                                                                                                                                                                                           Pfam domains (2)
         Sec.struct. author ...eeeeeeeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhh..................eeeeeee.....eeeeeee....hhhhhhhhhhhhh...eeehhhhhhhhhhh.....hhhhhhhhhhhhhhhhhh.-------------------..eeeeee.....eeeeeee.........ee.........eee....eeeeeeehhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh...eeeeeee....ee......eeeeeeee.....eee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2zak B   2 GKAVIAIHGGAGAISRAQMSLQQELRYIEALSAIVETGQKMLEAGESALDVVTEAVRLLEECPLFNAGIGAVFTRDETHELDACVMDGNTLKAGAVAGVSHLRNPVLAARLVMEQSPHVMMIGEGAENFAFARGMERVSPEIFSTSLRYEQLLAARK-------------------GAVGAVALDLDGNLAAATSTGGMTNKLPGRVGDSPLVGAGCYANNASVAVSCTGTGEVFIRALAAYDIAALMDYGGLSLAEACERVVMEKLPALGGSGGLIAIDHEGNVALPFNTEGMYRAWGYAGDTPTTGIYRE 313
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151      |  -         -      |181       191       201       211       221       231       241       251       261       271       281       291       301       311
                                                                                                                                                                                      158                 178

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

(no "SCOP Domain" information available for 2ZAK)

(no "CATH Domain" information available for 2ZAK)

Asymmetric/Biological Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: NTN (93)

Family: Asparaginase_2 (8)

Escherichia coli (strain K12) (5)

1a	Asparaginase_2-2zakB01	B:2-313
1b	Asparaginase_2-2zakB02	B:2-313

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B (IAAA_ECOLI | P37595)

molecular function
	GO:0004067	asparaginase activity	Catalysis of the reaction: L-asparagine + H2O = L-aspartate + NH3.
	GO:0008798	beta-aspartyl-peptidase activity	Catalysis of the cleavage of a beta-linked aspartic residue from the N-terminus of a polypeptide.
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0008233	peptidase activity	Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
biological process
	GO:0016540	protein autoprocessing	Processing which a protein carries out itself. This involves actions such as the autolytic removal of residues to generate the mature form of the protein.
	GO:0006508	proteolysis	The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
