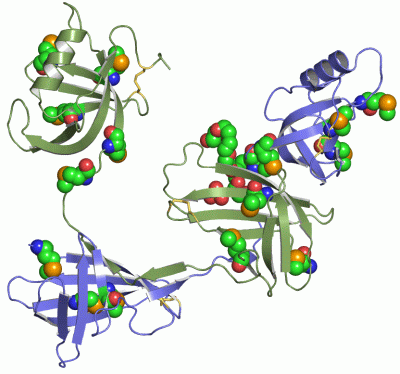

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

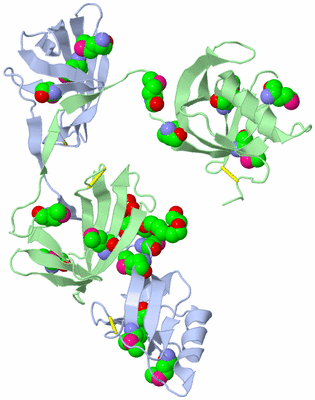

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

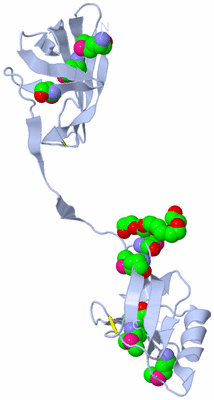

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

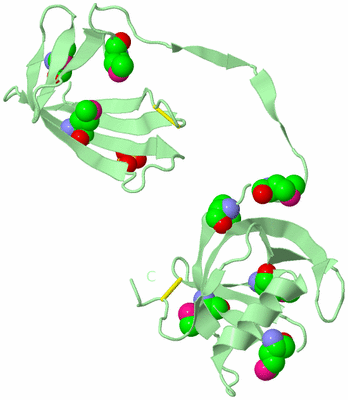

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE CPX PATHWAY ACTIVATOR NLPE FROM ESCHERICHIA COLI

Authors :  Y. Hirano, M. M. Hossain, K. Takeda, H. Tokuda, K. Miki
Date :  18 Jun 07  (Deposition) - 04 Sep 07  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.60
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Outer Memblane Lipoprotein, Beta Barrel, Ob-Fold, 3D Domain Swapping, Signaling Protein Activator (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. Hirano, M. M. Hossain, K. Takeda, H. Tokuda, K. Miki
Structural Studies Of The Cpx Pathway Activator Nlpe On The Outer Membrane Of Escherichia Coli
Structure V. 15 963 2007
PubMed-ID: 17698001  |  Reference-DOI: 10.1016/J.STR.2007.06.014
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - COPPER HOMEOSTASIS PROTEIN CUTF
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PKT-MNLPE
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: NLPE
    Mutation: YES
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Synonym: LIPOPROTEIN NLPE

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 18)

Asymmetric Unit (3, 18)
No.NameCountTypeFull Name
1MSE16Mod. Amino AcidSELENOMETHIONINE
2P6G1Ligand/IonHEXAETHYLENE GLYCOL
3SO41Ligand/IonSULFATE ION
Biological Unit 1 (2, 9)
No.NameCountTypeFull Name
1MSE8Mod. Amino AcidSELENOMETHIONINE
2P6G1Ligand/IonHEXAETHYLENE GLYCOL
3SO4-1Ligand/IonSULFATE ION
Biological Unit 2 (2, 9)
No.NameCountTypeFull Name
1MSE8Mod. Amino AcidSELENOMETHIONINE
2P6G-1Ligand/IonHEXAETHYLENE GLYCOL
3SO41Ligand/IonSULFATE ION

(-) Sites  (0, 0)

(no "Site" information available for 2Z4I)

(-) SS Bonds  (4, 4)

Asymmetric Unit
No.Residues
1A:31 -A:34
2A:145 -A:211
3B:31 -B:34
4B:145 -B:211

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2Z4I)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2Z4I)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2Z4I)

(-) Exons   (0, 0)

(no "Exon" information available for 2Z4I)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:190
 aligned with NLPE_ECOLI | P40710 from UniProtKB/Swiss-Prot  Length:236

    Alignment length:195
                                    49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229
           NLPE_ECOLI    40 PMPQSWRGVLPCADCEGIETSLFLEKDGTWVMNERYLGAREEPSSFASYGTWARTADKLVLTDSKGEKSYYRAKGDALEMLDREGNPIESQFNYTLEAAQSSLPMTPMTLRGMYFYMADAATFTDCATGKRFMVANNAELERSYLAARGHSEKPVLLSVEGHFTLEGNPDTGAPTKVLAPDTAGKFYPNQDCSSL 234
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeeee..eeeeeeeeee....eeeeeeeee.......eeeeeeeee....eeeeee....eeeeeee..eeeee.......eeee..eeee.........eeeeeeeee....eeeee.....eee...hhhhhhhhhhhhh.....eeeeeeeeeeee..-----.eeeeee.....ee........ Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2z4i A  20 PmPQSWRGVLPCADCEGIETSLFLEKDGTWVmNERYLGAREEPSSFASYGTWARTADKLVLTDSKGEKSYYRAKGDALEmLDREGNPIESQFNYTLEAAQSSLPmTPmTLRGmYFYmADAATFTDCATGKRFmVANNAELERSYLAARGHSEKPVLLSVEGHFTLEGN-----PTKVLAPDTAGKFYPNQDCSSL 214
                             |      29        39        49 |      59        69        79        89        99       109       119    |  129  |   |139       149  |    159       169       179       | -   |   199       209
                             |                            51-MSE                                          99-MSE                  124-MSE   |   |             152-MSE                            187   193
                            21-MSE                                                                                                   127-MSE|   |
                                                                                                                                          132-MSE
                                                                                                                                              136-MSE


Chain B from PDB  Type:PROTEIN  Length:194
 aligned with NLPE_ECOLI | P40710 from UniProtKB/Swiss-Prot  Length:236

    Alignment length:194
                                    50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230
           NLPE_ECOLI    41 MPQSWRGVLPCADCEGIETSLFLEKDGTWVMNERYLGAREEPSSFASYGTWARTADKLVLTDSKGEKSYYRAKGDALEMLDREGNPIESQFNYTLEAAQSSLPMTPMTLRGMYFYMADAATFTDCATGKRFMVANNAELERSYLAARGHSEKPVLLSVEGHFTLEGNPDTGAPTKVLAPDTAGKFYPNQDCSSL 234
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ----NlpE-2z4iB01 B:25-111                                                                  ------------------------------------------------------------------------------------------------------- Pfam domains (1)
           Pfam domains (2) ----NlpE-2z4iB02 B:25-111                                                                  ------------------------------------------------------------------------------------------------------- Pfam domains (2)
         Sec.struct. author ...eeeeee......eeeeeeee....eeeeeeeee.......eeeeeeeee....eeeeee....eeeeee...eeee.........eeee.eeee.........eeeeeeeee....eeeee.....eeee..hhhhhhhhhhhh......eeeeeeeeeeeee......eeeeeee....eee........ Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2z4i B  21 mPQSWRGVLPCADCEGIETSLFLEKDGTWVmNERYLGAREEPSSFASYGTWARTADKLVLTDSKGEKSYYRAKGDALEmLDREGNPIESQFNYTLEAAQSSLPmTPmTLRGmYFYmADAATFTDCATGKRFmVANNAELERSYLAARGHSEKPVLLSVEGHFTLEGNPDTGAPTKVLAPDTAGKFYPNQDCSSL 214
                            |       30        40        50|       60        70        80        90       100       110       120   |  |130 |   | 140       150 |     160       170       180       190       200       210
                           21-MSE                        51-MSE                                          99-MSE                  124-MSE   |   |             152-MSE
                                                                                                                                    127-MSE|   |
                                                                                                                                         132-MSE
                                                                                                                                             136-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2Z4I)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2Z4I)

(-) Pfam Domains  (1, 2)

Asymmetric Unit
(-)
Clan: Calycin (163)

(-) Gene Ontology  (3, 3)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (NLPE_ECOLI | P40710)
biological process
    GO:0010810    regulation of cell-substrate adhesion    Any process that modulates the frequency, rate or extent of cell-substrate adhesion. Cell-substrate adhesion is the attachment of a cell to the underlying substrate via adhesion molecules.
cellular component
    GO:0009279    cell outer membrane    A lipid bilayer that forms the outermost membrane of the cell envelope; enriched in polysaccharide and protein; the outer leaflet of the membrane contains specific lipopolysaccharide structures.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    P6G  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 2z4i)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2z4i)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

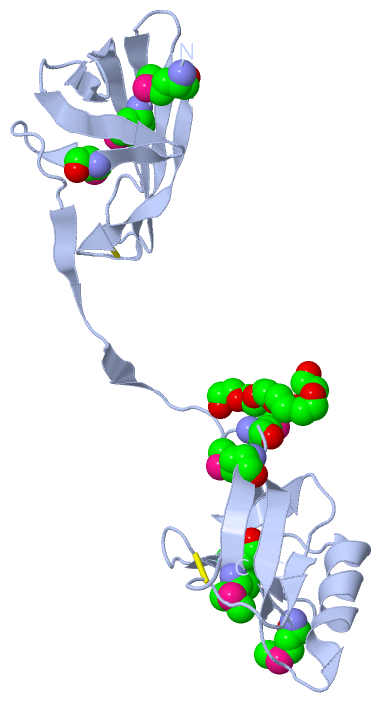

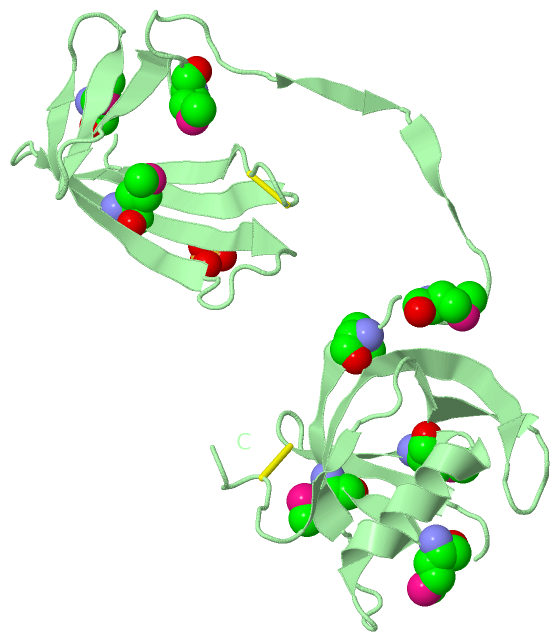

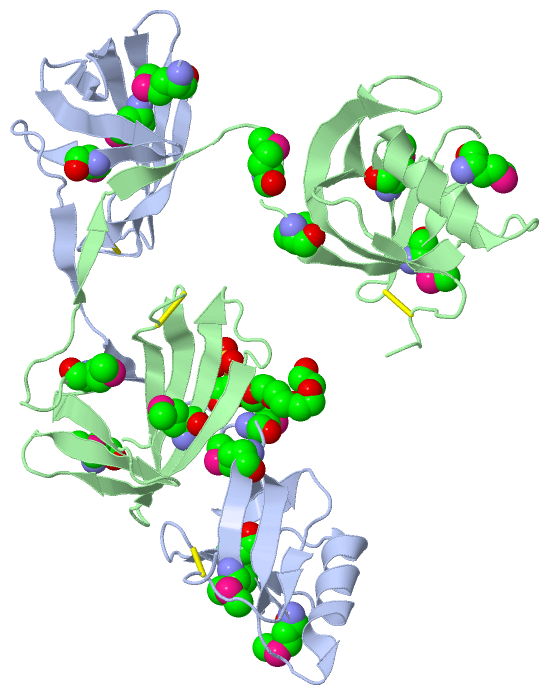

[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2z4i
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  NLPE_ECOLI | P40710
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  NLPE_ECOLI | P40710
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        NLPE_ECOLI | P40710: 2z4h

(-) Related Entries Specified in the PDB File

2z4h THE UNLABELED PROTEIN
