Title :   CRYSTAL STRUCTURE OF UNCHARACTERIZED CONSERVED PROTEIN FROM THERMUS THERMOPHILUS HB8

Authors :   H. Iino, S. Yokoyama, S. Kuramitsu, Riken Structural Genomics/Proteomics Initiative (Rsgi)

Date :   07 May 07 (Deposition) - 13 Nov 07 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.10

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)
Biol. Unit 3: A  (3x)
Biol. Unit 4: B  (3x)

Keywords :   Uncharacterized Conserved Protein, Structural Genomics, Nppsfa, National Project On Protein Structural And Functional Analyses, Riken Structural Genomics/Proteomics Initiative, Rsgi, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   H. Iino, S. Yokoyama, S. Kuramitsu
Crystal Structure Of Uncharacterized Conserved Protein From Thermus Thermophilus Hb8
To Be Published
PubMed: search
(for further references see the PDB file header)

Molecule 1 - PUTATIVE UNCHARACTERIZED PROTEIN TTHA0978
	Chains	:	A, B
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET-11A
	Expression System Strain	:	ROSETTA834(DE3)
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Organism Scientific	:	THERMUS THERMOPHILUS
	Organism Taxid	:	274

		1	2

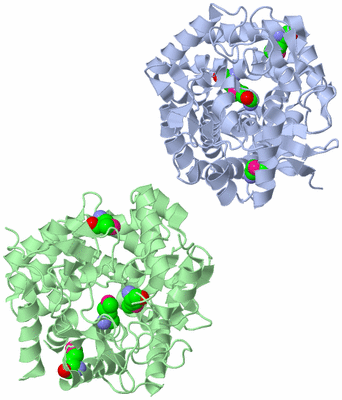

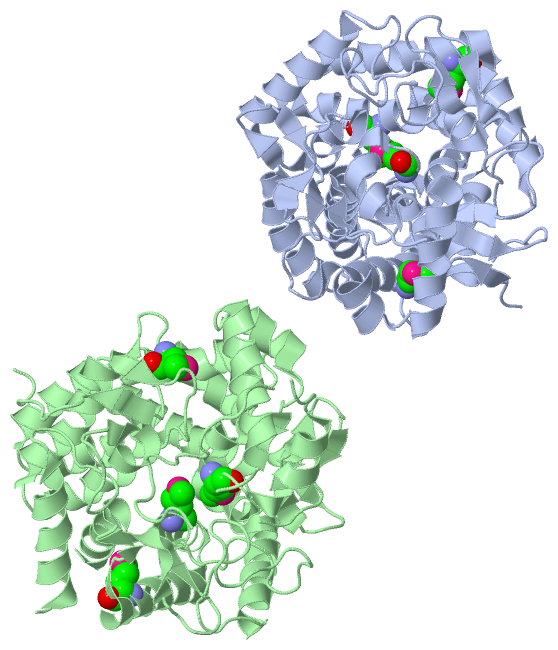

Asymmetric Unit	:	A	B

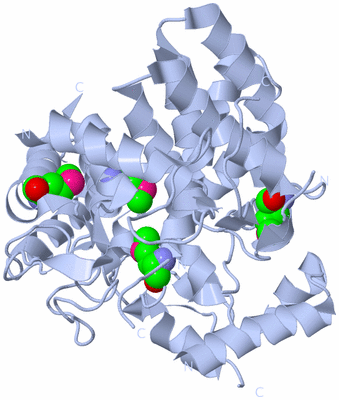

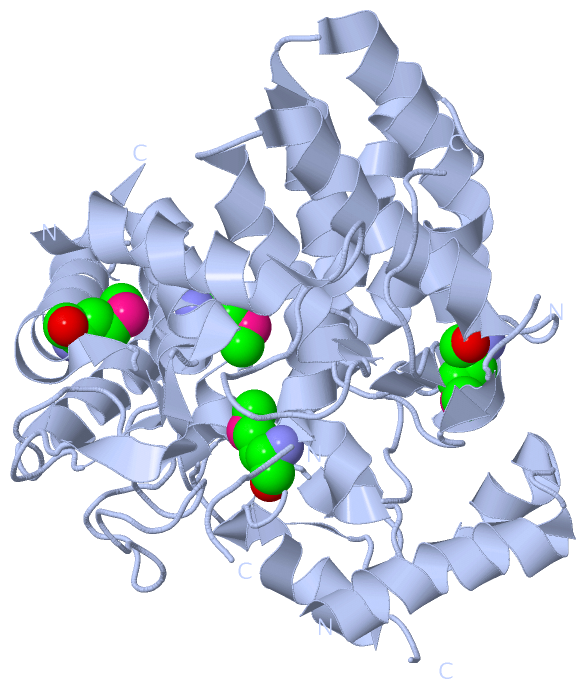

Biological Unit 1 (1x)	:	A

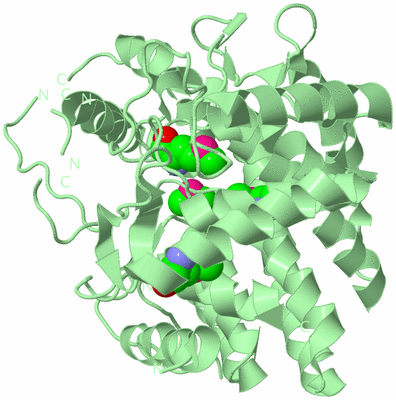

Biological Unit 2 (1x)	:		B

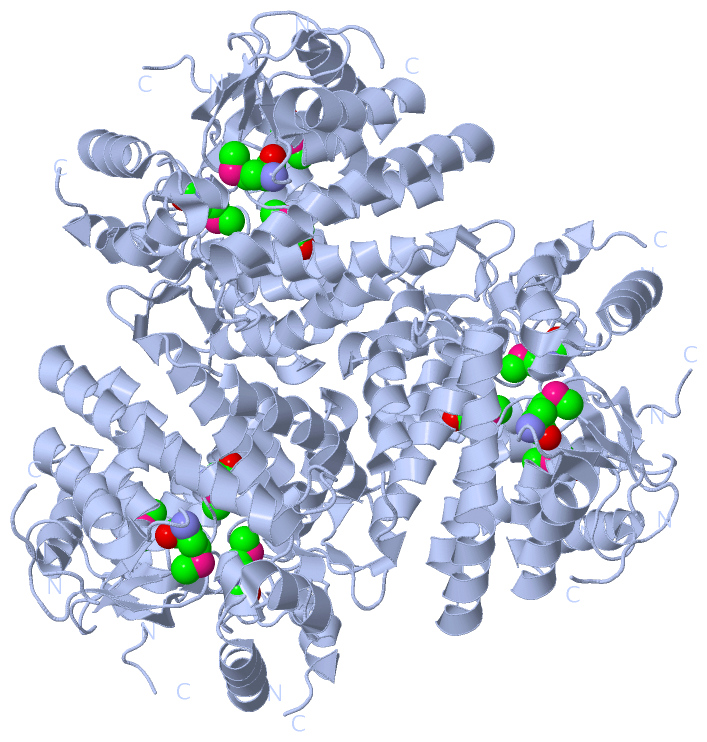

Biological Unit 3 (3x)	:	A

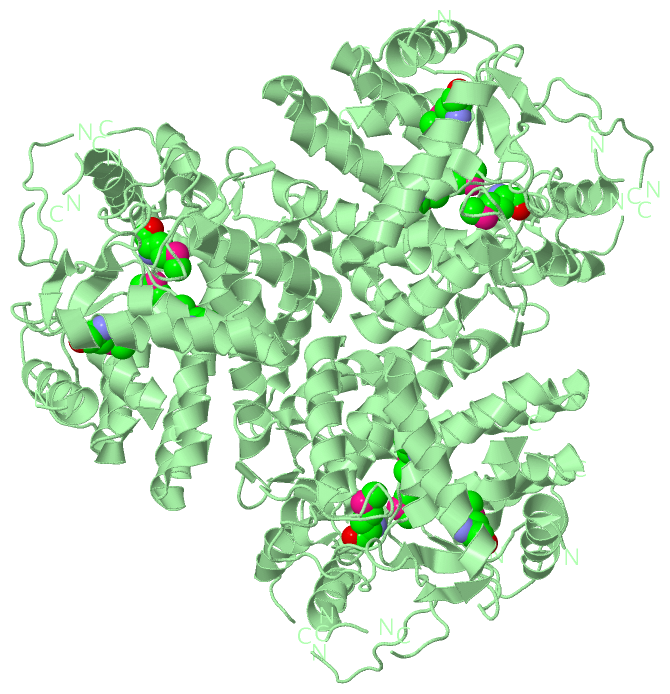

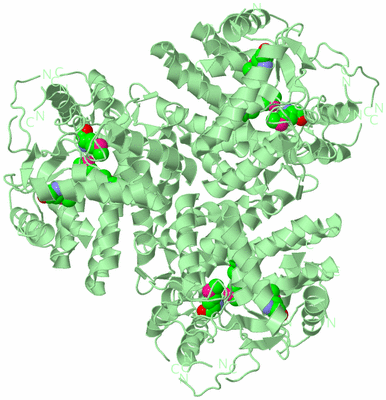

Biological Unit 4 (3x)	:		B

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 8)

No.	Name	Count	Type	Full Name
1	MSE	8	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 1 (1, 4)

No.	Name	Count	Type	Full Name
1	MSE	4	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 2 (1, 4)

No.	Name	Count	Type	Full Name
1	MSE	4	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 3 (1, 12)

No.	Name	Count	Type	Full Name
1	MSE	12	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 4 (1, 12)

No.	Name	Count	Type	Full Name
1	MSE	12	Mod. Amino Acid	SELENOMETHIONINE

(no "Site" information available for 2Z07)

(no "SS Bond" information available for 2Z07)

(no "Cis Peptide Bond" information available for 2Z07)

(no "SAP(SNP)/Variant" information available for 2Z07)

(no "PROSITE Motif" information available for 2Z07)

(no "Exon" information available for 2Z07)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:389
 aligned with Q5SJN0_THET8 | Q5SJN0 from UniProtKB/TrEMBL  Length:420

    Alignment length:418
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412
         Q5SJN0_THET8     3 PLRTKAVEVLQRNSRGAFTVPAHGLYPYQWLWDSAFIALGWTQVDWERAWQELLCLFDYGQGPDGMLPHIVFHEQSRDYFPGPDVWGREARAQPATSGITQPPVVATVVRYLYEKDPDRDRARERARYLFPKLLAFHRWLYHARDPYRTGLVVIVHPWESGMDNSPAWDKPLSRVPVENLPPYERRDVKHVNPEERPRKEDYDRYLSLLYLFRRLEYDPREIYRQSPFKVVDVGFNAILQRANRDLYALAVLLQEDPYEIEEWIVRGEVGLEALWDREAGFYFSWDLVAGEPIAVKTSAGFLPLFAGTPHQGRASLLAQEAERWGEKARYLLPSVDPTSPFFEPGRYWRGPVWINVNWMVAEGFRDYGFAALAARLKADALALMEREGFREYYDPLTGQGRGGEGFSWSAALALFWTR 420
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhh..............eehhhhhhhhhhhh..hhhhhhhhhhhhhhhhh........eee........-----------...ee.......hhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhh..........hhhhhh...hhhhhhhhhh...-----------.....-------hhhhhhhhhhhhhhh..hhhhhhhhh...eehhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhee....ee..ee....ee....hhhhhhhhhhh..hhhhhhhhhhhhhhhh...........................hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh.eeee......eeeee.hhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2z07 A   3 PLRTKAVEVLQRNSRGAFTVPAHGLYPYQWLWDSAFIALGWTQVDWERAWQELLCLFDYGQGPDGmLPHIVFHEQSRDYF-----------AQPATSGITQPPVVATVVRYLYEKDPDRDRARERARYLFPKLLAFHRWLYHARDPYRTGLVVIVHPWESGmDNSPAWDKPLSRVPV-----------KHVNP-------DYDRYLSLLYLFRRLEYDPREIYRQSPFKVVDVGFNAILQRANRDLYALAVLLQEDPYEIEEWIVRGEVGLEALWDREAGFYFSWDLVAGEPIAVKTSAGFLPLFAGTPHQGRASLLAQEAERWGEKARYLLPSVDPTSPFFEPGRYWRGPVWINVNWmVAEGFRDYGFAALAARLKADALALmEREGFREYYDPLTGQGRGGEGFSWSAALALFWTR 420
                                    12        22        32        42        52        62     |  72        82         - |     102       112       122       132       142       152       162 |     172      |  -       192  |      -|      212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382   |   392       402       412
                                                                                            68-MSE        82          94                                                                   164-MSE        179         191 195     203                                                                                                                                                           361-MSE                  386-MSE

Chain B from PDB  Type:PROTEIN  Length:403
 aligned with Q5SJN0_THET8 | Q5SJN0 from UniProtKB/TrEMBL  Length:420

    Alignment length:419
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411
         Q5SJN0_THET8     2 APLRTKAVEVLQRNSRGAFTVPAHGLYPYQWLWDSAFIALGWTQVDWERAWQELLCLFDYGQGPDGMLPHIVFHEQSRDYFPGPDVWGREARAQPATSGITQPPVVATVVRYLYEKDPDRDRARERARYLFPKLLAFHRWLYHARDPYRTGLVVIVHPWESGMDNSPAWDKPLSRVPVENLPPYERRDVKHVNPEERPRKEDYDRYLSLLYLFRRLEYDPREIYRQSPFKVVDVGFNAILQRANRDLYALAVLLQEDPYEIEEWIVRGEVGLEALWDREAGFYFSWDLVAGEPIAVKTSAGFLPLFAGTPHQGRASLLAQEAERWGEKARYLLPSVDPTSPFFEPGRYWRGPVWINVNWMVAEGFRDYGFAALAARLKADALALMEREGFREYYDPLTGQGRGGEGFSWSAALALFWTR 420
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ----------------------------------------------------------------------------------            -----Trehalase-2z07B01 B:101-411                                                                                                                                                                                                                                                                                            --------- Pfam domains (1)
           Pfam domains (2) ----------------------------------------------------------------------------------            -----Trehalase-2z07B02 B:101-411                                                                                                                                                                                                                                                                                            --------- Pfam domains (2)
         Sec.struct. author .hhhhhhhhhhhhhh..............eehhhhhhhhhhhh..hhhhhhhhhhhhhhhhh........eee.........------------.ee.......hhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhh..........hhhhhh...hhhhhhhhhh....-...............--...-hhhhhhhhhhhhhhh..hhhhhhhhh...eehhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhee....ee..ee....ee....hhhhhhhhhhh..hhhhhhhhhhhhhhhhh..........................hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh.eeee......eeeee.hhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2z07 B   2 APLRTKAVEVLQRNSRGAFTVPAHGLYPYQWLWDSAFIALGWTQVDWERAWQELLCLFDYGQGPDGmLPHIVFHEQSRDYFP------------PATSGITQPPVVATVVRYLYEKDPDRDRARERARYLFPKLLAFHRWLYHARDPYRTGLVVIVHPWESGmDNSPAWDKPLSRVPVE-LPPYERRDVKHVNPE--PRK-DYDRYLSLLYLFRRLEYDPREIYRQSPFKVVDVGFNAILQRANRDLYALAVLLQEDPYEIEEWIVRGEVGLEALWDREAGFYFSWDLVAGEPIAVKTSAGFLPLFAGTPHQGRASLLAQEAERWGEKARYLLPSVDPTSPFFEPGRYWRGPVWINVNWmVAEGFRDYGFAALAARLKADALALmEREGFREYYDPLTGQGRGGEGFSWSAALALFWTR 420
                                    11        21        31        41        51        61      | 71        81 |       -    |  101       111       121       131       141       151       161  |    171        |-|      191    |  201 |     211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381    |  391       401       411
                                                                                             68-MSE         83           96                                                                 164-MSE         180 |           196  | | |                                                                                                                                                           361-MSE                  386-MSE
                                                                                                                                                                                                              182              199 | |
                                                                                                                                                                                                                                 201 |
                                                                                                                                                                                                                                   203

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

(no "SCOP Domain" information available for 2Z07)

(no "CATH Domain" information available for 2Z07)

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: 6_Hairpin (120)

Family: Trehalase (5)

Thermus thermophilus (strain HB8 / ATCC 27634 / DSM 579) (1)

1a	Trehalase-2z07B01	B:101-411
1b	Trehalase-2z07B02	B:101-411

Asymmetric Unit(hide GO term definitions)

Chain A,B (Q5SJN0_THET8 | Q5SJN0)

molecular function
	GO:0004555	alpha,alpha-trehalase activity	Catalysis of the reaction: alpha,alpha-trehalose + H2O = 2 D-glucose.
	GO:0003824	catalytic activity	Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
	GO:0004573	mannosyl-oligosaccharide glucosidase activity	Catalysis of the exohydrolysis of the non-reducing terminal glucose residue in the mannosyl-oligosaccharide Glc(3)Man(9)GlcNAc(2).
biological process
	GO:0009311	oligosaccharide metabolic process	The chemical reactions and pathways involving oligosaccharides, molecules with between two and (about) 20 monosaccharide residues connected by glycosidic linkages.
	GO:0005991	trehalose metabolic process	The chemical reactions and pathways involving trehalose, a disaccharide isomeric with sucrose and obtained from certain lichens and fungi.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		MSE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
(no "Sites" information available for 2z07)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2z07)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

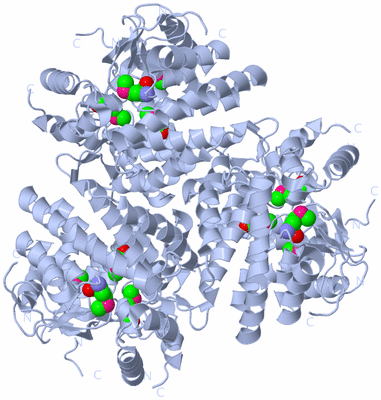

		Biological Unit 3	[ Jena3D ]
