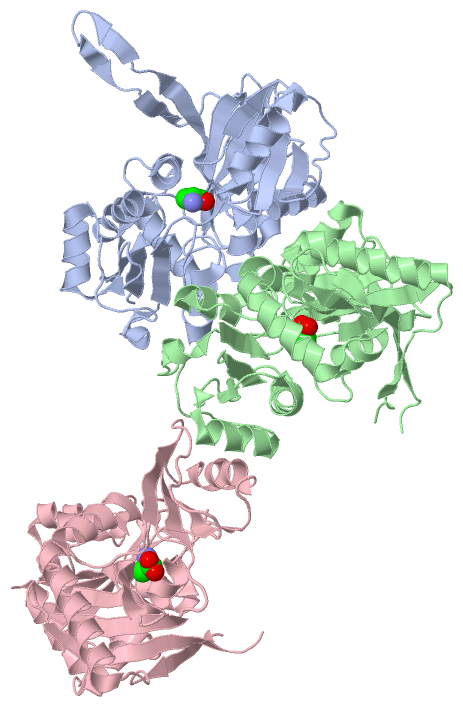

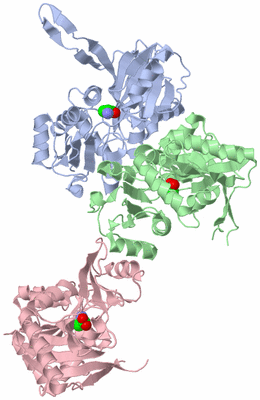

Asymmetric Unit (Jmol Viewer)

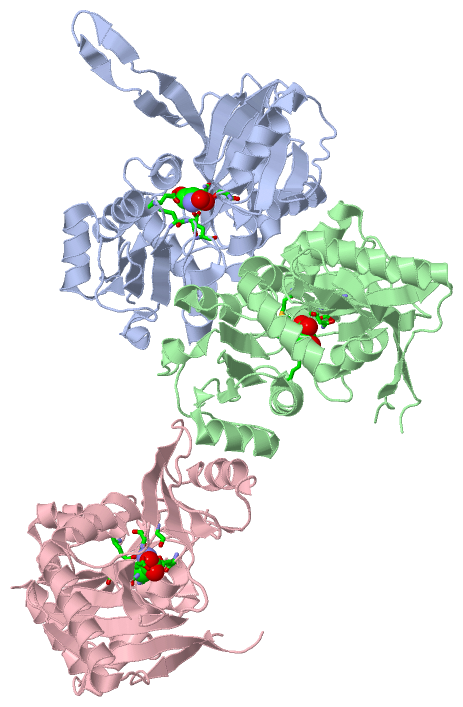

Asym. Unit - sites (Jmol Viewer)

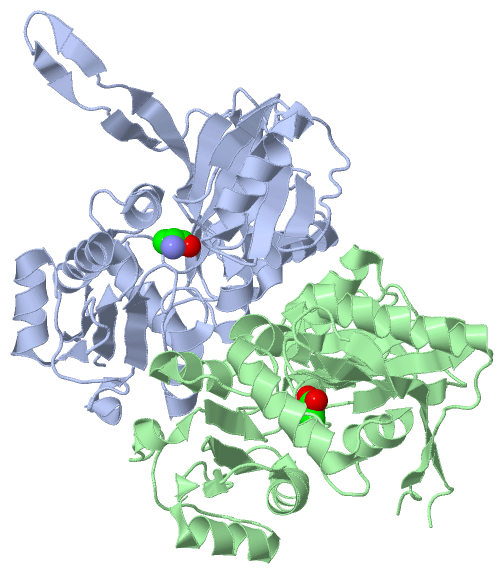

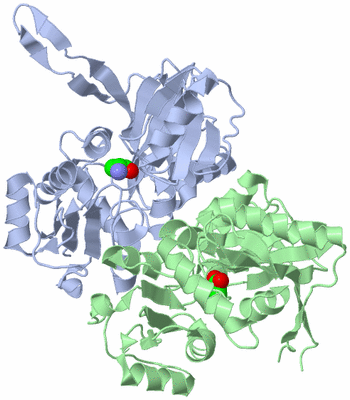

Biological Unit 1 (Jmol Viewer)

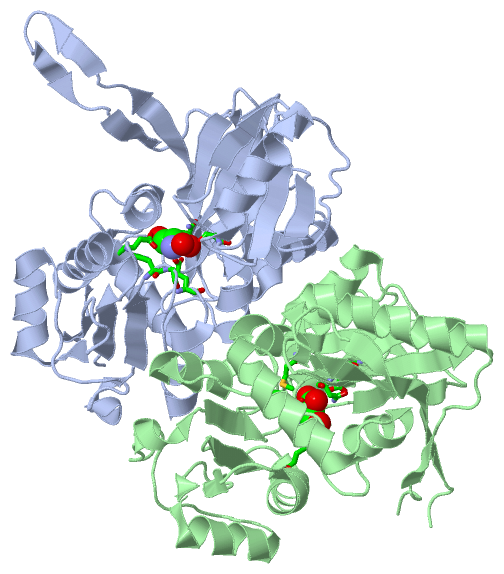

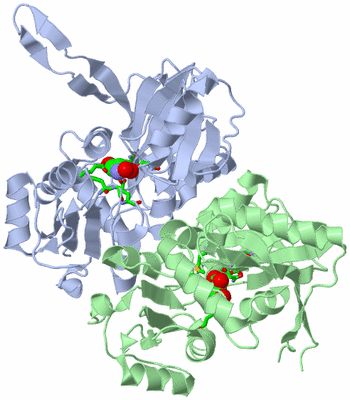

Biol. Unit 1 - sites (Jmol Viewer)

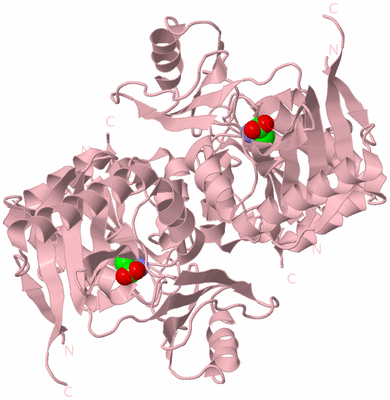

Biological Unit 2 (Jmol Viewer)

Title :   STRUCTURE OF D-ALANINE:D-ALANINE LIGASE WITH SUBSTRATE FROM THERMUS THERMOPHILUS HB8

Authors :   Y. Kitamura, S. Yokoyama, S. Kuramitsu, Riken Structural Genomics/Proteomics Initiative (Rsgi)

Date :   06 May 07 (Deposition) - 06 Nov 07 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.21

Chains :   Asym. Unit : A,B,C
Biol. Unit 1: A,B  (1x)
Biol. Unit 2: C  (2x)

Keywords :   D-Alanine:D-Alanine Ligase, Cell Shape, Peptidoglycan Synthesis, Structural Genomics, Nppsfa, National Project On Protein Structural And Functional Analyses, Riken Structural Genomics/Proteomics Initiative, Rsgi, Ligase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   Y. Kitamura, S. Yokoyama, S. Kuramitsu
Structure Of D-Alanine:D-Alanine Ligase With Substrate From Thermus Thermophilus Hb8
To Be Published
PubMed: search

Molecule 1 - D-ALANINE--D-ALANINE LIGASE
	Chains	:	A, B, C
	EC Number	:	6.3.2.4
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET-11A
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Organism Scientific	:	THERMUS THERMOPHILUS
	Organism Taxid	:	300852
	Strain	:	HB8

		1	2	3
Asymmetric Unit	:	A	B	C
Biological Unit 1 (1x)	:	A	B
Biological Unit 2 (2x)	:			C

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 3)

No.	Name	Count	Type	Full Name
1	DAL	3	Ligand/Ion	D-ALANINE

Biological Unit 1 (1, 2)

No.	Name	Count	Type	Full Name
1	DAL	2	Ligand/Ion	D-ALANINE

Biological Unit 2 (1, 2)

No.	Name	Count	Type	Full Name

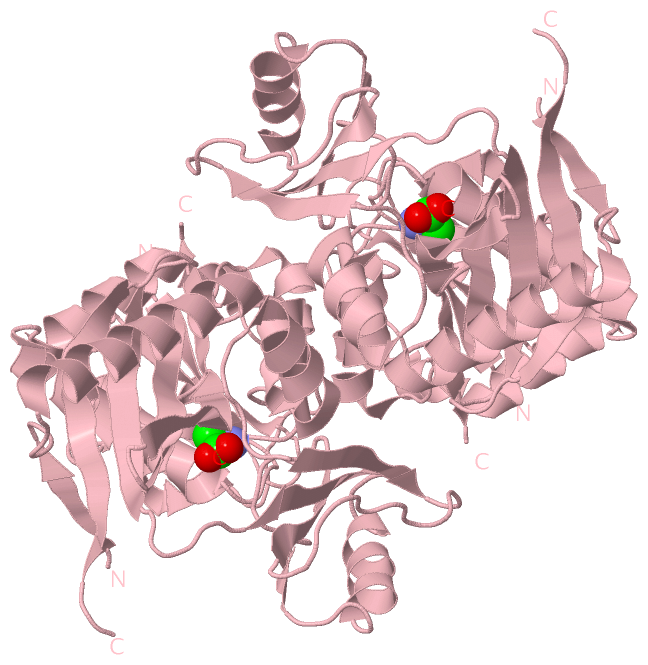

1	DAL	2	Ligand/Ion	D-ALANINE

Asymmetric Unit (3, 3)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	GLU A:13 , HIS A:82 , GLY A:83 , GLU A:87 , THR A:157 , ASN A:284 , HOH A:428 , HOH A:476	BINDING SITE FOR RESIDUE DAL A 401
2	AC2	SOFTWARE	GLU B:13 , GLY B:83 , GLU B:87 , MET B:114 , GLY B:158 , GLU B:282 , ASN B:284 , HOH B:453	BINDING SITE FOR RESIDUE DAL B 402
3	AC3	SOFTWARE	GLU C:13 , HIS C:82 , GLY C:83 , GLU C:87 , GLY C:158 , GLU C:282 , ASN C:284	BINDING SITE FOR RESIDUE DAL C 403

(no "SS Bond" information available for 2YZM)

Asymmetric Unit

No.	Residues
1	Phe A:65	-	Pro A:66
2	Pro A:148	-	Pro A:149
3	Ser A:193	-	Pro A:194
4	Ile A:238	-	Pro A:239
5	Phe B:65	-	Pro B:66
6	Pro B:148	-	Pro B:149
7	Ser B:193	-	Pro B:194
8	Ile B:238	-	Pro B:239
9	Phe C:65	-	Pro C:66
10	Pro C:148	-	Pro C:149
11	Ser C:193	-	Pro C:194
12	Ile C:238	-	Pro C:239

(no "SAP(SNP)/Variant" information available for 2YZM)

Asymmetric Unit (2, 6)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	DALA_DALA_LIGASE_1	PS00843	D-alanine--D-alanine ligase signature 1.	DDL_THET8	82-93	3	A:82-93 B:82-93 C:82-93
2	DALA_DALA_LIGASE_2	PS00844	D-alanine--D-alanine ligase signature 2.	DDL_THET8	261-288	3	A:261-288 B:261-288 C:261-288

Biological Unit 1 (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	DALA_DALA_LIGASE_1	PS00843	D-alanine--D-alanine ligase signature 1.	DDL_THET8	82-93	2	A:82-93 B:82-93 -
2	DALA_DALA_LIGASE_2	PS00844	D-alanine--D-alanine ligase signature 2.	DDL_THET8	261-288	2	A:261-288 B:261-288 -

Biological Unit 2 (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	DALA_DALA_LIGASE_1	PS00843	D-alanine--D-alanine ligase signature 1.	DDL_THET8	82-93	2	- - C:82-93
2	DALA_DALA_LIGASE_2	PS00844	D-alanine--D-alanine ligase signature 2.	DDL_THET8	261-288	2	- - C:261-288

(no "Exon" information available for 2YZM)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:319
 aligned with DDL_THET8 | Q5SHZ3 from UniProtKB/Swiss-Prot  Length:319

    Alignment length:319
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310
            DDL_THET8     1 MRVLLIAGGVSPEHEVSLLSAEGVLRHIPFPTDLAVIAQDGRWLLGEKALTALEAKAAPEGEHPFPPPLSWERYDVVFPLLHGRFGEDGTVQGFLELLGKPYVGAGVAASALCMDKDLSKRVLAQAGVPVVPWVAVRKGEPPVVPFDPPFFVKPANTGSSVGISRVERFQDLEAALALAFRYDEKAVVEKALSPVRELEVGVLGNVFGEASPVGEVRYEAPFYDYETKYTPGRAELLIPAPLDPGTQETVQELALKAYKVLGVRGMARVDFFLAEGELYLNELNTIPGFTPTSMYPRLFEAGGVAYPELLRRLVELALT 319
               SCOP domains d2yzma1 A:1-114 automated matches                                                                                 d2yzma2 A:115-319 automated matches                                                                                                                                                                           SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee....hhhhhhhhhhhhhhhh...eeeeee.....eehhhhhhhhhhhh.............hhhhh.eeeee........hhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhh......eeeee............eeeee.........eee.hhhhhhhhhhhhh....eeeeee.....eeeeeeee.....eeeeeeeeeee..eee...eee..eeeee.....hhhhhhhhhhhhhhhhhhhh...eeeeeeeee..eeeeeeee........hhhhhhhhhh..hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------DALA_DALA_LI-----------------------------------------------------------------------------------------------------------------------------------------------------------------------DALA_DALA_LIGASE_2          ------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2yzm A   1 MRVLLIAGGVSPEHEVSLLSAEGVLRHIPFPTDLAVIAQDGRWLLGEKALTALEAKAAPEGEHPFPPPLSWERYDVVFPLLHGRFGEDGTVQGFLELLGKPYVGAGVAASALCMDKDLSKRVLAQAGVPVVPWVAVRKGEPPVVPFDPPFFVKPANTGSSVGISRVERFQDLEAALALAFRYDEKAVVEKALSPVRELEVGVLGNVFGEASPVGEVRYEAPFYDYETKYTPGRAELLIPAPLDPGTQETVQELALKAYKVLGVRGMARVDFFLAEGELYLNELNTIPGFTPTSMYPRLFEAGGVAYPELLRRLVELALT 319
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310

Chain B from PDB  Type:PROTEIN  Length:312
 aligned with DDL_THET8 | Q5SHZ3 from UniProtKB/Swiss-Prot  Length:319

    Alignment length:319
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310
            DDL_THET8     1 MRVLLIAGGVSPEHEVSLLSAEGVLRHIPFPTDLAVIAQDGRWLLGEKALTALEAKAAPEGEHPFPPPLSWERYDVVFPLLHGRFGEDGTVQGFLELLGKPYVGAGVAASALCMDKDLSKRVLAQAGVPVVPWVAVRKGEPPVVPFDPPFFVKPANTGSSVGISRVERFQDLEAALALAFRYDEKAVVEKALSPVRELEVGVLGNVFGEASPVGEVRYEAPFYDYETKYTPGRAELLIPAPLDPGTQETVQELALKAYKVLGVRGMARVDFFLAEGELYLNELNTIPGFTPTSMYPRLFEAGGVAYPELLRRLVELALT 319
               SCOP domains d2yzmb1 B:1-114 automated matches                                                                                 d2yzmb2 B:115-319 automated matches                                                                                                                                                                           SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee....hhhhhhhhhhhhhhhh...eeeeee.....eehhhhhhhhhhhh.............hhhhh.eeee.........hhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhh.....eeeee............eeeee.........eee....hhhhhhhhhh....eeeeee.....eeeeeeee.....eeeeeeeeee....-------....eeee.....hhhhhhhhhhhhhhhhhhhh...eeeeeeeee..eeeeeeee........hhhhhhhhhh..hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------DALA_DALA_LI-----------------------------------------------------------------------------------------------------------------------------------------------------------------------DALA_DALA_LIGASE_2          ------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2yzm B   1 MRVLLIAGGVSPEHEVSLLSAEGVLRHIPFPTDLAVIAQDGRWLLGEKALTALEAKAAPEGEHPFPPPLSWERYDVVFPLLHGRFGEDGTVQGFLELLGKPYVGAGVAASALCMDKDLSKRVLAQAGVPVVPWVAVRKGEPPVVPFDPPFFVKPANTGSSVGISRVERFQDLEAALALAFRYDEKAVVEKALSPVRELEVGVLGNVFGEASPVGEVRYEAPF-------TPGRAELLIPAPLDPGTQETVQELALKAYKVLGVRGMARVDFFLAEGELYLNELNTIPGFTPTSMYPRLFEAGGVAYPELLRRLVELALT 319
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220 |     230       240       250       260       270       280       290       300       310
                                                                                                                                                                                                                                                       222     230

Chain C from PDB  Type:PROTEIN  Length:308
 aligned with DDL_THET8 | Q5SHZ3 from UniProtKB/Swiss-Prot  Length:319

    Alignment length:319
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310
            DDL_THET8     1 MRVLLIAGGVSPEHEVSLLSAEGVLRHIPFPTDLAVIAQDGRWLLGEKALTALEAKAAPEGEHPFPPPLSWERYDVVFPLLHGRFGEDGTVQGFLELLGKPYVGAGVAASALCMDKDLSKRVLAQAGVPVVPWVAVRKGEPPVVPFDPPFFVKPANTGSSVGISRVERFQDLEAALALAFRYDEKAVVEKALSPVRELEVGVLGNVFGEASPVGEVRYEAPFYDYETKYTPGRAELLIPAPLDPGTQETVQELALKAYKVLGVRGMARVDFFLAEGELYLNELNTIPGFTPTSMYPRLFEAGGVAYPELLRRLVELALT 319
               SCOP domains d2yzmc1 C:1-114 automated matches                                                                                 d2yzmc2 C:115-319 automated matches                                                                                                                                                                           SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) Dala_Dala_lig_N-2yzmC04 C:1-105                                                                          ----------------Dala_Dala_lig_C-2yzmC01 C:122-315                                                                                                                                                                 ---- Pfam domains (1)
           Pfam domains (2) Dala_Dala_lig_N-2yzmC05 C:1-105                                                                          ----------------Dala_Dala_lig_C-2yzmC02 C:122-315                                                                                                                                                                 ---- Pfam domains (2)
           Pfam domains (3) Dala_Dala_lig_N-2yzmC06 C:1-105                                                                          ----------------Dala_Dala_lig_C-2yzmC03 C:122-315                                                                                                                                                                 ---- Pfam domains (3)
         Sec.struct. author ..eeeeee....hhhhhhhhhhhhhh.....eeeeee.....eehhhhhhhhhhhh.............hhhhh.eeeee........hhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhh......eeeee............eeeee.........eee....hhhhhhhhhh....eeeeee.....eeeeeeee.....eeeeeeeeee...-----------.eeee.....hhhhhhhhhhhhhhhhhhhh...eeeeeeeee..eeeeeeee........hhhhhhhhhh..hhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------DALA_DALA_LI-----------------------------------------------------------------------------------------------------------------------------------------------------------------------DALA_DALA_LIGASE_2          ------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2yzm C   1 MRVLLIAGGVSPEHEVSLLSAEGVLRHIPFPTDLAVIAQDGRWLLGEKALTALEAKAAPEGEHPFPPPLSWERYDVVFPLLHGRFGEDGTVQGFLELLGKPYVGAGVAASALCMDKDLSKRVLAQAGVPVVPWVAVRKGEPPVVPFDPPFFVKPANTGSSVGISRVERFQDLEAALALAFRYDEKAVVEKALSPVRELEVGVLGNVFGEASPVGEVRYEAP-----------RAELLIPAPLDPGTQETVQELALKAYKVLGVRGMARVDFFLAEGELYLNELNTIPGFTPTSMYPRLFEAGGVAYPELLRRLVELALT 319
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220|        -  |    240       250       260       270       280       290       300       310
                                                                                                                                                                                                                                                      221         233

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: ATP-grasp (191)

Superfamily: Glutathione synthetase ATP-binding domain-like (158)

Family: automated matches (42)

Protein domain: automated matches (42)

Thermus thermophilus HB8 [TaxId: 300852] (6)

1a	d2yzma2	A:115-319
1b	d2yzmc2	C:115-319
1c	d2yzmb2	B:115-319

Class: Alpha and beta proteins (a/b) (23833)

Fold: PreATP-grasp domain (131)

Superfamily: PreATP-grasp domain (131)

Family: automated matches (45)

Protein domain: automated matches (45)

Thermus thermophilus HB8 [TaxId: 300852] (3)

2a	d2yzma1	A:1-114
2b	d2yzmb1	B:1-114
2c	d2yzmc1	C:1-114

(no "CATH Domain" information available for 2YZM)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C (DDL_THET8 | Q5SHZ3)

molecular function
	GO:0005524	ATP binding	Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
	GO:0008716	D-alanine-D-alanine ligase activity	Catalysis of the reaction: 2 D-alanine + ATP = D-alanyl-D-alanine + ADP + 2 H(+) + phosphate.
	GO:0003824	catalytic activity	Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
	GO:0016874	ligase activity	Catalysis of the joining of two substances, or two groups within a single molecule, with the concomitant hydrolysis of the diphosphate bond in ATP or a similar triphosphate.
	GO:0000287	magnesium ion binding	Interacting selectively and non-covalently with magnesium (Mg) ions.
	GO:0030145	manganese ion binding	Interacting selectively and non-covalently with manganese (Mn) ions.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0000166	nucleotide binding	Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
biological process
	GO:0071555	cell wall organization	A process that results in the assembly, arrangement of constituent parts, or disassembly of the cell wall, the rigid or semi-rigid envelope lying outside the cell membrane of plant, fungal and most prokaryotic cells, maintaining their shape and protecting them from osmotic lysis.
	GO:0009252	peptidoglycan biosynthetic process	The chemical reactions and pathways resulting in the formation of peptidoglycans, any of a class of glycoconjugates found in bacterial cell walls.
	GO:0008360	regulation of cell shape	Any process that modulates the surface configuration of a cell.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		DAL	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Ile A:238 - Pro A:239	[ RasMol ]
		Ile B:238 - Pro B:239	[ RasMol ]
		Ile C:238 - Pro C:239	[ RasMol ]
		Phe A:65 - Pro A:66	[ RasMol ]
		Phe B:65 - Pro B:66	[ RasMol ]
		Phe C:65 - Pro C:66	[ RasMol ]
		Pro A:148 - Pro A:149	[ RasMol ]
		Pro B:148 - Pro B:149	[ RasMol ]
		Pro C:148 - Pro C:149	[ RasMol ]
		Ser A:193 - Pro A:194	[ RasMol ]
		Ser B:193 - Pro B:194	[ RasMol ]
		Ser C:193 - Pro C:194	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	2yzm
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	DDL_THET8 \| Q5SHZ3
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	6.3.2.4
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	DDL_THET8 \| Q5SHZ3
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	DDL_THET8 \| Q5SHZ3	:	2fb9 2yzg 2yzn 2zdg 2zdh 2zdq

2yzg	RELATED ID: TTK003001114.2 RELATED DB: TARGETDB

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 3)

Sites (3, 3)

SS Bonds (0, 0)

Cis Peptide Bonds (12, 12)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (2, 6)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (2, 6)

CATH Domains (0, 0)

Pfam Domains (2, 6)

Gene Ontology (12, 12)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
