2XOW - JenaLib

Title :   STRUCTURE OF GLPG IN COMPLEX WITH A MECHANISM-BASED ISOCOUMARIN INHIBITOR

Authors :   K. R. Vinothkumar, K. Strisovsky, A. Andreeva, Y. Christova, S. Verhel M. Freeman

Date :   24 Aug 10 (Deposition) - 13 Oct 10 (Release) - 01 Jun 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.09

Chains :   Asym./Biol. Unit : A

Keywords :   Hydrolase, Membrane Protein, Intramembrane Protease (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   K. R. Vinothkumar, K. Strisovsky, A. Andreeva, Y. Christova, S. Verhelst, M. Freeman
The Structural Basis For Catalysis And Substrate Specificity Of A Rhomboid Protease
Embo J. V. 29 3797 2010
PubMed-ID: 20890268 | Reference-DOI: 10.1038/EMBOJ.2010.243

Compounds

Molecule 1 - RHOMBOID PROTEASE GLPG
	Chains	:	A
	EC Number	:	3.4.21.105
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Variant	:	C43
	Expression System Vector Type	:	PLASMID
	Fragment	:	CORE TM DOMAIN, RESIDUES 92-270
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	562
	Synonym	:	INTRAMEMBRANE SERINE PROTEASE, GLPG

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 17)

Sites (14, 14)

Asymmetric Unit (14, 14)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	HIS A:150 , ASN A:154 , PHE A:197 , GLY A:198 , GLY A:199 , LEU A:200 , SER A:201 , PHE A:245 , MET A:247 , ALA A:250 , ALA A:253 , HIS A:254	BINDING SITE FOR RESIDUE ISM A 401
02	AC2	SOFTWARE	MET A:208 , GLY A:209 , LEU A:234 , ILE A:237	BINDING SITE FOR RESIDUE BNG A 502
03	AC3	SOFTWARE	ILE A:113	BINDING SITE FOR RESIDUE BNG A 503
04	AC4	SOFTWARE	BNG A:506	BINDING SITE FOR RESIDUE BNG A 504
05	AC5	SOFTWARE	LEU A:184	BINDING SITE FOR RESIDUE BNG A 505
06	AC6	SOFTWARE	TRP A:122 , BNG A:504	BINDING SITE FOR RESIDUE BNG A 506
07	AC7	SOFTWARE	PRO A:129 , LYS A:132 , TYR A:138 , GLY A:170 , SER A:171 , GLY A:172 , BNG A:513	BINDING SITE FOR RESIDUE BNG A 507
08	AC8	SOFTWARE	PHE A:139	BINDING SITE FOR RESIDUE BNG A 508
09	AC9	SOFTWARE	PHE A:146 , SER A:147 , LEU A:148 , MET A:149 , LEU A:244 , BNG A:515 , HOH A:2037 , HOH A:2038	BINDING SITE FOR RESIDUE BNG A 509
10	BC1	SOFTWARE	PRO A:95 , LYS A:132 , PHE A:133	BINDING SITE FOR RESIDUE BNG A 510
11	BC2	SOFTWARE	TRP A:241	BINDING SITE FOR RESIDUE BNG A 511
12	BC3	SOFTWARE	TRP A:125 , GLY A:172 , LYS A:173 , TYR A:187 , BNG A:507 , HOH A:2020	BINDING SITE FOR RESIDUE BNG A 513
13	BC4	SOFTWARE	MET A:149 , LEU A:152 , PHE A:153 , LEU A:244 , PHE A:245 , GLY A:246 , BNG A:509 , BNG A:516	BINDING SITE FOR RESIDUE BNG A 515
14	BC5	SOFTWARE	MET A:149 , HIS A:150 , PHE A:153 , PHE A:245 , MET A:247 , BNG A:515 , HOH A:2014	BINDING SITE FOR RESIDUE BNG A 516

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:179
 aligned with GLPG_ECOLI | P09391 from UniProtKB/Swiss-Prot  Length:276

    Alignment length:179
                                   101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261
           GLPG_ECOLI    92 RAGPVTWVMMIACVVVFIAMQILGDQEVMLWLAWPFDPTLKFEFWRYFTHALMHFSLMHILFNLLWWWYLGGAVEKRLGSGKLIVITLISALLSGYVQQKFSGPWFGGLSGVVYALMGYVWLRGERDPQSGIYLQRGLIIFALIWIVAGWFDLFGMSMANGAHIAGLAVGLAMAFVDSL 270
               SCOP domains d2xowa_ A: GlpG                                                                                                                                                                     SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains DUF3582------------------------------Rhomboid-2xowA02 A:129-270                                                                                                                     Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhh...hhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2xow A  92 RAGPVTWVMMIACVVVFIAMQILGDQEVMLWLAWPFDPTLKFEFWRYFTHALMHFSLMHILFNLLWWWYLGGAVEKRLGSGKLIVITLISALLSGYVQQKFSGPWFGGLSGVVYALMGYVWLRGERDPQSGIYLQRGLIIFALIWIVAGWFDLFGMSMANGAHIAGLAVGLAMAFVDSL 270
                                   101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (0, 0)

Pfam Domains (2, 2)

Gene Ontology (11, 11)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A (GLPG_ECOLI | P09391)

molecular function
	GO:0004175	endopeptidase activity	Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain.
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0008233	peptidase activity	Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
	GO:0004252	serine-type endopeptidase activity	Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
	GO:0008236	serine-type peptidase activity	Catalysis of the hydrolysis of peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
biological process
	GO:0016485	protein processing	Any protein maturation process achieved by the cleavage of a peptide bond or bonds within a protein. Protein maturation is the process leading to the attainment of the full functional capacity of a protein.
	GO:0006508	proteolysis	The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
cellular component
	GO:0016021	integral component of membrane	The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
	GO:0005887	integral component of plasma membrane	The component of the plasma membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
	GO:0005886	plasma membrane	The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

Visualization

Interactive Views

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		BNG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		ISM	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

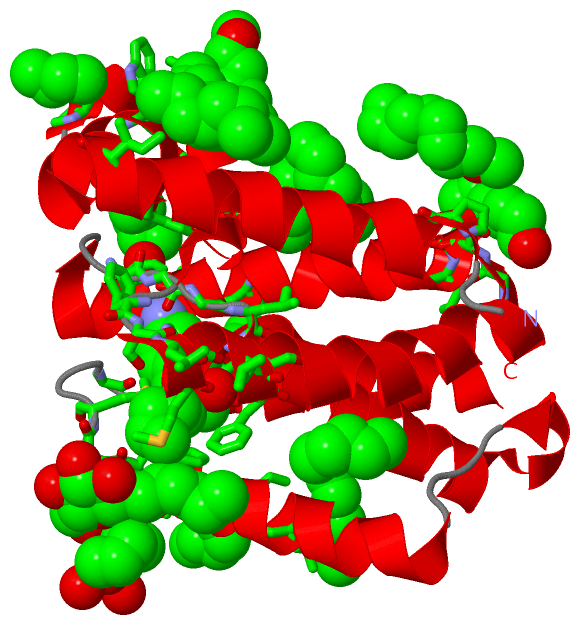

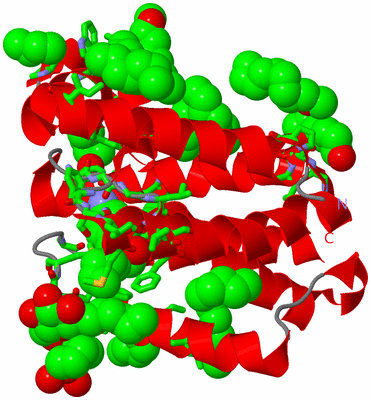

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2xow)

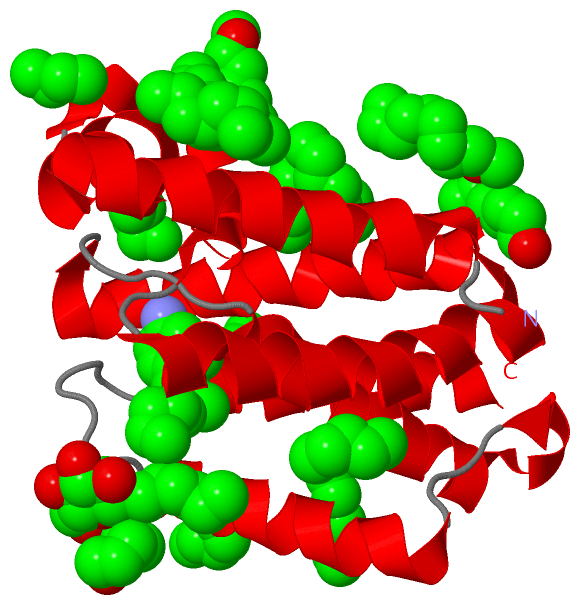

Still Images

Databases and Analysis Tools

Databases

Access by PDB/NDB ID
	2xow
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	GLPG_ECOLI \| P09391
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.4.21.105
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Analysis Tools

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	GLPG_ECOLI \| P09391
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

Description
