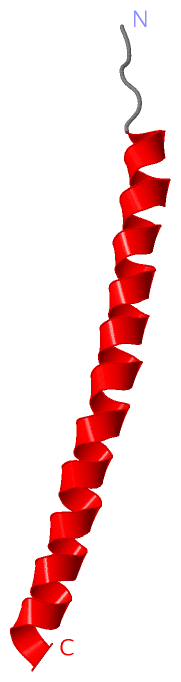

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CONSENSUS STRUCTURE OF PF1 FILAMENTOUS BACTERIOPHAGE FROM X-RAY FIBRE DIFFRACTION AND SOLID-STATE NMR

Authors :  S. K. Straus, W. R. P Scott, C. D. Schwieters, D. A. Marvin
Date :  09 Jul 10  (Deposition) - 24 Nov 10  (Release) - 27 Apr 11  (Revision)
Method :  FIBER DIFFRACTION; SOLID-STATE NMR
Resolution :  3.30
Chains :  Asym./Biol. Unit :  A
Keywords :  Viral Protein, Capsid Protein, Transmembrane, Virion, Virus Coat Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. K. Straus, W. R. Scott, C. D. Schwieters, D. A. Marvin
Consensus Structure Of Pf1 Filamentous Bacteriophage From X-Ray Fibre Diffraction And Solid-State Nmr.
Eur. Biophys. J. V. 40 221 2011
PubMed-ID: 21082179  |  Reference-DOI: 10.1007/S00249-010-0640-9
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CAPSID PROTEIN G8P
    Atcc: 25102-B1
    Chains: A
    Fragment: RESIDUES 37-82
    Organism Scientific: PSEUDOMONAS PHAGE PF1
    Organism Taxid: 10871
    Synonym: MAJOR COAT PROTEIN, GENE 8 PROTEIN, G8P, COAT PROTEIN B, PF1 PHAGE COAT PROTEIN GENE 8

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2XKM)

(-) Sites  (0, 0)

(no "Site" information available for 2XKM)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2XKM)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2XKM)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2XKM)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2XKM)

(-) Exons   (0, 0)

(no "Exon" information available for 2XKM)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:46
 aligned with CAPSD_BPPF1 | P03621 from UniProtKB/Swiss-Prot  Length:82

    Alignment length:46
                                    46        56        66        76
           CAPSD_BPPF1   37 GVIDTSAVESAITDGQGDMKAIGGYIVGALVILAVAGLIYSMLRKA 82
               SCOP domains ---------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------- CATH domains
               Pfam domains Phage_Coat_B-2xkmA01 A:1-46                    Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------- PROSITE
                 Transcript ---------------------------------------------- Transcript
                  2xkm A  1 GVIDTSAVESAITDGQGDMKAIGGYIVGALVILAVAGLIYSMLRKA 46
                                    10        20        30        40
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2XKM)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2XKM)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: Inovirus-Coat (9)

(-) Gene Ontology  (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (CAPSD_BPPF1 | P03621)
cellular component
    GO:0019029    helical viral capsid    The protein coat that surrounds the infective nucleic acid in some virus particles; the subunits are arranged to form a protein helix with the genetic material contained within. Tobacco mosaic virus has such a capsid structure.
    GO:0033644    host cell membrane    Double layer of lipid molecules as it encloses host cells, and, in eukaryotes, many organelles; may be a single or double lipid bilayer; also includes associated proteins. The host is defined as the larger of the organisms involved in a symbiotic interaction.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0019028    viral capsid    The protein coat that surrounds the infective nucleic acid in some virus particles. It comprises numerous regularly arranged subunits, or capsomeres.
    GO:0019012    virion    The complete fully infectious extracellular virus particle.
