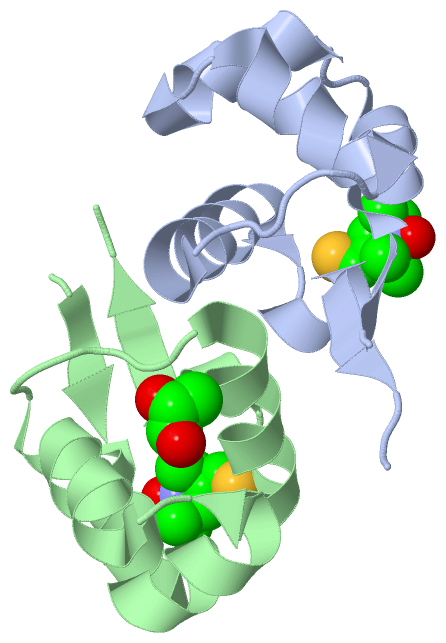

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

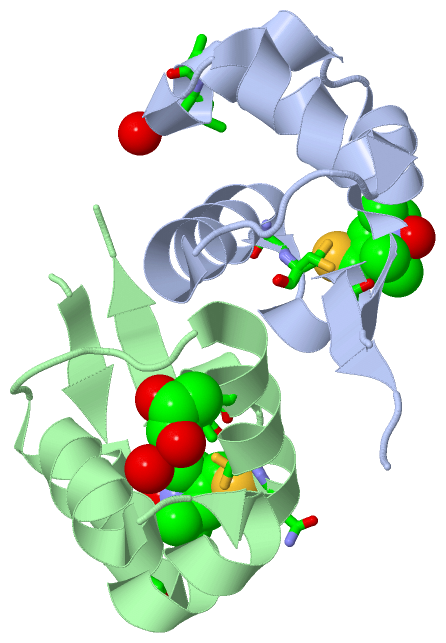

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  HIGH RESOLUTION STRUCTURE OF MTSL-TAGGED CYLR2.

Authors :  T. Gruene, M. -K. Cho, I. Karyagina, H. -Y. Kim, C. Grosse, K. Giller, M. Zweckstetter, S. Becker
Date :  01 Jul 10  (Deposition) - 09 Feb 11  (Release) - 18 May 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.50
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Dna Binding Protein, Hth-Dna Binding Motif (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  T. Gruene, M. K. Cho, I. Karyagina, H. Y. Kim, C. Grosse, K. Giller, M. Zweckstetter, S. Becker
Integrated Analysis Of The Conformation Of A Protein-Linked Spin Label By Crystallography, Epr And Nmr Spectroscopy.
J. Biomol. Nmr V. 49 111 2011
PubMed-ID: 21271275  |  Reference-DOI: 10.1007/S10858-011-9471-Y

(-) Compounds

Molecule 1 - CYLR2
    ChainsA, B
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPET32A
    Expression System StrainBL21(DE3)
    Expression System Taxid469008
    Expression System Vector TypePLASMID
    MutationYES
    Organism ScientificENTEROCOCCUS FAECALIS
    Organism Taxid1351
    SynonymCYTOLYSIN REPRESSOR 2

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 3)

Asymmetric/Biological Unit (2, 3)
No.NameCountTypeFull Name
1GOL1Ligand/IonGLYCEROL
2MTN2Ligand/IonS-[(1-OXYL-2,2,5,5-TETRAMETHYL-2,5-DIHYDRO-1H-PYRROL-3-YL)METHYL] METHANESULFONOTHIOATE

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREALA A:22 , LEU A:23 , HOH A:2050 , LEU B:45 , HOH B:2036BINDING SITE FOR RESIDUE GOL B1001
2AC2SOFTWAREASN A:54 , CYS A:55 , ASP A:59BINDING SITE FOR RESIDUE MTN A1055
3AC3SOFTWARELYS B:12 , ASN B:54 , CYS B:55 , ASP B:59BINDING SITE FOR RESIDUE MTN B1055

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2XIU)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2XIU)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2XIU)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2XIU)

(-) Exons   (0, 0)

(no "Exon" information available for 2XIU)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:66
 aligned with Q8VL32_ENTFL | Q8VL32 from UniProtKB/TrEMBL  Length:66

    Alignment length:66
                                    10        20        30        40        50        60
          Q8VL32_ENTFL    1 MIINNLKLIREKKKISQSELAALLEVSRQTINGIEKNKYNPSLQLALKIAYYLNTPLEDIFQWQPE 66
               SCOP domains d2xiua_ A: automated matches                                       SCOP domains
               CATH domains ------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeehhhhhhhhh..hhhhhhhhhh.hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhheee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------ Transcript
                  2xiu A  1 MIINNLKLIREKKKISQSELAALLEVSRQTINGIEKNKYNPSLQLALKIAYYLNCPLEDIFQWQPE 66
                                    10        20        30        40        50        60

Chain B from PDB  Type:PROTEIN  Length:65
 aligned with Q8VL32_ENTFL | Q8VL32 from UniProtKB/TrEMBL  Length:66

    Alignment length:65
                                    10        20        30        40        50        60
          Q8VL32_ENTFL    1 MIINNLKLIREKKKISQSELAALLEVSRQTINGIEKNKYNPSLQLALKIAYYLNTPLEDIFQWQP 65
               SCOP domains d2xiub_ B: automated matches                                      SCOP domains
               CATH domains ----------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeehhhhhhhhh..hhhhhhhhhh.hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhheee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------- Transcript
                  2xiu B  1 MIINNLKLIREKKKISQSELAALLEVSRQTINGIEKNKYNPSLQLALKIAYYLNCPLEDIFQWQP 65
                                    10        20        30        40        50        60

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2XIU)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2XIU)

(-) Gene Ontology  (2, 2)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (Q8VL32_ENTFL | Q8VL32)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0043565    sequence-specific DNA binding    Interacting selectively and non-covalently with DNA of a specific nucleotide composition, e.g. GC-rich DNA binding, or with a specific sequence motif or type of DNA e.g. promotor binding or rDNA binding.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    GOL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MTN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2xiu)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2xiu
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q8VL32_ENTFL | Q8VL32
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  Q8VL32_ENTFL | Q8VL32
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q8VL32_ENTFL | Q8VL321utx 2gzu 2lyj 2lyk 2lyl 2lyp 2lyq 2lyr 2lys 2xi8 2xj3

(-) Related Entries Specified in the PDB File

1utx REGULATION OF CYTOLYSIN EXPRESSION BY ENTEROCOCCUS FAECALIS: ROLE OF CYLR2
2xi8 HIGH RESOLUTION STRUCTURE OF NATIVE CYLR2
