2X05 - JenaLib

Asymmetric Unit (Jmol Viewer)

Asym. Unit - sites (Jmol Viewer)

Biological Unit 1 (Jmol Viewer)

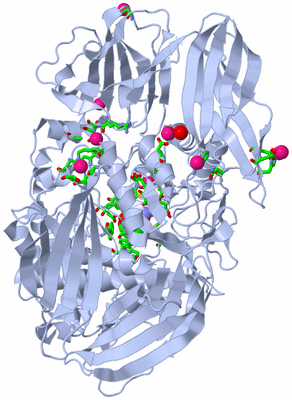

Biol. Unit 1 - sites (Jmol Viewer)

Biological Unit 2 (Jmol Viewer)

Title :   INHIBITION OF THE EXO-BETA-D-GLUCOSAMINIDASE CSXA BY A GLUCOSAMINE-CONFIGURED CASTANOSPERMINE AND AN AMINO-AUSTRALINE ANALOGUE

Authors :   B. Pluvinage, M. G. Ghinet, R. Brzezinski, A. B. Boraston, K. A. Stubbs

Date :   05 Dec 09 (Deposition) - 15 Dec 09 (Release) - 02 Feb 10 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.30

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)

Keywords :   Exo-Beta-D-Glucosaminidase, Glycoside Hydrolase, Gh2, Csxa, Hydrolase, Glycosidase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   B. Pluvinage, M. G. Ghinet, R. Brzezinski, A. B. Boraston, K. A. Stubbs
Inhibition Of The Exo-Beta-D-Glucosaminidase Csxa By A Glucosamine-Configured Castanospermine And An Amino-Australine Analogue.
Org. Biomol. Chem. V. 7 4169 2009
PubMed-ID: 19795054 | Reference-DOI: 10.1039/B913235J

Molecule 1 - EXO-BETA-D-GLUCOSAMINIDASE
	Chains	:	A, B
	EC Number	:	3.2.1.165
	Engineered	:	YES
	Expression System	:	STREPTOMYCES LIVIDANS
	Expression System Plasmid	:	PFD666
	Expression System Strain	:	TK24
	Expression System Taxid	:	457428
	Fragment	:	RESIDUES 2-1032
	Organism Scientific	:	AMYCOLATOPSIS ORIENTALIS
	Organism Taxid	:	31958

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (2, 21)

No.	Name	Count	Type	Full Name
1	CD	19	Ligand/Ion	CADMIUM ION
2	X05	2	Ligand/Ion	AMINO-CASTANOSPERMINE

Biological Unit 1 (1, 1)

No.	Name	Count	Type	Full Name
1	CD	-1	Ligand/Ion	CADMIUM ION
2	X05	1	Ligand/Ion	AMINO-CASTANOSPERMINE

Biological Unit 2 (1, 1)

No.	Name	Count	Type	Full Name
1	CD	-1	Ligand/Ion	CADMIUM ION
2	X05	1	Ligand/Ion	AMINO-CASTANOSPERMINE

Asymmetric Unit (21, 21)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	ILE A:202 , ASP A:203 , TRP A:204 , GLU A:394 , CYS A:419 , SER A:468 , ASP A:469 , MET A:512 , TYR A:516 , GLU A:541 , TRP A:642 , TRP A:653 , TRP A:781	BINDING SITE FOR RESIDUE X05 A1900
02	AC2	SOFTWARE	ILE B:202 , ASP B:203 , TRP B:204 , GLU B:394 , CYS B:419 , SER B:468 , ASP B:469 , MET B:512 , TYR B:516 , GLU B:541 , TRP B:642 , TRP B:653 , TRP B:781 , HOH B:2341	BINDING SITE FOR RESIDUE X05 B1900
03	AC3	SOFTWARE	ASN A:299 , HIS A:310 , ASP B:68 , LYS B:187 , HOH B:2019 , HOH B:2020 , HOH B:2113	BINDING SITE FOR RESIDUE CD A1901
04	AC4	SOFTWARE	HIS B:178	BINDING SITE FOR RESIDUE CD B1901
05	AC5	SOFTWARE	ASP A:296 , HOH A:2211	BINDING SITE FOR RESIDUE CD A1902
06	AC6	SOFTWARE	ARG B:311 , ASP B:404 , HOH B:2094 , HOH B:2251	BINDING SITE FOR RESIDUE CD B1902
07	AC7	SOFTWARE	HIS A:178 , HOH A:2115	BINDING SITE FOR RESIDUE CD A1903
08	AC8	SOFTWARE	ASP A:404 , HOH A:2104 , HOH A:2242 , HOH A:2299	BINDING SITE FOR RESIDUE CD A1904
09	AC9	SOFTWARE	HIS A:244 , ASP A:246	BINDING SITE FOR RESIDUE CD A1905
10	BC1	SOFTWARE	SER B:86 , ARG B:87 , ARG B:370 , TRP B:371	BINDING SITE FOR RESIDUE CD B1903
11	BC2	SOFTWARE	ARG B:168 , SER B:450 , GLU B:453 , ARG B:454 , HOH B:2056 , HOH B:2083	BINDING SITE FOR RESIDUE CD B1904
12	BC3	SOFTWARE	ASN B:428 , GLY B:429 , GLU B:431 , GLY B:433	BINDING SITE FOR RESIDUE CD B1905
13	BC4	SOFTWARE	ARG B:335 , ARG B:456 , HIS B:458	BINDING SITE FOR RESIDUE CD B1906
14	BC5	SOFTWARE	GLY A:815 , ARG A:873 , THR A:874 , ALA A:875	BINDING SITE FOR RESIDUE CD A1906
15	BC6	SOFTWARE	SER B:141 , GLY B:142 , VAL B:143 , GLY B:164 , ALA B:165 , THR B:167	BINDING SITE FOR RESIDUE CD B1907
16	BC7	SOFTWARE	ARG A:87 , SER A:88 , THR A:89 , ALA A:92 , PHE A:368 , LEU A:369 , ARG A:370	BINDING SITE FOR RESIDUE CD A1907
17	BC8	SOFTWARE	ILE B:54 , TYR B:57 , SER B:86 , ASP B:218 , VAL B:219	BINDING SITE FOR RESIDUE CD B1908
18	BC9	SOFTWARE	HIS B:310 , HOH B:2234 , HOH B:2235 , HOH B:2236	BINDING SITE FOR RESIDUE CD A1909
19	CC1	SOFTWARE	MET B:414 , PRO B:415 , SER B:463 , PHE B:464 , HIS B:465	BINDING SITE FOR RESIDUE CD B1909
20	CC2	SOFTWARE	GLU A:418 , CYS A:419 , CYS A:420 , ASP A:421 , TRP A:423 , GLU A:424	BINDING SITE FOR RESIDUE CD A1908
21	CC3	SOFTWARE	THR B:550 , GLN B:662 , ASP B:837 , LYS B:839 , HOH B:2437	BINDING SITE FOR RESIDUE CD B1910

Asymmetric Unit

No.	Residues
1	A:419	-	A:420
2	B:419	-	B:420

Asymmetric Unit

No.	Residues
1	Leu A:144	-	Ser A:145
2	Gly A:514	-	Pro A:515
3	Trp A:642	-	Met A:643
4	Val A:803	-	Gly A:804
5	Leu A:849	-	Pro A:850
6	Leu B:144	-	Ser B:145
7	Gly B:514	-	Pro B:515
8	Trp B:642	-	Met B:643
9	Val B:803	-	Gly B:804
10	Leu B:849	-	Pro B:850

(no "SAP(SNP)/Variant" information available for 2X05)

(no "PROSITE Motif" information available for 2X05)

(no "Exon" information available for 2X05)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:852
 aligned with EBDG_AMYOR | Q56F26 from UniProtKB/Swiss-Prot  Length:1032

    Alignment length:852
                                    57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457       467       477       487       497       507       517       527       537       547       557       567       577       587       597       607       617       627       637       647       657       667       677       687       697       707       717       727       737       747       757       767       777       787       797       807       817       827       837       847       857       867       877       887       897
           EBDG_AMYOR    48 AGNATPIPGYVIQSSAQVSDDSAVSKPGFPTSGWYPVSSRSTVYAGLLQNGKYADPFYSTNMQNVPAAQFSVPWWYRTDLNVDDTSSRTYLDFSGVLSKADVWVNGTKVATKDQVNGAYTRHDLDITAQVHTGVNSVAFKVYPNDPNRDLSMGWIDWAQTPPDQNMGIVRDVLVRRSGAVALRSAHVIQKLNSALDHADLTVKADVRNDSANAVQTTVAGTVAGKPISQTVSLAAKERKTVTFPLVGLDRPNVWWPAGMGGQHRYDLDLTASVGGTPSDAAKSKFGVRDVKATLNSSGGRQYSVNGKPLLIRGGGYTPDLFLRWNETAAADKLKYVLNLGLNTVRLEGHIEPDEFFDIADDLGVLTMPGWECCDKWEGQVNGEEKGEPWVESDYPIAKASMFSEAERLRDHPSVISFHIGSDFAPDRRIEQGYLDAMKAADFLLPVIPAASARPSPITGASGMKMNGPYDYVPPVYWYDKSQKDRGGAWSFNSETSAGVDIPTMDTLKRMMSASELDTMWKNPSAKQYHRSSSDTFGNLKLFGDALTKRYGASANLNDFVRKAQLSQYENVRAEFESHSRNYTDSTNPSTGLIYWMLNSPWTSLHWQLFDAYMDQNGAYYGAKKANEPLHIQYSHDNRSVVVINQTSNAVSGLTATTKLYNLDGTEKYSNTKTGLSVGALGAKATAVTVPAVSGLSTTYLAKWVLTDSSGKEVSRNVYWLSTKADTLNWGGSDWYYTPQSAFADLSGLNNLGQSAVGATANSVAGADGTTTTTVTLKNTSGGRLPAFYVDSKVVDSAGKPVLPVEWNDNAVSLWPGETTTLTAKYRTADLKGSKPSVRISGWNTGTQTVPAD 899
               SCOP domains d2x05a1 A:48-225 Exochitosanase CsxA                                                                                                                                              d2x05a2 A:226-335 Exochitosanase CsxA, domains 2, 4 and 5                                                     d2x05a3 A:336-674 Exochitosanase CsxA                                                                                                                                                                                                                                                                                                              d2x05a4 A:675-777 Exochitosanase CsxA, domains 2, 4 and 5                                              d2x05a5 A:778-899 Exochitosanase CsxA, domains 2, 4 and 5                                                                  SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeee..eeeeee.hhh.hhhhh..........eeee...hhhhhhhhh.........hhhhhh.hhhhh..eeeeeeeee.....eeeeee..ee..eeeee..eeee...........eeee.......eeeeeeeee.........................ee...eeeeee..eeeeeeeeeeee.....eeeeeeeeeeee.....eeeeeeeee..eeeeeeeee....eeeee...eeee...............eeeeeeeee..eeeeeeeeee....eeeee.....eeeee..eee.eeeeee........hhhhhhhhhhhhhhhh..eeeee....hhhhhhhhhhhh.eeeee....hhhhh.............hhhhhhhhhhhhhhhhhh.......ee.......hhhhhhhhhhhhhhh.....ee.........................hhhhhhh..........eeeeee.......hhhhhhhhhhhhhhhhhhhh................hhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhh......eeeeee.....................hhhhhhhhhhh..eeeee.....eeeeee.....eeeeeeeeeeee....eeeeeeeeeeee....eeeeeee.........eeeeeeeee.....eeeeeeeeee....ee.hhhh......eee...hhhhhhh....eeeeeeeee....eeeeeeeeee.......eeeeeeeee..........ee....eee....eeeeeeeee.hhhh....eeeeee...eeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2x05 A  48 AGNATPIPGYVIQSSAQVSDDSAVSKPGFPTSGWYPVSSRSTVYAGLLQNGKYADPFYSTNMQNVPAAQFSVPWWYRTDLNVDDTSSRTYLDFSGVLSKADVWVNGTKVATKDQVNGAYTRHDLDITAQVHTGVNSVAFKVYPNDPNRDLSMGWIDWAQTPPDQNMGIVRDVLVRRSGAVALRSAHVIQKLNSALDHADLTVKADVRNDSANAVQTTVAGTVAGKPISQTVSLAAKERKTVTFPLVGLDRPNVWWPAGMGGQHRYDLDLTASVGGTPSDAAKSKFGVRDVKATLNSSGGRQYSVNGKPLLIRGGGYTPDLFLRWNETAAADKLKYVLNLGLNTVRLEGHIEPDEFFDIADDLGVLTMPGWECCDKWEGQVNGEEKGEPWVESDYPIAKASMFSEAERLRDHPSVISFHIGSDFAPDRRIEQGYLDAMKAADFLLPVIPAASARPSPITGASGMKMNGPYDYVPPVYWYDKSQKDRGGAWSFNSETSAGVDIPTMDTLKRMMSASELDTMWKNPSAKQYHRSSSDTFGNLKLFGDALTKRYGASANLNDFVRKAQLSQYENVRAEFESHSRNYTDSTNPSTGLIYWMLNSPWTSLHWQLFDAYMDQNGAYYGAKKANEPLHIQYSHDNRSVVVINQTSNAVSGLTATTKLYNLDGTEKYSNTKTGLSVGALGAKATAVTVPAVSGLSTTYLAKNVLTDSSGKEVSRNVYWLSTKADTLNWGGSDWYYTPQSAFADLSGLNNLGQSAVGATANSVAGADGTTTTTVTLKNTSGGRLPAFYVDSKVVDSAGKPVLPVEWNDNAVSLWPGETTTLTAKYRTADLKGSKPSVRISGWNTGTQTVPAD 899
                                    57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457       467       477       487       497       507       517       527       537       547       557       567       577       587       597       607       617       627       637       647       657       667       677       687       697       707       717       727       737       747       757       767       777       787       797       807       817       827       837       847       857       867       877       887       897

Chain B from PDB  Type:PROTEIN  Length:852
 aligned with EBDG_AMYOR | Q56F26 from UniProtKB/Swiss-Prot  Length:1032

    Alignment length:852
                                    57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457       467       477       487       497       507       517       527       537       547       557       567       577       587       597       607       617       627       637       647       657       667       677       687       697       707       717       727       737       747       757       767       777       787       797       807       817       827       837       847       857       867       877       887       897
           EBDG_AMYOR    48 AGNATPIPGYVIQSSAQVSDDSAVSKPGFPTSGWYPVSSRSTVYAGLLQNGKYADPFYSTNMQNVPAAQFSVPWWYRTDLNVDDTSSRTYLDFSGVLSKADVWVNGTKVATKDQVNGAYTRHDLDITAQVHTGVNSVAFKVYPNDPNRDLSMGWIDWAQTPPDQNMGIVRDVLVRRSGAVALRSAHVIQKLNSALDHADLTVKADVRNDSANAVQTTVAGTVAGKPISQTVSLAAKERKTVTFPLVGLDRPNVWWPAGMGGQHRYDLDLTASVGGTPSDAAKSKFGVRDVKATLNSSGGRQYSVNGKPLLIRGGGYTPDLFLRWNETAAADKLKYVLNLGLNTVRLEGHIEPDEFFDIADDLGVLTMPGWECCDKWEGQVNGEEKGEPWVESDYPIAKASMFSEAERLRDHPSVISFHIGSDFAPDRRIEQGYLDAMKAADFLLPVIPAASARPSPITGASGMKMNGPYDYVPPVYWYDKSQKDRGGAWSFNSETSAGVDIPTMDTLKRMMSASELDTMWKNPSAKQYHRSSSDTFGNLKLFGDALTKRYGASANLNDFVRKAQLSQYENVRAEFESHSRNYTDSTNPSTGLIYWMLNSPWTSLHWQLFDAYMDQNGAYYGAKKANEPLHIQYSHDNRSVVVINQTSNAVSGLTATTKLYNLDGTEKYSNTKTGLSVGALGAKATAVTVPAVSGLSTTYLAKWVLTDSSGKEVSRNVYWLSTKADTLNWGGSDWYYTPQSAFADLSGLNNLGQSAVGATANSVAGADGTTTTTVTLKNTSGGRLPAFYVDSKVVDSAGKPVLPVEWNDNAVSLWPGETTTLTAKYRTADLKGSKPSVRISGWNTGTQTVPAD 899
               SCOP domains d2x05b1 B:48-225 Exochitosanase CsxA                                                                                                                                              d2x05b2 B:226-335 Exochitosanase CsxA, domains 2, 4 and 5                                                     d2x05b3 B:336-674 Exochitosanase CsxA                                                                                                                                                                                                                                                                                                              d2x05b4 B:675-777 Exochitosanase CsxA, domains 2, 4 and 5                                              d2x05b5 B:778-899 Exochitosanase CsxA, domains 2, 4 and 5                                                                  SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
           Pfam domains (1) -------Glyco_hydro_2_N-2x05B01 B:55-223                                                                                                                                         ---Glyco_hydro_2-2x05B03 B:227-335                                                                              ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains (1)
           Pfam domains (2) -------Glyco_hydro_2_N-2x05B02 B:55-223                                                                                                                                         ---Glyco_hydro_2-2x05B04 B:227-335                                                                              ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains (2)
         Sec.struct. author ..eeee..eeeeee.hhh.hhhhh..........eeee...hhhhhhhhh.........hhhhhh.hhhhh..eeeeeeeee.....eeeeee..ee..eeeee..eeee...........eeee.hhhh..eeeeeeeee.........................ee...eeeeee..eeeeeeeeeeee.....eeeeeeeeeeee.....eeeeeeeee..eeeeeeeee....eeeee...eeee...............eeeeeeeee..eeeeeeeeee....eeeee.....eeeee..ee..eeeee.........hhhhhhhhhhhhhhh...eeeee....hhhhhhhhhhhh.eeeee....hhhhh.............hhhhhhhhhhhhhhhhhh.......ee.......hhhhhhhhhhhhhhh.....ee...............ee........hhhhhhh..........eeeeee.......hhhhhhhhhhhhhhhhhhhh................hhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhh......eeeeee.....................hhhhhhhhhhh..eeeee.....eeeeee.....eeeeeeeeeeee....eeeeeeeeeeee.....eeeeee.........eeeeeeeee.....eeeeeeeeee....ee.hhhh......eee...hhhhhhh....eeeeeeeee....eeeeeeeeee.......eeeeeeeee..........ee....eee....eeeeeeeee.hhhh....eeeeee...eeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2x05 B  48 AGNATPIPGYVIQSSAQVSDDSAVSKPGFPTSGWYPVSSRSTVYAGLLQNGKYADPFYSTNMQNVPAAQFSVPWWYRTDLNVDDTSSRTYLDFSGVLSKADVWVNGTKVATKDQVNGAYTRHDLDITAQVHTGVNSVAFKVYPNDPNRDLSMGWIDWAQTPPDQNMGIVRDVLVRRSGAVALRSAHVIQKLNSALDHADLTVKADVRNDSANAVQTTVAGTVAGKPISQTVSLAAKERKTVTFPLVGLDRPNVWWPAGMGGQHRYDLDLTASVGGTPSDAAKSKFGVRDVKATLNSSGGRQYSVNGKPLLIRGGGYTPDLFLRWNETAAADKLKYVLNLGLNTVRLEGHIEPDEFFDIADDLGVLTMPGWECCDKWEGQVNGEEKGEPWVESDYPIAKASMFSEAERLRDHPSVISFHIGSDFAPDRRIEQGYLDAMKAADFLLPVIPAASARPSPITGASGMKMNGPYDYVPPVYWYDKSQKDRGGAWSFNSETSAGVDIPTMDTLKRMMSASELDTMWKNPSAKQYHRSSSDTFGNLKLFGDALTKRYGASANLNDFVRKAQLSQYENVRAEFESHSRNYTDSTNPSTGLIYWMLNSPWTSLHWQLFDAYMDQNGAYYGAKKANEPLHIQYSHDNRSVVVINQTSNAVSGLTATTKLYNLDGTEKYSNTKTGLSVGALGAKATAVTVPAVSGLSTTYLAKNVLTDSSGKEVSRNVYWLSTKADTLNWGGSDWYYTPQSAFADLSGLNNLGQSAVGATANSVAGADGTTTTTVTLKNTSGGRLPAFYVDSKVVDSAGKPVLPVEWNDNAVSLWPGETTTLTAKYRTADLKGSKPSVRISGWNTGTQTVPAD 899
                                    57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457       467       477       487       497       507       517       527       537       547       557       567       577       587       597       607       617       627       637       647       657       667       677       687       697       707       717       727       737       747       757       767       777       787       797       807       817       827       837       847       857       867       877       887       897

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

(no "CATH Domain" information available for 2X05)

Asymmetric Unit(hide GO term definitions)

Chain A,B (EBDG_AMYOR | Q56F26)

molecular function
	GO:0030246	carbohydrate binding	Interacting selectively and non-covalently with any carbohydrate, which includes monosaccharides, oligosaccharides and polysaccharides as well as substances derived from monosaccharides by reduction of the carbonyl group (alditols), by oxidation of one or more hydroxy groups to afford the corresponding aldehydes, ketones, or carboxylic acids, or by replacement of one or more hydroxy group(s) by a hydrogen atom. Cyclitols are generally not regarded as carbohydrates.
	GO:0052761	exo-1,4-beta-D-glucosaminidase activity	Catalysis of the reaction: [beta-(1->4)-D-glucosamine]n-[N-acetyl-D-glucosamine]m = D-glucosamine + [beta-(1->4)-D-glucosamine](n-1)-[N-acetyl-D-glucosamine]m. This reaction is the hydrolysis of chitosan or chitosan oligosaccharides to remove a D-glucosamine residue from the non-reducing termini; chitosan is a linear polysaccharide composed of randomly distributed beta-(1->4)-linked D-glucosamine and N-acetyl-D-glucosamine units.
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0016798	hydrolase activity, acting on glycosyl bonds	Catalysis of the hydrolysis of any glycosyl bond.
	GO:0004553	hydrolase activity, hydrolyzing O-glycosyl compounds	Catalysis of the hydrolysis of any O-glycosyl bond.
biological process
	GO:0005975	carbohydrate metabolic process	The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
	GO:0006032	chitin catabolic process	The chemical reactions and pathways resulting in the breakdown of chitin, a linear polysaccharide consisting of beta-(1->4)-linked N-acetyl-D-glucosamine residues.
	GO:0008152	metabolic process	The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
	GO:0000272	polysaccharide catabolic process	The chemical reactions and pathways resulting in the breakdown of a polysaccharide, a polymer of many (typically more than 10) monosaccharide residues linked glycosidically.
cellular component
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
	GO:0005615	extracellular space	That part of a multicellular organism outside the cells proper, usually taken to be outside the plasma membranes, and occupied by fluid.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		CD	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		X05	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]
		BC6	[ RasMol ]	+environment [ RasMol ]
		BC7	[ RasMol ]	+environment [ RasMol ]
		BC8	[ RasMol ]	+environment [ RasMol ]
		BC9	[ RasMol ]	+environment [ RasMol ]
		CC1	[ RasMol ]	+environment [ RasMol ]
		CC2	[ RasMol ]	+environment [ RasMol ]
		CC3	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Gly A:514 - Pro A:515	[ RasMol ]
		Gly B:514 - Pro B:515	[ RasMol ]
		Leu A:144 - Ser A:145	[ RasMol ]
		Leu A:849 - Pro A:850	[ RasMol ]
		Leu B:144 - Ser B:145	[ RasMol ]
		Leu B:849 - Pro B:850	[ RasMol ]
		Trp A:642 - Met A:643	[ RasMol ]
		Trp B:642 - Met B:643	[ RasMol ]
		Val A:803 - Gly A:804	[ RasMol ]
		Val B:803 - Gly B:804	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	2x05
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	EBDG_AMYOR \| Q56F26
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.2.1.165
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	EBDG_AMYOR \| Q56F26
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	EBDG_AMYOR \| Q56F26	:	2vzo 2vzp 2vzq 2vzr 2vzs 2vzt 2vzu 2vzv 2x09

2vzo	CRYSTAL STRUCTURE OF AMYCOLATOPSIS ORIENTALIS EXO-CHITOSANASE CSXA
2vzp	ATOMIC RESOLUTION STRUCTURE OF THE C- TERMINAL CBM35 FROM AMYCOLATOPSIS ORIENTALIS EXO-CHITOSANASE CSXA
2vzq	C-TERMINAL CBM35 FROM AMYCOLATOPSIS ORIENTALIS EXO-CHITOSANASE CSXA IN COMPLEX WITH DIGALACTURONIC ACID
2vzr	C-TERMINAL CBM35 FROM AMYCOLATOPSIS ORIENTALIS EXO-CHITOSANASE CSXA IN COMPLEX WITH GLUCURONIC ACID
2vzs	CHITOSAN PRODUCT COMPLEX OF AMYCOLATOPSIS ORIENTALIS EXO-CHITOSANASE CSXA
2vzt	COMPLEX OF AMYCOLATOPSIS ORIENTALIS EXO- CHITOSANASE CSXA E541A WITH PNP-BETA-D- GLUCOSAMINE
2vzu	COMPLEX OF AMYCOLATOPSIS ORIENTALIS EXO- CHITOSANASE CSXA D469A WITH PNP-BETA-D- GLUCOSAMINE
2vzv	SUBSTRATE COMPLEX OF AMYCOLATOPSIS ORIENTALIS EXO-CHITOSANASE CSXA E541A WITH CHITOSAN

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 21)

Sites (21, 21)

SS Bonds (2, 2)

Cis Peptide Bonds (10, 10)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (3, 10)

CATH Domains (0, 0)

Pfam Domains (2, 4)

Gene Ontology (11, 11)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
