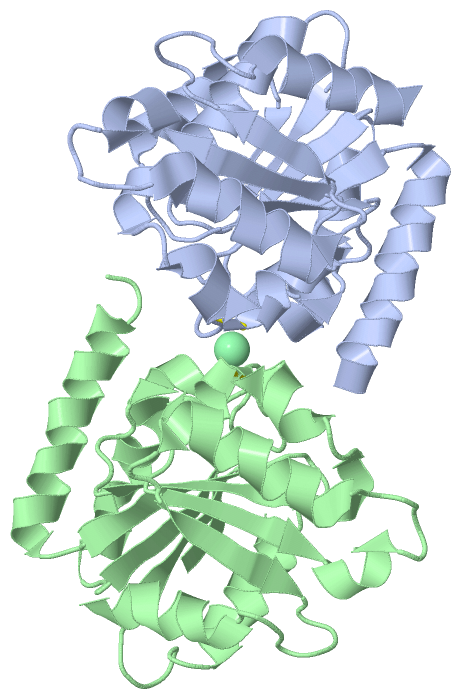

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

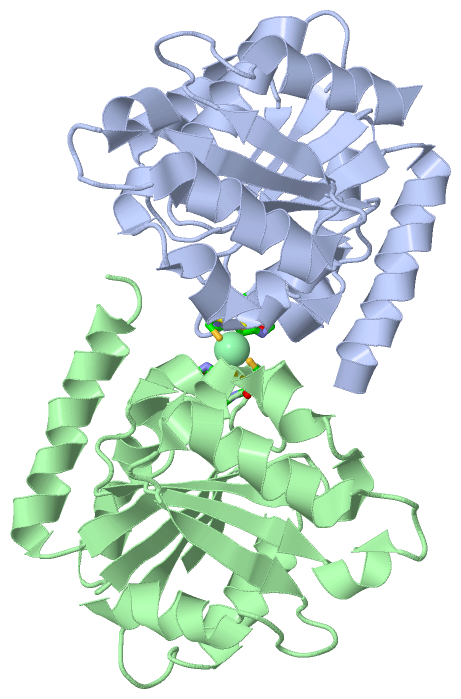

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF HYDROGENASE MATURATION FACTOR HYPB FROM ARCHAEOGLOBUS FULGIDUS

Authors :  K. B. Wong, T. Li
Date :  08 Sep 09  (Deposition) - 22 Sep 10  (Release) - 25 Apr 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Metal Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. H. Chan, T. Li, C. Wong, K. B. Wong
Structural Basis For Gtp-Dependent Dimerization Of Hydrogenase Maturation Factor Hypb.
Plos One V. 7 30547 2012
PubMed-ID: 22276211  |  Reference-DOI: 10.1371/JOURNAL.PONE.0030547

(-) Compounds

Molecule 1 - HYDROGENASE EXPRESSION/FORMATION PROTEIN (HYPB)
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PRSETA
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Variant: PLYSS
    Organism Scientific: ARCHAEOGLOBUS FULGIDUS
    Organism Taxid: 224325
    Strain: DSM 4304

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1CL1Ligand/IonCHLORIDE ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLU A:91 , CYS A:92 , HIS A:93 , GLU B:91 , CYS B:92 , HIS B:93BINDING SITE FOR RESIDUE CL A1214

(-) SS Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1A:92 -A:122
2B:92 -B:122

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2WSM)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2WSM)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2WSM)

(-) Exons   (0, 0)

(no "Exon" information available for 2WSM)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:203
 aligned with O28903_ARCFU | O28903 from UniProtKB/TrEMBL  Length:221

    Alignment length:203
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210
         O28903_ARCFU    11 LAENKRLAEKNREALRESGTVAVNIMGAIGSGKTLLIERTIERIGNEVKIGAMLGDVVSKADYERVRRFGIKAEAISTGKECHLDAHMIYHRLKKFSDCDLLLIENVGNLICPVDFDLGENYRVVMVSVTEGDDVVEKHPEIFRVADLIVINKVALAEAVGADVEKMKADAKLINPRAKIIEMDLKTGKGFEEWIDFLRGILN 213
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhh..eeeeee......hhhhhhhhhhhh.....eeeee....hhhhhhhhhh...eeee.........hhhhhhhhhhhhh...eeeee.....hhhhhh.....eeeeeeehhh..hhhhhhhhhhhh..eeeeehhhhh.....hhhhhhhhhhhhh...eeee........hhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2wsm A  11 LAENKRLAEKNREALRESGTVAVNIMGAIGSGKTLLIERTIERIGNEVKIGAMLGDVVSKADYERVRRFGIKAEAISTGKECHLDAHMIYHRLKKFSDCDLLLIENVGNLICPVDFDLGENYRVVMVSVTEGDDVVEKHPEIFRVADLIVINKVALAEAVGADVEKMKADAKLINPRAKIIEMDLKTGKGFEEWIDFLRGILN 213
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210


Chain B from PDB  Type:PROTEIN  Length:187
 aligned with O28903_ARCFU | O28903 from UniProtKB/TrEMBL  Length:221

    Alignment length:203
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208
         O28903_ARCFU     9 DLLAENKRLAEKNREALRESGTVAVNIMGAIGSGKTLLIERTIERIGNEVKIGAMLGDVVSKADYERVRRFGIKAEAISTGKECHLDAHMIYHRLKKFSDCDLLLIENVGNLICPVDFDLGENYRVVMVSVTEGDDVVEKHPEIFRVADLIVINKVALAEAVGADVEKMKADAKLINPRAKIIEMDLKTGKGFEEWIDFLRGI 211
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ----------------------cobW-2wsmB01 B:31-192                                                                                                                                             ------------------- Pfam domains (1)
           Pfam domains (2) ----------------------cobW-2wsmB02 B:31-192                                                                                                                                             ------------------- Pfam domains (2)
         Sec.struct. author ..hhhhhhhhhhhhhhhhhh..eeeeee......hhhhhhhhhh.......eeeee..----------------eee.........hhhhhhhhhhhhh...eeeee.....hhhhhh.....eeeeeeehhh..hhhhhhhhhhh...eeeee.hhhh.....hhhhhhhhhhhhh...eeeee.......hhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2wsm B   9 DLLAENKRLAEKNREALRESGTVAVNIMGAIGSGKTLLIERTIERIGNEVKIGAMLGD----------------AEAISTGKECHLDAHMIYHRLKKFSDCDLLLIENVGNLICPVDFDLGENYRVVMVSVTEGDDVVEKHPEIFRVADLIVINKVALAEAVGADVEKMKADAKLINPRAKIIEMDLKTGKGFEEWIDFLRGI 211
                                    18        28        38        48        58       | -         -    |   88        98       108       118       128       138       148       158       168       178       188       198       208
                                                                                    66               83
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2WSM)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2WSM)

(-) Pfam Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Clan: P-loop_NTPase (1112)

(-) Gene Ontology  (2, 2)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (O28903_ARCFU | O28903)
molecular function
    GO:0016151    nickel cation binding    Interacting selectively and non-covalently with nickel (Ni) cations.
biological process
    GO:0006461    protein complex assembly    The aggregation, arrangement and bonding together of a set of components to form a protein complex.
