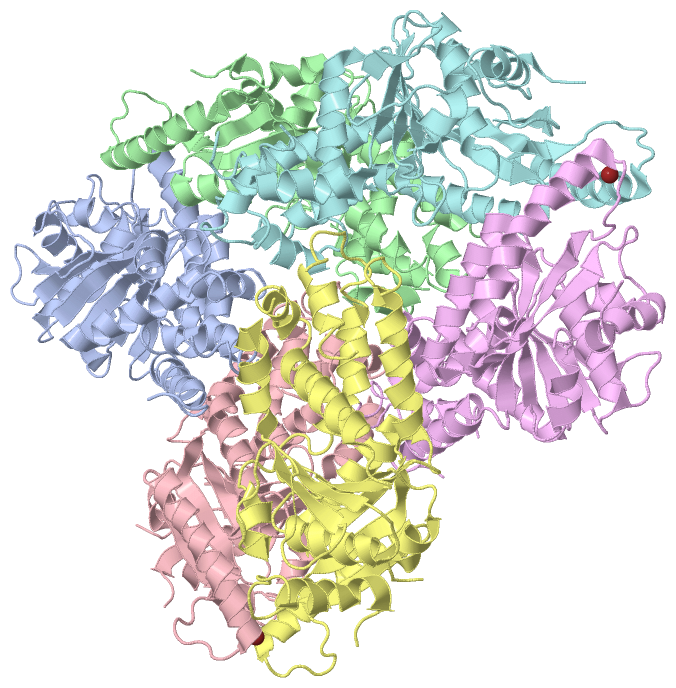

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

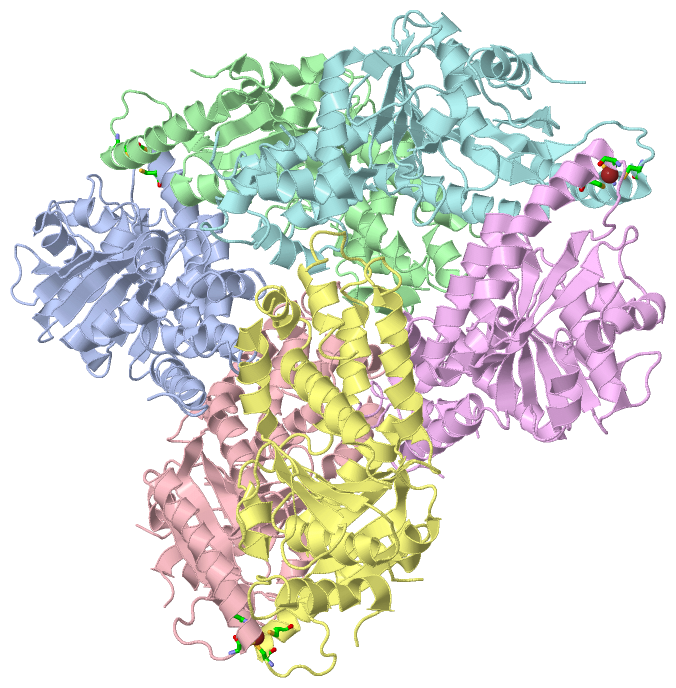

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

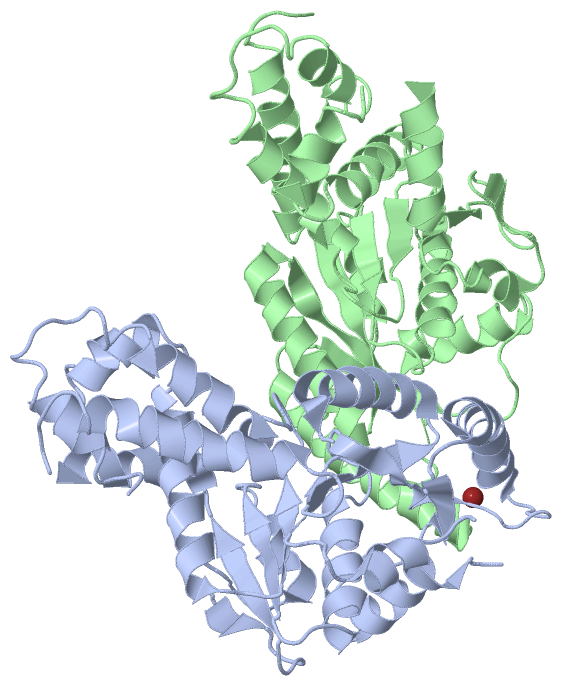

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

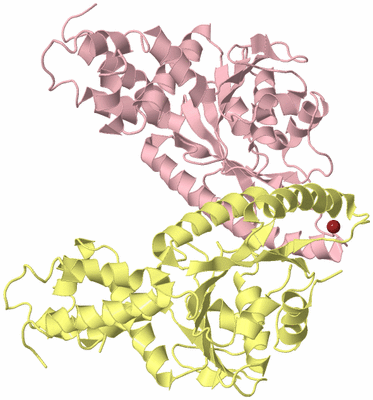

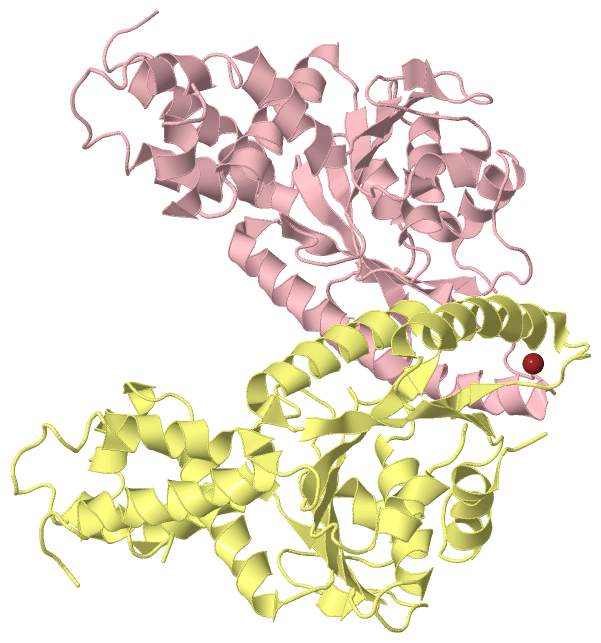

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

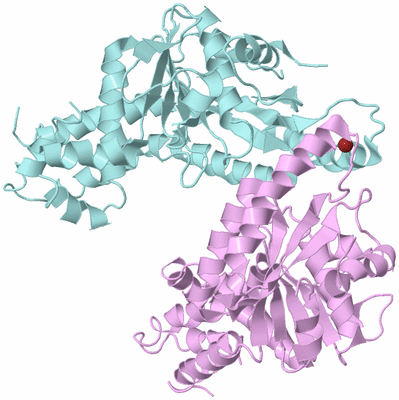

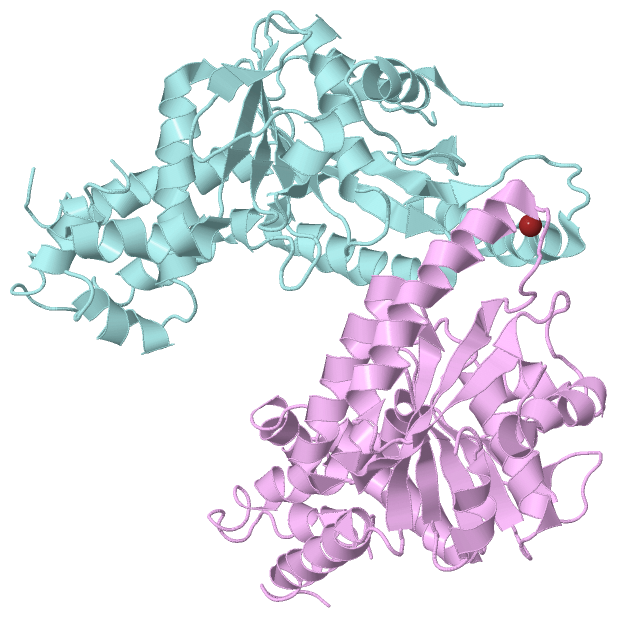

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)
Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

(-) Description

Title :  NUCLEOTIDE-FREE FORM OF S. POMBE GET3

Authors :  A. Mateja, A. Szlachcic, M. E. Downing, M. Dobosz, M. Mariappan, R. S. Hegde, R. J. Keenan
Date :  27 Jul 09  (Deposition) - 11 Aug 09  (Release) - 22 Sep 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.01
Chains :  Asym. Unit :  A,B,C,D,E,F
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Biol. Unit 3:  E,F  (1x)
Biol. Unit 4:  A,B,C,D,E,F  (1x)
Keywords :  Tail-Anchored, Membrane Protein, Targeting Factor, Endoplasmic Reticulum, Get3, Atpase, Trc40, Atp-Binding, Golgi Apparatus, Er-Golgi Transport, Nucleotide-Binding, Arsenical Resistance, Nucleus, Hydrolase, Cytoplasm, Transport, Arsa, Arsenite (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Mateja, A. Szlachcic, M. E. Downing, M. Dobosz, M. Mariappan, R. S. Hegde, R. J. Keenan
The Structural Basis Of Tail-Anchored Membrane Protein Recognition By Get3.
Nature V. 461 361 2009
PubMed-ID: 19675567  |  Reference-DOI: 10.1038/NATURE08319

(-) Compounds

Molecule 1 - ATPASE GET3
    Chains: A, B, C, D, E, F
    EC Number: 3.6.3.16
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28
    Expression System Strain: ROSETTA2(DE3)/PLYSS
    Expression System Taxid: 562
    Organism Common: FISSION YEAST
    Organism Scientific: SCHIZOSACCHAROMYCES POMBE
    Organism Taxid: 4896
    Synonym: GET3, ARR4, TRC40, ASNA-1, ATPASE SUBUNIT OF THE GET COMPLEX, ARSENICAL PUMP-DRIVING ATPASE, ARSENITE-TRANSLOCATING ATPASE, ARSENICAL RESISTANCE ATPASE, ARSENITE-TRANSPORTING ATPASE

 Structural Features

(-) Chains, Units

  123456
Asymmetric Unit : ABCDEF
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD
Biological Unit 3 (1x):     EF
Biological Unit 4 (1x): ABCDEF

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 3)

Asymmetric Unit (1, 3)
No.NameCountTypeFull Name
1ZN3Ligand/IonZINC ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1ZN-1Ligand/IonZINC ION
Biological Unit 2 (0, 0)
No.NameCountTypeFull Name
1ZN-1Ligand/IonZINC ION
Biological Unit 3 (0, 0)
No.NameCountTypeFull Name
1ZN-1Ligand/IonZINC ION
Biological Unit 4 (0, 0)
No.NameCountTypeFull Name
1ZN-1Ligand/IonZINC ION

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWARECYS A:268 , CYS A:271 , CYS B:268 , CYS B:271BINDING SITE FOR RESIDUE ZN B1323
2AC2SOFTWARECYS C:268 , CYS C:271 , CYS D:268 , CYS D:271BINDING SITE FOR RESIDUE ZN C1323
3AC3SOFTWARECYS E:268 , CYS E:271 , CYS F:268 , CYS F:271BINDING SITE FOR RESIDUE ZN F1323

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2WOO)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2WOO)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2WOO)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2WOO)

(-) Exons   (0, 0)

(no "Exon" information available for 2WOO)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:303
 aligned with GET3_SCHPO | Q9P7F8 from UniProtKB/Swiss-Prot  Length:329

    Alignment length:316
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316
           GET3_SCHPO     7 PGTLENLLEQTSLKWIFVGGKGGVGKTTTSCSLAIQMSKVRSSVLLISTDPAHNLSDAFGTKFGKDARKVPGFDNLSAMEIDPNLSIQEMTEQADQQNPNNPLSGMMQDLAFTIPGIDEALAFAEILKQIKSMEFDCVIFDTAPTGHTLRFLNFPTVLEKALGKLGGLSSRFGPMINQMGSIMGVNANEQDLFGKMESMRANISEVNKQFKNPDLTTFVCVCISEFLSLYETERMIQELTSYEIDTHNIVVNQLLLDPNTTCPQCMARRKMQQKYLAQIEELYEDFHVVKVPQVPAEVRGTEALKSFSEMLVKPYV 322
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhh....eeee.......hhhhhhhhhhhhhh....eeeee....hhhhhhh........ee......eeeee.hhhhhhhhhhhh.--------...hhhhhhh....hhhhhhhhhhhhhhhhh...eeeee........hhhhhhhhhhhhh...........hhhhhh.....-----.....hhhhhhhhhhhhhhhhh....eeeeeeee.hhhhhhhhhhhhhhhhhhh.eeeeeeeeee.......hhhhhhhhhhhhhhhhhhhhhh...eeeeee.........hhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2woo A   7 PGTLENLLEQTSLKWIFVGGKGGVGKTTTSCSLAIQMSKVRSSVLLISTDPAHNLSDAFGTKFGKDARKVPGFDNLSAMEIDPNLSIQEMTEQA--------LSGMMQDLAFTIPGIDEALAFAEILKQIKSMEFDCVIFDTAPTGHTLRFLNFPTVLEKALGKLGGLSSRFGPMINQMGSIMG-----QDLFGKMESMRANISEVNKQFKNPDLTTFVCVCISEFLSLYETERMIQELTSYEIDTHNIVVNQLLLDPNTTCPQCMARRKMQQKYLAQIEELYEDFHVVKVPQVPAEVRGTEALKSFSEMLVKPYV 322
                                    16        26        36        46        56        66        76        86        96   |     -  |    116       126       136       146       156       166       176       186   |   196       206       216       226       236       246       256       266       276       286       296       306       316
                                                                                                                       100      109                                                                              190   196


Chain B from PDB  Type:PROTEIN  Length:303
 aligned with GET3_SCHPO | Q9P7F8 from UniProtKB/Swiss-Prot  Length:329

    Alignment length:316
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316
           GET3_SCHPO     7 PGTLENLLEQTSLKWIFVGGKGGVGKTTTSCSLAIQMSKVRSSVLLISTDPAHNLSDAFGTKFGKDARKVPGFDNLSAMEIDPNLSIQEMTEQADQQNPNNPLSGMMQDLAFTIPGIDEALAFAEILKQIKSMEFDCVIFDTAPTGHTLRFLNFPTVLEKALGKLGGLSSRFGPMINQMGSIMGVNANEQDLFGKMESMRANISEVNKQFKNPDLTTFVCVCISEFLSLYETERMIQELTSYEIDTHNIVVNQLLLDPNTTCPQCMARRKMQQKYLAQIEELYEDFHVVKVPQVPAEVRGTEALKSFSEMLVKPYV 322
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhh....eeee.......hhhhhhhhhhhhhh....eeeee....hhhhhhh........ee......eeeee.hhhhhhhhhhhh.--------...hhhhhhh....hhhhhhhhhhhhhhhhh...eeeee........hhhhhhhhhhhhh...........hhhhhh.....-----.....hhhhhhhhhhhhhhhhh....eeeeeeee.hhhhhhhhhhhhhhhhhhh.eeeeeeeeee.......hhhhhhhhhhhhhhhhhhhhhh...eeeeee.........hhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2woo B   7 PGTLENLLEQTSLKWIFVGGKGGVGKTTTSCSLAIQMSKVRSSVLLISTDPAHNLSDAFGTKFGKDARKVPGFDNLSAMEIDPNLSIQEMTEQA--------LSGMMQDLAFTIPGIDEALAFAEILKQIKSMEFDCVIFDTAPTGHTLRFLNFPTVLEKALGKLGGLSSRFGPMINQMGSIMG-----QDLFGKMESMRANISEVNKQFKNPDLTTFVCVCISEFLSLYETERMIQELTSYEIDTHNIVVNQLLLDPNTTCPQCMARRKMQQKYLAQIEELYEDFHVVKVPQVPAEVRGTEALKSFSEMLVKPYV 322
                                    16        26        36        46        56        66        76        86        96   |     -  |    116       126       136       146       156       166       176       186   |   196       206       216       226       236       246       256       266       276       286       296       306       316
                                                                                                                       100      109                                                                              190   196


Chain C from PDB  Type:PROTEIN  Length:303
 aligned with GET3_SCHPO | Q9P7F8 from UniProtKB/Swiss-Prot  Length:329

    Alignment length:316
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316
           GET3_SCHPO     7 PGTLENLLEQTSLKWIFVGGKGGVGKTTTSCSLAIQMSKVRSSVLLISTDPAHNLSDAFGTKFGKDARKVPGFDNLSAMEIDPNLSIQEMTEQADQQNPNNPLSGMMQDLAFTIPGIDEALAFAEILKQIKSMEFDCVIFDTAPTGHTLRFLNFPTVLEKALGKLGGLSSRFGPMINQMGSIMGVNANEQDLFGKMESMRANISEVNKQFKNPDLTTFVCVCISEFLSLYETERMIQELTSYEIDTHNIVVNQLLLDPNTTCPQCMARRKMQQKYLAQIEELYEDFHVVKVPQVPAEVRGTEALKSFSEMLVKPYV 322
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhh....eeee.......hhhhhhhhhhhhhh....eeeee....hhhhhhh........ee......eeeee.hhhhhhhhhhhh.--------...hhhhhhh....hhhhhhhhhhhhhhhhh...eeeee........hhhhhhhhhhhhh...........hhhhhh.....-----.....hhhhhhhhhhhhhhhhh....eeeeeeee.hhhhhhhhhhhhhhhhhhh.eeeeeeeeee.......hhhhhhhhhhhhhhhhhhhhhh...eeeeee.........hhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2woo C   7 PGTLENLLEQTSLKWIFVGGKGGVGKTTTSCSLAIQMSKVRSSVLLISTDPAHNLSDAFGTKFGKDARKVPGFDNLSAMEIDPNLSIQEMTEQA--------LSGMMQDLAFTIPGIDEALAFAEILKQIKSMEFDCVIFDTAPTGHTLRFLNFPTVLEKALGKLGGLSSRFGPMINQMGSIMG-----QDLFGKMESMRANISEVNKQFKNPDLTTFVCVCISEFLSLYETERMIQELTSYEIDTHNIVVNQLLLDPNTTCPQCMARRKMQQKYLAQIEELYEDFHVVKVPQVPAEVRGTEALKSFSEMLVKPYV 322
                                    16        26        36        46        56        66        76        86        96   |     -  |    116       126       136       146       156       166       176       186   |   196       206       216       226       236       246       256       266       276       286       296       306       316
                                                                                                                       100      109                                                                              190   196


Chain D from PDB  Type:PROTEIN  Length:303
 aligned with GET3_SCHPO | Q9P7F8 from UniProtKB/Swiss-Prot  Length:329

    Alignment length:316
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316
           GET3_SCHPO     7 PGTLENLLEQTSLKWIFVGGKGGVGKTTTSCSLAIQMSKVRSSVLLISTDPAHNLSDAFGTKFGKDARKVPGFDNLSAMEIDPNLSIQEMTEQADQQNPNNPLSGMMQDLAFTIPGIDEALAFAEILKQIKSMEFDCVIFDTAPTGHTLRFLNFPTVLEKALGKLGGLSSRFGPMINQMGSIMGVNANEQDLFGKMESMRANISEVNKQFKNPDLTTFVCVCISEFLSLYETERMIQELTSYEIDTHNIVVNQLLLDPNTTCPQCMARRKMQQKYLAQIEELYEDFHVVKVPQVPAEVRGTEALKSFSEMLVKPYV 322
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhh....eeee.......hhhhhhhhhhhhhh....eeeee....hhhhhhh........ee......eeeee.hhhhhhhhhhhh.--------...hhhhhhh....hhhhhhhhhhhhhhhhh...eeeee........hhhhhhhhhhhhh...........hhhhhh.....-----.....hhhhhhhhhhhhhhhhh....eeeeeeee.hhhhhhhhhhhhhhhhhhh.eeeeeeeeee.......hhhhhhhhhhhhhhhhhhhhhh...eeeeee.........hhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2woo D   7 PGTLENLLEQTSLKWIFVGGKGGVGKTTTSCSLAIQMSKVRSSVLLISTDPAHNLSDAFGTKFGKDARKVPGFDNLSAMEIDPNLSIQEMTEQA--------LSGMMQDLAFTIPGIDEALAFAEILKQIKSMEFDCVIFDTAPTGHTLRFLNFPTVLEKALGKLGGLSSRFGPMINQMGSIMG-----QDLFGKMESMRANISEVNKQFKNPDLTTFVCVCISEFLSLYETERMIQELTSYEIDTHNIVVNQLLLDPNTTCPQCMARRKMQQKYLAQIEELYEDFHVVKVPQVPAEVRGTEALKSFSEMLVKPYV 322
                                    16        26        36        46        56        66        76        86        96   |     -  |    116       126       136       146       156       166       176       186   |   196       206       216       226       236       246       256       266       276       286       296       306       316
                                                                                                                       100      109                                                                              190   196


Chain E from PDB  Type:PROTEIN  Length:303
 aligned with GET3_SCHPO | Q9P7F8 from UniProtKB/Swiss-Prot  Length:329

    Alignment length:316
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316
           GET3_SCHPO     7 PGTLENLLEQTSLKWIFVGGKGGVGKTTTSCSLAIQMSKVRSSVLLISTDPAHNLSDAFGTKFGKDARKVPGFDNLSAMEIDPNLSIQEMTEQADQQNPNNPLSGMMQDLAFTIPGIDEALAFAEILKQIKSMEFDCVIFDTAPTGHTLRFLNFPTVLEKALGKLGGLSSRFGPMINQMGSIMGVNANEQDLFGKMESMRANISEVNKQFKNPDLTTFVCVCISEFLSLYETERMIQELTSYEIDTHNIVVNQLLLDPNTTCPQCMARRKMQQKYLAQIEELYEDFHVVKVPQVPAEVRGTEALKSFSEMLVKPYV 322
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhh....eeee.......hhhhhhhhhhhhhh....eeeee....hhhhhhh........ee......eeeee.hhhhhhhhhhhh.--------...hhhhhhh....hhhhhhhhhhhhhhhhh...eeeee........hhhhhhhhhhhhh...........hhhhhh.....-----.....hhhhhhhhhhhhhhhhh....eeeeeeee.hhhhhhhhhhhhhhhhhhh.eeeeeeeeee.......hhhhhhhhhhhhhhhhhhhhhh...eeeeee.........hhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2woo E   7 PGTLENLLEQTSLKWIFVGGKGGVGKTTTSCSLAIQMSKVRSSVLLISTDPAHNLSDAFGTKFGKDARKVPGFDNLSAMEIDPNLSIQEMTEQA--------LSGMMQDLAFTIPGIDEALAFAEILKQIKSMEFDCVIFDTAPTGHTLRFLNFPTVLEKALGKLGGLSSRFGPMINQMGSIMG-----QDLFGKMESMRANISEVNKQFKNPDLTTFVCVCISEFLSLYETERMIQELTSYEIDTHNIVVNQLLLDPNTTCPQCMARRKMQQKYLAQIEELYEDFHVVKVPQVPAEVRGTEALKSFSEMLVKPYV 322
                                    16        26        36        46        56        66        76        86        96   |     -  |    116       126       136       146       156       166       176       186   |   196       206       216       226       236       246       256       266       276       286       296       306       316
                                                                                                                       100      109                                                                              190   196


Chain F from PDB  Type:PROTEIN  Length:303
 aligned with GET3_SCHPO | Q9P7F8 from UniProtKB/Swiss-Prot  Length:329

    Alignment length:316
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316
           GET3_SCHPO     7 PGTLENLLEQTSLKWIFVGGKGGVGKTTTSCSLAIQMSKVRSSVLLISTDPAHNLSDAFGTKFGKDARKVPGFDNLSAMEIDPNLSIQEMTEQADQQNPNNPLSGMMQDLAFTIPGIDEALAFAEILKQIKSMEFDCVIFDTAPTGHTLRFLNFPTVLEKALGKLGGLSSRFGPMINQMGSIMGVNANEQDLFGKMESMRANISEVNKQFKNPDLTTFVCVCISEFLSLYETERMIQELTSYEIDTHNIVVNQLLLDPNTTCPQCMARRKMQQKYLAQIEELYEDFHVVKVPQVPAEVRGTEALKSFSEMLVKPYV 322
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ------------ArsA_ATPase-2wooF01 F:19-319                                                                                                                                                                                                                                                                                 --- Pfam domains (1)
           Pfam domains (2) ------------ArsA_ATPase-2wooF02 F:19-319                                                                                                                                                                                                                                                                                 --- Pfam domains (2)
           Pfam domains (3) ------------ArsA_ATPase-2wooF03 F:19-319                                                                                                                                                                                                                                                                                 --- Pfam domains (3)
           Pfam domains (4) ------------ArsA_ATPase-2wooF04 F:19-319                                                                                                                                                                                                                                                                                 --- Pfam domains (4)
           Pfam domains (5) ------------ArsA_ATPase-2wooF05 F:19-319                                                                                                                                                                                                                                                                                 --- Pfam domains (5)
           Pfam domains (6) ------------ArsA_ATPase-2wooF06 F:19-319                                                                                                                                                                                                                                                                                 --- Pfam domains (6)
         Sec.struct. author ...hhhhhhh....eeee.......hhhhhhhhhhhhhh....eeeee....hhhhhhh........ee......eeeee.hhhhhhhhhhhh.--------...hhhhhhh....hhhhhhhhhhhhhhhhhh..eeeee........hhhhhhhhhhhhh...........hhhhhh.....-----.....hhhhhhhhhhhhhhhhh....eeeeeeee.hhhhhhhhhhhhhhhhhhh.eeeeeeeeee.......hhhhhhhhhhhhhhhhhhhhhh...eeeeee.........hhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2woo F   7 PGTLENLLEQTSLKWIFVGGKGGVGKTTTSCSLAIQMSKVRSSVLLISTDPAHNLSDAFGTKFGKDARKVPGFDNLSAMEIDPNLSIQEMTEQA--------LSGMMQDLAFTIPGIDEALAFAEILKQIKSMEFDCVIFDTAPTGHTLRFLNFPTVLEKALGKLGGLSSRFGPMINQMGSIMG-----QDLFGKMESMRANISEVNKQFKNPDLTTFVCVCISEFLSLYETERMIQELTSYEIDTHNIVVNQLLLDPNTTCPQCMARRKMQQKYLAQIEELYEDFHVVKVPQVPAEVRGTEALKSFSEMLVKPYV 322
                                    16        26        36        46        56        66        76        86        96   |     -  |    116       126       136       146       156       166       176       186   |   196       206       216       226       236       246       256       266       276       286       296       306       316
                                                                                                                       100      109                                                                              190   196
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2WOO)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2WOO)

(-) Pfam Domains  (1, 6)

Asymmetric Unit
(-)
Clan: P-loop_NTPase (1112)

(-) Gene Ontology  (13, 13)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E,F   (GET3_SCHPO | Q9P7F8)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0016887    ATPase activity    Catalysis of the reaction: ATP + H2O = ADP + phosphate + 2 H+. May or may not be coupled to another reaction.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
biological process
    GO:0045048    protein insertion into ER membrane    The process that results in incorporation of a protein into an endoplasmic reticulum (ER) membrane. It depends on specific topogenic sequences of amino acids that ensure that a protein acquires the proper orientation during its insertion into the ER membrane.
    GO:0006890    retrograde vesicle-mediated transport, Golgi to ER    The directed movement of substances from the Golgi back to the endoplasmic reticulum, mediated by vesicles bearing specific protein coats such as COPI or COG.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0043529    GET complex    A multisubunit complex involved in ER/Golgi trafficking (Golgi to ER Traffic). In yeast, includes Get1p, Get2p and Get3p proteins.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0005783    endoplasmic reticulum    The irregular network of unit membranes, visible only by electron microscopy, that occurs in the cytoplasm of many eukaryotic cells. The membranes form a complex meshwork of tubular channels, which are often expanded into slitlike cavities called cisternae. The ER takes two forms, rough (or granular), with ribosomes adhering to the outer surface, and smooth (with no ribosomes attached).
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ZN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2woo)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2woo
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  GET3_SCHPO | Q9P7F8
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.6.3.16
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  GET3_SCHPO | Q9P7F8
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 2WOO)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2WOO)
