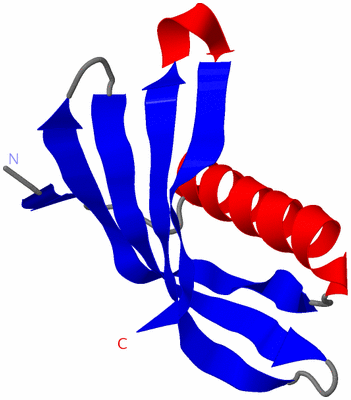

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF POTATO MULTICYSTATIN-P212121

Authors :  M. S. Nissen, G. N. Kumar, B. Youn, D. B. Knowles, K. S. Lam, W. J. Ballinger, N. R. Knowles, C. Kang
Date :  28 Jan 09  (Deposition) - 02 Feb 10  (Release) - 02 Feb 10  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym./Biol. Unit :  A
Keywords :  Protease Inhibitor, Thiol Protease Inhibitor, Hydrolase Inhibitor (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. S. Nissen, G. N. Kumar, B. Youn, D. B. Knowles, K. S. Lam, W. J. Ballinger, N. R. Knowles, C. Kang
Characterization Of Solanum Tuberosum Multicystatin And Its Structural Comparison With Other Cystatins.
Plant Cell V. 21 861 2009
PubMed-ID: 19304935  |  Reference-DOI: 10.1105/TPC.108.064717

(-) Compounds

Molecule 1 - MULTICYSTATIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28A
    Expression System Strain: ER2566
    Expression System Taxid: 562
    Fragment: RESIDUES 100-186
    Organism Common: POTATO
    Organism Scientific: SOLANUM TUBEROSUM
    Organism Taxid: 4113
    Synonym: POTATO MULTICYSTATIN, MC

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2W9Q)

(-) Sites  (0, 0)

(no "Site" information available for 2W9Q)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2W9Q)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2W9Q)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2W9Q)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2W9Q)

(-) Exons   (0, 0)

(no "Exon" information available for 2W9Q)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:87
 aligned with CYTM_SOLTU | P37842 from UniProtKB/Swiss-Prot  Length:756

    Alignment length:87
                                   109       119       129       139       149       159       169       179
           CYTM_SOLTU   100 GIVNVPNPNNTKFQELARFAIQDYNKKQNAHLEFVENLNVKEQVVAGIMYYITLAATDDAGKKKIYKAKIWVKEWEDFKKVVEFKLV 186
               SCOP domains d2w9qa_ A: automated matches                                                            SCOP domains
               CATH domains 2w9qA00 A:4-90  [code=3.10.450.10, no name defined]                                     CATH domains
               Pfam domains Cystatin-2w9qA01 A:4-90                                                                 Pfam domains
         Sec.struct. author ..ee.....hhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeee...eeeeeeeeeee...eeeeeeeeeeeehhhheeeeeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------- Transcript
                 2w9q A   4 GIVNVPNPNNTKFQELARFAIQDYNKKQNAHLEFVENLNVKEQVVAGIMYYITLAATDDAGKKKIYKAKIWVKEWEDFKKVVEFKLV  90
                                    13        23        33        43        53        63        73        83
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: Cystatin (20)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (CYTM_SOLTU | P37842)
molecular function
    GO:0004869    cysteine-type endopeptidase inhibitor activity    Stops, prevents or reduces the activity of a cysteine-type endopeptidase, any enzyme that hydrolyzes peptide bonds in polypeptides by a mechanism in which the sulfhydryl group of a cysteine residue at the active center acts as a nucleophile.
    GO:0030414    peptidase inhibitor activity    Stops, prevents or reduces the activity of a peptidase, any enzyme that catalyzes the hydrolysis peptide bonds.
biological process
    GO:0010951    negative regulation of endopeptidase activity    Any process that decreases the frequency, rate or extent of endopeptidase activity, the endohydrolysis of peptide bonds within proteins.
    GO:0010466    negative regulation of peptidase activity    Any process that stops or reduces the rate of peptidase activity, the hydrolysis of peptide bonds within proteins.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2w9q)

  Sites
(no "Sites" information available for 2w9q)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2w9q)

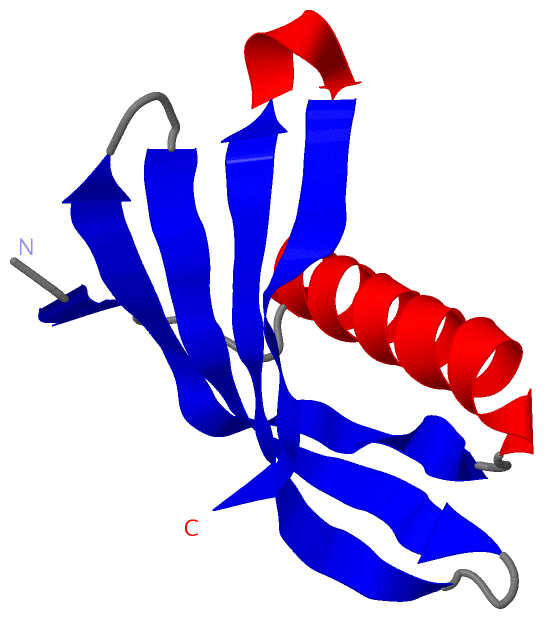

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2w9q
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CYTM_SOLTU | P37842
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CYTM_SOLTU | P37842
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CYTM_SOLTU | P37842: 2w9p 4lzi

(-) Related Entries Specified in the PDB File

2w9p CRYSTAL STRUCTURE OF POTATO MULTICYSTATIN
