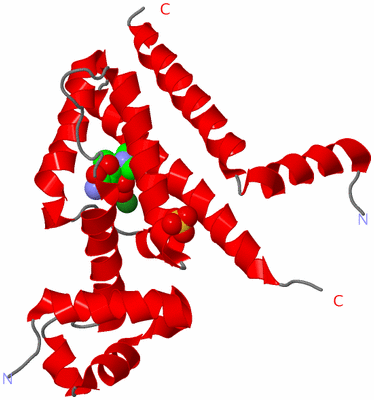

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

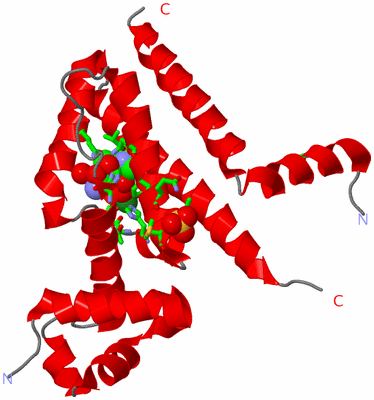

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

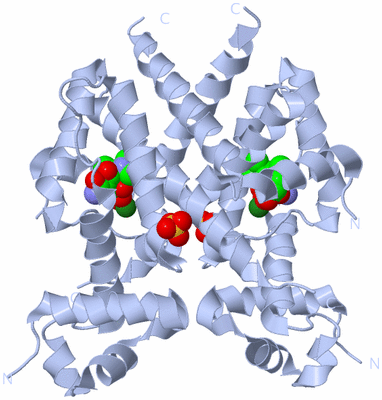

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

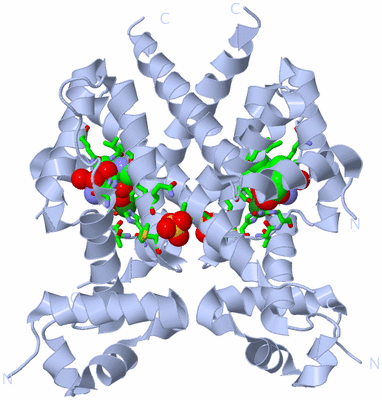

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  TET REPRESSOR CLASS H IN COMPLEX WITH 5A,6-ANHYDROTETRACYCLINE-MG

Authors :  L. Schuldt, G. Palm, W. Hinrichs
Date :  03 Mar 08  (Deposition) - 11 Mar 08  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.49
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Transcription, Metal-Binding, Antibiotic Resistance, Transcription Regulator, Transcription Regulation Dna-Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Aleksandrov, L. Schuldt, W. Hinrichs, T. Simonson
Tet Repressor Induction By Tetracycline: A Molecular Dynamics, Continuum Electrostatics, And Crystallographic Study
J. Mol. Biol. V. 378 896 2008
PubMed-ID: 18395746  |  Reference-DOI: 10.1016/J.JMB.2008.03.022
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - TETRACYCLINE RESISTANCE REPRESSOR PROTEIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PWH1590
    Expression System Strain: RB791
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: PASTEURELLA MULTOCIDA
    Organism Taxid: 747
    Synonym: TETRACYCLINE REPRESSOR CLASS H

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 3)

Asymmetric Unit (3, 3)
No.NameCountTypeFull Name
1MG1Ligand/IonMAGNESIUM ION
2SO41Ligand/IonSULFATE ION
3TDC1Ligand/Ion5A,6-ANHYDROTETRACYCLINE
Biological Unit 1 (2, 4)
No.NameCountTypeFull Name
1MG-1Ligand/IonMAGNESIUM ION
2SO42Ligand/IonSULFATE ION
3TDC2Ligand/Ion5A,6-ANHYDROTETRACYCLINE

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHIS A:64 , ASN A:82 , PHE A:86 , HIS A:100 , THR A:103 , ARG A:104 , GLN A:116 , LEU A:134 , ALA A:173 , MG A:1207 , HOH A:2010 , HOH A:2015 , HOH A:2016 , HOH A:2017BINDING SITE FOR RESIDUE TDC A1206
2AC2SOFTWAREHIS A:100 , TDC A:1206 , HOH A:2015 , HOH A:2016 , HOH A:2017BINDING SITE FOR RESIDUE MG A1207
3AC3SOFTWAREGLN A:88 , LEU A:91 , MET A:92BINDING SITE FOR RESIDUE SO4 A1208

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2VPR)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2VPR)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2VPR)

(-) PROSITE Motifs  (2, 2)

Asymmetric Unit (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1HTH_TETR_2PS50977 TetR-type HTH domain profile.TETR8_PASMD3-63  1A:3-63
2HTH_TETR_1PS01081 TetR-type HTH domain signature.TETR8_PASMD21-52  1A:21-52
Biological Unit 1 (2, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1HTH_TETR_2PS50977 TetR-type HTH domain profile.TETR8_PASMD3-63  2A:3-63
2HTH_TETR_1PS01081 TetR-type HTH domain signature.TETR8_PASMD21-52  2A:21-52

(-) Exons   (0, 0)

(no "Exon" information available for 2VPR)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:197
 aligned with Q799E2_PASMD | Q799E2 from UniProtKB/TrEMBL  Length:207

    Alignment length:206
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201
         Q799E2_PASMD     2 AKLDKEQVIDNALILLNEVGIEGLTTRKLAQKIGVEQPTLYWHVKNKRALLDALAETILQKHHHHVLPLPNETWQDFLRNNAKSFRQALLMYRDGGKIHAGTRPSESQFETSEQQLQFLCDAGFSLSQAVYALSSIAHFTLGSVLETQEHQESQKEREKVETDTVAYPPLLTQAVAIMDSDNGDAAFLFVLDVMISGLETVLKSAK 207
               SCOP domains d2vpra1 A:2-67 automated matches                                  d2vpra2 A:68-205 automated matches                                                                                                           SCOP domains
               CATH domains 2vprA01 A:2-66 Homeodomain-like                                  2vprA02 A:67-205 Tetracycline Repressor, domain 2                                                                                             CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhh....hhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhh.hhhhhhh....hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...---------..hhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2vpr A   2 AKLDKEQVIDNALILLNEVGIEGLTTRKLAQKIGVEQPTLYWHVKNKRALLDALAETILQKHHHHVLPLPNETWQDFLRNNAKSFRQALLMYRDGGKIHAGTRPSESQFETSEQQLQFLCDAGFSLSQAVYALSSIAHFTLGSVLETQEHQESQKE---------AYPPLLTQAVAIMDSDNGDAAFLFVLDVMISGLETVLKSAK 205
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151     |   -     | 169       179       189       199
                                                                                                                                                                                     157       165


Chain A from PDB  Type:PROTEIN  Length:197
 aligned with TETR8_PASMD | P51561 from UniProtKB/Swiss-Prot  Length:207

    Alignment length:206
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201
          TETR8_PASMD     2 AKLDKEQVIDDALILLNEVGIEGLTTRNVAQKIGVEQPTLYWHVKNKRALLDALAETILQKHHHHVLPLPNETWQDFLRNNAKSFRQALLMYRDGGKIHAGTRPSESQFETSEQQLQFLCDAGFSLSQAVYALSSIAHFTLGSVLETQEHQESQKEREKVETDTVAYPPLLTQAVAIMDSDNGDAAFLFVLDVMISGLETVLKSAK 207
               SCOP domains d2vpra1 A:2-67 automated matches                                  d2vpra2 A:68-205 automated matches                                                                                                           SCOP domains
               CATH domains 2vprA01 A:2-66 Homeodomain-like                                  2vprA02 A:67-205 Tetracycline Repressor, domain 2                                                                                             CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhh....hhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhh.hhhhhhh....hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...---------..hhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -HTH_TETR_2  PDB: A:3-63 UniProt: 3-63                        ------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE (1)
                PROSITE (2) -------------------HTH_TETR_1  PDB: A:21-52        ----------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2vpr A   2 AKLDKEQVIDNALILLNEVGIEGLTTRKLAQKIGVEQPTLYWHVKNKRALLDALAETILQKHHHHVLPLPNETWQDFLRNNAKSFRQALLMYRDGGKIHAGTRPSESQFETSEQQLQFLCDAGFSLSQAVYALSSIAHFTLGSVLETQEHQESQKE---------AYPPLLTQAVAIMDSDNGDAAFLFVLDVMISGLETVLKSAK 205
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151     |   -     | 169       179       189       199
                                                                                                                                                                                     157       165
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 2)

Asymmetric Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (2, 2)

Asymmetric Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2VPR)

(-) Gene Ontology  (6, 11)

Asymmetric Unit(hide GO term definitions)
Chain A   (TETR8_PASMD | P51561)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
biological process
    GO:0045892    negative regulation of transcription, DNA-templated    Any process that stops, prevents, or reduces the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0046677    response to antibiotic    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an antibiotic stimulus. An antibiotic is a chemical substance produced by a microorganism which has the capacity to inhibit the growth of or to kill other microorganisms.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.

Chain A   (Q799E2_PASMD | Q799E2)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
    GO:0045892    negative regulation of transcription, DNA-templated    Any process that stops, prevents, or reduces the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0046677    response to antibiotic    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an antibiotic stimulus. An antibiotic is a chemical substance produced by a microorganism which has the capacity to inhibit the growth of or to kill other microorganisms.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    TDC  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2vpr)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2vpr
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q799E2_PASMD | Q799E2
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  TETR8_PASMD | P51561
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q799E2_PASMD | Q799E2
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  TETR8_PASMD | P51561
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 2VPR)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2VPR)
