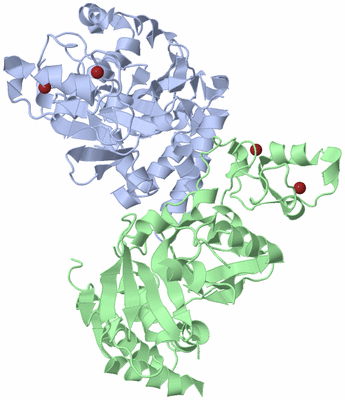

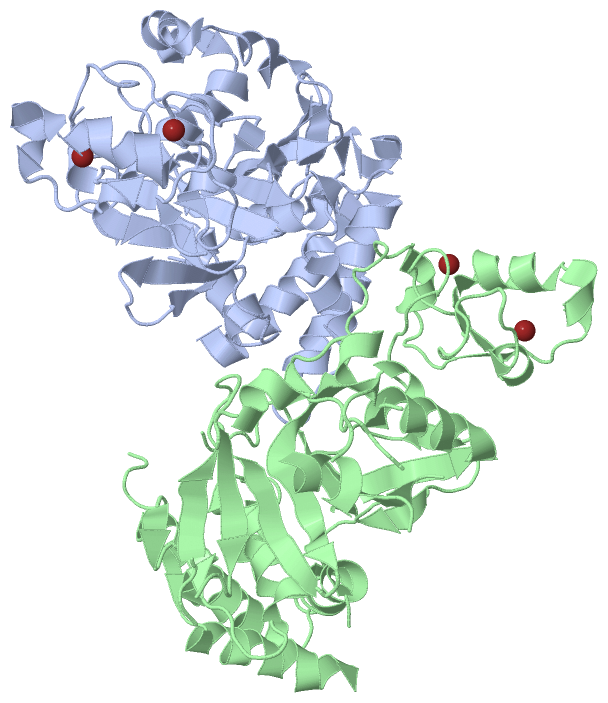

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

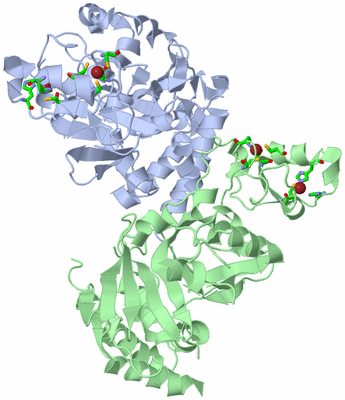

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

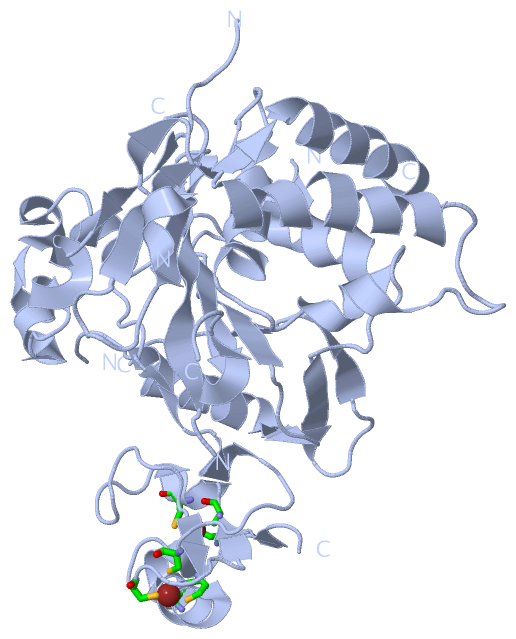

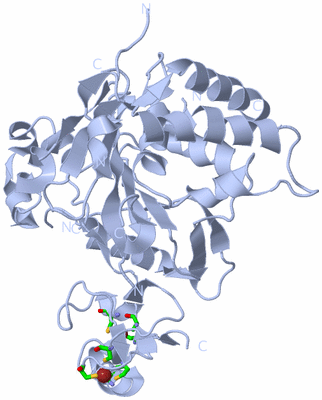

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

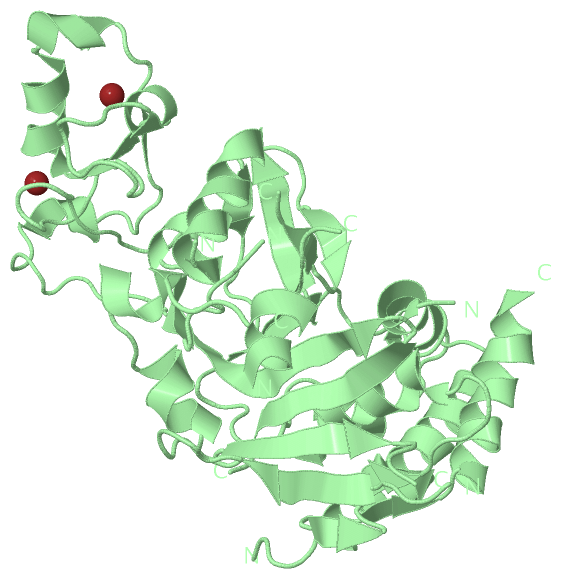

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE CYLD USP DOMAIN

Authors :  D. Komander, C. J. Lord, H. Scheel, S. Swift, K. Hofmann, A. Ashworth, D. Barford
Date :  21 Nov 07  (Deposition) - 11 Mar 08  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.80
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Cytokine Signalling, Linkage Specificity, Deubiquitinating Enzyme, Lys63- Linked, Anti-Oncogene, Thiol Protease, Cell Signalling, Phosphorylation, Zn-Binding Domain, Ubiquitin, Cell Cycle, Usp Domain, Cross-Brace, Nf-Kb, B-Box, Protease, Hydrolase, Cytoplasm, Alternative Splicing, Ubl Conjugation Pathway (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Komander, C. J. Lord, H. Scheel, S. Swift, K. Hofmann, A. Ashworth, D. Barford
The Structure Of The Cyld Usp Domain Explains Its Specificity For Lys63-Linked Polyubiquitin And Reveals A B-Box Module
Mol. Cell. Biol. V. 29 451 2008
PubMed-ID: 18313383  |  Reference-DOI: 10.1016/J.MOLCEL.2007.12.018

(-) Compounds

Molecule 1 - UBIQUITIN CARBOXYL-TERMINAL HYDROLASE CYLD
    Chains: A, B
    EC Number: 3.1.2.15
    Engineered: YES
    Expression System: SPODOPTERA FRUGIPERDA
    Expression System Cell Line: SF9
    Expression System Plasmid: PFASTBAC
    Expression System Taxid: 7108
    Expression System Vector Type: BACULOVIRUS
    Fragment: USP DEUBIQUITINASE DOMAIN, RESIDUES 583-956
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: UBIQUITIN THIOESTERASE CYLD, UBIQUITIN-SPECIFIC -PROCESSING PROTEASE CYLD, DEUBIQUITINATING ENZYME CYLD, CYLD

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 4)

Asymmetric Unit (1, 4)
No.NameCountTypeFull Name
1ZN4Ligand/IonZINC ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1ZN-1Ligand/IonZINC ION
Biological Unit 2 (0, 0)
No.NameCountTypeFull Name
1ZN-1Ligand/IonZINC ION

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWARECYS A:788 , CYS A:791 , CYS A:817 , CYS A:820BINDING SITE FOR RESIDUE ZN A1957
2AC2SOFTWARECYS A:799 , CYS A:802 , HIS A:825 , HIS A:833BINDING SITE FOR RESIDUE ZN A1958
3AC3SOFTWARECYS B:788 , CYS B:791 , CYS B:817 , CYS B:820BINDING SITE FOR RESIDUE ZN B1956
4AC4SOFTWARECYS B:799 , CYS B:802 , HIS B:825 , HIS B:833BINDING SITE FOR RESIDUE ZN B1957

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2VHF)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2VHF)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (1, 2)

Asymmetric Unit (1, 2)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_045967E747GCYLD_HUMANDisease (MFT1)121908389A/BE747G

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
Biological Unit 1 (1, 1)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_045967E747GCYLD_HUMANDisease (MFT1)121908389AE747G

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
Biological Unit 2 (1, 1)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_045967E747GCYLD_HUMANDisease (MFT1)121908389BE747G

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

(-) PROSITE Motifs  (2, 4)

Asymmetric Unit (2, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1USP_3PS50235 Ubiquitin specific protease (USP) domain profile.CYLD_HUMAN592-950

  2A:592-950
B:592-950
2USP_1PS00972 Ubiquitin specific protease (USP) domain signature 1.CYLD_HUMAN593-608

  2A:593-608
B:593-608
Biological Unit 1 (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1USP_3PS50235 Ubiquitin specific protease (USP) domain profile.CYLD_HUMAN592-950

  1A:592-950
-
2USP_1PS00972 Ubiquitin specific protease (USP) domain signature 1.CYLD_HUMAN593-608

  1A:593-608
-
Biological Unit 2 (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1USP_3PS50235 Ubiquitin specific protease (USP) domain profile.CYLD_HUMAN592-950

  1-
B:592-950
2USP_1PS00972 Ubiquitin specific protease (USP) domain signature 1.CYLD_HUMAN593-608

  1-
B:593-608

(-) Exons   (9, 18)

Asymmetric Unit (9, 18)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1aENST000003115591aENSE00001349581chr16:50775961-5077603575CYLD_HUMAN-00--
1.2ENST000003115592ENSE00001206771chr16:50776673-5077675280CYLD_HUMAN-00--
1.3ENST000003115593ENSE00001349254chr16:50778641-50778777137CYLD_HUMAN-00--
1.4ENST000003115594ENSE00001411088chr16:50783487-50784113627CYLD_HUMAN1-1681680--
1.5ENST000003115595ENSE00001206765chr16:50785515-50785817303CYLD_HUMAN169-2691010--
1.6ENST000003115596ENSE00001428729chr16:50788230-50788335106CYLD_HUMAN270-305360--
1.7ENST000003115597ENSE00001660649chr16:50809077-508090859CYLD_HUMAN305-30840--
1.8ENST000003115598ENSE00001411085chr16:50810090-5081018899CYLD_HUMAN308-341340--
1.9ENST000003115599ENSE00001206752chr16:50811736-50811852117CYLD_HUMAN341-380400--
1.10ENST0000031155910ENSE00000446013chr16:50813576-50813955380CYLD_HUMAN380-5061270--
1.11ENST0000031155911ENSE00000446014chr16:50815157-50815322166CYLD_HUMAN507-562560--
1.12ENST0000031155912ENSE00000446015chr16:50816236-50816377142CYLD_HUMAN562-609482A:583-609
B:583-609
27
27
1.13ENST0000031155913ENSE00000683749chr16:50818240-50818362123CYLD_HUMAN609-650422A:609-650
B:609-650
42
42
1.14ENST0000031155914ENSE00000446017chr16:50820766-5082085792CYLD_HUMAN650-681322A:650-681 (gaps)
B:650-681 (gaps)
32
32
1.15ENST0000031155915ENSE00000683753chr16:50821697-5082176367CYLD_HUMAN681-703232A:681-703
B:681-703
23
23
1.16ENST0000031155916ENSE00000446019chr16:50825469-50825601133CYLD_HUMAN703-747452A:703-747 (gaps)
B:703-747 (gaps)
45
45
1.17ENST0000031155917ENSE00001206713chr16:50826508-50826616109CYLD_HUMAN748-784372A:748-784
B:748-784 (gaps)
37
37
1.18ENST0000031155918ENSE00001206701chr16:50827457-50827575119CYLD_HUMAN784-823402A:784-823
B:784-823
40
40
1.19ENST0000031155919ENSE00000446022chr16:50828123-50828339217CYLD_HUMAN824-896732A:824-892 (gaps)
B:824-893
69
70
1.20ENST0000031155920ENSE00001373532chr16:50830235-508358465612CYLD_HUMAN896-956612A:900-956
B:902-955 (gaps)
57
54

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:341
 aligned with CYLD_HUMAN | Q9NQC7 from UniProtKB/Swiss-Prot  Length:956

    Alignment length:374
                                   592       602       612       622       632       642       652       662       672       682       692       702       712       722       732       742       752       762       772       782       792       802       812       822       832       842       852       862       872       882       892       902       912       922       932       942       952
           CYLD_HUMAN   583 GLEIMIGKKKGIQGHYNSCYLDSTLFCLFAFSSVLDTVLLRPKEKNDVEYYSETQELLRTEIVNPLRIYGYVCATKIMKLRKILEKVEAASGFTSEEKDPEEFLNILFHHILRVEPLLKIRSAGQKVQDCYFYQIFMEKNEKVGVPTIQQLLEWSFINSNLKFAEAPSCLIIQMPRFGKDFKLFKKIFPSLELNITDLLEDTPRQCRICGGLAMYECRECYDDPDISAGKIKQFCKTCNTQVHLHPKRLNHKYNPVSLPKDLPDWDWRHGCIPCQNMELFAVLCIETSHYVAFVKYGKDDSAWLFFDSMADRDGGQNGFNIPQVTPCPEVGEYLKMSLEDLHSLDSRRIQGCARRLLCDAYMCMYQSPTMSLYK 956
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhh.ee..ee.....hhhhhhhhhhhhh....hhhhhhh........hhhhhhhhhhhhhhhhhhhh.eehhhhhhhhhhhhhhhh--------..hhhhhhhhhhh........eeeee.....eee..ee......--....hhhhhhhhhhhhhheee.....eeeee..................ee.hhhh................ee.hhhh...........eehhhhhhhhhhhhhhh....ee...----------------..eeeeeeeeee..eeeeeee.......eeeee...-------.....eeee.hhhhhh...hhhhhhhhhhhhh..hhhhhhhh..eeeee.hhh.... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------G----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ---------USP_3  PDB: A:592-950 UniProt: 592-950                                                                                                                                                                                                                                                                                                                                 ------ PROSITE (1)
                PROSITE (2) ----------USP_1           ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE (2)
           Transcript 1 (1) Exon 1.12  PDB: A:583-609  ----------------------------------------Exon 1.14  PDB: A:650-681 (gaps)---------------------Exon 1.16  PDB: A:703-747 (gaps)             Exon 1.17  PDB: A:748-784            ---------------------------------------Exon 1.19  PDB: A:824-892 (gaps) UniProt: 824-896 [INCOMPLETE]           ------------------------------------------------------------ Transcript 1 (1)
           Transcript 1 (2) --------------------------Exon 1.13  PDB: A:609-650 UniProt: 609-650------------------------------Exon 1.15              --------------------------------------------------------------------------------Exon 1.18  PDB: A:784-823               ------------------------------------------------------------------------Exon 1.20  PDB: A:900-956 UniProt: 896-956 [INCOMPLETE]       Transcript 1 (2)
                 2vhf A 583 GLEIMIGKKKGIQGHYNSCYLDSTLFCLFAFSSVLDTVLLRPKEKNDVEYYSETQELLRTEIVNPLRIYGYVCATKIMKLRKILEKVE--------EKDPEEFLNILFHHILRVEPLLKIRSAGQKVQDCYFYQIFMEKN--VGVPTIQQLLEWSFINSNLKFAEAPSCLIIQMPRFGKDFKLFKKIFPSLELNITDLLEDTPRQCRICGGLAMYECRECYDDPDISAGKIKQFCKTCNTQVHLHPKRLNHKYNPVSL----------------QNMELFAVLCIETSHYVAFVKYGKDDSAWLFFDSMA-------GFNIPQVTPCPEVGEYLKMSLEDLHSLDSRRIQGCARRLLCDAYMCMYQSPTMSLYK 956
                                   592       602       612       622       632       642       652       662       | -      |682       692       702       712       722  |    732       742       752       762       772       782       792       802       812       822       832       | -         -    |  862       872       882       892       902       912       922       932       942       952
                                                                                                                 670      679                                        722  |                                                                                                                840              857                                892     900
                                                                                                                                                                        725

Chain B from PDB  Type:PROTEIN  Length:334
 aligned with CYLD_HUMAN | Q9NQC7 from UniProtKB/Swiss-Prot  Length:956

    Alignment length:373
                                   592       602       612       622       632       642       652       662       672       682       692       702       712       722       732       742       752       762       772       782       792       802       812       822       832       842       852       862       872       882       892       902       912       922       932       942       952
           CYLD_HUMAN   583 GLEIMIGKKKGIQGHYNSCYLDSTLFCLFAFSSVLDTVLLRPKEKNDVEYYSETQELLRTEIVNPLRIYGYVCATKIMKLRKILEKVEAASGFTSEEKDPEEFLNILFHHILRVEPLLKIRSAGQKVQDCYFYQIFMEKNEKVGVPTIQQLLEWSFINSNLKFAEAPSCLIIQMPRFGKDFKLFKKIFPSLELNITDLLEDTPRQCRICGGLAMYECRECYDDPDISAGKIKQFCKTCNTQVHLHPKRLNHKYNPVSLPKDLPDWDWRHGCIPCQNMELFAVLCIETSHYVAFVKYGKDDSAWLFFDSMADRDGGQNGFNIPQVTPCPEVGEYLKMSLEDLHSLDSRRIQGCARRLLCDAYMCMYQSPTMSLY 955
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) -------UCH-2vhfB01 B:590-893                                                                                                                                                                                                                                                                                                   ---------------------------      --------------------- Pfam domains (1)
           Pfam domains (2) -------UCH-2vhfB02 B:590-893                                                                                                                                                                                                                                                                                                   ---------------------------      --------------------- Pfam domains (2)
         Sec.struct. author ......ee..ee.....hhhhhhhhhhhhh.....hhhhhh........hhhhhhhhhhhhhhhhhhh..ee.hhhhhhhhhhhhhhh.--------.hhhhhhhhhh.........eeeee.....eee..ee..---------.hhhhhhhhhhhhh.eee.....eeeee...--------.......eee.hhh................ee.hhhh...........eehhhhhhhhh.hhhhh....ee.....hhhhh..........eeeeeeeeeee..eeeeeee.......eeeee....--------...eeee..hhhhhh...hhhhh....------hhhhhhheeeeeee....... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------G---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ---------USP_3  PDB: B:592-950 UniProt: 592-950                                                                                                                                                                                                                                                                                                                                 ----- PROSITE (1)
                PROSITE (2) ----------USP_1           ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
           Transcript 1 (1) Exon 1.12  PDB: B:583-609  ----------------------------------------Exon 1.14  PDB: B:650-681 (gaps)---------------------Exon 1.16  PDB: B:703-747 (gaps)             Exon 1.17  PDB: B:748-784 (gaps)     ---------------------------------------Exon 1.19  PDB: B:824-893 UniProt: 824-896 [INCOMPLETE]                  ----------------------------------------------------------- Transcript 1 (1)
           Transcript 1 (2) --------------------------Exon 1.13  PDB: B:609-650 UniProt: 609-650------------------------------Exon 1.15              --------------------------------------------------------------------------------Exon 1.18  PDB: B:784-823               ------------------------------------------------------------------------Exon 1.20  PDB: B:902-955 (gaps) UniProt: 896-956            Transcript 1 (2)
                 2vhf B 583 GLEIMIGKKKGIQGHYNSCYLDSTLFCLFAFSSVLDTVLLRPKEKNDVEYYSETQELLRTEIVNPLRIYGYVCATKIMKLRKILEKVEA--------KDPEEFLNILFHHILRVEPLLKIRSAGQKVQDCYFYQIF---------PTIQQLLEWSFINSNLKFAEAPSCLIIQMPR--------KKIFPSLELNITDLLEDTPRQCRICGGLAMYECRECYDDPDISAGKIKQFCKTCNTQVHLHPKRLNHKYNPVSLPKDLPDWDWRHGCIPCQNMELFAVLCIETSHYVAFVKYGKDDSAWLFFDSMAD--------NIPQVTPCPEVGEYLKMSLEDLHSLDS------ARRLLCDAYMCMYQSPTMSLY 955
                                   592       602       612       622       632       642       652       662        |-       682       692       702       712     |   -     | 732       742       752     |   -    |  772       782       792       802       812       822       832       842       852       862       872       882       892|      902       912       922     |   -  |    942       952
                                                                                                                  671      680                                   718       728                           758      767                                                                                                                           893      902                       928    935

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2VHF)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2VHF)

(-) Pfam Domains  (1, 2)

Asymmetric Unit
(-)
Family: UCH (11)
1aUCH-2vhfB01B:590-893
1bUCH-2vhfB02B:590-893

(-) Gene Ontology  (47, 47)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (CYLD_HUMAN | Q9NQC7)
molecular function
    GO:0061578    Lys63-specific deubiquitinase activity    Hydrolysis of Lys63-Linked ubiquitin unit(s) from a ubiquitinated protein.
    GO:0008234    cysteine-type peptidase activity    Catalysis of the hydrolysis of peptide bonds in a polypeptide chain by a mechanism in which the sulfhydryl group of a cysteine residue at the active center acts as a nucleophile.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
    GO:0070064    proline-rich region binding    Interacting selectively and non-covalently with a proline-rich region, i.e. a region that contains a high proportion of proline residues, in a protein.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0019901    protein kinase binding    Interacting selectively and non-covalently with a protein kinase, any enzyme that catalyzes the transfer of a phosphate group, usually from ATP, to a protein substrate.
    GO:0004843    thiol-dependent ubiquitin-specific protease activity    Catalysis of the thiol-dependent hydrolysis of a peptide bond formed by the C-terminal glycine of ubiquitin and another protein.
    GO:0036459    thiol-dependent ubiquitinyl hydrolase activity    Catalysis of the thiol-dependent hydrolysis of an ester, thioester, amide, peptide or isopeptide bond formed by the C-terminal glycine of ubiquitin.
    GO:0008270    zinc ion binding    Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
    GO:0016055    Wnt signaling pathway    The series of molecular signals initiated by binding of a Wnt protein to a frizzled family receptor on the surface of the target cell and ending with a change in cell state.
    GO:0007049    cell cycle    The progression of biochemical and morphological phases and events that occur in a cell during successive cell replication or nuclear replication events. Canonically, the cell cycle comprises the replication and segregation of genetic material followed by the division of the cell, but in endocycles or syncytial cells nuclear replication or nuclear division may not be followed by cell division.
    GO:0070266    necroptotic process    A programmed necrotic cell death process which begins when a cell receives a signal (e.g. a ligand binding to a death receptor or to a Toll-like receptor), and proceeds through a series of biochemical events (signaling pathways), characterized by activation of receptor-interacting serine/threonine-protein kinase 1 and/or 3 (RIPK1/3, also called RIP1/3) and by critical dependence on mixed lineage kinase domain-like (MLKL), and which typically lead to common morphological features of necrotic cell death. The process ends when the cell has died. The process is divided into a signaling phase, and an execution phase, which is triggered by the former.
    GO:0042347    negative regulation of NF-kappaB import into nucleus    Any process that stops, prevents, or reduces the frequency, rate or extent of the transfer of NF-kappaB, a transcription factor for eukaryotic RNA polymerase II promoters, from the cytoplasm into the nucleus, across the nuclear membrane.
    GO:0032088    negative regulation of NF-kappaB transcription factor activity    Any process that stops, prevents, or reduces the frequency, rate or extent of the activity of the transcription factor NF-kappaB.
    GO:0045581    negative regulation of T cell differentiation    Any process that stops, prevents, or reduces the frequency, rate or extent of T cell differentiation.
    GO:0090090    negative regulation of canonical Wnt signaling pathway    Any process that decreases the rate, frequency, or extent of the Wnt signaling pathway through beta-catenin, the series of molecular signals initiated by binding of a Wnt protein to a frizzled family receptor on the surface of the target cell, followed by propagation of the signal via beta-catenin, and ending with a change in transcription of target genes.
    GO:0032480    negative regulation of type I interferon production    Any process that stops, prevents, or reduces the frequency, rate, or extent of type I interferon production. Type I interferons include the interferon-alpha, beta, delta, episilon, zeta, kappa, tau, and omega gene families.
    GO:0070423    nucleotide-binding oligomerization domain containing signaling pathway    Any series of molecular signals generated as a consequence of binding to a nucleotide-binding oligomerization domain containing (NOD) protein.
    GO:2001238    positive regulation of extrinsic apoptotic signaling pathway    Any process that activates or increases the frequency, rate or extent of extrinsic apoptotic signaling pathway.
    GO:0070536    protein K63-linked deubiquitination    A protein deubiquitination process in which a K63-linked ubiquitin chain, i.e. a polymer of ubiquitin formed by linkages between lysine residues at position 63 of the ubiquitin monomers, is removed from a protein.
    GO:0016579    protein deubiquitination    The removal of one or more ubiquitin groups from a protein.
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
    GO:1902017    regulation of cilium assembly    Any process that modulates the frequency, rate or extent of cilium assembly.
    GO:2001242    regulation of intrinsic apoptotic signaling pathway    Any process that modulates the frequency, rate or extent of intrinsic apoptotic signaling pathway.
    GO:0070507    regulation of microtubule cytoskeleton organization    Any process that modulates the frequency, rate or extent of the formation, arrangement of constituent parts, or disassembly of cytoskeletal structures comprising microtubules and their associated proteins.
    GO:0007346    regulation of mitotic cell cycle    Any process that modulates the rate or extent of progress through the mitotic cell cycle.
    GO:0010803    regulation of tumor necrosis factor-mediated signaling pathway    Any process that modulates the rate or extent of the tumor necrosis factor-mediated signaling pathway. The tumor necrosis factor-mediated signaling pathway is the series of molecular signals generated as a consequence of tumor necrosis factor binding to a cell surface receptor.
    GO:1901026    ripoptosome assembly involved in necroptotic process    The aggregation, arrangement and bonding together of ripoptosome components leading to a necroptotic process.
    GO:0006511    ubiquitin-dependent protein catabolic process    The chemical reactions and pathways resulting in the breakdown of a protein or peptide by hydrolysis of its peptide bonds, initiated by the covalent attachment of a ubiquitin group, or multiple ubiquitin groups, to the protein.
cellular component
    GO:0042995    cell projection    A prolongation or process extending from a cell, e.g. a flagellum or axon.
    GO:0005813    centrosome    A structure comprised of a core structure (in most organisms, a pair of centrioles) and peripheral material from which a microtubule-based structure, such as a spindle apparatus, is organized. Centrosomes occur close to the nucleus during interphase in many eukaryotic cells, though in animal cells it changes continually during the cell-division cycle.
    GO:0036064    ciliary basal body    A membrane-tethered, short cylindrical array of microtubules and associated proteins found at the base of a eukaryotic cilium (also called flagellum) that is similar in structure to a centriole and derives from it. The cilium basal body is the site of assembly and remodelling of the cilium and serves as a nucleation site for axoneme growth. As well as anchoring the cilium, it is thought to provide a selective gateway regulating the entry of ciliary proteins and vesicles by intraflagellar transport.
    GO:0097542    ciliary tip    Part of the cilium where the axoneme ends. The ciliary tip has been implicated in ciliary assembly and disassembly, as well as signal transduction.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005881    cytoplasmic microtubule    Any microtubule in the cytoplasm of a cell.
    GO:0005856    cytoskeleton    Any of the various filamentous elements that form the internal framework of cells, and typically remain after treatment of the cells with mild detergent to remove membrane constituents and soluble components of the cytoplasm. The term embraces intermediate filaments, microfilaments, microtubules, the microtrabecular lattice, and other structures characterized by a polymeric filamentous nature and long-range order within the cell. The various elements of the cytoskeleton not only serve in the maintenance of cellular shape but also have roles in other cellular functions, including cellular movement, cell division, endocytosis, and movement of organelles.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0031234    extrinsic component of cytoplasmic side of plasma membrane    The component of a plasma membrane consisting of gene products and protein complexes that are loosely bound to its cytoplasmic surface, but not integrated into the hydrophobic region.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005874    microtubule    Any of the long, generally straight, hollow tubes of internal diameter 12-15 nm and external diameter 24 nm found in a wide variety of eukaryotic cells; each consists (usually) of 13 protofilaments of polymeric tubulin, staggered in such a manner that the tubulin monomers are arranged in a helical pattern on the microtubular surface, and with the alpha/beta axes of the tubulin subunits parallel to the long axis of the tubule; exist in equilibrium with pool of tubulin monomers and can be rapidly assembled or disassembled in response to physiological stimuli; concerned with force generation, e.g. in the spindle.
    GO:0005815    microtubule organizing center    An intracellular structure that can catalyze gamma-tubulin-dependent microtubule nucleation and that can anchor microtubules by interacting with their minus ends, plus ends or sides.
    GO:0030496    midbody    A thin cytoplasmic bridge formed between daughter cells at the end of cytokinesis. The midbody forms where the contractile ring constricts, and may persist for some time before finally breaking to complete cytokinesis.
    GO:0048471    perinuclear region of cytoplasm    Cytoplasm situated near, or occurring around, the nucleus.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
    GO:0005819    spindle    The array of microtubules and associated molecules that forms between opposite poles of a eukaryotic cell during mitosis or meiosis and serves to move the duplicated chromosomes apart.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ZN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2vhf)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2vhf
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CYLD_HUMAN | Q9NQC7
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.1.2.15
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  601606
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CYLD_HUMAN | Q9NQC7
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CYLD_HUMAN | Q9NQC7: 1ixd 1whl 1whm

(-) Related Entries Specified in the PDB File

1ixd SOLUTION STRUCTURE OF THE CAP-GLY DOMAIN FROM HUMANCYLINDROMATOSIS TOMOUR-SUPPRESSOR CYLD
1whl SOLUTION STRUCTURE OF THE 1ST CAP-GLY DOMAIN IN HUMANCYLINDROMATOSIS TUMOR SUPPRESSOR CYLD
1whm SOLUTION STRUCTURE OF THE 2ND CAP-GLY DOMAIN IN HUMANCYLINDROMATOSIS TUMOR SUPPRESSOR CYLD
