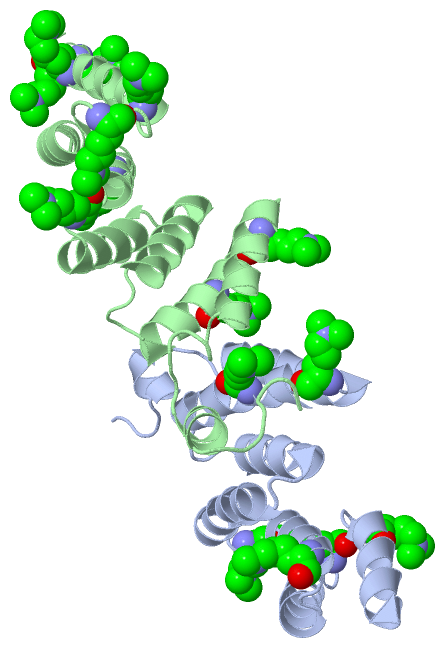

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

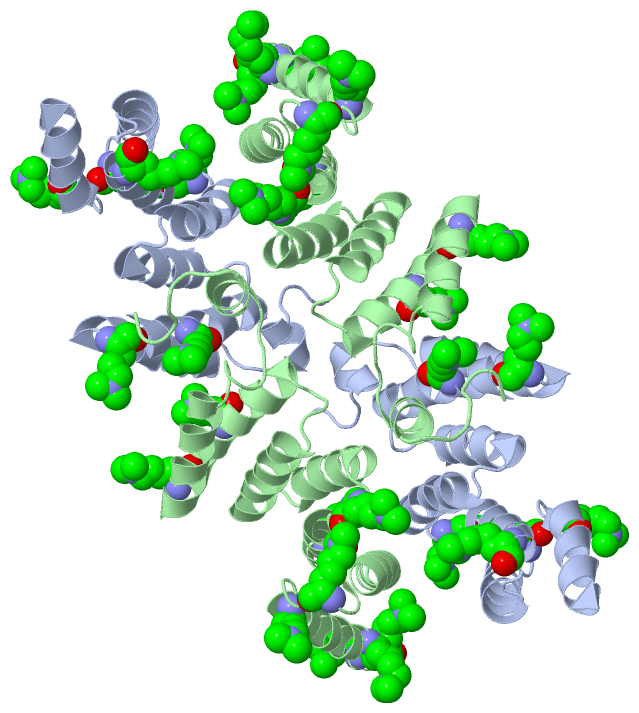

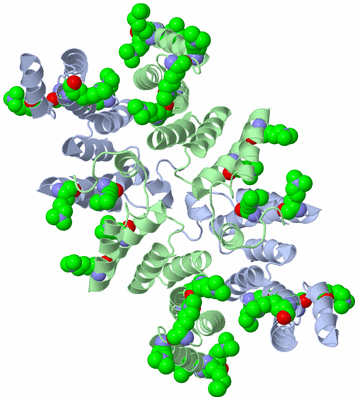

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE YERSINIA ENTEROCOLITICA TYPE III SECRETION TRANSLOCATOR CHAPERONE SYCD

Authors :  C. R. Buttner, I. Sorg, G. R. Cornelis, D. W. Heinz, H. H. Niemann
Date :  16 Nov 07  (Deposition) - 04 Dec 07  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.95
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  A,B  (2x)
Keywords :  Alternative Dimer Assembly, Chaperone, Sycd, Tetratricopeptide Repeat, Type Iii Secretion (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. R. Buttner, I. Sorg, G. R. Cornelis, D. W. Heinz, H. H. Niemann
Structure Of The Yersinia Enterocolitica Type Iii Secretion Chaperone Sycd
J. Mol. Biol. V. 375 997 2008
PubMed-ID: 18054956  |  Reference-DOI: 10.1016/J.JMB.2007.11.009

(-) Compounds

Molecule 1 - CHAPERONE SYCD
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: RESIDUES 21-163
    Organism Scientific: YERSINIA ENTEROCOLITICA
    Organism Taxid: 630
    Other Details: YERSINIA ENTEROCOLITICA VIRULENCE PLASMID PYVE227 FROM STRAIN W22703

Molecule 2 - CHAPERONE SYCD
    Chains: B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: RESIDUES 21-163
    Organism Scientific: YERSINIA ENTEROCOLITICA
    Organism Taxid: 630
    Other Details: YERSINIA ENTEROCOLITICA VIRULENCE PLASMID PYVE227 FROM STRAIN W22703

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): AB
Biological Unit 2 (2x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 15)

Asymmetric Unit (1, 15)
No.NameCountTypeFull Name
1MLY15Mod. Amino AcidN-DIMETHYL-LYSINE
Biological Unit 1 (1, 15)
No.NameCountTypeFull Name
1MLY15Mod. Amino AcidN-DIMETHYL-LYSINE
Biological Unit 2 (1, 30)
No.NameCountTypeFull Name
1MLY30Mod. Amino AcidN-DIMETHYL-LYSINE

(-) Sites  (0, 0)

(no "Site" information available for 2VGX)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2VGX)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2VGX)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2VGX)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2VGX)

(-) Exons   (0, 0)

(no "Exon" information available for 2VGX)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:134
 aligned with O87496_YEREN | O87496 from UniProtKB/TrEMBL  Length:168

    Alignment length:134
                                    30        40        50        60        70        80        90       100       110       120       130       140       150
         O87496_YEREN    21 GGGTIAMLNEISSDTLEQLYSLAFNQYQSGKYEDAHKVFQALCVLDHYDSRFFLGLGACRQAMGQYDLAIHSYSYGAVMDIKEPRFPFHAAECLLQKGELAEAESGLFLAQELIANKPEFKELSTRVSSMLEAI 154
               SCOP domains ----------------d2vgxa1 A:37-100 automated matches                              ------------------------------------------------------ SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhh...hhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhh....hhhhhhhhhhhhhh..hhhhhhhhhhhhhh....hhhhhhhhhhhhhh..hhhhhhhhhhhhhhh.....hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2vgx A  21 GGGTIAMLNEISSDTLEQLYSLAFNQYQSGkYEDAHkVFQALCVLDHYDSRFFLGLGACRQAMGQYDLAIHSYSYGAVMDIkEPRFPFHAAECLLQkGELAEAESGLFLAQELIANkPEFkELSTRVSSMLEAI 154
                                    30        40        50|     | 60        70        80        90       100 |     110      |120       130      |140|      150
                                                         51-MLY |                                          102-MLY        117-MLY             137-MLY
                                                               57-MLY                                                                             141-MLY


Chain B from PDB  Type:PROTEIN  Length:145
 aligned with O87496_YEREN | O87496 from UniProtKB/TrEMBL  Length:168

    Alignment length:145
                                    25        35        45        55        65        75        85        95       105       115       125       135       145       155
         O87496_YEREN    16 ESFLKGGGTIAMLNEISSDTLEQLYSLAFNQYQSGKYEDAHKVFQALCVLDHYDSRFFLGLGACRQAMGQYDLAIHSYSYGAVMDIKEPRFPFHAAECLLQKGELAEAESGLFLAQELIANKPEFKELSTRVSSMLEAIKLKKEM 160
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) --------------------TPR_3-2vgxB01 B:36-69             ------------------------------------------------------------------------------------------- Pfam domains (1)
           Pfam domains (2) --------------------TPR_3-2vgxB02 B:36-69             ------------------------------------------------------------------------------------------- Pfam domains (2)
         Sec.struct. author ......hhhhhhhh.......hhhhhhhhhhhhh..hhhhhhhhhhhhhh....hhhhhhhhhhhhhh..hhhhhhhhhhhhhh....hhhhhhhhhhhhhh..hhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2vgx B  -5 GPLGSGGGTIAMLNEISSDTLEQLYSLAFNQYQSGkYEDAHkVFQALCVLDHYDSRFFLGLGACRQAMGQYDLAIHSYSYGAVMDIkEPRFPFHAAECLLQkGELAEAESGLFLAQELIANkPEFkELSTRVSSMLEAIkLkkEM 160
                                ||  25        35        45     |  55 |      65        75        85        95      |105       115 |     125       135 |   | 145       155 ||
                               -1|                            51-MLY |                                          102-MLY        117-MLY             137-MLY           155-MLY
                                21                                  57-MLY                                                                             141-MLY         157-MLY
                                                                                                                                                                        158-MLY
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2VGX)

(-) Pfam Domains  (1, 2)

Asymmetric Unit
(-)
Clan: TPR (230)

(-) Gene Ontology  (1, 1)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (O87496_YEREN | O87496)
biological process
    GO:0006950    response to stress    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a disturbance in organismal or cellular homeostasis, usually, but not necessarily, exogenous (e.g. temperature, humidity, ionizing radiation).

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MLY  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 2vgx)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2vgx)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2vgx
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  O87496_YEREN | O87496
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  O87496_YEREN | O87496
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        O87496_YEREN | O87496: 2vgy 4am9

(-) Related Entries Specified in the PDB File

2vgy CRYSTAL STRUCTURE OF THE YERSINIA ENTEROCOLITICA TYPE III SECRETION TRANSLOCATOR CHAPERONE SYCD (ALTERNATIVE DIMER)
