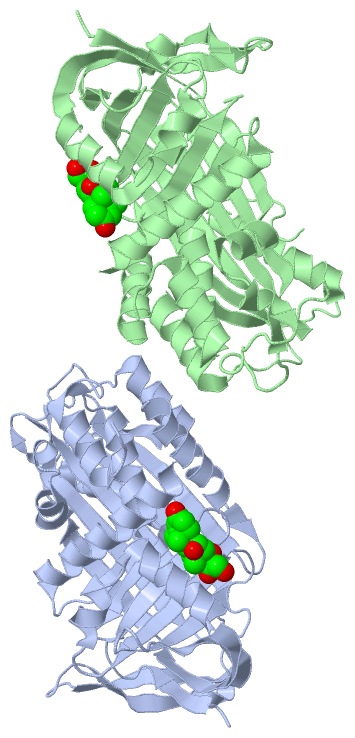

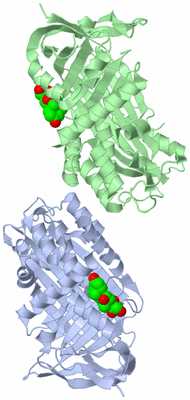

Asymmetric Unit (Jmol Viewer)

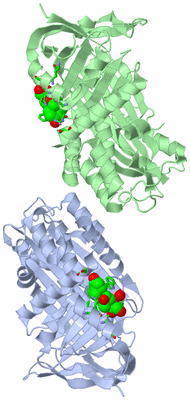

Asym. Unit - sites (Jmol Viewer)

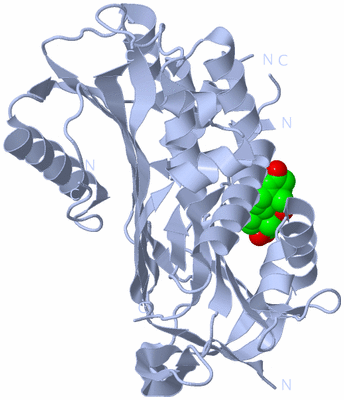

Biological Unit 1 (Jmol Viewer)

Biol. Unit 1 - sites (Jmol Viewer)

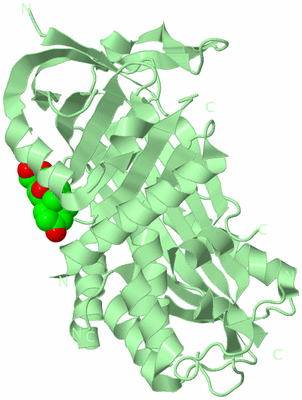

Biological Unit 2 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF THE REACTIVE LOOP CLEAVED CORTICOSTEROID BINDING GLOBULIN COMPLEXED WITH CORTISOL

Authors :   A. Zhou, Z. Wei, R. J. Read

Date :   13 Oct 07 (Deposition) - 13 May 08 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.30

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)

Keywords :   Glycoprotein, Lipid-Binding, Steroid-Binding, Disease Mutation, Corticosteroid Binding Globulin, Transport Protein, Cbg, Serpin, Cleaved, Secreted, Cortisol, Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   A. Zhou, Z. Wei, P. L. Stanley, R. J. Read, P. E. Stein, R. W. Carrell
The S-To-R Transition Of Corticosteroid-Binding Globulin And The Mechanism Of Hormone Release.
J. Mol. Biol. V. 380 244 2008
PubMed-ID: 18513745 | Reference-DOI: 10.1016/J.JMB.2008.05.012

Molecule 1 - CORTICOSTEROID-BINDING GLOBULIN
	Chains	:	A, B
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI,
	Expression System Plasmid	:	PSUMO3-CBG
	Expression System Strain	:	BL21(DE3)
	Expression System Vector	:	PSUMO3
	Fragment	:	RESIDUES 33-405
	Mutation	:	YES
	Organism Common	:	HUMAN
	Organism Scientific	:	HOMO SAPIENS
	Organism Taxid	:	9606
	Other Details	:	COMPLEXED WITH CORTISOL
	Synonym	:	CBG, TRANSCORTIN, SERPIN A6, HUMAN CORTICOSTEROID-BINDING GLOBULIN

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 2)

No.	Name	Count	Type	Full Name
1	HCY	2	Ligand/Ion	(11ALPHA,14BETA)-11,17,21-TRIHYDROXYPREGN-4-ENE-3,20-DIONE

Biological Unit 1 (1, 1)

No.	Name	Count	Type	Full Name
1	HCY	1	Ligand/Ion	(11ALPHA,14BETA)-11,17,21-TRIHYDROXYPREGN-4-ENE-3,20-DIONE

Biological Unit 2 (1, 1)

No.	Name	Count	Type	Full Name
1	HCY	1	Ligand/Ion	(11ALPHA,14BETA)-11,17,21-TRIHYDROXYPREGN-4-ENE-3,20-DIONE

Asymmetric Unit (2, 2)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	SER A:19 , GLN A:232 , ILE A:263 , ASN A:264 , SER A:267 , HIS A:368 , TRP A:371 , HOH A:2109	BINDING SITE FOR RESIDUE HCY A1384
2	AC2	SOFTWARE	SER B:19 , GLN B:232 , ARG B:260 , ASN B:264 , SER B:267 , HIS B:368 , TRP B:371	BINDING SITE FOR RESIDUE HCY B1384

(no "SS Bond" information available for 2VDY)

(no "Cis Peptide Bond" information available for 2VDY)

Asymmetric Unit (3, 6)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_007111	L	115	H	CBG_HUMAN	Disease (CBG deficiency)	113418909	A/B	L	93	H
2	UniProt	VAR_024350	S	246	A	CBG_HUMAN	Polymorphism	2228541	A/B	S	224	A
3	UniProt	VAR_016223	D	389	N	CBG_HUMAN	Disease (CBG deficiency)	28929488	A/B	D	367	N

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 1 (3, 3)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_007111	L	115	H	CBG_HUMAN	Disease (CBG deficiency)	113418909	A	L	93	H
2	UniProt	VAR_024350	S	246	A	CBG_HUMAN	Polymorphism	2228541	A	S	224	A
3	UniProt	VAR_016223	D	389	N	CBG_HUMAN	Disease (CBG deficiency)	28929488	A	D	367	N

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 2 (3, 3)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_007111	L	115	H	CBG_HUMAN	Disease (CBG deficiency)	113418909	B	L	93	H
2	UniProt	VAR_024350	S	246	A	CBG_HUMAN	Polymorphism	2228541	B	S	224	A
3	UniProt	VAR_016223	D	389	N	CBG_HUMAN	Disease (CBG deficiency)	28929488	B	D	367	N

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Asymmetric Unit (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	SERPIN	PS00284	Serpins signature.	CBG_HUMAN	377-387	2	A:355-365 B:355-365

Biological Unit 1 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	SERPIN	PS00284	Serpins signature.	CBG_HUMAN	377-387	1	A:355-365 -

Biological Unit 2 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	SERPIN	PS00284	Serpins signature.	CBG_HUMAN	377-387	1	- B:355-365

(no "Exon" information available for 2VDY)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:361
 aligned with CBG_HUMAN | P08185 from UniProtKB/Swiss-Prot  Length:405

    Alignment length:368
                                    47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397
            CBG_HUMAN    38 GLASANVDFAFSLYKHLVALSPKKNIFISPVSISMALAMLSLGTCGHTRAQLLQGLGFNLTERSETEIHQGFQHLHQLFAKSDTSLEMTMGNALFLDGSLELLESFSADIKHYYESEVLAMNFQDWATASRQINSYVKNKTQGKIVDLFSGLDSPAILVLVNYIFFKGTWTQPFDLASTREENFYVDETTVVKVPMMLQSSTISYLHDSELPCQLVQMNYVGNGTVFFILPDKGKMNTVIAALSRDTINRWSAGLTSSQVDLYIPKVTISGVYDLGDVLEEMGIADLFTNQANFSRITQDAQLKSSKVVHKAVLQLNEEGVDTAGSTGVTLNLTSKPIILRFNQPFIIMIFDHFTWSSLFLARVMNPV 405
               SCOP domains d2vdya_ A: automated matches                                                                                                                                                                                                                                                                                                                                                     SCOP domains
               CATH domains 2vdyA01 A:16-184,A:280-333 Antithrombin, subunit I, domain 2                                                                                                             2vdyA02 A:185-279,A:339-382 Alpha-1-antitrypsin, domain 1                                      2vdyA01 A:16-184,A:280-333                            -----2vdyA02 A:1 85-279,A:339-382                - CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhh....eeehhhhhhhhhhhhhh..hhhhhhhhhhhh....---.hhhhhhhhhhhhhhh.ee....eeeeeeeeeee.....hhhhhhhhhhhh..eeeee...hhhhhhhhhhhhhhhhh........---.....eeeeeeeeeeee.....hhhhheeeeee.....eeeeeeeeeeeeeeeee.....eeeeeee....eeeeeeee...hhhhhhh..hhhhhhhhhhhheeeeeeeeee..eeeeeeehhhhhhhh..hhhhh.............eeeeeeeeeeeeee...eeeeeeeeeeeeee.-..eeee....eeeeeee.....eeeeeee.... Sec.struct. author
                 SAPs(SNPs) -----------------------------------------------------------------------------H----------------------------------------------------------------------------------------------------------------------------------A----------------------------------------------------------------------------------------------------------------------------------------------N---------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------SERPIN     ------------------ PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2vdy A  16 GLASANVDFAFSLYKHLVALSPKKNIFISPVSISMALAMLSLGTCGHTRAQLLQGLGFNL---SETEIHQGFQHLHQLFAKSDTSLEMTMGNALFLDGSLELLESFSADIKHYYESEVLAMNFQDWATASRQINSYVKNKTQGKIVDLF---DSPAILVLVNYIFFKGTWTQPFDLASTREENFYVDETTVVKVPMMLQSSTISYLHDSELPCQLVQMNYVGNGTVFFILPDKGKMNTVIAALSRDTINRWSAGLTSSQVDLYIPKVTISGVYDLGDVLEEMGIADLFTTQANFSRITQDAQLKSSKVVHKAVLQLNEEGTEAAGAMFLEAIPR-KPIILRFNQPFIIMIFDHFTWSSLFLARVMNPV 383
                                    25        35        45        55        65        75   |    85        95       105       115       125       135       145       155        |-  |    175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335       345   | | 355       365       375
                                                                                      75  79                                                                                  164 168                                                                                                                                                                                  349 |
                                                                                                                                                                                                                                                                                                                                                                         351

Chain B from PDB  Type:PROTEIN  Length:361
 aligned with CBG_HUMAN | P08185 from UniProtKB/Swiss-Prot  Length:405

    Alignment length:368
                                    47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397
            CBG_HUMAN    38 GLASANVDFAFSLYKHLVALSPKKNIFISPVSISMALAMLSLGTCGHTRAQLLQGLGFNLTERSETEIHQGFQHLHQLFAKSDTSLEMTMGNALFLDGSLELLESFSADIKHYYESEVLAMNFQDWATASRQINSYVKNKTQGKIVDLFSGLDSPAILVLVNYIFFKGTWTQPFDLASTREENFYVDETTVVKVPMMLQSSTISYLHDSELPCQLVQMNYVGNGTVFFILPDKGKMNTVIAALSRDTINRWSAGLTSSQVDLYIPKVTISGVYDLGDVLEEMGIADLFTNQANFSRITQDAQLKSSKVVHKAVLQLNEEGVDTAGSTGVTLNLTSKPIILRFNQPFIIMIFDHFTWSSLFLARVMNPV 405
               SCOP domains d2vdyb_ B: automated matches                                                                                                                                                                                                                                                                                                                                                     SCOP domains
               CATH domains 2vdyB01 B:16-184,B:280-333 Antithrombin, subunit I, domain 2                                                                                                             2vdyB02 B:185-279,B:339-382 Alpha-1-antitrypsin, domain 1                                      2vdyB01 B:16-184,B:280-333                            -----2vdyB02 B:1 85-279,B:339-382                - CATH domains
           Pfam domains (1) ---Serpin-2vdyB01 B:19-382                                                                                                                                                                                                                                                                                                                                                     - Pfam domains (1)
           Pfam domains (2) ---Serpin-2vdyB02 B:19-382                                                                                                                                                                                                                                                                                                                                                     - Pfam domains (2)
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhh....eeehhhhhhhhhhhhhhhhhhhhhhhhhhhh....---hhhhhhhhhhhhhhhh.ee...eeeeeeeeeeee.....hhhhhhhhhhhh..eeeee...hhhhhhhhhhhhhhhhh.........---....eeeeeeeeeeee.....hhhhheeeeee.....eeeeeeeeeeeeeeeee.....eeeeeee....eeeeeeee...hhhhhhh..hhhhhhhhhhhheeeeeeeeee..eeeeeeehhhhhhhh..hhhhh.............eeeeeeeeeeeeee...eeeeeeeeeeeeee.-..eeee....eeeeeee.....eeeeeee.... Sec.struct. author
                 SAPs(SNPs) -----------------------------------------------------------------------------H----------------------------------------------------------------------------------------------------------------------------------A----------------------------------------------------------------------------------------------------------------------------------------------N---------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------SERPIN     ------------------ PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2vdy B  16 GLASANVDFAFSLYKHLVALSPKKNIFISPVSISMALAMLSLGTCGHTRAQLLQGLGFNL---SETEIHQGFQHLHQLFAKSDTSLEMTMGNALFLDGSLELLESFSADIKHYYESEVLAMNFQDWATASRQINSYVKNKTQGKIVDLFS---SPAILVLVNYIFFKGTWTQPFDLASTREENFYVDETTVVKVPMMLQSSTISYLHDSELPCQLVQMNYVGNGTVFFILPDKGKMNTVIAALSRDTINRWSAGLTSSQVDLYIPKVTISGVYDLGDVLEEMGIADLFTTQANFSRITQDAQLKSSKVVHKAVLQLNEEGTEAAGAMFLEAIPR-KPIILRFNQPFIIMIFDHFTWSSLFLARVMNPV 383
                                    25        35        45        55        65        75   |    85        95       105       115       125       135       145       155       165   |   175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335       345   | | 355       365       375
                                                                                      75  79                                                                                   165 169                                                                                                                                                                                 349 |
                                                                                                                                                                                                                                                                                                                                                                         351

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Multi-domain proteins (alpha and beta) (2421)

Fold: Serpins (120)

Superfamily: Serpins (120)

Family: automated matches (20)

Protein domain: automated matches (20)

Human (Homo sapiens) [TaxId: 9606] (9)

1a	d2vdya_	A:
1b	d2vdyb_	B:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 2-Layer Sandwich (8480)

Topology: Antithrombin; Chain I, domain 2 (100)

Homologous Superfamily: Antithrombin, subunit I, domain 2 (100)

Human (Homo sapiens) (80)

1a	2vdyA01	A:16-184,A:280-333
1b	2vdyB01	B:16-184,B:280-333

Class: Mainly Beta (13760)

Architecture: Roll (1513)

Topology: Alpha-1-antitrypsin; domain 1 (101)

Homologous Superfamily: Alpha-1-antitrypsin, domain 1 (101)

Human (Homo sapiens) (81)

2a	2vdyA02	A:185-279,A:339-382
2b	2vdyB02	B:185-279,B:339-382

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: no clan defined [family: Serpin] (63)

Family: Serpin (63)

Homo sapiens (Human) (41)

1a	Serpin-2vdyB01	B:19-382
1b	Serpin-2vdyB02	B:19-382

Asymmetric Unit(hide GO term definitions)

Chain A,B (CBG_HUMAN | P08185)

molecular function
	GO:0008289	lipid binding	Interacting selectively and non-covalently with a lipid.
	GO:0004867	serine-type endopeptidase inhibitor activity	Stops, prevents or reduces the activity of serine-type endopeptidases, enzymes that catalyze the hydrolysis of nonterminal peptide bonds in a polypeptide chain; a serine residue (and a histidine residue) are at the active center of the enzyme.
	GO:0005496	steroid binding	Interacting selectively and non-covalently with a steroid, any of a large group of substances that have in common a ring system based on 1,2-cyclopentanoperhydrophenanthrene.
biological process
	GO:0008211	glucocorticoid metabolic process	The chemical reactions and pathways involving glucocorticoids, hormonal C21 corticosteroids synthesized from cholesterol. Glucocorticoids act primarily on carbohydrate and protein metabolism, and have anti-inflammatory effects.
	GO:0010951	negative regulation of endopeptidase activity	Any process that decreases the frequency, rate or extent of endopeptidase activity, the endohydrolysis of peptide bonds within proteins.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
	GO:0070062	extracellular exosome	A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
	GO:0005615	extracellular space	That part of a multicellular organism outside the cells proper, usually taken to be outside the plasma membranes, and occupied by fluid.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		HCY	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2vdy)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	2vdy
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	CBG_HUMAN \| P08185
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	611489
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	CBG_HUMAN \| P08185
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	CBG_HUMAN \| P08185	:	2vdx 4bb2 4c41 4c49

2vdx	CRYSTAL STRUCTURE OF THE REACTIVE LOOP CLEAVED CORTICOSTEROID BINDING GLOBULIN

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 2)

Sites (2, 2)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (3, 6)

PROSITE Motifs (1, 2)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 2)

CATH Domains (2, 4)

Pfam Domains (1, 2)

Gene Ontology (9, 9)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
