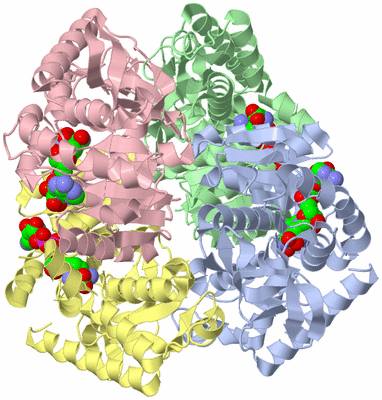

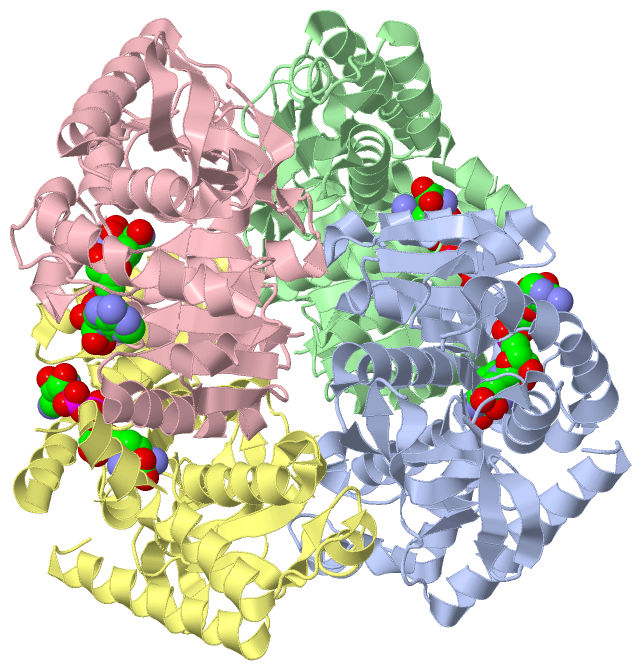

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

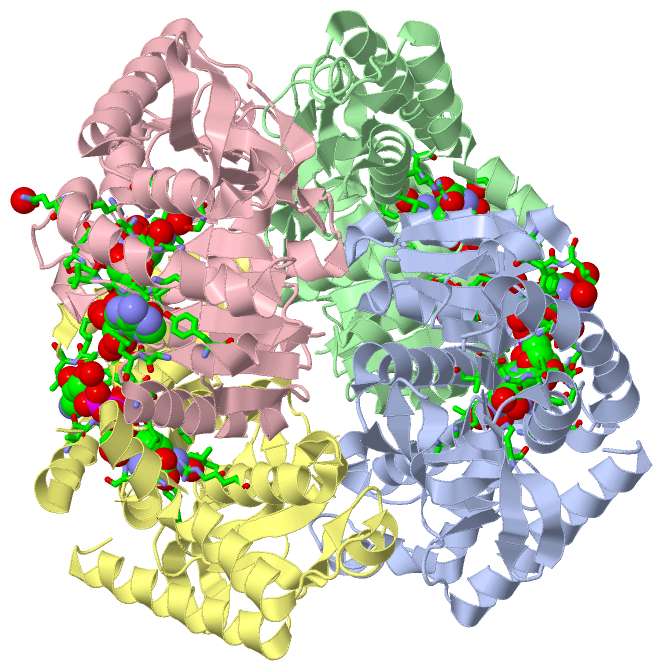

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF LACTATE DEHYDROGENASE FROM THERMUS THERMOPHILUS HB8 (HOLO FORM)

Authors :  N. Coquelle, E. Fioravanti, M. Weik, F. Vellieux
Date :  31 Jul 07  (Deposition) - 25 Sep 07  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym./Biol. Unit :  A,B,C,D
Keywords :  Oxidoreductase, Phosphorylation, Nad, Lactate, Cytoplasm, Glycolysis, Thermophile (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  N. Coquelle, E. Fioravanti, M. Weik, F. Vellieux, D. Madern
Activity, Stability And Structural Studies Of Lactate Dehydrogenases Adapted To Extreme Thermal Environments.
J. Mol. Biol. V. 374 547 2007
PubMed-ID: 17936781  |  Reference-DOI: 10.1016/J.JMB.2007.09.049

(-) Compounds

Molecule 1 - L-LACTATE DEHYDROGENASE
    Chains: A, B, C, D
    EC Number: 1.1.1.27
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PTTHLDH12
    Expression System Strain: DH5ALPHA
    Expression System Taxid: 562
    Organism Scientific: THERMUS THERMOPHILUS
    Organism Taxid: 300852
    Strain: HB8
    Synonym: LACTATE DEHYDROGENASE, L-LDH

 Structural Features

(-) Chains, Units

  1234
Asymmetric/Biological Unit : ABCD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 8)

Asymmetric/Biological Unit (2, 8)
No.NameCountTypeFull Name
1NAD4Ligand/IonNICOTINAMIDE-ADENINE-DINUCLEOTIDE
2OXM4Ligand/IonOXAMIC ACID

(-) Sites  (8, 8)

Asymmetric Unit (8, 8)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLN A:102 , ARG A:109 , ASN A:140 , LEU A:167 , ARG A:171 , HIS A:195 , ALA A:236 , THR A:246 , NAD A:1332 , HOH A:2146BINDING SITE FOR RESIDUE OXM A 501
2AC2SOFTWAREGLY A:28 , GLY A:30 , MET A:31 , VAL A:32 , ASP A:53 , LEU A:54 , LEU A:58 , TYR A:85 , ALA A:98 , GLY A:99 , VAL A:100 , ALA A:101 , GLN A:102 , VAL A:123 , ALA A:138 , THR A:139 , ASN A:140 , SER A:163 , HIS A:195 , THR A:246 , ILE A:250 , OXM A:501 , HOH A:2072 , HOH A:2110 , HOH A:2142 , HOH A:2143 , HOH A:2144 , HOH A:2145 , HOH A:2146 , HOH A:2147 , GLN C:111 , HOH C:2050BINDING SITE FOR RESIDUE NAD A1332
3AC3SOFTWAREASN B:140 , LEU B:167 , ARG B:171 , HIS B:195 , ALA B:236 , THR B:246 , NAD B:1332 , HOH B:2130 , HOH B:2131BINDING SITE FOR RESIDUE OXM B 501
4AC4SOFTWAREGLY B:30 , MET B:31 , VAL B:32 , ASP B:53 , LEU B:54 , LEU B:58 , ALA B:97 , ALA B:98 , VAL B:119 , VAL B:123 , ALA B:138 , THR B:139 , ASN B:140 , SER B:163 , LEU B:167 , HIS B:195 , THR B:246 , ILE B:250 , OXM B:501 , HOH B:2031 , HOH B:2053 , HOH B:2100 , HOH B:2130 , HOH B:2132 , HOH B:2133 , HOH B:2135 , HOH B:2136BINDING SITE FOR RESIDUE NAD B1332
5AC5SOFTWAREGLN C:102 , ARG C:109 , ASN C:140 , LEU C:167 , ARG C:171 , HIS C:195 , ALA C:236 , THR C:246 , NAD C:1332BINDING SITE FOR RESIDUE OXM C 501
6AC6SOFTWAREGLY C:30 , MET C:31 , VAL C:32 , ASP C:53 , LEU C:54 , LEU C:58 , TYR C:85 , ALA C:98 , GLY C:99 , VAL C:100 , ALA C:101 , VAL C:123 , ALA C:138 , THR C:139 , ASN C:140 , SER C:163 , HIS C:195 , THR C:246 , ILE C:250 , OXM C:501 , HOH C:2004 , HOH C:2076 , HOH C:2109 , HOH C:2149 , HOH C:2150 , HOH C:2151BINDING SITE FOR RESIDUE NAD C1332
7AC7SOFTWAREASN D:140 , LEU D:167 , ARG D:171 , HIS D:195 , ALA D:236 , THR D:246 , NAD D:1332BINDING SITE FOR RESIDUE OXM D 501
8AC8SOFTWAREGLY D:30 , MET D:31 , VAL D:32 , ASP D:53 , LEU D:54 , LEU D:58 , TYR D:85 , ALA D:97 , ALA D:98 , GLY D:99 , VAL D:119 , ALA D:138 , THR D:139 , ASN D:140 , SER D:163 , HIS D:195 , THR D:246 , ILE D:250 , OXM D:501 , HOH D:2030 , HOH D:2098 , HOH D:2099 , HOH D:2100BINDING SITE FOR RESIDUE NAD D1332

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2V7P)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
1Asn A:140 -Pro A:141
2Asn B:140 -Pro B:141
3Asn C:140 -Pro C:141
4Asn D:140 -Pro D:141

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2V7P)

(-) PROSITE Motifs  (1, 4)

Asymmetric/Biological Unit (1, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1L_LDHPS00064 L-lactate dehydrogenase active site.LDH_THET8169-175


 		  4A:192-198
B:192-198
C:192-198
D:192-198

(-) Exons   (0, 0)

(no "Exon" information available for 2V7P)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:310
 aligned with LDH_THET8 | Q5SJA1 from UniProtKB/Swiss-Prot  Length:310

    Alignment length:310
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310
           LDH_THET8      1 MKVGIVGSGMVGSATAYALALLGVAREVVLVDLDRKLAQAHAEDILHATPFAHPVWVRAGSYGDLEGARAVVLAAGVAQRPGETRLQLLDRNAQVFAQVVPRVLEAAPEAVLLVATNPVDVMTQVAYRLSGLPPGRVVGSGTILDTARFRALLAEYLRVAPQSVHAYVLGEHGDSEVLVWSSAQVGGVPLLEFAEARGRALSPEDRARIDEGVRRAAYRIIEGKGATYYGIGAGLARLVRAILTDEKGVYTVSAFTPEVEGVLEVSLSLPRILGAGGVEGTVYPSLSPEEREALRRSAEILKEAAFALGF  310
               SCOP domains d2v7pa1 A:22-164 automated matches                                                                                                           d2v7pa2 A:165-331 automated matches                                                                                                                                       SCOP domains
               CATH domains 2v7pA01 A:22-164 NAD(P)-binding Rossmann-like Domain                                                                                         2v7pA02 A:165-331 L-2-Hydroxyisocaproate Dehydrogenase, subunit A, domain 2                                                                                               CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee..hhhhhhhhhhhhhh....eeeee..hhhhhhhhhhhhhhhhhhh...eeeeehhhhhh...eeee..........hhhhhhhhhhhhhhhhhhhhhhhh...eeee...hhhhhhhhhhhhhh.hhh.eee..hhhhhhhhhhhhhhhhh.hhhhh...ee.......ee.hhhh........hhhhhh....hhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh..eeeeeeeeeeee..eeeeeeeeeeeee..eeeee.....hhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------L_LDH  --------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                2v7p A   22 MKVGIVGSGMVGSATAYALALLGVAREVVLVDLDRKLAQAHAEDILHATPFAHPVWVRAGSYGDLEGARAVVLAAGVAQRPGETRLQLLDRNAQVFAQVVPRVLEAAPEAVLLVATNPVDVMTQVAYRLSGLPPGRVVGSGTILDTARFRALLAEYLRVAPQSVHAYVLGEHGDSEVLVWSSAQVGGVPLLEFAEARGRALSPEDRARIDEGVRRAAYRIIEGKGATYYGIGAGLARLVRAILTDEKGVYTVSAFTPEVEGVLEVSLSLPRILGAGGVEGTVYPSLSPEEREALRRSAEILKEAAFALGF  331
                                    31        41        51        61        71        83        93       103|      114       124       133       143       153       163       173       183       193       203     |210A|      219       229       239       249       259       269       279   ||  290       301       311       321       331
                                                                                     80|                 103|                       132A|                                                                         209A|||||                                                                      283|           299|
                                                                                      83                  105                        132B                                                                          209B||||                                                                       285            301
                                                                                                                                                                                                                    209C|||
                                                                                                                                                                                                                     209D||
                                                                                                                                                                                                                      210A|
                                                                                                                                                                                                                       210B


Chain B from PDB  Type:PROTEIN  Length:299
 aligned with LDH_THET8 | Q5SJA1 from UniProtKB/Swiss-Prot  Length:310

    Alignment length:310
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310
           LDH_THET8      1 MKVGIVGSGMVGSATAYALALLGVAREVVLVDLDRKLAQAHAEDILHATPFAHPVWVRAGSYGDLEGARAVVLAAGVAQRPGETRLQLLDRNAQVFAQVVPRVLEAAPEAVLLVATNPVDVMTQVAYRLSGLPPGRVVGSGTILDTARFRALLAEYLRVAPQSVHAYVLGEHGDSEVLVWSSAQVGGVPLLEFAEARGRALSPEDRARIDEGVRRAAYRIIEGKGATYYGIGAGLARLVRAILTDEKGVYTVSAFTPEVEGVLEVSLSLPRILGAGGVEGTVYPSLSPEEREALRRSAEILKEAAFALGF  310
               SCOP domains d2v7pb1 B:22-164 automated matches                                                                                                           d2v7pb2 B:165-331 automated matches                                                                                                                                       SCOP domains
               CATH domains 2v7pB01 B:22-164 NAD(P)-binding Rossmann-like Domain                                                                                         2v7pB02 B:165-331 L-2-Hydroxyisocaproate Dehydrogenase, subunit A, domain 2                                                                                               CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee..hhhhhhhhhhhhhh....eeeee..hhhhhhhhhhhhhhhhhhh...eeee.hhhhhh...eeee..-----------hhhhhhhhhhhhhhhhhhhhh...eeee...hhhhhhhhhhhhhh.hhh.eee..hhhhhhhhhhhhhhhhh.hhh.ee..ee.......ee.....ee................hhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhh...eeeeeeeeeeee..eeeeeeeeeeeee..eeeee.....hhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------L_LDH  --------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                2v7p B   22 MKVGIVGSGMVGSATAYALALLGVAREVVLVDLDRKLAQAHAEDILHATPFAHPVWVRAGSYGDLEGARAVVLAA-----------QLLDRNAQVFAQVVPRVLEAAPEAVLLVATNPVDVMTQVAYRLSGLPPGRVVGSGTILDTARFRALLAEYLRVAPQSVHAYVLGEHGDSEVLVWSSAQVGGVPLLEFAEARGRALSPEDRARIDEGVRRAAYRIIEGKGATYYGIGAGLARLVRAILTDEKGVYTVSAFTPEVEGVLEVSLSLPRILGAGGVEGTVYPSLSPEEREALRRSAEILKEAAFALGF  331
                                    31        41        51        61        71        83        93    |    -      |114       124       133       143       153       163       173       183       193       203     |210A|      219       229       239       249       259       269       279   ||  290       301       311       321       331
                                                                                     80|             98         111                 132A|                                                                         209A|||||                                                                      283|           299|
                                                                                      83                                             132B                                                                          209B||||                                                                       285            301
                                                                                                                                                                                                                    209C|||
                                                                                                                                                                                                                     209D||
                                                                                                                                                                                                                      210A|
                                                                                                                                                                                                                       210B


Chain C from PDB  Type:PROTEIN  Length:310
 aligned with LDH_THET8 | Q5SJA1 from UniProtKB/Swiss-Prot  Length:310

    Alignment length:310
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310
           LDH_THET8      1 MKVGIVGSGMVGSATAYALALLGVAREVVLVDLDRKLAQAHAEDILHATPFAHPVWVRAGSYGDLEGARAVVLAAGVAQRPGETRLQLLDRNAQVFAQVVPRVLEAAPEAVLLVATNPVDVMTQVAYRLSGLPPGRVVGSGTILDTARFRALLAEYLRVAPQSVHAYVLGEHGDSEVLVWSSAQVGGVPLLEFAEARGRALSPEDRARIDEGVRRAAYRIIEGKGATYYGIGAGLARLVRAILTDEKGVYTVSAFTPEVEGVLEVSLSLPRILGAGGVEGTVYPSLSPEEREALRRSAEILKEAAFALGF  310
               SCOP domains d2v7pc1 C:22-164 automated matches                                                                                                           d2v7pc2 C:165-331 automated matches                                                                                                                                       SCOP domains
               CATH domains 2v7pC01 C:22-164 NAD(P)-binding Rossmann-like Domain                                                                                         2v7pC02 C:165-331 L-2-Hydroxyisocaproate Dehydrogenase, subunit A, domain 2                                                                                               CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee..hhhhhhhhhhhhhhh...eeeee..hhhhhhhhhhhhhhhhhhh...eeee.hhhhhh...eeee..........hhhhhhhhhhhhhhhhhhhhhhhh...eeee...hhhhhhhhhhhhhh.hhh.eee..hhhhhhhhhhhhhhhhh.hhhhh...ee.......ee.............hhhhhh....hhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhh...eeeeeeeeeeee..eeeeeeeeeeeee..eeeee.....hhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------L_LDH  --------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                2v7p C   22 MKVGIVGSGMVGSATAYALALLGVAREVVLVDLDRKLAQAHAEDILHATPFAHPVWVRAGSYGDLEGARAVVLAAGVAQRPGETRLQLLDRNAQVFAQVVPRVLEAAPEAVLLVATNPVDVMTQVAYRLSGLPPGRVVGSGTILDTARFRALLAEYLRVAPQSVHAYVLGEHGDSEVLVWSSAQVGGVPLLEFAEARGRALSPEDRARIDEGVRRAAYRIIEGKGATYYGIGAGLARLVRAILTDEKGVYTVSAFTPEVEGVLEVSLSLPRILGAGGVEGTVYPSLSPEEREALRRSAEILKEAAFALGF  331
                                    31        41        51        61        71        83        93       103|      114       124       133       143       153       163       173       183       193       203     |210A|      219       229       239       249       259       269       279   ||  290       301       311       321       331
                                                                                     80|                 103|                       132A|                                                                         209A|||||                                                                      283|           299|
                                                                                      83                  105                        132B                                                                          209B||||                                                                       285            301
                                                                                                                                                                                                                    209C|||
                                                                                                                                                                                                                     209D||
                                                                                                                                                                                                                      210A|
                                                                                                                                                                                                                       210B


Chain D from PDB  Type:PROTEIN  Length:300
 aligned with LDH_THET8 | Q5SJA1 from UniProtKB/Swiss-Prot  Length:310

    Alignment length:310
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310
           LDH_THET8      1 MKVGIVGSGMVGSATAYALALLGVAREVVLVDLDRKLAQAHAEDILHATPFAHPVWVRAGSYGDLEGARAVVLAAGVAQRPGETRLQLLDRNAQVFAQVVPRVLEAAPEAVLLVATNPVDVMTQVAYRLSGLPPGRVVGSGTILDTARFRALLAEYLRVAPQSVHAYVLGEHGDSEVLVWSSAQVGGVPLLEFAEARGRALSPEDRARIDEGVRRAAYRIIEGKGATYYGIGAGLARLVRAILTDEKGVYTVSAFTPEVEGVLEVSLSLPRILGAGGVEGTVYPSLSPEEREALRRSAEILKEAAFALGF  310
               SCOP domains d2v7pd1 D:22-164 automated matches                                                                                                           d2v7pd2 D:165-331 automated matches                                                                                                                                       SCOP domains
               CATH domains 2v7pD01 D:22-164 NAD(P)-binding Rossmann-like Domain                                                                                         2v7pD02 D:165-331 L-2-Hydroxyisocaproate Dehydrogenase, subunit A, domain 2                                                                                               CATH domains
           Pfam domains (1) Ldh_1_N-2v7pD05 D:22-163                                                                                                                    -Ldh_1_C-2v7pD01 D:165-328                                                                                                                                             --- Pfam domains (1)
           Pfam domains (2) Ldh_1_N-2v7pD06 D:22-163                                                                                                                    -Ldh_1_C-2v7pD02 D:165-328                                                                                                                                             --- Pfam domains (2)
           Pfam domains (3) Ldh_1_N-2v7pD07 D:22-163                                                                                                                    -Ldh_1_C-2v7pD03 D:165-328                                                                                                                                             --- Pfam domains (3)
           Pfam domains (4) Ldh_1_N-2v7pD08 D:22-163                                                                                                                    -Ldh_1_C-2v7pD04 D:165-328                                                                                                                                             --- Pfam domains (4)
         Sec.struct. author .eeeee..hhhhhhhhhhhhhh....eeeee..hhhhhhhhhhhhhhhhhhh...eeee.hhhhhh...eeee....----------hhhhhhhhhhhhhhhhhhhh...eeee...hhhhhhhhhhhhhh.hhh.eee..hhhhhhhhhhhhhhhhh.hhhhheeeee.......eeeeeeee.......hhhhhh....hhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhh...eeeeeeeeeeee..eeeeeeeeeeeee..eeeee.....hhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------L_LDH  --------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                2v7p D   22 MKVGIVGSGMVGSATAYALALLGVAREVVLVDLDRKLAQAHAEDILHATPFAHPVWVRAGSYGDLEGARAVVLAAGV----------LLDRNAQVFAQVVPRVLEAAPEAVLLVATNPVDVMTQVAYRLSGLPPGRVVGSGTILDTARFRALLAEYLRVAPQSVHAYVLGEHGDSEVLVWSSAQVGGVPLLEFAEARGRALSPEDRARIDEGVRRAAYRIIEGKGATYYGIGAGLARLVRAILTDEKGVYTVSAFTPEVEGVLEVSLSLPRILGAGGVEGTVYPSLSPEEREALRRSAEILKEAAFALGF  331
                                    31        41        51        61        71        83        93      |  -       114       124       133       143       153       163       173       183       193       203     |210A|      219       229       239       249       259       269       279   ||  290       301       311       321       331
                                                                                     80|              100        112                132A|                                                                         209A|||||                                                                      283|           299|
                                                                                      83                                             132B                                                                          209B||||                                                                       285            301
                                                                                                                                                                                                                    209C|||
                                                                                                                                                                                                                     209D||
                                                                                                                                                                                                                      210A|
                                                                                                                                                                                                                       210B
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 8)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (2, 8)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (2, 8)

Asymmetric/Biological Unit
(-)
Clan: LDH_C (56)
(-)
Clan: NADP_Rossmann (1239)

(-) Gene Ontology  (9, 9)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C,D   (LDH_THET8 | Q5SJA1)
molecular function
    GO:0004459    L-lactate dehydrogenase activity    Catalysis of the reaction: (S)-lactate + NAD+ = pyruvate + NADH + H+.
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
    GO:0016616    oxidoreductase activity, acting on the CH-OH group of donors, NAD or NADP as acceptor    Catalysis of an oxidation-reduction (redox) reaction in which a CH-OH group acts as a hydrogen or electron donor and reduces NAD+ or NADP.
biological process
    GO:0005975    carbohydrate metabolic process    The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
    GO:0019752    carboxylic acid metabolic process    The chemical reactions and pathways involving carboxylic acids, any organic acid containing one or more carboxyl (COOH) groups or anions (COO-).
    GO:0006096    glycolytic process    The chemical reactions and pathways resulting in the breakdown of a carbohydrate into pyruvate, with the concomitant production of a small amount of ATP and the reduction of NAD(P) to NAD(P)H. Glycolysis begins with the metabolism of a carbohydrate to generate products that can enter the pathway and ends with the production of pyruvate. Pyruvate may be converted to acetyl-coenzyme A, ethanol, lactate, or other small molecules.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    NAD  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    OXM  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Asn A:140 - Pro A:141   [ RasMol ]
    Asn B:140 - Pro B:141   [ RasMol ]
    Asn C:140 - Pro C:141   [ RasMol ]
    Asn D:140 - Pro D:141   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2v7p
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  LDH_THET8 | Q5SJA1
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  1.1.1.27
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  LDH_THET8 | Q5SJA1
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        LDH_THET8 | Q5SJA1: 2e37 2v6m 2xxb 2xxj 3zzn 4a73

(-) Related Entries Specified in the PDB File

2v6m CRYSTAL STRUCTURE OF LACTATE DEHYDROGENASE FROM THERMUS THERMOPHILUS HB8 (APO FORM)
