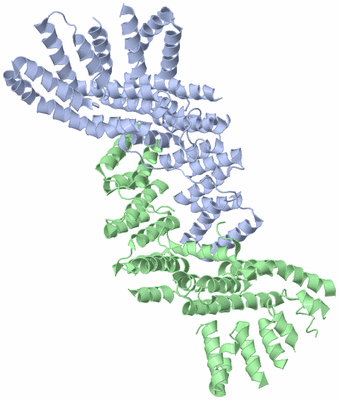

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF CSTF-77

Authors :  P. Legrand, N. Pinaud, L. Minvielle-Sebastia, S. Fribourg
Date :  02 Apr 07  (Deposition) - 03 Jul 07  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Rna-Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  P. Legrand, N. Pinaud, L. Minvielle-Sebastia, S. Fribourg
The Structure Of The Cstf-77 Homodimer Provides Insights Into Cstf Assembly.
Nucleic Acids Res. V. 35 4515 2007
PubMed-ID: 17584787  |  Reference-DOI: 10.1093/NAR/GKM458

(-) Compounds

Molecule 1 - CLEAVAGE STIMULATION FACTOR 77
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: ENCEPHALITOZOON CUNICULI
    Organism Taxid: 6035
    Synonym: SIMILARITY TO SUPPRESSOR OF FORKED PROTEIN, MRNA STABILITY

Molecule 2 - CLEAVAGE STIMULATION FACTOR 77
    Chains: B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: ENCEPHALITOZOON CUNICULI
    Organism Taxid: 6035
    Synonym: SIMILARITY TO SUPPRESSOR OF FORKED PROTEIN, MRNA STABILITY

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2UY1)

(-) Sites  (0, 0)

(no "Site" information available for 2UY1)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2UY1)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2UY1)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2UY1)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2UY1)

(-) Exons   (0, 0)

(no "Exon" information available for 2UY1)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:438
 aligned with Q8SWC5_ENCCU | Q8SWC5 from UniProtKB/TrEMBL  Length:493

    Alignment length:454
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461
         Q8SWC5_ENCCU    12 SSPSAIMEHARRLYMSKDYRSLESLFGRCLKKSYNLDLWMLYIEYVRKVSQKKFKLYEVYEFTLGQFENYWDSYGLYKEYIEELGKIEDEQTRIEKIRNGYMRALQTPMGSLSELWKDFENFELELNKITGKKIVGDTLPIFQSSFQRYQQIQPLIRGWSVKNAARLIDLEMENGMKLGGRPHESRMHFIHNYILDSFYYAEEVYFFYSEYLIGIGQKEKAKKVVERGIEMSDGMFLSLYYGLVMDEEAVYGDLKRKYSMGEAESAEKVFSKELDLLRINHLNYVLKKRGLELFRKLFIELGNEGVGPHVFIYCAFIEYYATGSRATPYNIFSSGLLKHPDSTLLKEEFFLFLLRIGDEENARALFKRLEKTSRMWDSMIEYEFMVGSMELFRELVDQKMDAIKADAILPPLPPREHNVQMEGILGRYHCFLDSFNFLDLKIRDNSRLLDEFME 465
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhh.hhhhhhhhhhhhh....hhhhhhhhhhhhhhhh----.hhhhhhhhhhhh.....hhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh..hhhhhhhhhhh..hhhhhhhhhhh.----------hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..........--....hhhhhhhhhhhhhhh.................. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2uy1 A  12 SSPSAIMEHARRLYMSKDYRSLESLFGRCLKKSYNLDLWMLYIEYVRKVS----KLYEVYEFTLGQFENYWDSYGLYKEYIEEEGKIEDEQTRIEKIRNGYMRALQTPMGSLSELWKDFENFELELNKITGKKIVGDTLPIFQSSFQRYQQIQPLIRGWSVKNAARLIDLEMENGMKLGGRPHESRMHFIHNYILDSFYYAEEVYFFYSEYLIGIGQKEKAKKVVERGIEMSDGMFLSLYYGLVMDEEAVYGDLKRKYS----------FSKELDLLRINHLNYVLKKRGLELFRKLFIELGNEGVGPHVFIYCAFIEYYATGSRATPYNIFSSGLLKHPDSTLLKEEFFLFLLRIGDEENARALFKRLEKTSRMWDSMIEYEFMVGSMELFRELVDQKMDAIKADAILPPLPPR--NVQMEGILGRYHCFLDSFNFLDLKIRDNSRLLDEFME 465
                                    21        31        41        51        61    |   71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261        |-       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421    |  431       441       451       461
                                                                            61   66                                                                                                                                                                                                         270        281                                                                                                                                              426  |
                                                                                                                                                                                                                                                                                                                                                                                                                                                           429


Chain B from PDB  Type:PROTEIN  Length:384
 aligned with Q8SWC5_ENCCU | Q8SWC5 from UniProtKB/TrEMBL  Length:493

    Alignment length:444
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451
         Q8SWC5_ENCCU    12 SSPSAIMEHARRLYMSKDYRSLESLFGRCLKKSYNLDLWMLYIEYVRKVSQKKFKLYEVYEFTLGQFENYWDSYGLYKEYIEELGKIEDEQTRIEKIRNGYMRALQTPMGSLSELWKDFENFELELNKITGKKIVGDTLPIFQSSFQRYQQIQPLIRGWSVKNAARLIDLEMENGMKLGGRPHESRMHFIHNYILDSFYYAEEVYFFYSEYLIGIGQKEKAKKVVERGIEMSDGMFLSLYYGLVMDEEAVYGDLKRKYSMGEAESAEKVFSKELDLLRINHLNYVLKKRGLELFRKLFIELGNEGVGPHVFIYCAFIEYYATGSRATPYNIFSSGLLKHPDSTLLKEEFFLFLLRIGDEENARALFKRLEKTSRMWDSMIEYEFMVGSMELFRELVDQKMDAIKADAILPPLPPREHNVQMEGILGRYHCFLDSFNFLDLKIRD 455
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
           Pfam domains (1) ------------------------------------------------        ------------------------                 ----------------------                  -------------------------------------      -------------------------------------------------------------------------------        -----------Suf-2uy1B01 B:290-455                                                                                                                                                  Pfam domains (1)
           Pfam domains (2) ------------------------------------------------        ------------------------                 ----------------------                  -------------------------------------      -------------------------------------------------------------------------------        -----------Suf-2uy1B02 B:290-455                                                                                                                                                  Pfam domains (2)
         Sec.struct. author .hhhhhhhhhhhhhhh.hhhhhhhhhhhhh....hhhhhhhhhhhhh.--------hhhhhhhhhhhh....hhhhhhhh-----------------..............hhhhhh..------------------hhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhh------hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh..hhhhhhhhhhh..hhhhhhhhhhhh--------..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..........---...hhhhhhhhhhhhhhh........ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2uy1 B  12 SSPSAIMEHARRLYMSKDYRSLESLFGRCLWKSYNLDLWMLYIEYVRK--------FEVYEFTLGQFENYWDSYGLFKEY-----------------RNGYMRALQTPMGSLSELWKDF------------------TLPLFQSSFQRYQQIQPLIRGWSVKNAARLIDLEMEN------RPHESRMHFIHNYILDSFFYAEEVYFFYSEYLIGIGQKEKAKKVVERGIEMSDGMFLSLYYGLVMDEEAVYGDLKRKYS--------KVFSKELDLLRINHLNYVLKKRGLELFRKLFIELGNEGVGPHVFIYCAFIEYYATGSRATPYNIFSSGLLKHPDSTLLKEEFFLFLLRIGDEENARALFKRLEKTSRMWDSMIEYEFMVGSMELFRELVDQKMDAIKADAILPPLPPR---VQMEGILGRYHCFLDSFNFLDLKIRD 455
                                    21        31        41        51       | -      | 71        81        91         -       111       121        |-         -       151       161       171       181   |     -|      201       211       221       231       241       251       261        |-       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421    |  431       441       451
                                                                          59       68                     91               109                  130                149                                 185    192                                                                           270      279                                                                                                                                                426 430
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2UY1)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2UY1)

(-) Pfam Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Clan: TPR (230)

(-) Gene Ontology  (10, 10)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (Q8SWC5_ENCCU | Q8SWC5)
molecular function
    GO:0046982    protein heterodimerization activity    Interacting selectively and non-covalently with a nonidentical protein to form a heterodimer.
biological process
    GO:0006396    RNA processing    Any process involved in the conversion of one or more primary RNA transcripts into one or more mature RNA molecules.
    GO:0006379    mRNA cleavage    Any process in which a pre-mRNA or mRNA molecule is cleaved at specific sites or in a regulated manner.
    GO:0006378    mRNA polyadenylation    The enzymatic addition of a sequence of 40-200 adenylyl residues at the 3' end of a eukaryotic mRNA primary transcript.
    GO:0006397    mRNA processing    Any process involved in the conversion of a primary mRNA transcript into one or more mature mRNA(s) prior to translation into polypeptide.
    GO:0072423    response to DNA damage checkpoint signaling    A process that occurs in response to signals generated as a result of DNA damage checkpoint signaling.
cellular component
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0005849    mRNA cleavage factor complex    Any macromolecular complex involved in cleavage or polyadenylation of mRNA molecules.
    GO:0005739    mitochondrion    A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2uy1)

  Sites
(no "Sites" information available for 2uy1)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2uy1)


(-) Still Images

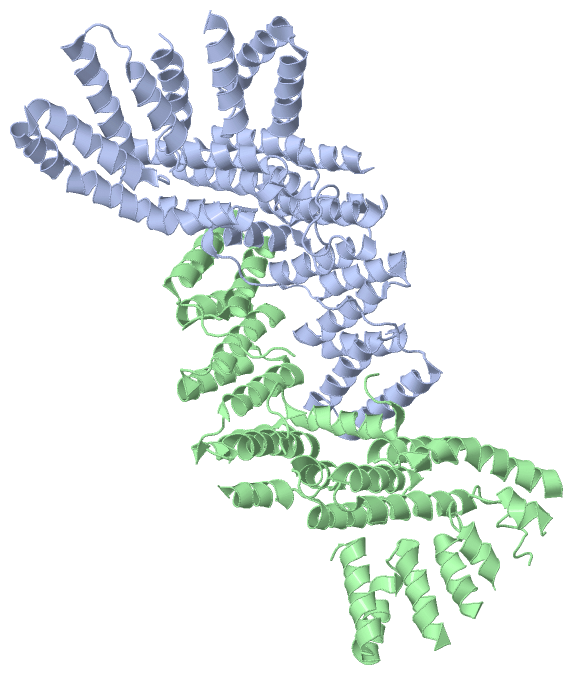

Jmol
