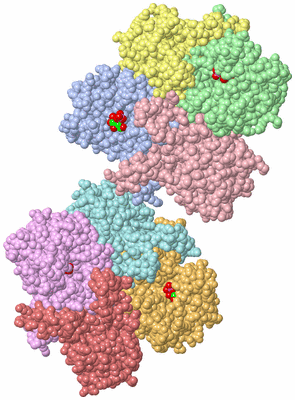

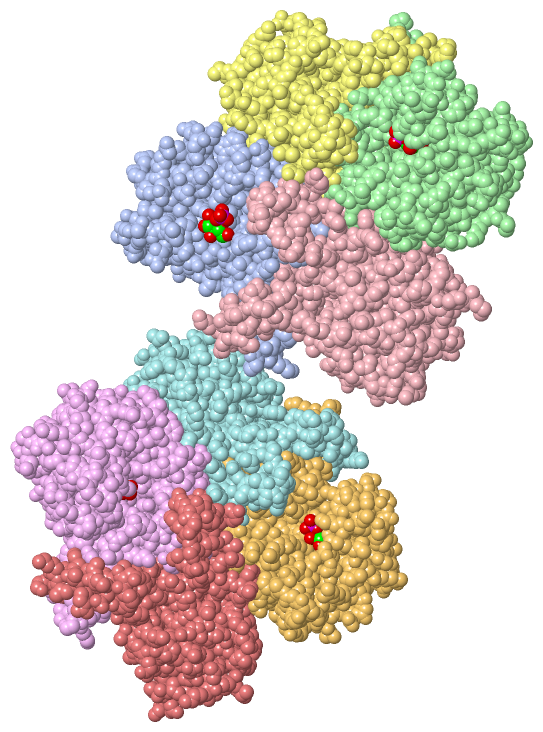

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

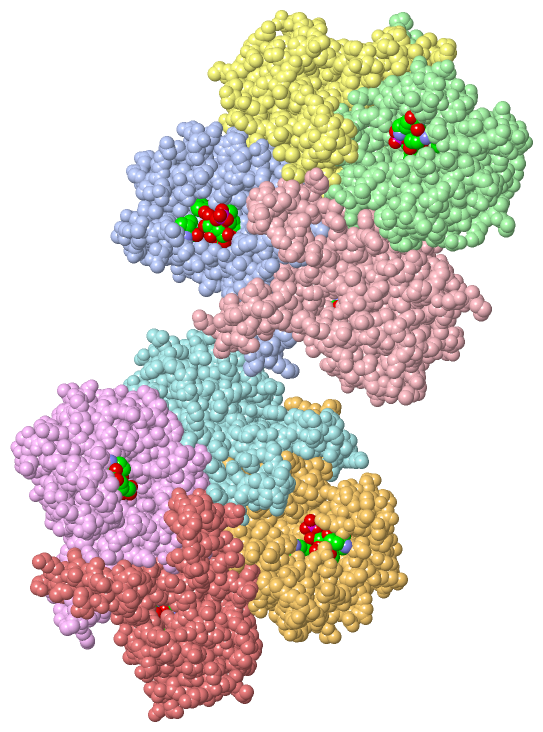

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

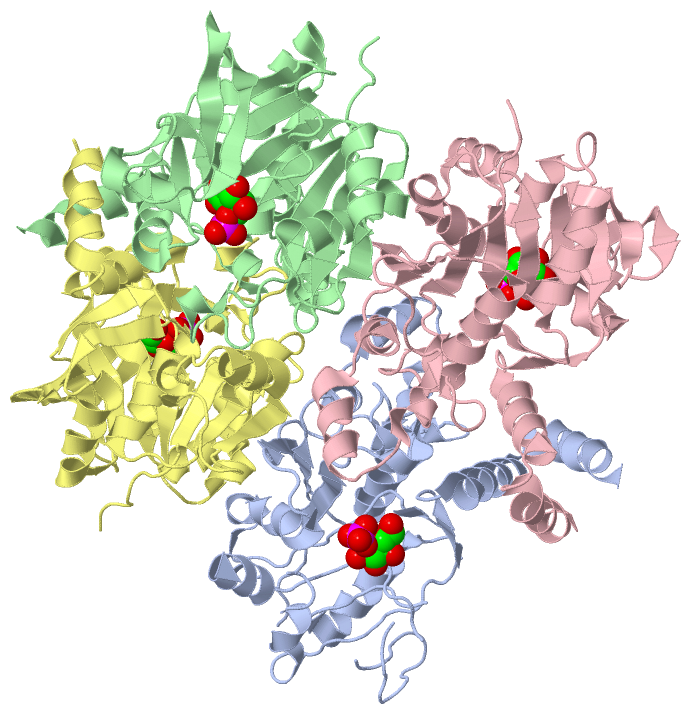

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

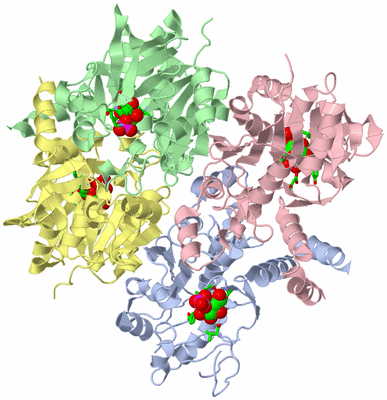

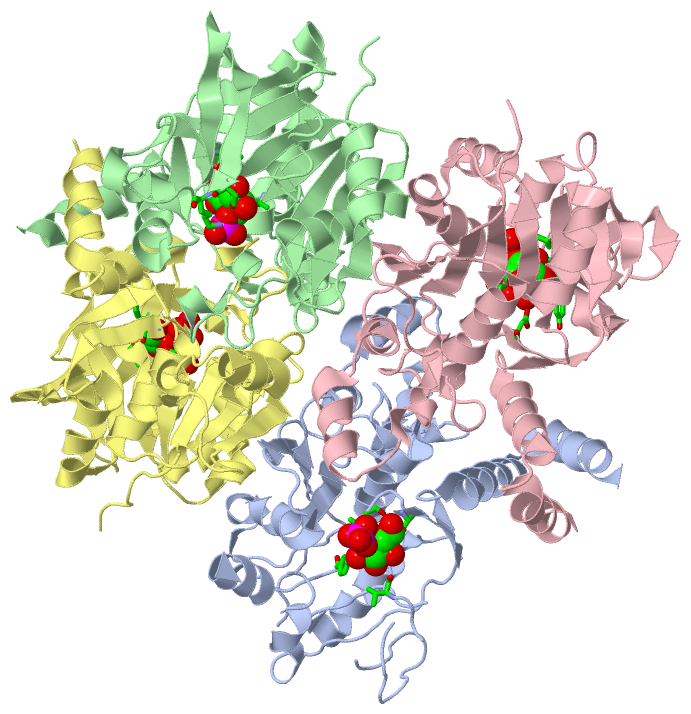

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

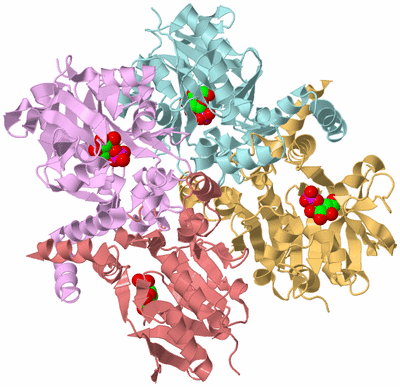

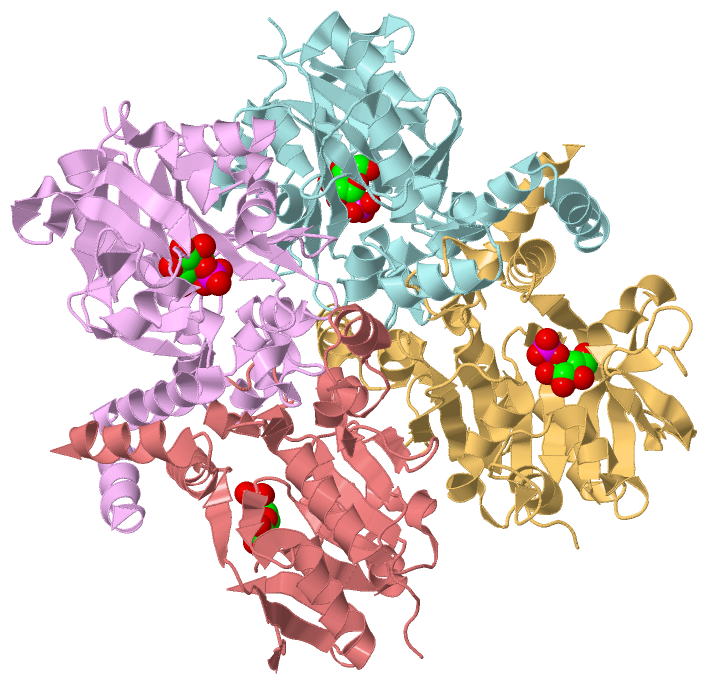

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF SPHINGOMONAS ELODEA ATCC 31461 GLUCOSE-1-PHOSPHATE URIDYLYLTRANSFERASE IN COMPLEX WITH GLUCOSE-1-PHOSPHATE.

Authors :  D. Aragao, A. M. Fialho, A. R. Marques, C. Frazao, I. Sa-Correia, E. P. Mitchell
Date :  27 Mar 07  (Deposition) - 22 May 07  (Release) - 22 Oct 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.65
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H
Biol. Unit 1:  A,B,C,D  (1x)
Biol. Unit 2:  E,F,G,H  (1x)
Keywords :  Ugpg, Transferase, Galu Pyrophosphorylase, Glucose-1- Phosphate Uridylyltransferase, Nucleotidyltransferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Aragao, A. M. Fialho, A. R. Marques, E. P. Mitchell, I. Sa-Correia, C. Frazao
The Complex Of Sphingomonas Elodea Atcc 31461 Glucose-1-Phosphate Uridylyltransferase With Glucose-1-Phosphate Reveals A Novel Quaternary Structure, Unique Among Nucleoside Diphosphate- Sugar Pyrophosphorylase Members.
J. Bacteriol. V. 189 4520 2007
PubMed-ID: 17434970  |  Reference-DOI: 10.1128/JB.00277-07
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - GLUCOSE-1-PHOSPHATE URIDYLYLTRANSFERASE
    Atcc: 31461
    Chains: A, B, C, D, E, F, G, H
    EC Number: 2.7.7.9
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PUGPG2 BASED ON PWH844
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Organism Scientific: SPHINGOMONAS ELODEA
    Organism Taxid: 179878
    Other Details: CO-CRYSTALLISED WITH GLUCOSE-1-PHOSPHATE

 Structural Features

(-) Chains, Units

  12345678
Asymmetric Unit : ABCDEFGH
Biological Unit 1 (1x): ABCD
Biological Unit 2 (1x):     EFGH

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 8)

Asymmetric Unit (1, 8)
No.NameCountTypeFull Name
1G1P8Ligand/IonALPHA-D-GLUCOSE-1-PHOSPHATE
Biological Unit 1 (1, 4)
No.NameCountTypeFull Name
1G1P4Ligand/IonALPHA-D-GLUCOSE-1-PHOSPHATE
Biological Unit 2 (1, 4)
No.NameCountTypeFull Name
1G1P4Ligand/IonALPHA-D-GLUCOSE-1-PHOSPHATE

(-) Sites  (8, 8)

Asymmetric Unit (8, 8)
No.NameEvidenceResiduesDescription
1AC1SOFTWARELEU A:131 , ASP A:134 , VAL A:204 , TYR A:208BINDING SITE FOR RESIDUE G1P A1290
2AC2SOFTWARELEU B:131 , ASP B:134 , GLU B:191 , LYS B:192 , VAL B:204BINDING SITE FOR RESIDUE G1P B1290
3AC3SOFTWARELEU C:131 , ASP C:134 , TYR C:171 , GLY C:172 , GLU C:191 , VAL C:204 , HOH C:2030BINDING SITE FOR RESIDUE G1P C1290
4AC4SOFTWARELEU D:131 , ASP D:134 , TYR D:171 , GLY D:172 , GLU D:191 , VAL D:204 , TYR D:208 , HOH D:2016BINDING SITE FOR RESIDUE G1P D1290
5AC5SOFTWAREASP E:134 , TYR E:171 , GLY E:172 , GLU E:191 , LYS E:192 , VAL E:204BINDING SITE FOR RESIDUE G1P E1290
6AC6SOFTWARELEU F:111 , TYR F:171 , GLY F:172 , GLU F:191 , LYS F:192 , VAL F:204 , THR F:232BINDING SITE FOR RESIDUE G1P F1290
7AC7SOFTWARELEU G:111 , TYR G:171 , GLY G:172 , GLU G:191 , VAL G:204 , TYR G:208 , THR G:232 , HOH G:2019BINDING SITE FOR RESIDUE G1P G1290
8AC8SOFTWARELEU H:131 , ASP H:134 , VAL H:204 , GLY H:206BINDING SITE FOR RESIDUE G1P H1290

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2UX8)

(-) Cis Peptide Bonds  (16, 16)

Asymmetric Unit
No.Residues
1Leu A:21 -Pro A:22
2Gln A:139 -Pro A:140
3Leu B:21 -Pro B:22
4Gln B:139 -Pro B:140
5Leu C:21 -Pro C:22
6Gln C:139 -Pro C:140
7Leu D:21 -Pro D:22
8Gln D:139 -Pro D:140
9Leu E:21 -Pro E:22
10Gln E:139 -Pro E:140
11Leu F:21 -Pro F:22
12Gln F:139 -Pro F:140
13Leu G:21 -Pro G:22
14Gln G:139 -Pro G:140
15Leu H:21 -Pro H:22
16Gln H:139 -Pro H:140

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2UX8)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2UX8)

(-) Exons   (0, 0)

(no "Exon" information available for 2UX8)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:255
 aligned with Q5FYV5_SPHEL | Q5FYV5 from UniProtKB/TrEMBL  Length:289

    Alignment length:288
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
         Q5FYV5_SPHEL     2 TIKPLRKAVFPVAGLGTRFLPATKAMPKEMLPVVDRPLIQYAVDEAVEAGIEQMIFVTGRGKSALEDHFDIAYELEATMAARGKSLDVLDGTRLKPGNIAYVRQQEPMGLGHAVWCARDIVGDEPFAVLLPDDFMFGQPGCLKQMVDAYNKVGGNLICAEEVPDDQTHRYGIITPGTQDGVLTEVKGLVEKPAPGTAPSNLSVIGRYILQPEVMRILENQGKGAGGEIQLTDAMQRMIGDQPFHGVTFQGTRYDCGDKAGFIQANLAVALSRPDLEPAVRAFAVKALG 289
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ......eeeeee...hhhhh......hhhh.ee..eehhhhhhhhhhhh...eeeeee...hhhhhhhh..hhhhhhhhhh...hhhhhh........eeeee.....hhhhhhhhhhhhhh..........eeee...hhhhhhhhhhhhhh.......-----------..............--------------...........hhhhhhhhhh.--------...hhhhhh............eeee..hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2ux8 A   2 TIKPLRKAVFPVAGLGTRFLPATKAMPKEMLPVVDRPLIQYAVDEAVEAGIEQMIFVTGRGKSALEDHFDIAYELEATMAARGKSLDVLDGTRLKPGNIAYVRQQEPMGLGHAVWCARDIVGDEPFAVLLPDDFMFGQPGCLKQMVDAYNKVGGNLICAE-----------IITPGTQDGVLTEV--------------NLSVIGRYILQPEVMRILENQG--------LTDAMQRMIGDQPFHGVTFQGTRYDCGDKAGFIQANLAVALSRPDLEPAVRAFAVKALG 289
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161         - |     181    |    -       201       211       221|      231       241       251       261       271       281
                                                                                                                                                                                         161         173          186            201                  222      231


Chain B from PDB  Type:PROTEIN  Length:280
 aligned with Q5FYV5_SPHEL | Q5FYV5 from UniProtKB/TrEMBL  Length:289

    Alignment length:288
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
         Q5FYV5_SPHEL     2 TIKPLRKAVFPVAGLGTRFLPATKAMPKEMLPVVDRPLIQYAVDEAVEAGIEQMIFVTGRGKSALEDHFDIAYELEATMAARGKSLDVLDGTRLKPGNIAYVRQQEPMGLGHAVWCARDIVGDEPFAVLLPDDFMFGQPGCLKQMVDAYNKVGGNLICAEEVPDDQTHRYGIITPGTQDGVLTEVKGLVEKPAPGTAPSNLSVIGRYILQPEVMRILENQGKGAGGEIQLTDAMQRMIGDQPFHGVTFQGTRYDCGDKAGFIQANLAVALSRPDLEPAVRAFAVKALG 289
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ......eeeeee...hhhhh......hhhhh.....hhhhhhhhhhhhh...eeeeee...hhhhhhhh..hhhhhhhhhh...hhhhhh........eeeee.....hhhhhhhhhhhhhh...eeee...eeee...hhhhhhhhhhhhhh.eeeeeee.hhhhhhh.eeeeeeeee..eeeeeeeee..........eeeeeeeee.hhhhhhhhhhh--------.............eeeee...eeee..hhhhhhhhhhhhhhh...hhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2ux8 B   2 TIKPLRKAVFPVAGLGTRFLPATKAMPKEMLPVVDRPLIQYAVDEAVEAGIEQMIFVTGRGKSALEDHFDIAYELEATMAARGKSLDVLDGTRLKPGNIAYVRQQEPMGLGHAVWCARDIVGDEPFAVLLPDDFMFGQPGCLKQMVDAYNKVGGNLICAEEVPDDQTHRYGIITPGTQDGVLTEVKGLVEKPAPGTAPSNLSVIGRYILQPEVMRILENQG--------LTDAMQRMIGDQPFHGVTFQGTRYDCGDKAGFIQANLAVALSRPDLEPAVRAFAVKALG 289
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221|      231       241       251       261       271       281
                                                                                                                                                                                                                                                      222      231


Chain C from PDB  Type:PROTEIN  Length:282
 aligned with Q5FYV5_SPHEL | Q5FYV5 from UniProtKB/TrEMBL  Length:289

    Alignment length:289
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280
         Q5FYV5_SPHEL     1 MTIKPLRKAVFPVAGLGTRFLPATKAMPKEMLPVVDRPLIQYAVDEAVEAGIEQMIFVTGRGKSALEDHFDIAYELEATMAARGKSLDVLDGTRLKPGNIAYVRQQEPMGLGHAVWCARDIVGDEPFAVLLPDDFMFGQPGCLKQMVDAYNKVGGNLICAEEVPDDQTHRYGIITPGTQDGVLTEVKGLVEKPAPGTAPSNLSVIGRYILQPEVMRILENQGKGAGGEIQLTDAMQRMIGDQPFHGVTFQGTRYDCGDKAGFIQANLAVALSRPDLEPAVRAFAVKALG 289
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eeeeee...hhhhh......hhhhh.....hhhhhhhhhhhhh...eeeeee...hhhhhhhh..hhhhhhhhhh...hhhhhh........eeeee.....hhhhhhhhhhhhhh...eeee...eeee...hhhhhhhhhhhhhh.eeeeeee.hhhhhhhh.eeeeeeee..eeeeeeee...........eeeeeeeee.hhhhhhhhhh.-------.hhhhhhh......eeeee...eeee..hhhhhhhhhhhhhhh...hhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ux8 C   1 MTIKPLRKAVFPVAGLGTRFLPATKAMPKEMLPVVDRPLIQYAVDEAVEAGIEQMIFVTGRGKSALEDHFDIAYELEATMAARGKSLDVLDGTRLKPGNIAYVRQQEPMGLGHAVWCARDIVGDEPFAVLLPDDFMFGQPGCLKQMVDAYNKVGGNLICAEEVPDDQTHRYGIITPGTQDGVLTEVKGLVEKPAPGTAPSNLSVIGRYILQPEVMRILENQG-------QLTDAMQRMIGDQPFHGVTFQGTRYDCGDKAGFIQANLAVALSRPDLEPAVRAFAVKALG 289
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220 |     230       240       250       260       270       280
                                                                                                                                                                                                                                                       222     230


Chain D from PDB  Type:PROTEIN  Length:281
 aligned with Q5FYV5_SPHEL | Q5FYV5 from UniProtKB/TrEMBL  Length:289

    Alignment length:288
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
         Q5FYV5_SPHEL     2 TIKPLRKAVFPVAGLGTRFLPATKAMPKEMLPVVDRPLIQYAVDEAVEAGIEQMIFVTGRGKSALEDHFDIAYELEATMAARGKSLDVLDGTRLKPGNIAYVRQQEPMGLGHAVWCARDIVGDEPFAVLLPDDFMFGQPGCLKQMVDAYNKVGGNLICAEEVPDDQTHRYGIITPGTQDGVLTEVKGLVEKPAPGTAPSNLSVIGRYILQPEVMRILENQGKGAGGEIQLTDAMQRMIGDQPFHGVTFQGTRYDCGDKAGFIQANLAVALSRPDLEPAVRAFAVKALG 289
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......eeeee...hhhhh......hhhh.ee..eehhhhhhhhhhhh....eeeee...hhhhhhhh..hhhhhhhhhh....hhhhh........eeeee.....hhhhhhhhhhhhhh...eeee...eeeee..hhhhhhhhhhhhhh.eeeeeee.hhhhhhhh.eeeeeeee..eeeeeeee...........eeeeeeeeehhhhhhhhhhh.-------.hhhhhhh......eeeee..eeeee..hhhhhhhhhhhhhhh...hhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2ux8 D   2 TIKPLRKAVFPVAGLGTRFLPATKAMPKEMLPVVDRPLIQYAVDEAVEAGIEQMIFVTGRGKSALEDHFDIAYELEATMAARGKSLDVLDGTRLKPGNIAYVRQQEPMGLGHAVWCARDIVGDEPFAVLLPDDFMFGQPGCLKQMVDAYNKVGGNLICAEEVPDDQTHRYGIITPGTQDGVLTEVKGLVEKPAPGTAPSNLSVIGRYILQPEVMRILENQG-------QLTDAMQRMIGDQPFHGVTFQGTRYDCGDKAGFIQANLAVALSRPDLEPAVRAFAVKALG 289
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221|      231       241       251       261       271       281
                                                                                                                                                                                                                                                      222     230


Chain E from PDB  Type:PROTEIN  Length:280
 aligned with Q5FYV5_SPHEL | Q5FYV5 from UniProtKB/TrEMBL  Length:289

    Alignment length:288
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
         Q5FYV5_SPHEL     2 TIKPLRKAVFPVAGLGTRFLPATKAMPKEMLPVVDRPLIQYAVDEAVEAGIEQMIFVTGRGKSALEDHFDIAYELEATMAARGKSLDVLDGTRLKPGNIAYVRQQEPMGLGHAVWCARDIVGDEPFAVLLPDDFMFGQPGCLKQMVDAYNKVGGNLICAEEVPDDQTHRYGIITPGTQDGVLTEVKGLVEKPAPGTAPSNLSVIGRYILQPEVMRILENQGKGAGGEIQLTDAMQRMIGDQPFHGVTFQGTRYDCGDKAGFIQANLAVALSRPDLEPAVRAFAVKALG 289
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ......eeeeee...hhhhh......hhhh.ee..eehhhhhhhhhhhh...eeeeee...hhhhhhhh..hhhhhhhhhh...hhhhhh........eeeee.....hhhhhhhhhhhhhh...eeee...eeee...hhhhhhhhhhhhhh.eeeeeee.hhhhhhh.eeeeeeeee..eeeeeeeee..........eeeeeeeee.hhhhhhhhhh--------.hhhhhhhhh....eeeee...eeee..hhhhhhhhhhhhhhh...hhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2ux8 E   2 TIKPLRKAVFPVAGLGTRFLPATKAMPKEMLPVVDRPLIQYAVDEAVEAGIEQMIFVTGRGKSALEDHFDIAYELEATMAARGKSLDVLDGTRLKPGNIAYVRQQEPMGLGHAVWCARDIVGDEPFAVLLPDDFMFGQPGCLKQMVDAYNKVGGNLICAEEVPDDQTHRYGIITPGTQDGVLTEVKGLVEKPAPGTAPSNLSVIGRYILQPEVMRILENQ--------QLTDAMQRMIGDQPFHGVTFQGTRYDCGDKAGFIQANLAVALSRPDLEPAVRAFAVKALG 289
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
                                                                                                                                                                                                                                                     221      230


Chain F from PDB  Type:PROTEIN  Length:282
 aligned with Q5FYV5_SPHEL | Q5FYV5 from UniProtKB/TrEMBL  Length:289

    Alignment length:288
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
         Q5FYV5_SPHEL     2 TIKPLRKAVFPVAGLGTRFLPATKAMPKEMLPVVDRPLIQYAVDEAVEAGIEQMIFVTGRGKSALEDHFDIAYELEATMAARGKSLDVLDGTRLKPGNIAYVRQQEPMGLGHAVWCARDIVGDEPFAVLLPDDFMFGQPGCLKQMVDAYNKVGGNLICAEEVPDDQTHRYGIITPGTQDGVLTEVKGLVEKPAPGTAPSNLSVIGRYILQPEVMRILENQGKGAGGEIQLTDAMQRMIGDQPFHGVTFQGTRYDCGDKAGFIQANLAVALSRPDLEPAVRAFAVKALG 289
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ......eeeeee...hhhhh......hhhh.ee..eehhhhhhhhhhhh...eeeeee...hhhhhhhh..hhhhhhhhhh...hhhhhh........eeeee.....hhhhhhhhhhhhhh...eeee...eeee...hhhhhhhhhhhhhh.eeeeeee.hhhhhhhh.eeeeeeee..eeeeeeee...........eeeeeeeeehhhhhhhhhhhh.------.hhhhhhh......eeeee...eeee..hhhhhhhhhhhhhhh...hhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2ux8 F   2 TIKPLRKAVFPVAGLGTRFLPATKAMPKEMLPVVDRPLIQYAVDEAVEAGIEQMIFVTGRGKSALEDHFDIAYELEATMAARGKSLDVLDGTRLKPGNIAYVRQQEPMGLGHAVWCARDIVGDEPFAVLLPDDFMFGQPGCLKQMVDAYNKVGGNLICAEEVPDDQTHRYGIITPGTQDGVLTEVKGLVEKPAPGTAPSNLSVIGRYILQPEVMRILENQGK------QLTDAMQRMIGDQPFHGVTFQGTRYDCGDKAGFIQANLAVALSRPDLEPAVRAFAVKALG 289
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221 |     231       241       251       261       271       281
                                                                                                                                                                                                                                                       223    230


Chain G from PDB  Type:PROTEIN  Length:288
 aligned with Q5FYV5_SPHEL | Q5FYV5 from UniProtKB/TrEMBL  Length:289

    Alignment length:288
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
         Q5FYV5_SPHEL     2 TIKPLRKAVFPVAGLGTRFLPATKAMPKEMLPVVDRPLIQYAVDEAVEAGIEQMIFVTGRGKSALEDHFDIAYELEATMAARGKSLDVLDGTRLKPGNIAYVRQQEPMGLGHAVWCARDIVGDEPFAVLLPDDFMFGQPGCLKQMVDAYNKVGGNLICAEEVPDDQTHRYGIITPGTQDGVLTEVKGLVEKPAPGTAPSNLSVIGRYILQPEVMRILENQGKGAGGEIQLTDAMQRMIGDQPFHGVTFQGTRYDCGDKAGFIQANLAVALSRPDLEPAVRAFAVKALG 289
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ......eeeeee...hhhhh......hhhh.ee..eehhhhhhhhhhhh...eeeeee...hhhhhhhh..hhhhhhhhhh...hhhhhh........eeeee.....hhhhhhhhhhhhhh...eeee...eeeee..hhhhhhhhhhhhhh.eeeeeee.hhhhhhhh.eeeeeeee..eeeeeeee...........eeeeeeeee.hhhhhhhhh..........hhhhhhhhh....eeeee..eeeee..hhhhhhhhhhhhhhh...hhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2ux8 G   2 TIKPLRKAVFPVAGLGTRFLPATKAMPKEMLPVVDRPLIQYAVDEAVEAGIEQMIFVTGRGKSALEDHFDIAYELEATMAARGKSLDVLDGTRLKPGNIAYVRQQEPMGLGHAVWCARDIVGDEPFAVLLPDDFMFGQPGCLKQMVDAYNKVGGNLICAEEVPDDQTHRYGIITPGTQDGVLTEVKGLVEKPAPGTAPSNLSVIGRYILQPEVMRILENQGKGAGGEIQLTDAMQRMIGDQPFHGVTFQGTRYDCGDKAGFIQANLAVALSRPDLEPAVRAFAVKALG 289
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281


Chain H from PDB  Type:PROTEIN  Length:244
 aligned with Q5FYV5_SPHEL | Q5FYV5 from UniProtKB/TrEMBL  Length:289

    Alignment length:288
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
         Q5FYV5_SPHEL     2 TIKPLRKAVFPVAGLGTRFLPATKAMPKEMLPVVDRPLIQYAVDEAVEAGIEQMIFVTGRGKSALEDHFDIAYELEATMAARGKSLDVLDGTRLKPGNIAYVRQQEPMGLGHAVWCARDIVGDEPFAVLLPDDFMFGQPGCLKQMVDAYNKVGGNLICAEEVPDDQTHRYGIITPGTQDGVLTEVKGLVEKPAPGTAPSNLSVIGRYILQPEVMRILENQGKGAGGEIQLTDAMQRMIGDQPFHGVTFQGTRYDCGDKAGFIQANLAVALSRPDLEPAVRAFAVKALG 289
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
           Pfam domains (1) ------NTP_transferase-2ux8H01 H:8-272                                                                                                                                                                                                                                          ----------------- Pfam domains (1)
           Pfam domains (2) ------NTP_transferase-2ux8H02 H:8-272                                                                                                                                                                                                                                          ----------------- Pfam domains (2)
           Pfam domains (3) ------NTP_transferase-2ux8H03 H:8-272                                                                                                                                                                                                                                          ----------------- Pfam domains (3)
           Pfam domains (4) ------NTP_transferase-2ux8H04 H:8-272                                                                                                                                                                                                                                          ----------------- Pfam domains (4)
           Pfam domains (5) ------NTP_transferase-2ux8H05 H:8-272                                                                                                                                                                                                                                          ----------------- Pfam domains (5)
           Pfam domains (6) ------NTP_transferase-2ux8H06 H:8-272                                                                                                                                                                                                                                          ----------------- Pfam domains (6)
           Pfam domains (7) ------NTP_transferase-2ux8H07 H:8-272                                                                                                                                                                                                                                          ----------------- Pfam domains (7)
           Pfam domains (8) ------NTP_transferase-2ux8H08 H:8-272                                                                                                                                                                                                                                          ----------------- Pfam domains (8)
         Sec.struct. author ......eeeeee...hhhhh......hhhh.ee..eehhhhhhhhhhhh....eeeee...hhhhhhhh..hhhhhhhhhh...hhhhhh........eeeee.....hhhhhhhhhhhhhh...eeee...eeee...hhhhhhhhhhhhhh.eeeee.---------------------.ee....--------------.eeeeeehhhhhhhhhh---------.hhhhhhhhh....eeeee...eeee..hhhhhhhhhhhhhhh...hhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2ux8 H   2 TIKPLRKAVFPVAGLGTRFLPATKAMPKEMLPVVDRPLIQYAVDEAVEAGIEQMIFVTGRGKSALEDHFDIAYELEATMAARGKSLDVLDGTRLKPGNIAYVRQQEPMGLGHAVWCARDIVGDEPFAVLLPDDFMFGQPGCLKQMVDAYNKVGGNLICAE---------------------LTEVKGL--------------VIGRYILQPEVMRILEN---------QLTDAMQRMIGDQPFHGVTFQGTRYDCGDKAGFIQANLAVALSRPDLEPAVRAFAVKALG 289
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161         -         - |     | -         -  |    211        |-       231       241       251       261       271       281
                                                                                                                                                                                         161                   183   189            204             220       230
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2UX8)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2UX8)

(-) Pfam Domains  (1, 8)

Asymmetric Unit
(-)
Clan: GT-A (172)

(-) Gene Ontology  (5, 5)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E,F,G,H   (Q5FYV5_SPHEL | Q5FYV5)
molecular function
    GO:0003983    UTP:glucose-1-phosphate uridylyltransferase activity    Catalysis of the reaction: alpha-D-glucose 1-phosphate + UTP = diphosphate + UDP-D-glucose.
    GO:0016779    nucleotidyltransferase activity    Catalysis of the transfer of a nucleotidyl group to a reactant.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0006011    UDP-glucose metabolic process    The chemical reactions and pathways involving UDP-glucose, uridinediphosphoglucose, a substance composed of glucose in glycosidic linkage with uridine diphosphate.
    GO:0009058    biosynthetic process    The chemical reactions and pathways resulting in the formation of substances; typically the energy-requiring part of metabolism in which simpler substances are transformed into more complex ones.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    G1P  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Gln A:139 - Pro A:140   [ RasMol ]
    Gln B:139 - Pro B:140   [ RasMol ]
    Gln C:139 - Pro C:140   [ RasMol ]
    Gln D:139 - Pro D:140   [ RasMol ]
    Gln E:139 - Pro E:140   [ RasMol ]
    Gln F:139 - Pro F:140   [ RasMol ]
    Gln G:139 - Pro G:140   [ RasMol ]
    Gln H:139 - Pro H:140   [ RasMol ]
    Leu A:21 - Pro A:22   [ RasMol ]
    Leu B:21 - Pro B:22   [ RasMol ]
    Leu C:21 - Pro C:22   [ RasMol ]
    Leu D:21 - Pro D:22   [ RasMol ]
    Leu E:21 - Pro E:22   [ RasMol ]
    Leu F:21 - Pro F:22   [ RasMol ]
    Leu G:21 - Pro G:22   [ RasMol ]
    Leu H:21 - Pro H:22   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2ux8
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q5FYV5_SPHEL | Q5FYV5
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  2.7.7.9
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q5FYV5_SPHEL | Q5FYV5
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 2UX8)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2UX8)
