2RQM - JenaLib

Title :   NMR SOLUTION STRUCTURE OF MESODERM DEVELOPMENT (MESD) - OPEN CONFORMATION

Authors :   C. Koehler, J. K. Lighthouse, T. Werther, O. M. Andersen, A. Diehl, P. Sc B. C. Holdener, H. Oschkinat

Date :   14 Aug 09 (Deposition) - 25 Aug 09 (Release) - 13 Apr 11 (Revision)

Method :   SOLUTION NMR

Resolution :   NOT APPLICABLE

Chains :   NMR Structure  : A  (20x)
NMR Structure *: A  (1x)

Keywords :   Chaperone (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   C. Kohler, J. K. Lighthouse, T. Werther, O. M. Andersen, A. Diehl, P. Schmieder, J. Du, B. C. Holdener, H. Oschkinat
The Structure Of Mesd45-184 Brings Light Into The Mechanism Of Ldlr Family Folding
Structure V. 19 337 2011
PubMed-ID: 21397185 | Reference-DOI: 10.1016/J.STR.2010.12.022

Compounds

Molecule 1 - MESODERM DEVELOPMENT CANDIDATE 2
	Chains	:	A
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET-30 XA/LIC
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Fragment	:	D45-K184 CONSERVED CORE REGION, UNP RESIDUES 45-184
	Gene	:	MESDC2
	Organism Common	:	MOUSE
	Organism Scientific	:	MUS MUSCULUS
	Organism Taxid	:	10090

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

NMR Structure

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:141
 aligned with MESD_MOUSE | Q9ERE7 from UniProtKB/Swiss-Prot  Length:224

    Alignment length:141
                                    53        63        73        83        93       103       113       123       133       143       153       163       173       183
           MESD_MOUSE    44 KDIRDYNDADMARLLEQWEKDDDIEEGDLPEHKRPSAPIDFSKLDPGKPESILKMTKKGKTLMMFVTVSGNPTEKETEEITSLWQGSLFNANYDVQRFIVGSDRAIFMLRDGSYAWEIKDFLVSQDRCAEVTLEGQMYPGK 184
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -Mesd-2rqmA01 A:2-141                                                                                                                         Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhh............hhhhhhh...hhhhhhhh......eeeee.....hhhhhhhhhhhhhhhhhhh....eeee....eeeee.....hhhhhhhhhhh.....eeee........ Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2rqm A   1 GDIRDYNDADMARLLEQWEKDDDIEEGDLPEHKRPSAPIDFSKLDPGKPESILKMTKKGKTLMMFVTVSGNPTEKETEEITSLWQGSLFNANYDVQRFIVGSDRAIFMLRDGSYAWEIKDFLVSQDRCAEVTLEGQMYPGK 141
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (0, 0)

CATH Domains (0, 0)

Pfam Domains (1, 1)

Gene Ontology (8, 8)

NMR Structure(hide GO term definitions)

Chain A (MESD_MOUSE | Q9ERE7)

molecular function
	GO:0050750	low-density lipoprotein particle receptor binding	Interacting selectively and non-covalently with a low-density lipoprotein receptor.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
	GO:0016055	Wnt signaling pathway	The series of molecular signals initiated by binding of a Wnt protein to a frizzled family receptor on the surface of the target cell and ending with a change in cell state.
	GO:0007498	mesoderm development	The process whose specific outcome is the progression of the mesoderm over time, from its formation to the mature structure. The mesoderm is the middle germ layer that develops into muscle, bone, cartilage, blood and connective tissue.
	GO:0006457	protein folding	The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
	GO:0034394	protein localization to cell surface	A process in which a protein is transported to, or maintained in, a location within the external part of the cell wall and/or plasma membrane.
cellular component
	GO:0005783	endoplasmic reticulum	The irregular network of unit membranes, visible only by electron microscopy, that occurs in the cytoplasm of many eukaryotic cells. The membranes form a complex meshwork of tubular channels, which are often expanded into slitlike cavities called cisternae. The ER takes two forms, rough (or granular), with ribosomes adhering to the outer surface, and smooth (with no ribosomes attached).
	GO:0005886	plasma membrane	The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

Visualization

Interactive Views

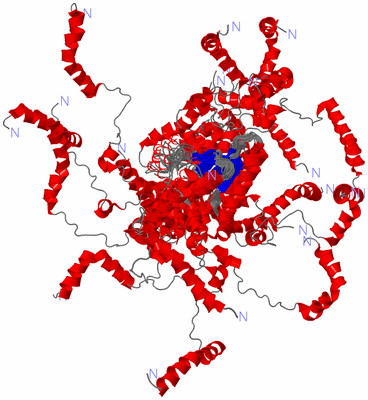

NMR Structure
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2rqm)

	Sites
(no "Sites" information available for 2rqm)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2rqm)

Still Images
