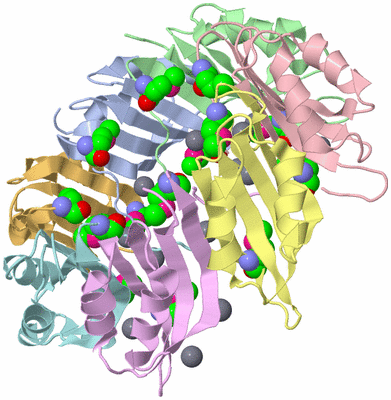

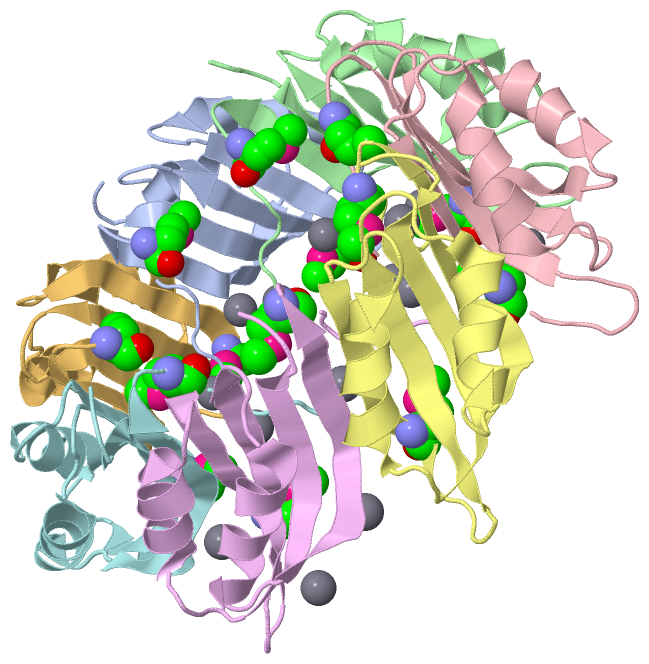

Asymmetric Unit (Jmol Viewer)

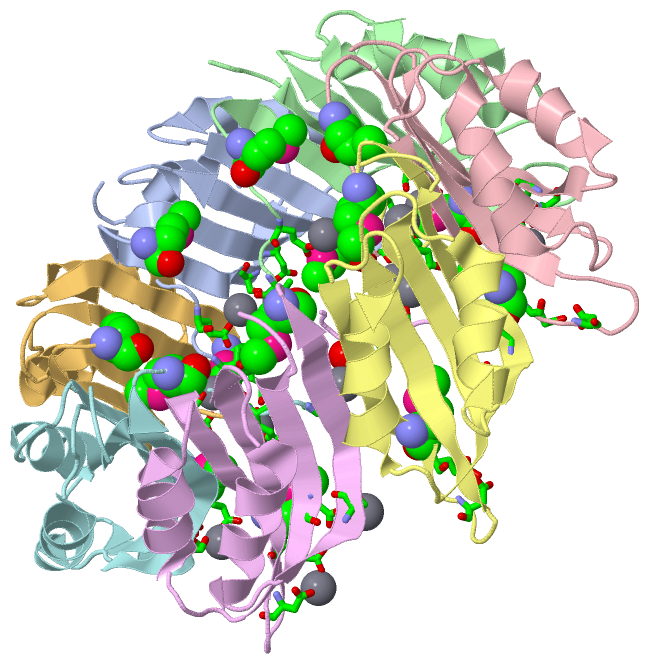

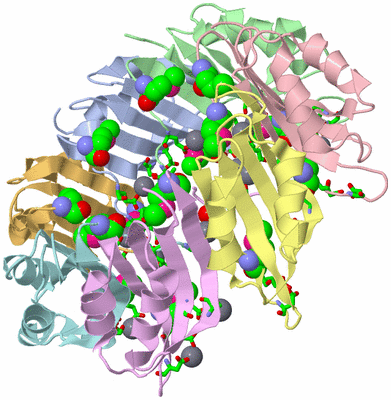

Asym. Unit - sites (Jmol Viewer)

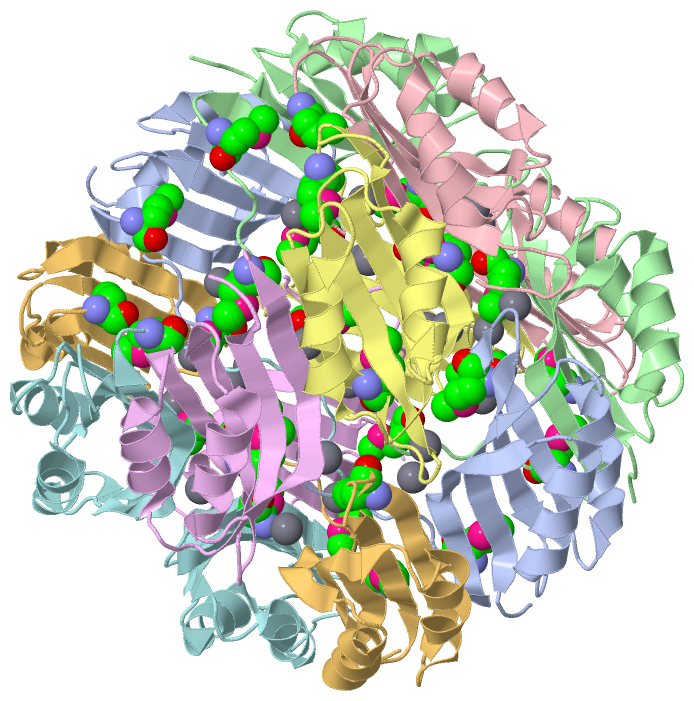

Biological Unit 1 (Jmol Viewer)

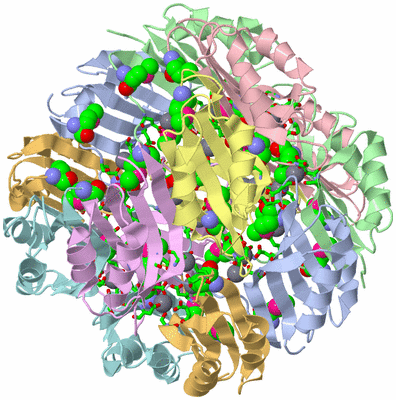

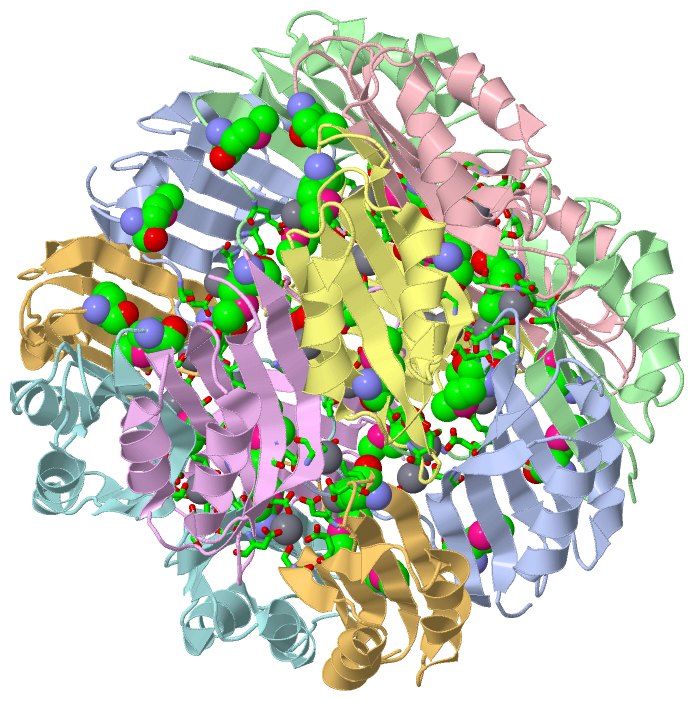

Biol. Unit 1 - sites (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF THE MTH889 PROTEIN FROM METHANOTHERMOBACTER THERMAUTOTROPHICUS. NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET TT205

Authors :   F. Forouhar, M. Su, X. Xu, J. Seetharaman, L. Mao, R. Xiao, L-C. Ma, K. Con M. C. Baran, T. B. Acton, G. T. Montelione, C. H. Arrowsmith, J. F. Hunt, Northeast Structural Genomics Consortium (Nesg)

Date :   17 Sep 07 (Deposition) - 16 Oct 07 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   3.11

Chains :   Asym. Unit : A,B,C,D,E,F,G
Biol. Unit 1: A,B,C,D,E,F,G  (2x)

Keywords :   Alpha-Beta Protein, Structural Genomics, Psi-2, Protein Structure Initiative, Northeast Structural Genomics Consortium, Nesg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   F. Forouhar, M. Su, X. Xu, J. Seetharaman, L. Mao, R. Xiao, L-C. Ma, K. Conover, M. C. Baran, T. B. Acton, G. T. Montelione, C. H. Arrowsmith J. F. Hunt, L. Tong
Crystal Structure Of The Mth889 Protein From Methanothermobacter Thermautotrophicus.
To Be Published
PubMed: search

Molecule 1 - CONSERVED PROTEIN MTH889
	Chains	:	A, B, C, D, E, F, G
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET15B
	Expression System Strain	:	BL21(DE3) GOLD MAGIC
	Expression System Taxid	:	562
	Expression System Vector	:	BL21
	Expression System Vector Type	:	PLASMID
	Gene	:	MTH889
	Organism Scientific	:	METHANOTHERMOBACTER THERMAUTOTROPHICUS
	Organism Taxid	:	187420
	Strain	:	DELTA H

		1	2	3	4	5	6	7
Asymmetric Unit	:	A	B	C	D	E	F	G
Biological Unit 1 (2x)	:	A	B	C	D	E	F	G

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (2, 28)

No.	Name	Count	Type	Full Name
1	CA	14	Ligand/Ion	CALCIUM ION
2	MSE	14	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 1 (1, 28)

No.	Name	Count	Type	Full Name
1	CA	-1	Ligand/Ion	CALCIUM ION
2	MSE	28	Mod. Amino Acid	SELENOMETHIONINE

Asymmetric Unit (14, 14)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	GLU A:43 , ASP A:45 , ASP D:12 , SER D:78	BINDING SITE FOR RESIDUE CA A 98
02	AC2	SOFTWARE	ASP B:12 , SER B:78 , GLU C:43 , ASP C:45	BINDING SITE FOR RESIDUE CA B 98
03	AC3	SOFTWARE	GLU B:43 , ASP B:45 , ASP C:12 , SER C:78	BINDING SITE FOR RESIDUE CA B 99
04	AC4	SOFTWARE	ASP A:12 , SER A:78 , GLU D:43 , ASP D:45	BINDING SITE FOR RESIDUE CA A 99
05	AC5	SOFTWARE	ASP E:12 , SER E:78 , GLU G:43 , ASP G:45	BINDING SITE FOR RESIDUE CA E 98
06	AC6	SOFTWARE	GLU E:43 , ASP E:45 , ASP G:12 , SER G:78	BINDING SITE FOR RESIDUE CA E 99
07	AC7	SOFTWARE	ASP F:12 , GLU F:43 , ASP F:45 , SER F:78	BINDING SITE FOR RESIDUE CA F 98
08	AC8	SOFTWARE	GLU A:91 , THR B:93	BINDING SITE FOR RESIDUE CA A 100
09	AC9	SOFTWARE	GLU B:91 , THR C:93	BINDING SITE FOR RESIDUE CA B 100
10	BC1	SOFTWARE	GLU C:91 , THR D:93	BINDING SITE FOR RESIDUE CA C 98
11	BC2	SOFTWARE	GLU D:91 , THR E:93	BINDING SITE FOR RESIDUE CA D 98
12	BC3	SOFTWARE	GLU E:91 , HOH E:111 , THR F:93	BINDING SITE FOR RESIDUE CA E 100
13	BC4	SOFTWARE	GLU F:91 , THR G:93	BINDING SITE FOR RESIDUE CA G 98
14	BC5	SOFTWARE	THR A:93 , GLU G:91	BINDING SITE FOR RESIDUE CA A 101

(no "SS Bond" information available for 2RAQ)

Asymmetric Unit

No.	Residues
1	Glu A:18	-	Pro A:19
2	Glu B:18	-	Pro B:19
3	Glu C:18	-	Pro C:19
4	Glu D:18	-	Pro D:19
5	Glu E:18	-	Pro E:19
6	Glu F:18	-	Pro F:19
7	Glu G:18	-	Pro G:19

(no "SAP(SNP)/Variant" information available for 2RAQ)

(no "PROSITE Motif" information available for 2RAQ)

(no "Exon" information available for 2RAQ)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:93
 aligned with O26975_METTH | O26975 from UniProtKB/TrEMBL  Length:97

    Alignment length:93
                                    12        22        32        42        52        62        72        82        92
          O26975_METTH    3 AKGLIRIVLDILKPHEPIIPEYAKYLSELRGVEGVNITLMEIDKETENIKVTIQGNDLDFDEITRAIESYGGSIHSVDEVVAGRTMVEEVTTP 95
               SCOP domains d2raqa1 A:3-95 Uncharacterized protein MTH889                                                 SCOP domains
               CATH domains 2raqA01 A:3-87 MTH889-like domain                                                    -------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeeeee.....hhhhhhhhhhhh....eeeeeeeee....eeeeeeee....hhhhhhhhhhhh..eeeeeeeeeee.......... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------- Transcript
                  2raq A  3 AKGLIRIVLDILKPHEPIIPEYAKYLSELRGVEGVNITLmEIDKETENIKVTIQGNDLDFDEITRAIESYGGSIHSVDEVVAGRTmVEEVTTP 95
                                    12        22        32        42        52        62        72        82     |  92
                                                                  42-MSE                                        88-MSE

Chain B from PDB  Type:PROTEIN  Length:94
 aligned with O26975_METTH | O26975 from UniProtKB/TrEMBL  Length:97

    Alignment length:94
                                    11        21        31        41        51        61        71        81        91
          O26975_METTH    2 VAKGLIRIVLDILKPHEPIIPEYAKYLSELRGVEGVNITLMEIDKETENIKVTIQGNDLDFDEITRAIESYGGSIHSVDEVVAGRTMVEEVTTP 95
               SCOP domains d2raqb_ B: Uncharacterized protein MTH889                                                      SCOP domains
               CATH domains 2raqB01 B:2-87 MTH889-like domain                                                     -------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeeeee.....hhhhhhhhhhh...eeeeeeeeee......eeeeeeee...hhhhhhhhhhhh..eeeeeeeeeee.......... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------- Transcript
                  2raq B  2 VAKGLIRIVLDILKPHEPIIPEYAKYLSELRGVEGVNITLmEIDKETENIKVTIQGNDLDFDEITRAIESYGGSIHSVDEVVAGRTmVEEVTTP 95
                                    11        21        31        41|       51        61        71        81      | 91
                                                                   42-MSE                                        88-MSE

Chain C from PDB  Type:PROTEIN  Length:93
 aligned with O26975_METTH | O26975 from UniProtKB/TrEMBL  Length:97

    Alignment length:93
                                    12        22        32        42        52        62        72        82        92
          O26975_METTH    3 AKGLIRIVLDILKPHEPIIPEYAKYLSELRGVEGVNITLMEIDKETENIKVTIQGNDLDFDEITRAIESYGGSIHSVDEVVAGRTMVEEVTTP 95
               SCOP domains d2raqc_ C: Uncharacterized protein MTH889                                                     SCOP domains
               CATH domains 2raqC01 C:3-87 MTH889-like domain                                                    -------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeeeee.....hhhhhhhhhhhh....eeeeee........eeeeeee....hhhhhhhhhhh...eeeeeeeeee........... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------- Transcript
                  2raq C  3 AKGLIRIVLDILKPHEPIIPEYAKYLSELRGVEGVNITLmEIDKETENIKVTIQGNDLDFDEITRAIESYGGSIHSVDEVVAGRTmVEEVTTP 95
                                    12        22        32        42        52        62        72        82     |  92
                                                                  42-MSE                                        88-MSE

Chain D from PDB  Type:PROTEIN  Length:93
 aligned with O26975_METTH | O26975 from UniProtKB/TrEMBL  Length:97

    Alignment length:93
                                    12        22        32        42        52        62        72        82        92
          O26975_METTH    3 AKGLIRIVLDILKPHEPIIPEYAKYLSELRGVEGVNITLMEIDKETENIKVTIQGNDLDFDEITRAIESYGGSIHSVDEVVAGRTMVEEVTTP 95
               SCOP domains d2raqd_ D: Uncharacterized protein MTH889                                                     SCOP domains
               CATH domains 2raqD01 D:3-87 MTH889-like domain                                                    -------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeeeeeee...hhhhhhhhhhh.....eeeeeeee....eeeeeeeee....hhhhhhhhhhh...eeeeeeeeeee.......... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------- Transcript
                  2raq D  3 AKGLIRIVLDILKPHEPIIPEYAKYLSELRGVEGVNITLmEIDKETENIKVTIQGNDLDFDEITRAIESYGGSIHSVDEVVAGRTmVEEVTTP 95
                                    12        22        32        42        52        62        72        82     |  92
                                                                  42-MSE                                        88-MSE

Chain E from PDB  Type:PROTEIN  Length:93
 aligned with O26975_METTH | O26975 from UniProtKB/TrEMBL  Length:97

    Alignment length:93
                                    12        22        32        42        52        62        72        82        92
          O26975_METTH    3 AKGLIRIVLDILKPHEPIIPEYAKYLSELRGVEGVNITLMEIDKETENIKVTIQGNDLDFDEITRAIESYGGSIHSVDEVVAGRTMVEEVTTP 95
               SCOP domains d2raqe_ E: Uncharacterized protein MTH889                                                     SCOP domains
               CATH domains 2raqE01 E:3-87 MTH889-like domain                                                    -------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeeeeee....hhhhhhhhhhh...eeeeeeeeeee....eeeeeeeee...hhhhhhhhhhh...eeeeeeeeeee.......... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------- Transcript
                  2raq E  3 AKGLIRIVLDILKPHEPIIPEYAKYLSELRGVEGVNITLmEIDKETENIKVTIQGNDLDFDEITRAIESYGGSIHSVDEVVAGRTmVEEVTTP 95
                                    12        22        32        42        52        62        72        82     |  92
                                                                  42-MSE                                        88-MSE

Chain F from PDB  Type:PROTEIN  Length:93
 aligned with O26975_METTH | O26975 from UniProtKB/TrEMBL  Length:97

    Alignment length:93
                                    12        22        32        42        52        62        72        82        92
          O26975_METTH    3 AKGLIRIVLDILKPHEPIIPEYAKYLSELRGVEGVNITLMEIDKETENIKVTIQGNDLDFDEITRAIESYGGSIHSVDEVVAGRTMVEEVTTP 95
               SCOP domains d2raqf_ F: Uncharacterized protein MTH889                                                     SCOP domains
               CATH domains 2raqF01 F:3-87 MTH889-like domain                                                    -------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeeeeeee...hhhhhhhhhhh.....eeeeeeeee...eeeeeeeee....hhhhhhhhhhhh..eeeeeeeeeee.......... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------- Transcript
                  2raq F  3 AKGLIRIVLDILKPHEPIIPEYAKYLSELRGVEGVNITLmEIDKETENIKVTIQGNDLDFDEITRAIESYGGSIHSVDEVVAGRTmVEEVTTP 95
                                    12        22        32        42        52        62        72        82     |  92
                                                                  42-MSE                                        88-MSE

Chain G from PDB  Type:PROTEIN  Length:93
 aligned with O26975_METTH | O26975 from UniProtKB/TrEMBL  Length:97

    Alignment length:93
                                    12        22        32        42        52        62        72        82        92
          O26975_METTH    3 AKGLIRIVLDILKPHEPIIPEYAKYLSELRGVEGVNITLMEIDKETENIKVTIQGNDLDFDEITRAIESYGGSIHSVDEVVAGRTMVEEVTTP 95
               SCOP domains d2raqg_ G: Uncharacterized protein MTH889                                                     SCOP domains
               CATH domains 2raqG01 G:3-87 MTH889-like domain                                                    -------- CATH domains
           Pfam domains (1) DUF211-2raqG01 G:3-95                                                                         Pfam domains (1)
           Pfam domains (2) DUF211-2raqG02 G:3-95                                                                         Pfam domains (2)
           Pfam domains (3) DUF211-2raqG03 G:3-95                                                                         Pfam domains (3)
           Pfam domains (4) DUF211-2raqG04 G:3-95                                                                         Pfam domains (4)
           Pfam domains (5) DUF211-2raqG05 G:3-95                                                                         Pfam domains (5)
           Pfam domains (6) DUF211-2raqG06 G:3-95                                                                         Pfam domains (6)
           Pfam domains (7) DUF211-2raqG07 G:3-95                                                                         Pfam domains (7)
         Sec.struct. author ...eeeeeeeeeee...hhhhhhhhhhh...eeeeeeeeee....eeeeeeeeee...hhhhhhhhhhh...eeeeeeeeeee.......... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------- Transcript
                  2raq G  3 AKGLIRIVLDILKPHEPIIPEYAKYLSELRGVEGVNITLmEIDKETENIKVTIQGNDLDFDEITRAIESYGGSIHSVDEVVAGRTmVEEVTTP 95
                                    12        22        32        42        52        62        72        82     |  92
                                                                  42-MSE                                        88-MSE

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: Ferredoxin-like (1795)

Superfamily: MTH889-like (3)

Family: MTH889-like (2)

Protein domain: Uncharacterized protein MTH889 (1)

Methanobacterium thermoautotrophicum [TaxId: 145262] (1)

1a	d2raqa1	A:3-95
1b	d2raqb_	B:
1c	d2raqc_	C:
1d	d2raqd_	D:
1e	d2raqe_	E:
1f	d2raqf_	F:
1g	d2raqg_	G:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 2-Layer Sandwich (8480)

Topology: Alpha-Beta Plaits (1688)

Homologous Superfamily: MTH889-like domain (3)

Delta h (Methanothermobacter thermautotrophicus str) (1)

1a	2raqB01	B:2-87
1b	2raqA01	A:3-87
1c	2raqC01	C:3-87
1d	2raqD01	D:3-87
1e	2raqE01	E:3-87
1f	2raqF01	F:3-87
1g	2raqG01	G:3-87

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: no clan defined [family: DUF211] (2)

Family: DUF211 (2)

Methanobacterium thermoautotrophicum (strain Delta H) (1)

1a	DUF211-2raqG01	G:3-95
1b	DUF211-2raqG02	G:3-95
1c	DUF211-2raqG03	G:3-95
1d	DUF211-2raqG04	G:3-95
1e	DUF211-2raqG05	G:3-95
1f	DUF211-2raqG06	G:3-95
1g	DUF211-2raqG07	G:3-95

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D,E,F,G (O26975_METTH | O26975)

molecular function
	GO:0046872		metal ion binding		Interacting selectively and non-covalently with any metal ion.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		CA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MSE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Glu A:18 - Pro A:19	[ RasMol ]
		Glu B:18 - Pro B:19	[ RasMol ]
		Glu C:18 - Pro C:19	[ RasMol ]
		Glu D:18 - Pro D:19	[ RasMol ]
		Glu E:18 - Pro E:19	[ RasMol ]
		Glu F:18 - Pro F:19	[ RasMol ]
		Glu G:18 - Pro G:19	[ RasMol ]

Biological Unit
	Complete Structure
		Biological Unit 1	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	2raq
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	O26975_METTH \| O26975
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/TrEMBL

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	O26975_METTH \| O26975
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 2RAQ)

(no "Related Entries Specified in the PDB File" available for 2RAQ)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 28)

Sites (14, 14)

SS Bonds (0, 0)

Cis Peptide Bonds (7, 7)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 7)

CATH Domains (1, 7)

Pfam Domains (1, 7)

Gene Ontology (1, 1)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
