(-) Description

Title :  CRYSTAL STRUCTURE OF ATP SYNTHASE SUBUNIT ALPHA (TM1612) FROM THERMOTOGA MARITIMA AT 2.10 A RESOLUTION

Authors :  Joint Center For Structural Genomics (Jcsg)
Date :  13 Sep 07  (Deposition) - 02 Oct 07  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym./Biol. Unit :  A
Keywords :  Tm1612, Atp Synthase Subunit Alpha, Structural Genomics, Joint Center For Structural Genomics, Jcsg, Protein Structure Initiative, Psi-2, Atp Synthesis, Atp-Binding, Cf1, Hydrogen Ion Transport, Hydrolase, Inner Membrane, Ion Transport, Membrane, Nucleotide-Binding, Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Joint Center For Structural Genomics (Jcsg)
Crystal Structure Of Atp Synthase Subunit Alpha (Tm1612) From Thermotoga Maritima At 2. 10 A Resolution
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - ATP SYNTHASE SUBUNIT ALPHA
    Atcc: 43589
    Chains: A
    EC Number: 3.6.3.14
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: SPEEDET
    Expression System Strain: HK100
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: TM1612, ATPA
    Organism Scientific: THERMOTOGA MARITIMA MSB8
    Organism Taxid: 243274
    Strain: MSB8, DSM 3109, JCM 10099
    Synonym: ATPASE SUBUNIT ALPHA, ATP SYNTHASE F1 SECTOR SUBUNIT ALPHA

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (5, 14)

Asymmetric/Biological Unit (5, 14)
No.NameCountTypeFull Name
1ATP1Ligand/IonADENOSINE-5'-TRIPHOSPHATE
2CL1Ligand/IonCHLORIDE ION
3MG1Ligand/IonMAGNESIUM ION
4MSE10Mod. Amino AcidSELENOMETHIONINE
5PG41Ligand/IonTETRAETHYLENE GLYCOL

(-) Sites  (0, 0)

(no "Site" information available for 2R9V)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2R9V)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Asp A:262 -Asp A:263
2Arg A:355 -Pro A:356

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2R9V)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1ATPASE_ALPHA_BETAPS00152 ATP synthase alpha and beta subunits signature.ATPA_THEMA356-365  1A:356-365

(-) Exons   (0, 0)

(no "Exon" information available for 2R9V)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:487
 aligned with ATPA_THEMA | Q9X1U7 from UniProtKB/Swiss-Prot  Length:503

    Alignment length:487
                                    26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406       416       426       436       446       456       466       476       486       496
           ATPA_THEMA    17 KSFEEKIDLEDTGKVIQVGDGIARAYGLNKVMVSELVEFVETGVKGVAFNLEEDNVGIIILGEYKDIKEGHTVRRLKRIIEVPVGEELLGRVVNPLGEPLDGKGPINAKNFRPIEIKAPGVIYRKPVDTPLQTGIKAIDSMIPIGRGQRELIIGDRQTGKTAIAIDTIINQKGQGVYCIYVAIGQKKSAIARIIDKLRQYGAMEYTTVVVASASDPASLQYIAPYAGCAMGEYFAYSGRDALVVYDDLSKHAVAYRQLSLLMRRPPGREAYPGDIFYLHSRLLERAVRLNDKLGGGSLTALPIVETQANDISAYIPTNVISITDGQIYLEPGLFYAGQRPAINVGLSVSRVGGSAQIKAMKQVAGMLRIDLAQYRELETFAQFATELDPATRAQIIRGQRLMELLKQEQYSPMPVEEQVVVLFAGVRGYLDDLPVEEVRRFEKEFLRFMHEKHQDILDDIKTKKELTSETEEKLKKAIEEFKTTFRV 503
               SCOP domains d2r9va1 A:17-96 automated matches                                               d2r9va2 A:97-372 automated matches                                                                                                                                                                                                                                                  d2r9va3 A:373-503 automated matches                                                                                                 SCOP domains
               CATH domains -------2r9vA01 A:24-94  [code=2.40.30.20, no name defined]                    2r9vA02 A:95-372 P-loop containing nucleotide triphosphate hydrolases                                                                                                                                                                                                                 2r9vA03 A:373-500  [code=1.20.150.20, no name defined]                                                                          --- CATH domains
               Pfam domains -------ATP-synt_ab_N-2r9vA01 A:24-93                                         -------------------------------------------------------ATP-synt_ab-2r9vA02 A:149-365                                                                                                                                                                                            -----------ATP-synt_ab_C-2r9vA03 A:377-495                                                                                        -------- Pfam domains
         Sec.struct. author ...........eeeeeeee..eeeeee.......eeeee.....eeeeee.....eeeeee..........eeeeeeee.eeeehhhhh..ee................eeee......hhhhh.....ee...hhhhhhhh.ee....eeeeee...hhhhhhhhhhhh.....eeeeeeee..hhhhhhhhhhhhhhhhhhh.eeeeee....hhhhhhhhhhhhhhhhhhhhh...eeeeeeehhhhhhhhhhhhhhh............hhhhhhhhhhh..ee........eeeeeeeeee......hhhhhhhhhh..eeee.hhhhhhhh..........ee.hhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ATPASE_ALP------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2r9v A  17 KSFEEKIDLEDTGKVIQVGDGIARAYGLNKVmVSELVEFVETGVKGVAFNLEEDNVGIIILGEYKDIKEGHTVRRLKRIIEVPVGEELLGRVVNPLGEPLDGKGPINAKNFRPIEIKAPGVIYRKPVDTPLQTGIKAIDSmIPIGRGQRELIIGDRQTGKTAIAIDTIINQKGQGVYCIYVAIGQKKSAIARIIDKLRQYGAmEYTTVVVASASDPASLQYIAPYAGCAmGEYFAYSGRDALVVYDDLSKHAVAYRQLSLLmRRPPGREAYPGDIFYLHSRLLERAVRLNDKLGGGSLTALPIVETQANDISAYIPTNVISITDGQIYLEPGLFYAGQRPAINVGLSVSRVGGSAQIKAmKQVAGmLRIDLAQYRELETFAQFATELDPATRAQIIRGQRLmELLKQEQYSPmPVEEQVVVLFAGVRGYLDDLPVEEVRRFEKEFLRFmHEKHQDILDDIKTKKELTSETEEKLKKAIEEFKTTFRV 503
                                    26        36        46 |      56        66        76        86        96       106       116       126       136       146       156|      166       176       186       196       206       216  |    226       236       246       256       266       276 |     286       296       306       316       326       336       346       356       366       376     | 386       396       406       416 |     426  |    436       446       456       466       476       486       496
                                                          48-MSE                                                                                                      157-MSE                                                       219-MSE                    246-MSE                         278-MSE                                                                                           376-MSE |                                 418-MSE    429-MSE                             465-MSE
                                                                                                                                                                                                                                                                                                                                                                                                       382-MSE

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (3, 3)

Asymmetric/Biological Unit

(-) CATH Domains  (3, 3)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (3, 3)

Asymmetric/Biological Unit

(-) Gene Ontology  (18, 18)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (ATPA_THEMA | Q9X1U7)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016820    hydrolase activity, acting on acid anhydrides, catalyzing transmembrane movement of substances    Catalysis of the hydrolysis of an acid anhydride to directly drive the transport of a substance across a membrane.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0046933    proton-transporting ATP synthase activity, rotational mechanism    Catalysis of the transfer of protons from one side of a membrane to the other according to the reaction: ADP + H2O + phosphate + H+(in) = ATP + H+(out), by a rotational mechanism.
    GO:0046961    proton-transporting ATPase activity, rotational mechanism    Catalysis of the transfer of protons from one side of a membrane to the other according to the reaction: ATP + H2O + H+(in) = ADP + phosphate + H+(out), by a rotational mechanism.
biological process
    GO:0006754    ATP biosynthetic process    The chemical reactions and pathways resulting in the formation of ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0015991    ATP hydrolysis coupled proton transport    The transport of protons against an electrochemical gradient, using energy from ATP hydrolysis.
    GO:0046034    ATP metabolic process    The chemical reactions and pathways involving ATP, adenosine triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0015986    ATP synthesis coupled proton transport    The transport of protons across a membrane to generate an electrochemical gradient (proton-motive force) that powers ATP synthesis.
    GO:0006811    ion transport    The directed movement of charged atoms or small charged molecules into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0042777    plasma membrane ATP synthesis coupled proton transport    The transport of protons across the plasma membrane to generate an electrochemical gradient (proton-motive force) that powers ATP synthesis.
    GO:0015992    proton transport    The directed movement of protons (hydrogen ions) into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
    GO:0045261    proton-transporting ATP synthase complex, catalytic core F(1)    The sector of a hydrogen-transporting ATP synthase complex in which the catalytic activity resides; it comprises the catalytic core and central stalk, and is peripherally associated with a membrane, such as the plasma membrane or the mitochondrial inner membrane, when the entire ATP synthase is assembled.
    GO:0033178    proton-transporting two-sector ATPase complex, catalytic domain    A protein complex that forms part of a proton-transporting two-sector ATPase complex and catalyzes ATP hydrolysis or synthesis. The catalytic domain (F1, V1, or A1) comprises a hexameric catalytic core and a central stalk, and is peripherally associated with the membrane when the two-sector ATPase is assembled.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ATP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    CL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    PG4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 2r9v)

  Cis Peptide Bonds
    Arg A:355 - Pro A:356   [ RasMol ]
    Asp A:262 - Asp A:263   [ RasMol ]

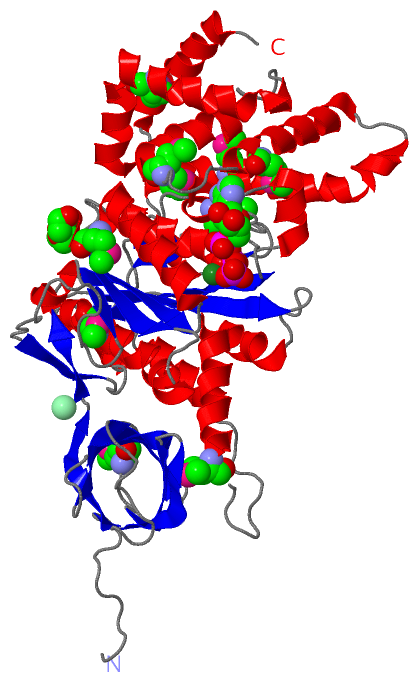

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2r9v
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  ATPA_THEMA | Q9X1U7
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.6.3.14
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  ATPA_THEMA | Q9X1U7
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 2R9V)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2R9V)
