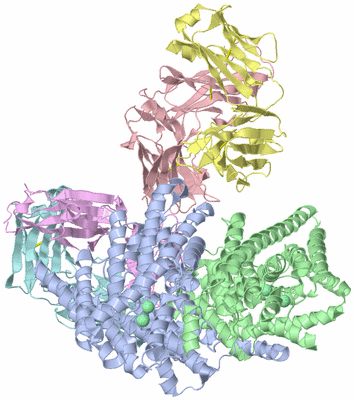

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF Q207C MUTANT OF CLC-EC1 IN COMPLEX WITH FAB

Authors :  W. Nguitragool, C. Miller
Date :  12 Sep 07  (Deposition) - 20 Nov 07  (Release) - 02 Oct 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.10
Chains :  Asym./Biol. Unit :  A,B,C,D,E,F
Keywords :  Clc, Antiporter, Transporter, Exchanger, Disulfide, Crosslink, Membrane Protein, Chloride, Inner Membrane, Ion Transport, Stress Response, Transmembrane (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Miller, W. Nguitragool
Crystal Structure Of Q207C Mutant Of Clc-Ec1 In Complex Wit Fab
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - H(+)/CL(-) EXCHANGE TRANSPORTER CLCA
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PASK90
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Gene: CLCA, ERIC
    Mutation: YES
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Synonym: CLC-EC1

Molecule 2 - FAB FRAGMENT
    Chains: C, E
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090

Molecule 3 - FAB FRAGMENT
    Chains: D, F
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090

 Structural Features

(-) Chains, Units

  123456
Asymmetric/Biological Unit : ABCDEF

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 4)

Asymmetric/Biological Unit (1, 4)
No.NameCountTypeFull Name
1CL4Ligand/IonCHLORIDE ION

(-) Sites  (0, 0)

(no "Site" information available for 2R9H)

(-) SS Bonds  (8, 8)

Asymmetric/Biological Unit
No.Residues
1C:22 -C:96
2C:148 -C:203
3D:23 -D:87
4D:133 -D:193
5E:22 -E:96
6E:148 -E:203
7F:23 -F:87
8F:133 -F:193

(-) Cis Peptide Bonds  (10, 10)

Asymmetric/Biological Unit
No.Residues
1Phe C:154 -Pro C:155
2Glu C:156 -Pro C:157
3Trp C:196 -Pro C:197
4His D:93 -Pro D:94
5Tyr D:139 -Pro D:140
6Phe E:154 -Pro E:155
7Glu E:156 -Pro E:157
8Trp E:196 -Pro E:197
9His F:93 -Pro F:94
10Tyr F:139 -Pro F:140

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2R9H)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2R9H)

(-) Exons   (0, 0)

(no "Exon" information available for 2R9H)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:444
 aligned with CLCA_ECOLI | P37019 from UniProtKB/Swiss-Prot  Length:473

    Alignment length:444
                                    26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406       416       426       436       446       456
           CLCA_ECOLI    17 RRRQLIRQLLERDKTPLAILFMAAVVGTLVGLAAVAFDKGVAWLQNQRMGALVHTADNYPLLLTVAFLCSAVLAMFGYFLVRKYAPEAGGSGIPEIEGALEDQRPVRWWRVLPVKFFGGLGTLGGGMVLGREGPTVQIGGNIGRMVLDIFRLKGDEARHTLLATGAAAGLAAAFNAPLAGILFIIEEMRPQFRYTLISIKAVFIGVIMSTIMYRIFNHEVALIDVGKLSDAPLNTLWLYLILGIIFGIFGPIFNKWVLGMQDLLHRVHGGNITKWVLMGGAIGGLCGLLGFVAPATSGGGFNLIPIATAGNFSMGMLVFIFVARVITTLLCFSSGAPGGIFAPMLALGTVLGTAFGMVAVELFPQYHLEAGTFAIAGMGALLAASIRAPLTGIILVLEMTDNYQLILPMIITGLGATLLAQFTGGKPLYSAILARTLAKQEAEQ 460
               SCOP domains d2r9ha_ A: Clc chloride channel                                                                                                                                                                                                                                                                                                                                                                                                                              SCOP domains
               CATH domains 2r9hA00 A:17-460 Clc chloride channel                                                                                                                                                                                                                                                                                                                                                                                                                        CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhh.....hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhh..............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhh...hhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2r9h A  17 RRRQLIRQLLERDKTPLAILFMAAVVGTLVGLAAVAFDKGVAWLQNQRMGALVHTADNYPLLLTVAFLCSAVLAMFGYFLVRKYAPEAGGSGIPEIEGALEDQRPVRWWRVLPVKFFGGLGTLGGGMVLGREGPTVQIGGNIGRMVLDIFRLKGDEARHTLLATGAAAGLAAAFNAPLAGILFIIEEMRPCFRYTLISIKAVFIGVIMSTIMYRIFNHEVALIDVGKLSDAPLNTLWLYLILGIIFGIFGPIFNKWVLGMQDLLHRVHGGNITKWVLMGGAIGGLCGLLGFVAPATSGGGFNLIPIATAGNFSMGMLVFIFVARVITTLLCFSSGAPGGIFAPMLALGTVLGTAFGMVAVELFPQYHLEAGTFAIAGMGALLAASIRAPLTGIILVLEMTDNYQLILPMIITGLGATLLAQFTGGKPLYSAILARTLAKQEAEQ 460
                                    26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406       416       426       436       446       456


Chain B from PDB  Type:PROTEIN  Length:441
 aligned with CLCA_ECOLI | P37019 from UniProtKB/Swiss-Prot  Length:473

    Alignment length:441
                                    27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457
           CLCA_ECOLI    18 RRQLIRQLLERDKTPLAILFMAAVVGTLVGLAAVAFDKGVAWLQNQRMGALVHTADNYPLLLTVAFLCSAVLAMFGYFLVRKYAPEAGGSGIPEIEGALEDQRPVRWWRVLPVKFFGGLGTLGGGMVLGREGPTVQIGGNIGRMVLDIFRLKGDEARHTLLATGAAAGLAAAFNAPLAGILFIIEEMRPQFRYTLISIKAVFIGVIMSTIMYRIFNHEVALIDVGKLSDAPLNTLWLYLILGIIFGIFGPIFNKWVLGMQDLLHRVHGGNITKWVLMGGAIGGLCGLLGFVAPATSGGGFNLIPIATAGNFSMGMLVFIFVARVITTLLCFSSGAPGGIFAPMLALGTVLGTAFGMVAVELFPQYHLEAGTFAIAGMGALLAASIRAPLTGIILVLEMTDNYQLILPMIITGLGATLLAQFTGGKPLYSAILARTLAKQEA 458
               SCOP domains d2r9hb_ B: Clc chloride channel                                                                                                                                                                                                                                                                                                                                                                                                                           SCOP domains
               CATH domains 2r9hB00 B:18-458 Clc chloride channel                                                                                                                                                                                                                                                                                                                                                                                                                     CATH domains
           Pfam domains (1) ----------------------------------------------------------------------Voltage_CLC-2r9hB01 B:88-438                                                                                                                                                                                                                                                                                                                                   -------------------- Pfam domains (1)
           Pfam domains (2) ----------------------------------------------------------------------Voltage_CLC-2r9hB02 B:88-438                                                                                                                                                                                                                                                                                                                                   -------------------- Pfam domains (2)
         Sec.struct. author hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhh.....hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhh..............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhh...hhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2r9h B  18 RRQLIRQLLERDKTPLAILFMAAVVGTLVGLAAVAFDKGVAWLQNQRMGALVHTADNYPLLLTVAFLCSAVLAMFGYFLVRKYAPEAGGSGIPEIEGALEDQRPVRWWRVLPVKFFGGLGTLGGGMVLGREGPTVQIGGNIGRMVLDIFRLKGDEARHTLLATGAAAGLAAAFNAPLAGILFIIEEMRPCFRYTLISIKAVFIGVIMSTIMYRIFNHEVALIDVGKLSDAPLNTLWLYLILGIIFGIFGPIFNKWVLGMQDLLHRVHGGNITKWVLMGGAIGGLCGLLGFVAPATSGGGFNLIPIATAGNFSMGMLVFIFVARVITTLLCFSSGAPGGIFAPMLALGTVLGTAFGMVAVELFPQYHLEAGTFAIAGMGALLAASIRAPLTGIILVLEMTDNYQLILPMIITGLGATLLAQFTGGKPLYSAILARTLAKQEA 458
                                    27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457


Chain C from PDB  Type:PROTEIN  Length:221

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 2r9hC01 C:2-121 Immunoglobulins                                                                                         2r9hC02 C:122-220 Immunoglobulins                                                                  -- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee..eee....eeeeeeeee.......eeeeeee.....eeeeeee......eee...hhh.eeeeee....eeeeeee..hhhhheeeeeeeee......eeeee...eeeee........eeee...........eeeeeeeeeee.....eeee.hhh....eee...eee..eeeeeeeeeee.........eeeeeehhhheeeeee..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2r9h C   2 VRLLESGGGLVQPGGSLKLSCAASGFDYSRYWMSWVRQAPGKGLKWIGEINPVSSTINYTPSLKDKFIISRDNAKDTLYLQISKVRSEDTALYYCARLYYGYGYWYFDVWGAGTTVTVSSAKTTPPSVYPLAPGSAAAAASMVTLGCLVKGYFPEPVTVTWNSGSLAAGVHTFPAVLQAALYTLSSSVTVPSSSWPSETVTCNVAHPASSTKVDKKIVPRA 222
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221


Chain D from PDB  Type:PROTEIN  Length:211

               SCOP domains d2r9hd1 D:1-106 automated matches                                                                         d2r9hd2 D:107-211 automated matches                                                                       SCOP domains
               CATH domains 2r9hD01 D:1-107 Immunoglobulins                                                                            2r9hD02 D:108-210 Immunoglobulins                                                                      - CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...ee....eeee.....eeeeeee.......eeeee.....eeeeee...ee.......eeeeee..eeeeee...hhhhh.eeeeee......ee....eeee.......eeeee..hhhhhhh.eeeeeeeeeee.....eeeeee..eee...eeeee.........eeeeeeeeeehhhhhh..eeeeeee.......eeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2r9h D   1 DIVLTQSPAIMSAAPGDKVTMTCSASSSVSYIHWYQQKSGTSPKRWIYDTSKLTSGVPVRFSGSGSGTSYSLTINTMEAEDAATYYCQQWSSHPQTFGGGTKLEILRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRA 211
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210


Chain E from PDB  Type:PROTEIN  Length:221

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 2r9hE01 E:2-121 Immunoglobulins                                                                                         2r9hE02 E:122-220 Immunoglobulins                                                                  -- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee..eee.....eeeeeeee........eeeeee.....eeeeeee......eee.......eeeeee....eeeeee...hhhhheeeeeeeee......eeeee...eeeee........eeeee..........eeeeeeeeeee.....eeee.hhh....eee...eee..eeeeeeeeeee.hhh.....eeeeeehhhheeeeee..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2r9h E   2 VRLLESGGGLVQPGGSLKLSCAASGFDYSRYWMSWVRQAPGKGLKWIGEINPVSSTINYTPSLKDKFIISRDNAKDTLYLQISKVRSEDTALYYCARLYYGYGYWYFDVWGAGTTVTVSSAKTTPPSVYPLAPGSAAAAASMVTLGCLVKGYFPEPVTVTWNSGSLAAGVHTFPAVLQAALYTLSSSVTVPSSSWPSETVTCNVAHPASSTKVDKKIVPRA 222
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221


Chain F from PDB  Type:PROTEIN  Length:211

               SCOP domains d2r9hf1 F:1-106 automated matches                                                                         d2r9hf2 F:107-211 automated matches                                                                       SCOP domains
               CATH domains 2r9hF01 F:1-107 Immunoglobulins                                                                            2r9hF02 F:108-210 Immunoglobulins                                                                      - CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eee...eeee.....eeeeeeeeeee...eeeee......eeeee...ee.......eeeeeeeeeeeeee...hhhhh.eeeeee......ee...eeeee.......eeeee..hhhhhh..eeeeeeeeeee....eeeeeee..eee...eeeee.........eeeeeeeeeehhhhhh..eeeeeeee..eeeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2r9h F   1 DIVLTQSPAIMSAAPGDKVTMTCSASSSVSYIHWYQQKSGTSPKRWIYDTSKLTSGVPVRFSGSGSGTSYSLTINTMEAEDAATYYCQQWSSHPQTFGGGTKLEILRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRA 211
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (3, 6)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)
(-)
Class: Membrane and cell surface proteins and peptides (2046)

(-) CATH Domains  (2, 10)

Asymmetric/Biological Unit
(-)
Class: Mainly Alpha (13335)
(-)
Class: Mainly Beta (13760)
(-)
Architecture: Sandwich (5577)
(-)
Topology: Immunoglobulin-like (3897)
(-)
Homologous Superfamily: Immunoglobulins (2282)
(-)
Escherichia coli. Organism_taxid: 562. (17)
2a2r9hD02D:108-210
2b2r9hC01C:2-121
2c2r9hE01E:2-121
2d2r9hD01D:1-107
2e2r9hF01F:1-107
2f2r9hC02C:122-220
2g2r9hE02E:122-220
2h2r9hF02F:108-210

(-) Pfam Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: Voltage_CLC] (8)

(-) Gene Ontology  (20, 20)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (CLCA_ECOLI | P37019)
molecular function
    GO:0043168    anion binding    Interacting selectively and non-covalently with anions, charged atoms or groups of atoms with a net negative charge.
    GO:0015297    antiporter activity    Enables the active transport of a solute across a membrane by a mechanism whereby two or more species are transported in opposite directions in a tightly coupled process not directly linked to a form of energy other than chemiosmotic energy. The reaction is: solute A(out) + solute B(in) = solute A(in) + solute B(out).
    GO:0031404    chloride ion binding    Interacting selectively and non-covalently with chloride ions (Cl-).
    GO:0015108    chloride transmembrane transporter activity    Enables the transfer of chloride ions from one side of a membrane to the other.
    GO:0005216    ion channel activity    Enables the facilitated diffusion of an ion (by an energy-independent process) by passage through a transmembrane aqueous pore or channel without evidence for a carrier-mediated mechanism. May be either selective (it enables passage of a specific ion only) or non-selective (it enables passage of two or more ions of same charge but different size).
    GO:0015299    solute:proton antiporter activity    Catalysis of the transfer of a solute or solutes from one side of a membrane to the other according to the reaction: solute(out) + H+(in) = solute(in) + H+(out).
    GO:0005247    voltage-gated chloride channel activity    Enables the transmembrane transfer of a chloride ion by a voltage-gated channel. A voltage-gated channel is a channel whose open state is dependent on the voltage across the membrane in which it is embedded.
biological process
    GO:1902476    chloride transmembrane transport    The directed movement of chloride across a membrane.
    GO:0006821    chloride transport    The directed movement of chloride into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:1902600    hydrogen ion transmembrane transport    The directed movement of hydrogen ion (proton) across a membrane.
    GO:0034220    ion transmembrane transport    A process in which an ion is transported from one side of a membrane to the other by means of some agent such as a transporter or pore.
    GO:0006811    ion transport    The directed movement of charged atoms or small charged molecules into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0015706    nitrate transport    The directed movement of nitrate into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:1903959    regulation of anion transmembrane transport    Any process that modulates the frequency, rate or extent of anion transmembrane transport.
    GO:0055085    transmembrane transport    The process in which a solute is transported across a lipid bilayer, from one side of a membrane to the other
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0005887    integral component of plasma membrane    The component of the plasma membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 2r9h)

  Cis Peptide Bonds
    Glu C:156 - Pro C:157   [ RasMol ]
    Glu E:156 - Pro E:157   [ RasMol ]
    His D:93 - Pro D:94   [ RasMol ]
    His F:93 - Pro F:94   [ RasMol ]
    Phe C:154 - Pro C:155   [ RasMol ]
    Phe E:154 - Pro E:155   [ RasMol ]
    Trp C:196 - Pro C:197   [ RasMol ]
    Trp E:196 - Pro E:197   [ RasMol ]
    Tyr D:139 - Pro D:140   [ RasMol ]
    Tyr F:139 - Pro F:140   [ RasMol ]

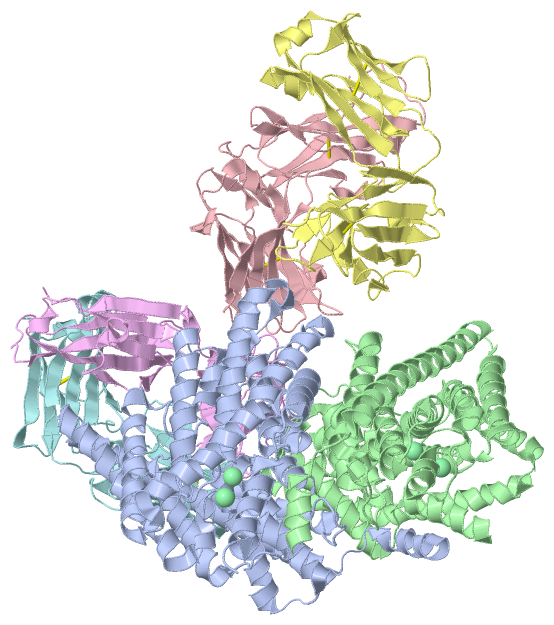

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2r9h
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CLCA_ECOLI | P37019
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CLCA_ECOLI | P37019
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CLCA_ECOLI | P37019: 1kpk 1ots 1ott 1otu 2exw 2exy 2ez0 2fec 2fed 2fee 2h2p 2h2s 2hlf 2ht2 2ht3 2ht4 2htk 2htl 3det 3ejy 3ejz 3nmo 4ene 4fg6 4ftp 4kjp 4kjq 4kjw 4kk5 4kk6 4kk8 4kk9 4kka 4kkb 4kkc 4kkl 4lou 4mqx 5hd8

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2R9H)
