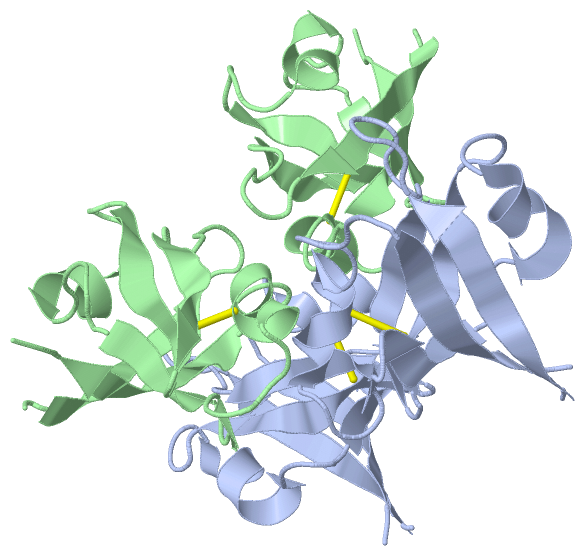

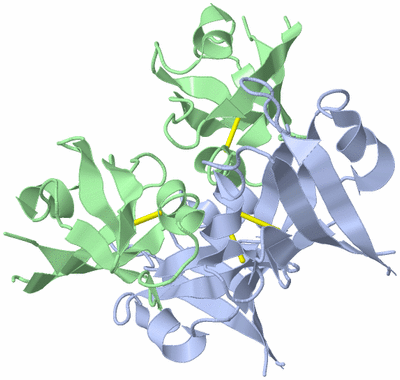

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE 5TH PDZ DOMAIN OF INAD

Authors :  R. Ranganathan, M. Socolich
Date :  11 Jul 07  (Deposition) - 06 Nov 07  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.05
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A (2x),B (2x)
Keywords :  Pdz Domain, Scaffolding Protein, Disulfide-Bond, Membrane, Sensory Transduction, Vision, Signaling Protein, Peptide Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  P. Mishra, M. Socolich, M. A. Wall, J. Graves, Z. Wang, R. Ranganathan
Dynamic Scaffolding In A G Protein-Coupled Signaling System.
Cell(Cambridge, Mass. ) V. 131 80 2007
PubMed-ID: 17923089  |  Reference-DOI: 10.1016/J.CELL.2007.07.037
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - INACTIVATION-NO-AFTER-POTENTIAL D PROTEIN
    ChainsA, B
    EngineeredYES
    Expression SystemESCHERICHIA COLI BL21(DE3)
    Expression System PlasmidPGEX-5X-3
    Expression System StrainBL21(DE3)
    Expression System Taxid469008
    Fragment5TH PDZ DOMAIN
    GeneINAD
    Organism CommonFRUIT FLY
    Organism ScientificDROSOPHILA MELANOGASTER
    Organism Taxid7227

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit AB
Biological Unit 1 (2x)A (2x)B (2x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2QKT)

(-) Sites  (0, 0)

(no "Site" information available for 2QKT)

(-) SS Bonds  (2, 2)

Asymmetric Unit
No.Residues
1A:606 -A:645
2B:606 -B:645

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2QKT)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2QKT)

(-) PROSITE Motifs  (1, 2)

Asymmetric Unit (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PDZPS50106 PDZ domain profile.INAD_DROME17-106
249-332
364-448
584-664

489-552
  2-
-
-
A:584-664
B:584-664
-
Biological Unit 1 (1, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PDZPS50106 PDZ domain profile.INAD_DROME17-106
249-332
364-448
584-664

489-552
  4-
-
-
A:584-664
B:584-664
-

(-) Exons   (0, 0)

(no "Exon" information available for 2QKT)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:85
 aligned with INAD_DROME | Q24008 from UniProtKB/Swiss-Prot  Length:674

    Alignment length:85
                                   589       599       609       619       629       639       649       659
           INAD_DROME   580 LEKFNVDLMKKAGKELGLSLSPNEIGCTIADLIQGQYPEIDSKLQRGDIITKFNGDALEGLPFQVCYALFKGANGKVSMEVTRPK 664
               SCOP domains ------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeee........eeeeee..eeeeeee....hhhhhhhh....eeeee..ee....hhhhhhh.......eeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----PDZ  PDB: A:584-664 UniProt: 584-664                                              PROSITE
                 Transcript ------------------------------------------------------------------------------------- Transcript
                 2qkt A 580 LEKFNVDLMKKAGKELGLSLSPNEIGCTIADLIQGQYPEIDSKLQRGDIITKFNGDALEGLPFQVCYALFKGANGKVSMEVTRPK 664
                                   589       599       609       619       629       639       649       659

Chain B from PDB  Type:PROTEIN  Length:85
 aligned with INAD_DROME | Q24008 from UniProtKB/Swiss-Prot  Length:674

    Alignment length:85
                                   589       599       609       619       629       639       649       659
           INAD_DROME   580 LEKFNVDLMKKAGKELGLSLSPNEIGCTIADLIQGQYPEIDSKLQRGDIITKFNGDALEGLPFQVCYALFKGANGKVSMEVTRPK 664
               SCOP domains ------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ----PDZ-2qktB01 B:584-661                                                         --- Pfam domains (1)
           Pfam domains (2) ----PDZ-2qktB02 B:584-661                                                         --- Pfam domains (2)
         Sec.struct. author ..eeeeeeee.......eeeeee..eeeeeee....hhhhhh......eeeee..ee.....hhhhhhh.....eeeeeeee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----PDZ  PDB: B:584-664 UniProt: 584-664                                              PROSITE
                 Transcript ------------------------------------------------------------------------------------- Transcript
                 2qkt B 580 LEKFNVDLMKKAGKELGLSLSPNEIGCTIADLIQGQYPEIDSKLQRGDIITKFNGDALEGLPFQVCYALFKGANGKVSMEVTRPK 664
                                   589       599       609       619       629       639       649       659

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2QKT)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2QKT)

(-) Pfam Domains  (1, 2)

Asymmetric Unit
(-)
Clan: PDZ-like (184)

(-) Gene Ontology  (19, 19)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (INAD_DROME | Q24008)
molecular function
    GO:0005516    calmodulin binding    Interacting selectively and non-covalently with calmodulin, a calcium-binding protein with many roles, both in the calcium-bound and calcium-free states.
    GO:0031473    myosin III binding    Interacting selectively and non-covalently with a class III myosin; myosin III is monomeric and has an N terminal kinase domain.
    GO:0017022    myosin binding    Interacting selectively and non-covalently with any part of a myosin complex; myosins are any of a superfamily of molecular motor proteins that bind to actin and use the energy of ATP hydrolysis to generate force and movement along actin filaments.
    GO:0009881    photoreceptor activity    The function of absorbing and responding to incidental electromagnetic radiation, particularly visible light. The response may involve a change in conformation.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0030159    receptor signaling complex scaffold activity    Functions to provide a physical support for the assembly of a multiprotein receptor signaling complex.
    GO:0005198    structural molecule activity    The action of a molecule that contributes to the structural integrity of a complex or its assembly within or outside a cell.
biological process
    GO:0071482    cellular response to light stimulus    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a light stimulus, electromagnetic radiation of wavelengths classified as infrared, visible or ultraviolet light.
    GO:0016059    deactivation of rhodopsin mediated signaling    The process of restoring the photoreceptor cell to its unexcited state after termination of the stimulus (photon).
    GO:0050962    detection of light stimulus involved in sensory perception    The series of events in which a light stimulus is received by a cell and converted into a molecular signal as part of the sensory perception of light.
    GO:0007602    phototransduction    The sequence of reactions within a cell required to convert absorbed photons into a molecular signal.
    GO:0008104    protein localization    Any process in which a protein is transported to, or maintained in, a specific location.
    GO:0050896    response to stimulus    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a stimulus. The process begins with detection of the stimulus and ends with a change in state or activity or the cell or organism.
    GO:0007605    sensory perception of sound    The series of events required for an organism to receive an auditory stimulus, convert it to a molecular signal, and recognize and characterize the signal. Sonic stimuli are detected in the form of vibrations and are processed to form a sound.
    GO:0007601    visual perception    The series of events required for an organism to receive a visual stimulus, convert it to a molecular signal, and recognize and characterize the signal. Visual stimuli are detected in the form of photons and are processed to form an image.
cellular component
    GO:0016027    inaD signaling complex    A complex of proteins that are involved in phototransduction and attached to the transient receptor potential (TRP) channel. The protein connections are mediated through inaD.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
    GO:0016028    rhabdomere    The specialized microvilli-containing organelle on the apical surfaces of a photoreceptor cell containing the visual pigment rhodopsin and most of the proteins involved in phototransduction.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2qkt)

  Sites
(no "Sites" information available for 2qkt)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2qkt)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2qkt
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  INAD_DROME | Q24008
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  INAD_DROME | Q24008
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        INAD_DROME | Q240081ihj 2la8 2qku 2qkv 3r0h 5f67

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2QKT)
