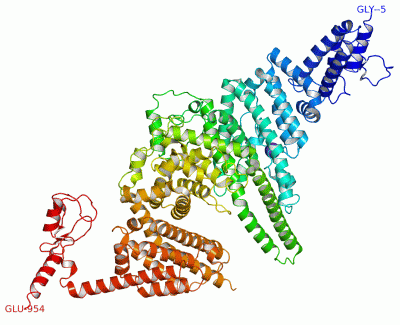

Asym./Biol. Unit - manually (Jmol Viewer)

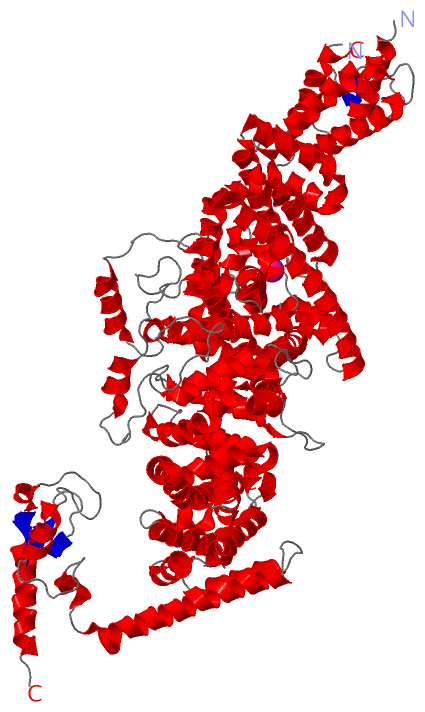

Asym./Biol. Unit (Jmol Viewer)

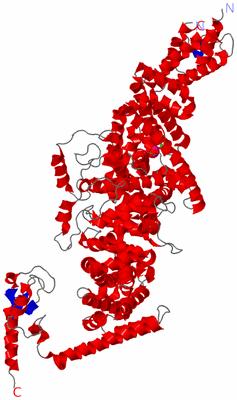

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   STRUCTURE OF THE YEAST U-BOX-CONTAINING UBIQUITIN LIGASE UFD2P

Authors :   D. Tu, A. T. Brunger

Date :   06 Jul 07 (Deposition) - 18 Sep 07 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.56

Chains :   Asym./Biol. Unit : A

Keywords :   Helical Hairpin, Ligase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   D. Tu, W. Li, Y. Ye, A. T. Brunger
Inaugural Article: Structure And Function Of The Yeast U-Box-Containing Ubiquitin Ligase Ufd2P.
Proc. Natl. Acad. Sci. Usa V. 104 15599 2007
PubMed-ID: 17890322 | Reference-DOI: 10.1073/PNAS.0701369104
(for further references see the PDB file header)

Molecule 1 - UBIQUITIN CONJUGATION FACTOR E4
	Chains	:	A
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET28A
	Expression System Strain	:	ROSETTA(DE3)
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Gene	:	UFD2
	Mutation	:	YES
	Organism Common	:	BAKER'S YEAST
	Organism Scientific	:	SACCHAROMYCES CEREVISIAE
	Organism Taxid	:	4932
	Synonym	:	UBIQUITIN FUSION DEGRADATION PROTEIN 2, UB FUSION PROTEIN 2

		1
Asymmetric/Biological Unit	:	A

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (1, 1)

No.	Name	Count	Type	Full Name
1	K	1	Ligand/Ion	POTASSIUM ION

Asymmetric Unit (1, 1)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	PHE A:166 , SER A:222 , HOH A:1007 , HOH A:1021	BINDING SITE FOR RESIDUE K A 962

(no "SS Bond" information available for 2QIZ)

Asymmetric/Biological Unit

No.	Residues
1	Phe A:490	-	Pro A:491
2	Leu A:497	-	Pro A:498
3	Ser A:850	-	Pro A:851

(no "SAP(SNP)/Variant" information available for 2QIZ)

Asymmetric/Biological Unit (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	U_BOX	PS51698	U-box domain profile.	UFD2_YEAST	880-954	1	A:880-954

Asymmetric/Biological Unit (1, 1)

	ENSEMBL					UniProtKB			PDB
No.	Transcript ID	Exon	Exon ID	Genome Location	Length	ID	Location	Length	Count	Location	Length
1.1	YDL190C	1	YDL190C.1	IV:121593-118708	2886	UFD2_YEAST	1-961	961	1	A:1-954 (gaps)	954

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:943
 aligned with UFD2_YEAST | P54860 from UniProtKB/Swiss-Prot  Length:961

    Alignment length:960
                                  1
                                  |  4        14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414       424       434       444       454       464       474       484       494       504       514       524       534       544       554       564       574       584       594       604       614       624       634       644       654       664       674       684       694       704       714       724       734       744       754       764       774       784       794       804       814       824       834       844       854       864       874       884       894       904       914       924       934       944       954
           UFD2_YEAST     - ------MTAIEDILQITTDPSDTRGYSLLKSEEVPQGSTLGVDFIDTLLLYQLTENEKLDKPFEYLNDCFRRNQQQKRITKNKPNAESLHSTFQEIDRLVIGYGVVALQIENFCMNGAFINYITGIVSNVNSYTDFLSQIIQRAILEGTALDLLNAVFPTLLEYCNKHVSHFDLNESVIYNNVLTIFELFVTFKPIAEIFTKIDGFFADYSCKPQDFERKTILGPILSLSPIEAAVAIRNYGDNLLRSKQQTAMIHESLQAEHKVVIDRLFFIVDKLVRGSLNSRTDMISYFAHIANKNHLRRADHPPFKELSSNGFMSNITLLLVRFSQPFLDISYKKIDKIDANYFNNPSLFIDLSGETRLNSDFKEADAFYDKNRKTADSKPNFISDCFFLTLTYLHYGLGGTLSFEEKMGSEIKALKEEIEKVKKIAANHDVFARFITAQLSKMEKALKTTESLRFALQGFFAHRSLQLEVFDFICGASTFLIRVVDPEHEFPFKQIKLPLIPDQIGVENVDNADFLRAHAPVPFKYYPEFVVEGPVNYSLYISKYQTSPIFRNPRLGSFVEFTTMVLRCPELVSNPHLKGKLVQLLSVGAMPLTDNSPGFMMDIFEHDELVNKNLLYALLDFYVIVEKTGSSSQFYDKFNSRYSISIILEELYYKIPSYKNQLIWQSQNNADFFVRFVARMLNDLTFLLDEGLSNLAEVHNIQNELDNRARGAPPTREEEDKELQTRLASASRQAKSSCGLADKSMKLFEIYSKDIPAAFVTPEIVYRLASMLNYNLESLVGPKCGELKVKDPQSYSFNPKDLLKALTTVYINLSEQSEFISAVAKDERSFNRNLFVRAVDILGRKTGLASPEFIEKLLNFANKAEEQRKADEEEDLEYGDVPDEFLDPLMYTIMKDPVILPASKMNIDRSTIKAHLLSDSTDPFNRMPLKLEDVTPNEELRQKILCFKKQKKEE 954
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ---------------------------------       --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Ufd2P_core-2qizA02 A:217-866                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              --------------U-box-2qizA01 A:881-953                                                  - Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhee.........ee.....-------hhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhh.hhhhhh....hhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhh.hhhhhhhhhhhhhhhhhhhhh....hhhhh......................hhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........................hhhhhhhhh...hhhhhhhhhhhhhhhhhhhhh...........hhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..----------...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhh...hhhhhhhhhhhhhhhhhhhhhhh....hhhhhh.hhhhhhhhhhhhhhhhh.hhhhhhhhhhh....hhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhh..........eee......eeehhhhhhhhh............hhhhheehhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------U_BOX  PDB: A:880-954 UniProt: 880-954                                      PROSITE
               Transcript 1 ------Exon 1.1  PDB: A:1-954 (gaps) UniProt: 1-961 [INCOMPLETE]                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  Transcript 1
                 2qiz A  -5 GSEFRSMTAIEDILQITTDPSDTRGYSLLKSEE-------GVDFIDTLLLYQLTENEKLDKPFEYLNDCFRRNQQQKRITKNKPNAESLHSTFQEIDRLVIGYGVVALQIENFCMNGAFINYITGIVSNVNSYTDFLSQIIQRAILEGTALDLLNAVFPTLLEYCNKHVSHFDLNESVIYNNVLTIFELFVTFKPIAEIFTKIDGFFADYSCKPQDFERKTILGPILSLSPIEAAVAIRNYGDNLLRSKQQTAMIHESLQAEHKVVIDRLFFIVDKLVRGSLNSRTDMISYFAHIANKNHLRRADHPPFKELSSNGFMSNITLLLVRFSQPFLDISYKKIDKIDANYFNNPSLFIDLSGETRLNSDFKEADAFYDKNRKTADSKPNFISDCFFLTLTYLHYGLGGTLSFEEKMGSEIKALKEEIEKVKKIAANHDVFARFITAQLSKMEKALKTTESLRFALQGFFAHRSLQLEVFDFICGASTFLIRVVDPEHEFPFKQIKLPLIPDQIGVENVDNADFLRAHAPVPFKYYPEFVVEGPVNYSLYISKYQTSPIFRNPRLGSFVEFTTMVLRCPELVSNPHLKGKLVQLLSVGAMPLTDNSPGFMMDIFEHDELVNKNLLYALLDFYVIVEKTGSSSQFYDKFNSRYSISIILEELYYKIPSYKNQLIWQSQNNADFFVRFVARMLNDLTFLLDEGLSNLAEVHNIQNELDN----------EEDKELQTRLASASRQAKSSCGLADKSMKLFEIYSKDIPAAFVTPEIVYRLASMLNYNLESLVGPKCGELKVKDPQSYSFNPKDLLKALTTVYINLSEQSEFISAVAKDERSFNRNLFVRAVDILGRKTGLASPEFIEKLLNFANKAEEQRKADEEEDLEYGDVPDEFLDPLMYTIMKDPVILPASKMNIDRSTIKAHLLSDSTDPFNRMPLKLEDVTPNEELRQKILCFKKQKKEE 954
                                     4        14        24  |      -|       44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414       424       434       444       454       464       474       484       494       504       514       524       534       544       554       564       574       584       594       604       614       624       634       644       654       664       674       684       694       704  |      -   |   724       734       744       754       764       774       784       794       804       814       824       834       844       854       864       874       884       894       904       914       924       934       944       954
                                                           27      35                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                             707        718

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

(no "SCOP Domain" information available for 2QIZ)

(no "CATH Domain" information available for 2QIZ)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A (UFD2_YEAST | P54860)

molecular function
	GO:0016874	ligase activity	Catalysis of the joining of two substances, or two groups within a single molecule, with the concomitant hydrolysis of the diphosphate bond in ATP or a similar triphosphate.
	GO:0004842	ubiquitin-protein transferase activity	Catalysis of the transfer of ubiquitin from one protein to another via the reaction X-Ub + Y --> Y-Ub + X, where both X-Ub and Y-Ub are covalent linkages.
	GO:0034450	ubiquitin-ubiquitin ligase activity	Isoenergetic transfer of ubiquitin from one protein to an existing ubiquitin chain via the reaction X-ubiquitin + Y-ubiquitin -> Y-ubiquitin-ubiquitin + X, where both the X-ubiquitin and Y-ubiquitin-ubiquitin linkages are thioester bonds between the C-terminal glycine of ubiquitin and a sulfhydryl side group of a cysteine residue.
biological process
	GO:0071361	cellular response to ethanol	Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an ethanol stimulus.
	GO:0016567	protein ubiquitination	The process in which one or more ubiquitin groups are added to a protein.
	GO:0030433	ubiquitin-dependent ERAD pathway	The series of steps necessary to target endoplasmic reticulum (ER)-resident proteins for degradation by the cytoplasmic proteasome. Begins with recognition of the ER-resident protein, includes retrotranslocation (dislocation) of the protein from the ER to the cytosol, protein ubiquitination necessary for correct substrate transfer, transport of the protein to the proteasome, and ends with degradation of the protein by the cytoplasmic proteasome.
	GO:0006511	ubiquitin-dependent protein catabolic process	The chemical reactions and pathways resulting in the breakdown of a protein or peptide by hydrolysis of its peptide bonds, initiated by the covalent attachment of a ubiquitin group, or multiple ubiquitin groups, to the protein.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005634	nucleus	A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
	GO:0000151	ubiquitin ligase complex	A protein complex that includes a ubiquitin-protein ligase and enables ubiquitin protein ligase activity. The complex also contains other proteins that may confer substrate specificity on the complex.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		K	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Leu A:497 - Pro A:498	[ RasMol ]
		Phe A:490 - Pro A:491	[ RasMol ]
		Ser A:850 - Pro A:851	[ RasMol ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)
