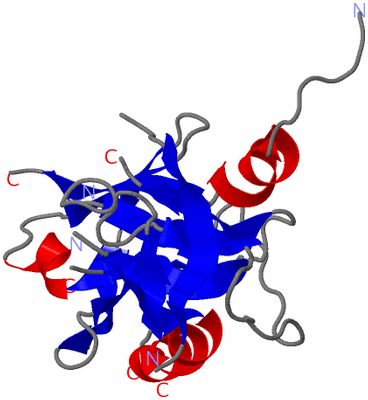

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

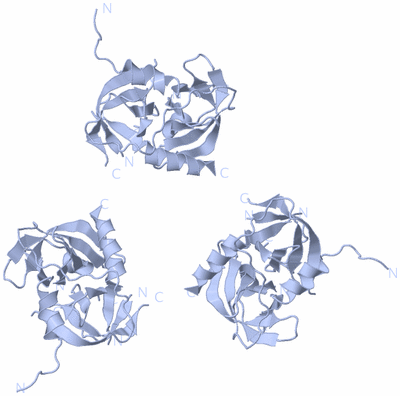

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE R178A MUTANT OF DELTA PDZ DEGS PROTEASE

Authors :  J. Sohn, R. A. Grant, R. T. Sauer
Date :  29 Jun 07  (Deposition) - 11 Dec 07  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.70
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (3x)
Keywords :  Degs, Protease, Periplasmic Stress Sensor, Htra, Allosteric Activation, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  J. Sohn, R. A. Grant, R. T. Sauer
Allosteric Activation Of Degs, A Stress Sensor Pdz Protease
Cell(Cambridge, Mass. ) V. 131 572 2007
PubMed-ID: 17981123  |  Reference-DOI: 10.1016/J.CELL.2007.08.044

(-) Compounds

Molecule 1 - PROTEASE DEGS
    ChainsA
    EC Number3.4.21.-
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPET28B
    Expression System StrainX90(DE3)
    Expression System Taxid562
    Expression System Vector TypePLASMID
    FragmentRESIDUES 27-256
    GeneDEGS, HHOB, HTRH
    MutationYES
    Organism ScientificESCHERICHIA COLI
    Organism Taxid83333
    StrainK12

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit A
Biological Unit 1 (3x)A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2QGR)

(-) Sites  (0, 0)

(no "Site" information available for 2QGR)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2QGR)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2QGR)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2QGR)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2QGR)

(-) Exons   (0, 0)

(no "Exon" information available for 2QGR)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:169
 aligned with DEGS_ECOLI | P0AEE3 from UniProtKB/Swiss-Prot  Length:355

    Alignment length:210
                                    50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250
           DEGS_ECOLI    41 DETPASYNLAVRRAAPAVVNVYNRGLNTNSHNQLEIRTLGSGVIMDQRGYIITNKHVINDADQIIVALQDGRVFEALLVGSDSLTDLAVLKINATGGLPTIPINARRVPHIGDVVLAIGNPYNLGQTITQGIISATGRIGLNPTGRQNFLQTDASINHGNSGGALVNSLGELMGINTLSFDKSNDGETPEGIGFAIPFQLATKIMDKLIR 250
               SCOP domains d2qgra_ A: Stress sensor               protease DegS, catalytic domain                                                                                                                                             SCOP domains
               CATH domains 2qgrA01 A:41-141 Trypsin-              like serine proteases                                         2qgrA02 A:142-250 T    rypsin-like s           erine proteases                                                CATH domains
               Pfam domains ---------Trypsin-2qgrA02               A:50-245                                                                                                                                                              --PDZ Pfam domains
         Sec.struct. author ......hhhhhhhhh..eeeeee..--------------.eeee.....eeeeehhhhh....eeee.....eee.eeeeee....eeeee......................eeeee..----...eeeeeeee..-----------.eee...........eeee....eeeee..------------..eeeeehhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2qgr A  41 DETPASYNLAVRRAAPAVVNVYNRG--------------GSGVIMDQRGYIITNKHVINDADQIIVALQDGRVFEALLVGSDSLTDLAVLKINATGGLPTIPINARRVPHIGDVVLAIGN----GQTITQGIISATG-----------FLQTDASINHGNSGGALVNSLGELMGINTL------------GIGFAIPFQLATKIMDKLIR 250
                                    50        60    |    -        80        90       100       110       120       130       140       150       160    |  170      |  -       190       200       210       | -         -|      240       250
                                                   65             80                                                                             160  165         177         189                          218          231

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (2, 2)

Asymmetric Unit
(-)
Clan: PDZ-like (184)

(-) Gene Ontology  (13, 13)

Asymmetric Unit(hide GO term definitions)
Chain A   (DEGS_ECOLI | P0AEE3)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0004252    serine-type endopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
    GO:0008236    serine-type peptidase activity    Catalysis of the hydrolysis of peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
biological process
    GO:0071218    cellular response to misfolded protein    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a misfolded protein stimulus.
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
cellular component
    GO:0071575    integral component of external side of plasma membrane    The component of the plasma membrane consisting of the gene products that penetrate only the external side of the membrane.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0031226    intrinsic component of plasma membrane    The component of the plasma membrane consisting of the gene products and protein complexes having either part of their peptide sequence embedded in the hydrophobic region of the membrane or some other covalently attached group such as a GPI anchor that is similarly embedded in the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0030288    outer membrane-bounded periplasmic space    The region between the inner (cytoplasmic or plasma) membrane and outer membrane of organisms with two membranes such as Gram negative bacteria. These periplasmic spaces are relatively thick and contain a thin peptidoglycan layer (PGL), also referred to as a thin cell wall.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2qgr)

  Sites
(no "Sites" information available for 2qgr)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2qgr)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2qgr
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  DEGS_ECOLI | P0AEE3
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.4.21.-
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  DEGS_ECOLI | P0AEE3
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        DEGS_ECOLI | P0AEE31sot 1soz 1te0 1vcw 2qf0 2qf3 2r3u 2r3y 2rce 3b8j 3gcn 3gco 3gds 3gdu 3gdv 3lgi 3lgt 3lgu 3lgv 3lgw 3lgy 3lh1 3lh3 4rqy 4rqz 4rr0 4rr1

(-) Related Entries Specified in the PDB File

2qf0 DEGS DELTA PDS CRYSTAL FORM 1
2qf3 DEGS DELTA PDS CRYSTAL FORM 2
