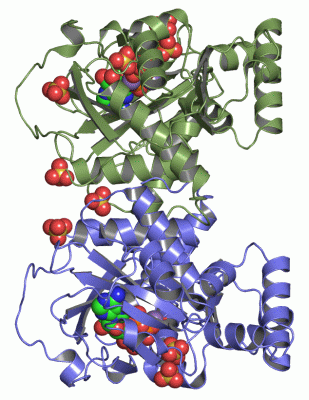

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

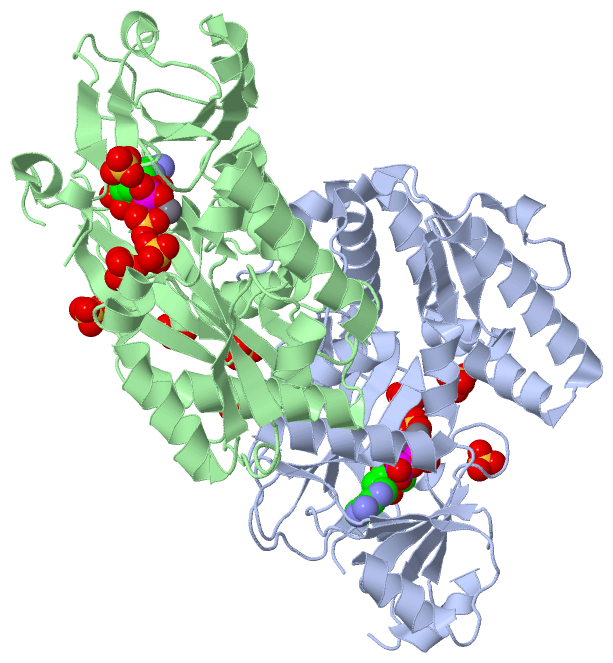

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

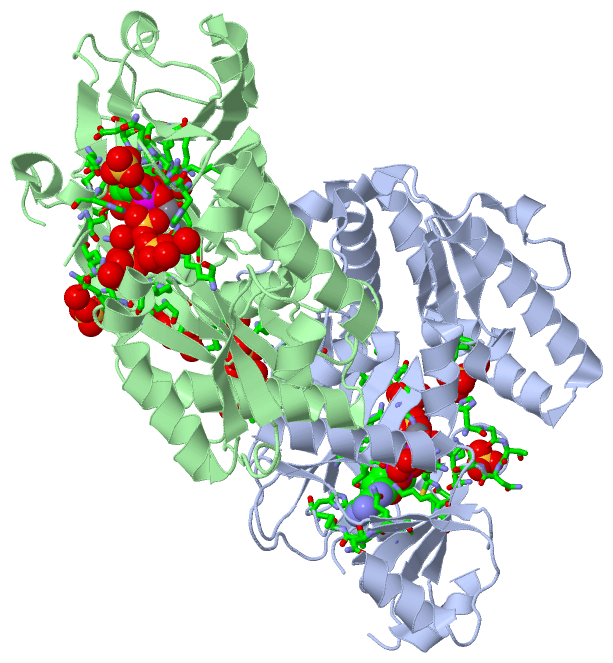

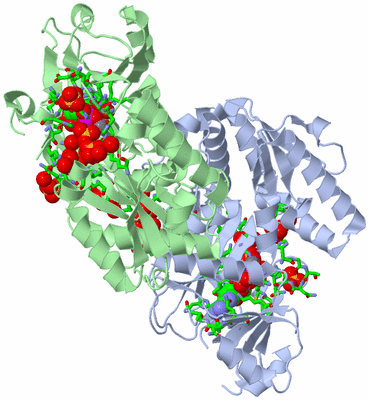

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

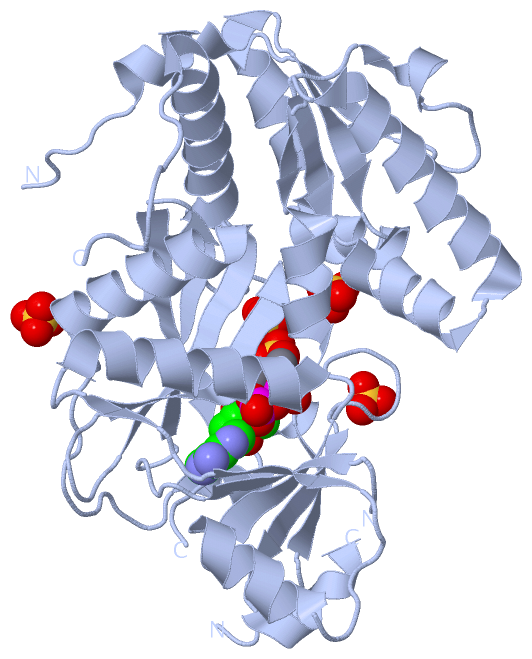

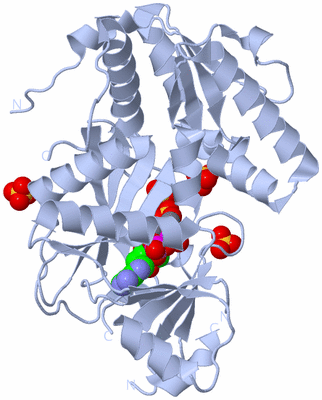

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

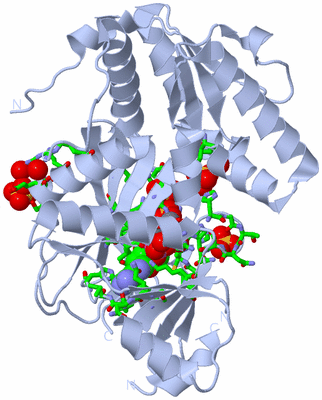

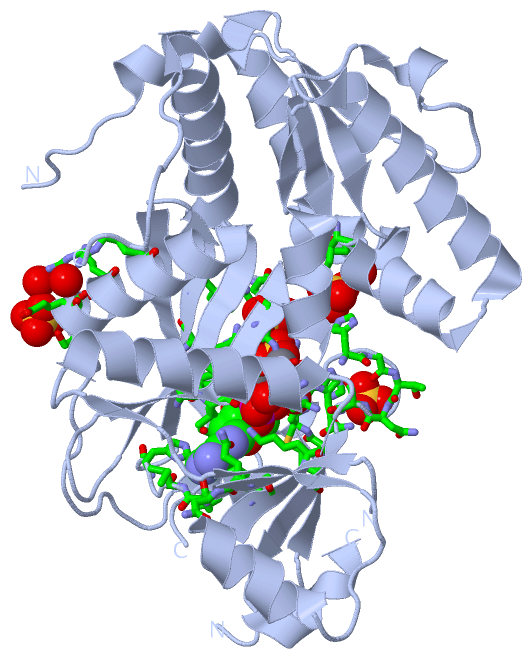

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

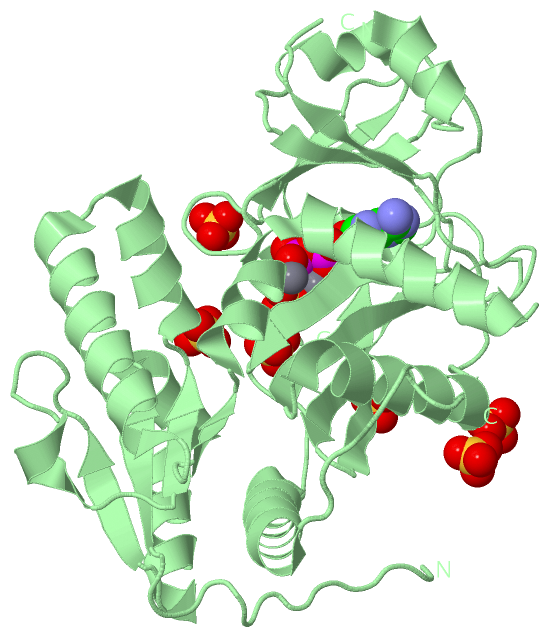

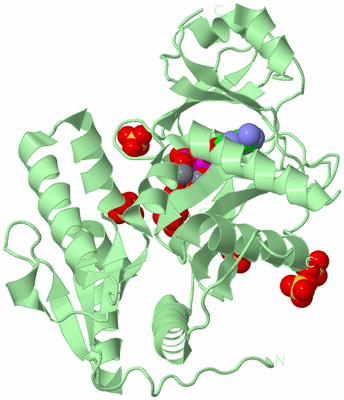

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF HUMAN INOSITOL 1,3,4-TRISPHOSPHATE 5/6-KINASE (ITPK1) IN COMPLEX WITH ADP AND MN2+

Authors :  P. P. Chamberlain, S. A. Lesley, G. Spraggon
Date :  15 Jun 07  (Deposition) - 03 Jul 07  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Inositol, Inositol Kinase, Kinase, Itpk1, Inositol 1, 3, 4-5/6-Kinase, Phosphate, Inositol Phosphate, Inositolphosphate, Polyphosphate, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  P. P. Chamberlain, X. Qian, A. R. Stiles, J. Cho, D. H. Jones, S. A. Lesley, E. A. Grabau, S. B. Shears, G. Spraggon
Integration Of Inositol Phosphate Signaling Pathways Via Human Itpk1.
J. Biol. Chem. V. 282 28117 2007
PubMed-ID: 17616525  |  Reference-DOI: 10.1074/JBC.M703121200

(-) Compounds

Molecule 1 - INOSITOL-TETRAKISPHOSPHATE 1-KINASE
    Chains: A, B
    EC Number: 2.7.1.134, 2.7.1.159
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: MH4
    Expression System Strain: HK100
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: ITPK1 CATALYTIC DOMAIN
    Gene: ITPK1
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: INOSITOL- TRIPHOSPHATE 5/6-KINASE, INOSITOL 1,3,4- TRISPHOSPHATE 5/6-KINASE, INS1,3,4, P3, 5/6-KINASE

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 18)

Asymmetric Unit (3, 18)
No.NameCountTypeFull Name
1ADP2Ligand/IonADENOSINE-5'-DIPHOSPHATE
2MN4Ligand/IonMANGANESE (II) ION
3SO412Ligand/IonSULFATE ION
Biological Unit 1 (2, 6)
No.NameCountTypeFull Name
1ADP1Ligand/IonADENOSINE-5'-DIPHOSPHATE
2MN-1Ligand/IonMANGANESE (II) ION
3SO45Ligand/IonSULFATE ION
Biological Unit 2 (2, 8)
No.NameCountTypeFull Name
1ADP1Ligand/IonADENOSINE-5'-DIPHOSPHATE
2MN-1Ligand/IonMANGANESE (II) ION
3SO47Ligand/IonSULFATE ION

(-) Sites  (18, 18)

Asymmetric Unit (18, 18)
No.NameEvidenceResiduesDescription
01AC1SOFTWARELYS B:199 , PHE B:201 , ARG B:212 , PRO B:300 , GLY B:301 , GLU B:303 , HOH B:591 , HOH B:702 , HOH B:782BINDING SITE FOR RESIDUE SO4 B 541
02AC2SOFTWARELYS A:199 , PHE A:201 , ARG A:212 , LYS A:237 , PRO A:300 , GLY A:301 , TYR A:302 , GLU A:303 , HOH A:803 , HOH A:814BINDING SITE FOR RESIDUE SO4 A 542
03AC3SOFTWAREGLY A:163 , THR A:164 , ASN A:165 , SER A:166 , HIS A:167 , ASN A:231 , HIS A:233BINDING SITE FOR RESIDUE SO4 A 543
04AC4SOFTWAREARG A:263 , ARG A:267 , HOH A:699 , ARG B:263 , ARG B:267 , HOH B:655BINDING SITE FOR RESIDUE SO4 B 544
05AC5SOFTWAREGLY B:163 , ASN B:165 , SER B:166 , HIS B:167 , GLU B:168 , ASN B:231BINDING SITE FOR RESIDUE SO4 B 545
06AC6SOFTWARELYS A:18 , LYS A:59 , HIS A:162 , HOH A:772BINDING SITE FOR RESIDUE SO4 A 546
07AC7SOFTWARESER B:258 , ASP B:259 , GLU B:260 , HOH B:712 , HOH B:725 , HOH B:757BINDING SITE FOR RESIDUE SO4 B 547
08AC8SOFTWARELYS B:199 , HIS B:233 , ASP B:281 , ASP B:295 , ASN B:297 , MN B:555 , MN B:556 , ADP B:558 , HOH B:591 , HOH B:629 , HOH B:782BINDING SITE FOR RESIDUE SO4 B 548
09AC9SOFTWARELYS B:18 , LYS B:59 , HIS B:162 , HOH B:668 , HOH B:795BINDING SITE FOR RESIDUE SO4 B 549
10BC1SOFTWAREVAL B:209 , VAL B:210 , GLN B:211 , ARG B:256 , HOH B:674BINDING SITE FOR RESIDUE SO4 B 550
11BC2SOFTWARESER A:258 , ASP A:259 , GLU A:260 , HOH A:590BINDING SITE FOR RESIDUE SO4 A 551
12BC3SOFTWARELYS A:199 , ASP A:281 , ASP A:295 , ASN A:297 , MN A:553 , MN A:554 , ADP A:557 , HOH A:618 , HOH A:771 , HOH A:803 , HOH A:804BINDING SITE FOR RESIDUE SO4 A 552
13BC4SOFTWAREASP A:295 , ASN A:297 , SO4 A:552 , ADP A:557 , HOH A:807BINDING SITE FOR RESIDUE MN A 553
14BC5SOFTWAREASP A:281 , ASP A:295 , SO4 A:552 , ADP A:557 , HOH A:618BINDING SITE FOR RESIDUE MN A 554
15BC6SOFTWAREASP B:281 , ASP B:295 , SO4 B:548 , ADP B:558 , HOH B:629BINDING SITE FOR RESIDUE MN B 555
16BC7SOFTWAREASP B:295 , ASN B:297 , SO4 B:548 , ADP B:558 , HOH B:772BINDING SITE FOR RESIDUE MN B 556
17BC8SOFTWAREARG A:106 , ILE A:155 , LYS A:157 , HIS A:167 , MET A:169 , GLN A:188 , ASN A:189 , PHE A:190 , ILE A:191 , HIS A:193 , LEU A:197 , SER A:214 , LEU A:215 , SER A:232 , SER A:236 , ASP A:281 , ILE A:294 , ASP A:295 , SO4 A:552 , MN A:553 , MN A:554 , HOH A:584 , HOH A:618 , HOH A:771BINDING SITE FOR RESIDUE ADP A 557
18BC9SOFTWAREARG B:106 , ILE B:155 , LYS B:157 , HIS B:167 , MET B:169 , GLN B:188 , ASN B:189 , PHE B:190 , ILE B:191 , HIS B:193 , LEU B:197 , SER B:214 , LEU B:215 , SER B:232 , SER B:236 , ASP B:281 , ILE B:294 , ASP B:295 , SO4 B:548 , MN B:555 , MN B:556 , HOH B:566 , HOH B:629 , HOH B:772BINDING SITE FOR RESIDUE ADP B 558

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2QB5)

(-) Cis Peptide Bonds  (9, 9)

Asymmetric Unit
No.Residues
1Gly A:51 -Pro A:52
2Leu A:94 -Asp A:95
3Phe A:152 -Pro A:153
4Pro A:183 -Pro A:184
5Met B:1 -Gln B:2
6Gly B:51 -Pro B:52
7Leu B:94 -Asp B:95
8Phe B:152 -Pro B:153
9Pro B:183 -Pro B:184

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2QB5)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2QB5)

(-) Exons   (10, 20)

Asymmetric Unit (10, 20)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1ENST000002676151ENSE00001376485chr14:93582263-93582117147ITPK1_HUMAN-00--
1.2aENST000002676152aENSE00002191177chr14:93581650-93581414237ITPK1_HUMAN1-32322A:1-32
B:1-32		32
32
1.3ENST000002676153ENSE00001755227chr14:93542964-9354294025ITPK1_HUMAN32-4092A:32-40
B:32-40		9
9
1.4ENST000002676154ENSE00000808708chr14:93483146-93483021126ITPK1_HUMAN41-82422A:41-82
B:41-82		42
42
1.5ENST000002676155ENSE00000659912chr14:93460342-93460225118ITPK1_HUMAN83-122402A:83-122
B:83-122		40
40
1.6ENST000002676156ENSE00000808707chr14:93429194-9342909699ITPK1_HUMAN122-155342A:122-155
B:122-155 (gaps)		34
34
1.7ENST000002676157ENSE00000659910chr14:93428740-9342870041ITPK1_HUMAN155-168142A:155-168
B:155-168		14
14
1.8ENST000002676158ENSE00000659909chr14:93424711-93424546166ITPK1_HUMAN169-224562A:169-224 (gaps)
B:169-224		56
56
1.9ENST000002676159ENSE00000659908chr14:93418358-9341829168ITPK1_HUMAN224-246232A:224-246
B:224-246 (gaps)		23
23
1.10ENST0000026761510ENSE00000659907chr14:93412838-93412676163ITPK1_HUMAN247-301552A:247-301
B:247-301		55
55
1.11bENST0000026761511bENSE00001627119chr14:93408249-934060692181ITPK1_HUMAN301-4141142A:301-335
B:301-335		35
35

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:338
 aligned with ITPK1_HUMAN | Q13572 from UniProtKB/Swiss-Prot  Length:414

    Alignment length:343
                                    1
                                    |2        12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332
          ITPK1_HUMAN     - --------MQTFLKGKRVGYWLSEKKIKKLNFQAFAELCRKRGMEVVQLNLSRPIEEQGPLDVIIHKLTDVILEADQNDSQSLELVHRFQEYIDAHPETIVLDPLPAIRTLLDRSKSYELIRKIEAYMEDDRICSPPFMELTSLCGDDTMRLLEKNGLTFPFICKTRVAHGTNSHEMAIVFNQEGLNAIQPPCVVQNFINHNAVLYKVFVVGESYTVVQRPSLKNFSAGTSDRESIFFNSHNVSKPESSSVLTELDKIEGVFERPSDEVIRELSRALRQALGVSLFGIDIIINNQTGQHAVIDINAFPGYEGVSEFFTDLLNHIATVLQGQSTAMAATGDVAL 335
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhh..eeeee.hhhhhhhhhhhhhhhhhhhh..eeee......hhhhh...eeee.hhhhhhhhhh.hhhhhhhhhhhhhhhhhh...eee.hhhhhhhhhhhhhhhhhhhhhhhhhh...ee...eeee......hhhhhhhhh.....eeeee.........eeeee.hhhhhhh-...eeeee......eeeeeeee..eeeeeeee.....----.....eeee.hhh......hhhhh...........hhhhhhhhhhhhhhhhh..eeeeeeee......eeeeeeee........hhhhhhhhhhhhhhhhhhh.......... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) --------Exon 1.2a  PDB: A:1-32          --------Exon 1.4  PDB: A:41-82 UniProt: 41-82     Exon 1.5  PDB: A:83-122 UniProt: 83-122 --------------------------------Exon 1.7      Exon 1.8  PDB: A:169-224 (gaps) UniProt: 169-224        ----------------------Exon 1.10  PDB: A:247-301 UniProt: 247-301             ---------------------------------- Transcript 1 (1)
           Transcript 1 (2) ---------------------------------------Exon 1.3 ---------------------------------------------------------------------------------Exon 1.6  PDB: A:122-155          --------------------------------------------------------------------Exon 1.9  PDB: A:224-24------------------------------------------------------Exon 1.11b  PDB: A:301-335          Transcript 1 (2)
                 2qb5 A  -7 KIHHHHHHMQTFLKGKRVGYWLSEKKIKKLNFQAFAELCRKRGMEVVQLNLSRPIEEQGPLDVIIHKLTDVILEADQNDSQSLELVHRFQEYIDAHPETIVLDPLPAIRTLLDRSKSYELIRKIEAYMEDDRICSPPFMELTSLCGDDTMRLLEKNGLTFPFICKTRVAHGTNSHEMAIVFNQEGLNA-QPPCVVQNFINHNAVLYKVFVVGESYTVVQRPSLKNF----SDRESIFFNSHNVSKPESSSVLTELDKIEGVFERPSDEVIRELSRALRQALGVSLFGIDIIINNQTGQHAVIDINAFPGYEGVSEFFTDLLNHIATVLQGQSTAMAATGDVAL 335
                                     2        12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212     |   -|      232       242       252       262       272       282       292       302       312       322       332
                                                                                                                                                                                                                     180 |                                 218  223
                                                                                                                                                                                                                       182


Chain B from PDB  Type:PROTEIN  Length:336
 aligned with ITPK1_HUMAN | Q13572 from UniProtKB/Swiss-Prot  Length:414

    Alignment length:340
                                 1
                                 |   5        15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335
          ITPK1_HUMAN     - -----MQTFLKGKRVGYWLSEKKIKKLNFQAFAELCRKRGMEVVQLNLSRPIEEQGPLDVIIHKLTDVILEADQNDSQSLELVHRFQEYIDAHPETIVLDPLPAIRTLLDRSKSYELIRKIEAYMEDDRICSPPFMELTSLCGDDTMRLLEKNGLTFPFICKTRVAHGTNSHEMAIVFNQEGLNAIQPPCVVQNFINHNAVLYKVFVVGESYTVVQRPSLKNFSAGTSDRESIFFNSHNVSKPESSSVLTELDKIEGVFERPSDEVIRELSRALRQALGVSLFGIDIIINNQTGQHAVIDINAFPGYEGVSEFFTDLLNHIATVLQGQSTAMAATGDVAL 335
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) -----Ins134_P3_kin-2qb5B01 B:1-318                                                                                                                                                                                                                                                                                                 ----------------- Pfam domains (1)
           Pfam domains (2) -----Ins134_P3_kin-2qb5B02 B:1-318                                                                                                                                                                                                                                                                                                 ----------------- Pfam domains (2)
         Sec.struct. author .............eeeee.hhhhhhhhhhhhhhhhhhhh..eeee......hhhhh...eeee.hhhhhhhhhh.hhhhhhhhhhhhhhhhhh...eee.hhhhhhhhhhhhhhhhhhhhhhhhhh........eeee....---hhhhhhhh.....eeeee.........eeeee.hhhhhh.....eeeee......eeeeeeee..eeeeeeee..............eeee.hhh...-..hhhhh...........hhhhhhhhhhhhhhhhh..eeeeeeee......eeeeeeee........hhhhhhhhhhhhhhhhhhh.......... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) -----Exon 1.2a  PDB: B:1-32          --------Exon 1.4  PDB: B:41-82 UniProt: 41-82     Exon 1.5  PDB: B:83-122 UniProt: 83-122 --------------------------------Exon 1.7      Exon 1.8  PDB: B:169-224 UniProt: 169-224               ----------------------Exon 1.10  PDB: B:247-301 UniProt: 247-301             ---------------------------------- Transcript 1 (1)
           Transcript 1 (2) ------------------------------------Exon 1.3 ---------------------------------------------------------------------------------Exon 1.6  PDB: B:122-155 (gaps)   --------------------------------------------------------------------Exon 1.9               ------------------------------------------------------Exon 1.11b  PDB: B:301-335          Transcript 1 (2)
                 2qb5 B  -4 HHHHHMQTFLKGKRVGYWLSEKKIKKLNFQAFAELCRKRGMEVVQLNLSRPIEEQGPLDVIIHKLTDVILEADQNDSQSLELVHRFQEYIDAHPETIVLDPLPAIRTLLDRSKSYELIRKIEAYMEDDRICSPPFMELTSLC---TMRLLEKNGLTFPFICKTRVAHGTNSHEMAIVFNQEGLNAIQPPCVVQNFINHNAVLYKVFVVGESYTVVQRPSLKNFSAGTSDRESIFFNSHNVSKP-SSSVLTELDKIEGVFERPSDEVIRELSRALRQALGVSLFGIDIIINNQTGQHAVIDINAFPGYEGVSEFFTDLLNHIATVLQGQSTAMAATGDVAL 335
                                     5        15        25        35        45        55        65        75        85        95       105       115       125       135 |   | 145       155       165       175       185       195       205       215       225       235  | |  245       255       265       275       285       295       305       315       325       335
                                                                                                                                                                       137 141                                                                                              238 |
                                                                                                                                                                                                                                                                              240
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2QB5)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2QB5)

(-) Pfam Domains  (1, 2)

Asymmetric Unit
(-)
Clan: ATP-grasp (83)

(-) Gene Ontology  (27, 27)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (ITPK1_HUMAN | Q13572)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0047325    inositol tetrakisphosphate 1-kinase activity    Catalysis of the reaction: 1D-myo-inositol 3,4,5,6-tetrakisphosphate + ATP = 1D-myo-inositol 1,3,4,5,6-pentakisphosphate + ADP.
    GO:0052825    inositol-1,3,4,5,6-pentakisphosphate 1-phosphatase activity    Catalysis of the reaction: inositol-1,3,4,5,6-pentakisphosphate + H2O = inositol-3,4,5,6-tetrakisphosphate + phosphate.
    GO:0052659    inositol-1,3,4,5-tetrakisphosphate 5-phosphatase activity    Catalysis of the reaction: 1D-myo-inositol 1,3,4,5-tetrakisphosphate + H2O = 1D-myo-inositol 1,3,4-trisphosphate + phosphate.
    GO:0052831    inositol-1,3,4,6-tetrakisphosphate 1-phosphatase activity    Catalysis of the reaction: inositol-1,3,4,6-tetrakisphosphate + H2O = inositol-3,4,6-trisphosphate + phosphate.
    GO:0052830    inositol-1,3,4,6-tetrakisphosphate 6-phosphatase activity    Catalysis of the reaction: inositol-1,3,4,6-tetrakisphosphate + H2O = inositol-1,3,4-trisphosphate + phosphate.
    GO:0052726    inositol-1,3,4-trisphosphate 5-kinase activity    Catalysis of the reaction: 1D-myo-inositol 1,3,4-trisphosphate + ATP = 1D-myo-inositol 1,3,4,5-tetrakisphosphate + ADP + 2 H(+).
    GO:0052725    inositol-1,3,4-trisphosphate 6-kinase activity    Catalysis of the reaction: 1D-myo-inositol 1,3,4-trisphosphate + ATP = 1D-myo-inositol 1,3,4,6-tetrakisphosphate + ADP + 2 H(+).
    GO:0052835    inositol-3,4,6-trisphosphate 1-kinase activity    Catalysis of the reaction: 1D-myo-inositol 3,4,6-trisphosphate + ATP = 1D-myo-inositol 1,3,4,6-tetrakisphosphate + ADP + 2 H(+).
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
    GO:0016301    kinase activity    Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
    GO:0000287    magnesium ion binding    Interacting selectively and non-covalently with magnesium (Mg) ions.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0007596    blood coagulation    The sequential process in which the multiple coagulation factors of the blood interact, ultimately resulting in the formation of an insoluble fibrin clot; it may be divided into three stages: stage 1, the formation of intrinsic and extrinsic prothrombin converting principle; stage 2, the formation of thrombin; stage 3, the formation of stable fibrin polymers.
    GO:0016311    dephosphorylation    The process of removing one or more phosphoric (ester or anhydride) residues from a molecule.
    GO:0043647    inositol phosphate metabolic process    The chemical reactions and pathways involving inositol phosphate, 1,2,3,4,5,6-cyclohexanehexol, with one or more phosphate groups attached.
    GO:0032957    inositol trisphosphate metabolic process    The chemical reactions and pathways involving myo-inositol phosphate, 1,2,3,4,5,6-cyclohexanehexol, with three phosphate groups attached.
    GO:0021915    neural tube development    The process whose specific outcome is the progression of the neural tube over time, from its formation to the mature structure. The mature structure of the neural tube exists when the tube has been segmented into the forebrain, midbrain, hindbrain and spinal cord regions. In addition neural crest has budded away from the epithelium.
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
    GO:0007165    signal transduction    The cellular process in which a signal is conveyed to trigger a change in the activity or state of a cell. Signal transduction begins with reception of a signal (e.g. a ligand binding to a receptor or receptor activation by a stimulus such as light), or for signal transduction in the absence of ligand, signal-withdrawal or the activity of a constitutively active receptor. Signal transduction ends with regulation of a downstream cellular process, e.g. regulation of transcription or regulation of a metabolic process. Signal transduction covers signaling from receptors located on the surface of the cell and signaling via molecules located within the cell. For signaling between cells, signal transduction is restricted to events at and within the receiving cell.
cellular component
    GO:0016324    apical plasma membrane    The region of the plasma membrane located at the apical end of the cell.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0005622    intracellular    The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ADP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]
    BC6  [ RasMol ]  +environment [ RasMol ]
    BC7  [ RasMol ]  +environment [ RasMol ]
    BC8  [ RasMol ]  +environment [ RasMol ]
    BC9  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Gly A:51 - Pro A:52   [ RasMol ]
    Gly B:51 - Pro B:52   [ RasMol ]
    Leu A:94 - Asp A:95   [ RasMol ]
    Leu B:94 - Asp B:95   [ RasMol ]
    Met B:1 - Gln B:2   [ RasMol ]
    Phe A:152 - Pro A:153   [ RasMol ]
    Phe B:152 - Pro B:153   [ RasMol ]
    Pro A:183 - Pro A:184   [ RasMol ]
    Pro B:183 - Pro B:184   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2qb5
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  ITPK1_HUMAN | Q13572
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.7.1.134
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc
  2.7.1.159
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  ITPK1_HUMAN | Q13572
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        ITPK1_HUMAN | Q13572: 2odt 2q7d

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2QB5)
