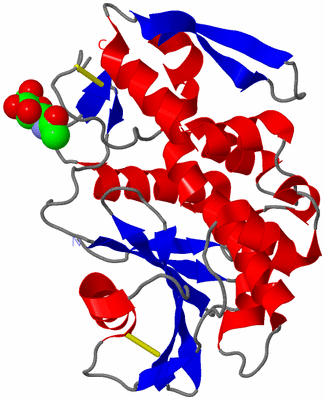

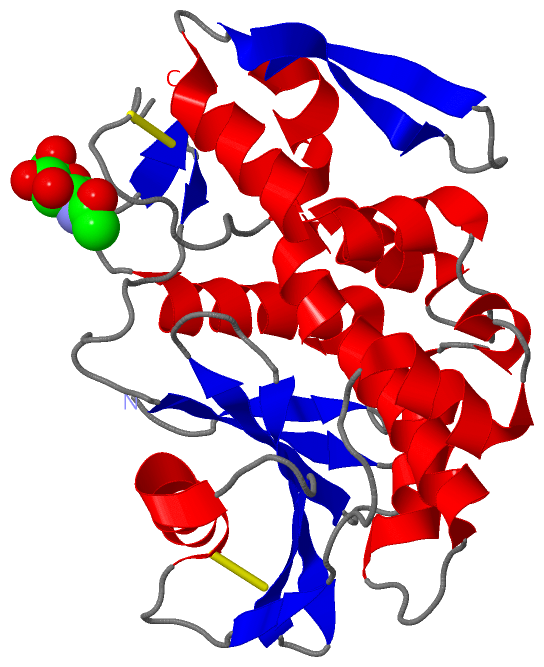

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

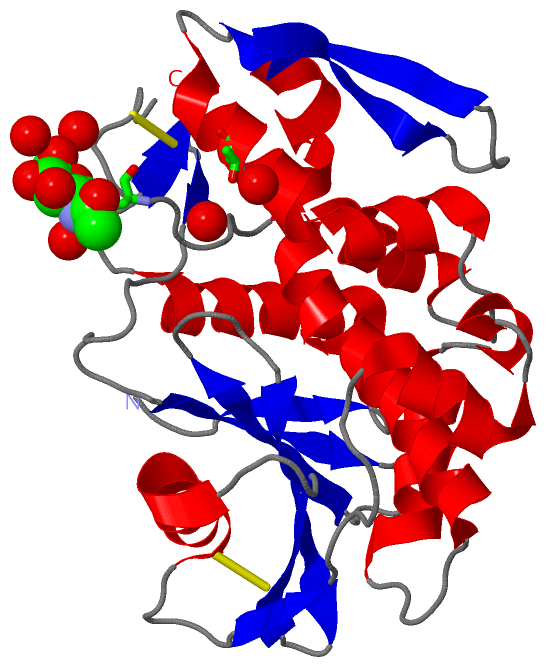

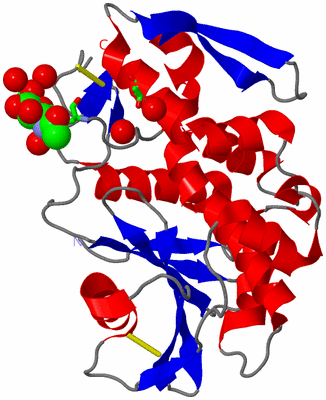

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF PAP-S1ACI, A POKEWEED ANTIVIRAL PROTEIN FROM SEEDS OF PHYTOLACCA ACINOSA

Authors :  T. Hogg, R. Hilgenfeld
Date :  12 Jun 07  (Deposition) - 17 Jun 08  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.70
Chains :  Asym./Biol. Unit :  A
Keywords :  Rip Fold, Natural Asn-Glcnac Residues, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. Hogg, K. Bezouska, N. Ulbrich, I. Kuta Smatanova, R. Hilgenfeld
The Complete Covalent Structure And 1. 7 A Crystal Structure Of Pap-S1Aci Reveals A Rip Glycoprotein With Multiple Asn-Glcnac Modifications
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - POKEWEED ANTIVIRAL PROTEIN
    Chains: A
    EC Number: 3.2.2.22
    Organ: SEEDS
    Organism Common: POKEWEED
    Organism Scientific: PHYTOLACCA ACINOSA

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1NAG1Ligand/IonN-ACETYL-D-GLUCOSAMINE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWARETHR A:212 , ASN A:255 , HOH A:358 , HOH A:546 , HOH A:576 , HOH A:588 , HOH A:607BINDING SITE FOR RESIDUE NAG A 303

(-) SS Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1A:34 -A:258
2A:84 -A:105

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2Q8W)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2Q8W)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2Q8W)

(-) Exons   (0, 0)

(no "Exon" information available for 2Q8W)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:261
 aligned with D0VWY1_PHYAN | D0VWY1 from UniProtKB/TrEMBL  Length:261

    Alignment length:261
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260
         D0VWY1_PHYAN     1 INTITFDAGNATINKYATFMESLRNEAKDPSLKCYGIPMLPNTNSTIKYLLVKLQGASLKTITLILRRNNLYVMGYSDPYDNKCRYHIFNDIKGTEYSDVENTLCPSTNPRVAKPINYNGLYPTLENKAGVTSRNQVQLGIQILSSDIGKISGQGSFTEKTEAKFLLVAIQMVPEAARFKYIENQVKTNFNRDFFPNDKVLELEENWGKISTAIHDAKNGALPKPLELKNADGTKWIVLRVDEIKPDVGLLKYVNGTCQTT 261
               SCOP domains d2q8wa_ A: automated matches                                                                                                                                                                                                                                          SCOP domains
               CATH domains 2q8wA01 A:1-177 Ricin (A subunit), domain 1                                                                                                                                      2q8wA02 A:178-258 Ricin (A Subunit), domain 2                                    --- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee....hhhhhhhhhhhhhhhhh....ee..ee..........eeeeeee.....eeeeeee.....eeeeeeee..eeeeee....hhhhhhhhhhhhh.....eee.......hhhhhhhhhh..hhhhh..hhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhh...eeeeeeeee.....eeeeeehhhhhhhh............. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2q8w A   1 INTITFDAGNATINKYATFMESLRNEAKDPSLKCYGIPMLPNTNSTIKYLLVKLQGASLKTITLILRRNNLYVMGYSDPYDNKCRYHIFNDIKGTEYSDVENTLCPSTNPRVAKPINYNGLYPTLENKAGVTSRNQVQLGIQILSSDIGKISGQGSFTEKTEAKFLLVAIQMVPEAARFKYIENQVKTNFNRDFFPNDKVLELEENWGKISTAIHDAKNGALPKPLELKNADGTKWIVLRVDEIKPDVGLLKYVNGTCQTT 261
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)
(-)
Class: Few Secondary Structures (1120)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2Q8W)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (D0VWY1_PHYAN | D0VWY1)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0030598    rRNA N-glycosylase activity    Catalysis of the hydrolysis of the N-glycosylic bond at A-4324 in 28S rRNA from rat ribosomes or corresponding sites in 28S RNA from other species.
biological process
    GO:0006952    defense response    Reactions, triggered in response to the presence of a foreign body or the occurrence of an injury, which result in restriction of damage to the organism attacked or prevention/recovery from the infection caused by the attack.
    GO:0017148    negative regulation of translation    Any process that stops, prevents, or reduces the frequency, rate or extent of the chemical reactions and pathways resulting in the formation of proteins by the translation of mRNA or circRNA.
