Title :   1.8A CRYSTAL STRUCTURE OF THE PA2412 PROTEIN FROM PSEUDOMONAS AERUGINOSA

Authors :   A. M. Gulick, E. J. Drake, M. B. Shah

Date :   07 May 07 (Deposition) - 22 May 07 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.80

Chains :   Asym./Biol. Unit : X

Keywords :   Pyoverdine Synthesis, Non-Ribosomal Peptide Synthesis Clusters, Mbth- Like Family, Cog3251, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   E. J. Drake, J. Cao, J. Qu, M. B. Shah, R. M. Straubinger, A. M. Gulick
The 1. 8 A Crystal Structure Of Pa2412, An Mbth-Like Protein From The Pyoverdine Cluster Of Pseudomonas Aeruginosa.
J. Biol. Chem. V. 282 20425 2007
PubMed-ID: 17502378 | Reference-DOI: 10.1074/JBC.M611833200

Compounds

Molecule 1 - HYPOTHETICAL PROTEIN PA2412
	Chains	:	X
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21(DE3)
	Expression System Plasmid	:	PET15 MODIFIED
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Vector Type	:	PLASMID
	Organism Scientific	:	PSEUDOMONAS AERUGINOSA PAO1
	Organism Taxid	:	208964
	Strain	:	PA01

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

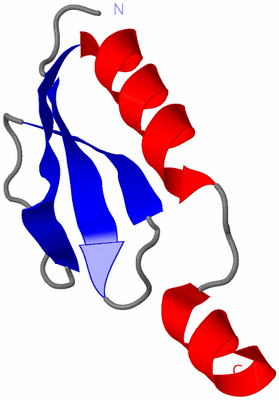

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain X from PDB  Type:PROTEIN  Length:61
 aligned with Q9I169_PSEAE | Q9I169 from UniProtKB/TrEMBL  Length:72

    Alignment length:61
                                    17        27        37        47        57        67
          Q9I169_PSEAE    8 DDIQFQVVVNHEEQYSIWPEYKEIPQGWRAAGKSGLKKDCLAYIEEVWTDMRPLSLRQHMD 68
               SCOP domains d2pstx_ X: automated matches                                  SCOP domains
               CATH domains ------------------------------------------------------------- CATH domains
               Pfam domains MbtH-2pstX01 X:8-53                           --------------- Pfam domains
         Sec.struct. author ....eeeeee....eeeee........eeeeeeeehhhhhhhhhhhhh....hhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------- Transcript
                  2pst X  8 DDIQFQVVVNHEEQYSIWPEYKEIPQGWRAAGKSGLKKDCLAYIEEVWTDMRPLSLRQHMD 68
                                    17        27        37        47        57        67

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (0, 0)

Pfam Domains (1, 1)

Gene Ontology (0, 0)

Visualization

Interactive Views

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2pst)

	Sites
(no "Sites" information available for 2pst)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2pst)

Still Images

Jmol

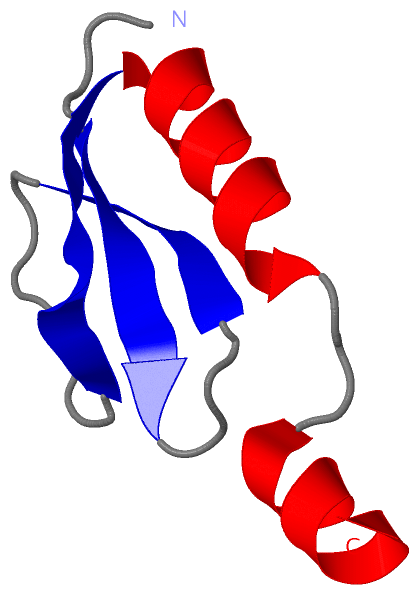

	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)
