Title :   CRYSTAL STRUCTURE OF PUTATIVE MANDELATE RACEMASE/MUCONATE LACTONIZING ENZYME FROM ASPERGILLUS ORYZAE

Authors :   A. A. Fedorov, R. Toro, E. V. Fedorov, J. M. Sauder, S. K. Burley, S. C. Alm York Sgx Research Center For Structural Genomics (Nysgxrc)

Date :   04 May 07 (Deposition) - 22 May 07 (Release) - 24 Oct 12 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.80

Chains :   Asym. Unit : A,B,C,D

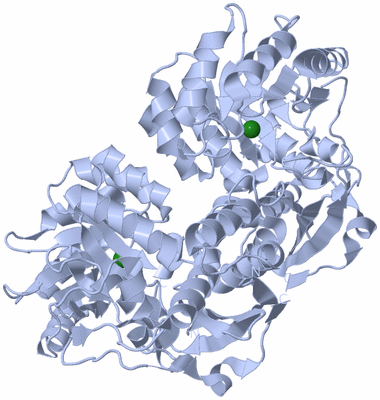

Biol. Unit 1: A  (2x)
Biol. Unit 2: B,C  (1x)
Biol. Unit 3: D  (2x)
Biol. Unit 4: A,B,C,D  (2x)
Biol. Unit 5: B (1x),D (1x)
Biol. Unit 6: A (1x),C (1x)

Keywords :   Structural Genomics, Nysgxrc, Target 9440A, Enolase Superfamily, Psi- 2, Protein Structure Initiative, New York Sgx Research Center For Structural Genomics, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   A. A. Fedorov, R. Toro, E. V. Fedorov, J. M. Sauder, S. K. Burley, S. C. Almo
Crystal Structure Of Putative Mandelate Racemase/Muconate Lactonizing Enzyme From Aspergillus Oryzae.
To Be Published
PubMed: search

Molecule 1 - PUTATIVE MANDELATE RACEMASE/MUCONATE LACTONIZING ENZYME
	Atcc	:	42149
	Chains	:	A, B, C, D
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Gene	:	AO090011000058
	Organism Scientific	:	ASPERGILLUS ORYZAE RIB40
	Organism Taxid	:	510516
	Strain	:	RIB 40

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (2x)	:	A
Biological Unit 2 (1x)	:		B	C
Biological Unit 3 (2x)	:				D
Biological Unit 4 (2x)	:	A	B	C	D
Biological Unit 5 (1x)	:		B (1x)		D (1x)
Biological Unit 6 (1x)	:	A (1x)		C (1x)

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 4)

No.	Name	Count	Type	Full Name
1	MG	4	Ligand/Ion	MAGNESIUM ION

Biological Unit 1 (0, 0)

No.	Name	Count	Type	Full Name
1	MG	-1	Ligand/Ion	MAGNESIUM ION

Biological Unit 2 (0, 0)

No.	Name	Count	Type	Full Name
1	MG	-1	Ligand/Ion	MAGNESIUM ION

Biological Unit 3 (0, 0)

No.	Name	Count	Type	Full Name
1	MG	-1	Ligand/Ion	MAGNESIUM ION

Biological Unit 4 (0, 0)

No.	Name	Count	Type	Full Name
1	MG	-1	Ligand/Ion	MAGNESIUM ION

Biological Unit 5 (0, 0)

No.	Name	Count	Type	Full Name
1	MG	-1	Ligand/Ion	MAGNESIUM ION

Biological Unit 6 (0, 0)

No.	Name	Count	Type	Full Name
1	MG	-1	Ligand/Ion	MAGNESIUM ION

Asymmetric Unit (4, 4)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ASP A:196 , GLU A:222 , ASP A:245 , ASP A:267 , HOH A:605 , HOH A:606 , HOH A:607	BINDING SITE FOR RESIDUE MG A 401
2	AC2	SOFTWARE	ASP B:196 , GLU B:222 , ASP B:245 , ASP B:267 , LYS B:269 , HOH B:566 , HOH B:567 , HOH B:568	BINDING SITE FOR RESIDUE MG B 401
3	AC3	SOFTWARE	ASP C:196 , GLU C:222 , ASP C:245 , ASP C:267 , HOH C:621 , HOH C:622 , HOH C:623	BINDING SITE FOR RESIDUE MG C 401
4	AC4	SOFTWARE	ASP D:196 , GLU D:222 , ASP D:245 , ASP D:267 , HOH D:594 , HOH D:595 , HOH D:596	BINDING SITE FOR RESIDUE MG D 401

(no "SS Bond" information available for 2PS2)

(no "Cis Peptide Bond" information available for 2PS2)

(no "SAP(SNP)/Variant" information available for 2PS2)

(no "PROSITE Motif" information available for 2PS2)

(no "Exon" information available for 2PS2)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:361
 aligned with Q2U1E8_ASPOR | Q2U1E8 from UniProtKB/TrEMBL  Length:371

    Alignment length:368
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362
         Q2U1E8_ASPOR     3 DLKIARIDVFQVDLPYSGGVYYLSAGREYRSFDATIVRITTDTGIEGWGESTPFGSNYIASHPRGVRAGIATMAPSLIGLDPRRVDRINDAMDDALLGHEDAKTAIDVACWDIFGKSVGLPVCELLGGRTNTRLPLISSIYVGEPEDMRARVAKYRAKGYKGQSVKISGEPVTDAKRITAALANQQPDEFFIVDANGKLSVETALRLLRLLPHGLDFALEAPCATWRECISLRRKTDIPIIYDELATNEMSIVKILADDAAEGIDLKISKAGGLTRGRRQRDICLAAGYSVSVQETCGSDIAFAAIVHLAQTIPERSLRCILECRDMVTVKTADGAFDIQDGFATAPTTPGLGIMPRLDVLGEAVASY 370
               SCOP domains d2ps2a1 A:3-130 automat       ed matches                                                                                        d2ps2a2 A:131-370 automated matches                                                                                                                                                                                                              SCOP domains
               CATH domains 2ps2A01 A:3-121,A:360-3       70 Enolase-like, N-terminal domain                                                       ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------2ps2A01     CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeeeeeee.........-------.eeeeeeeeee....eeeeee..........hhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhh.hhhhhh.......ee.eeee...hhhhhhhhhhhhhh....eeeee...hhhhhhhhhhhhh.......eeeee.....hhhhhhhhhhhh......eee....hhhhhhhhhh.....eee.....hhhhhhhhhhhh...eeeeehhhhhhhhhhhhhhhhhhhhh.eeeee....hhhhhhhhhhhhh......eeee.hhhhhh....ee........ee..........eehhhhhh...eee Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ps2 A   3 DLKIARIDVFQVDLPYSGGVYYL-------SFDATIVRITTDTGIEGWGESTPFGSNYIASHPRGVRAGIATMAPSLIGLDPRRVDRINDAMDDALLGHEDAKTAIDVACWDIFGKSVGLPVCELLGGRTNTRLPLISSIYVGEPEDMRARVAKYRAKGYKGQSVKISGEPVTDAKRITAALANQQPDEFFIVDANGKLSVETALRLLRLLPHGLDFALEAPCATWRECISLRRKTDIPIIYDELATNEMSIVKILADDAAEGIDLKISKAGGLTRGRRQRDICLAAGYSVSVQETCGSDIAFAAIVHLAQTIPERSLRCILECRDMVTVKTADGAFDIQDGFATAPTTPGLGIMPRLDVLGEAVASY 370
                                    12        22  |      -|       42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362
                                                 25      33

Chain B from PDB  Type:PROTEIN  Length:361
 aligned with Q2U1E8_ASPOR | Q2U1E8 from UniProtKB/TrEMBL  Length:371

    Alignment length:368
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362
         Q2U1E8_ASPOR     3 DLKIARIDVFQVDLPYSGGVYYLSAGREYRSFDATIVRITTDTGIEGWGESTPFGSNYIASHPRGVRAGIATMAPSLIGLDPRRVDRINDAMDDALLGHEDAKTAIDVACWDIFGKSVGLPVCELLGGRTNTRLPLISSIYVGEPEDMRARVAKYRAKGYKGQSVKISGEPVTDAKRITAALANQQPDEFFIVDANGKLSVETALRLLRLLPHGLDFALEAPCATWRECISLRRKTDIPIIYDELATNEMSIVKILADDAAEGIDLKISKAGGLTRGRRQRDICLAAGYSVSVQETCGSDIAFAAIVHLAQTIPERSLRCILECRDMVTVKTADGAFDIQDGFATAPTTPGLGIMPRLDVLGEAVASY 370
               SCOP domains d2ps2b1 B:3-130 automat       ed matches                                                                                        d2ps2b2 B:131-370 automated matches                                                                                                                                                                                                              SCOP domains
               CATH domains 2ps2B01 B:3-121,B:360-3       70 Enolase-like, N-terminal domain                                                       ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------2ps2B01     CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeeeeeee.........-------.eeeeeeeeee....eeeeee..........hhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhh.hhhhhh.......ee.eeee...hhhhhhhhhhhhhhh...eeeee...hhhhhhhhhhhhh.......eeeee.....hhhhhhhhhhhh......eee....hhhhhhhhhh.....eee.....hhhhhhhhhhh....eeeeehhhhhhhhhhhhhhhhhhhhh.eeeee....hhhhhhhhhhhhh......eeee.hhhhhh....ee........ee..........eehhhhhh...eee Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ps2 B   3 DLKIARIDVFQVDLPYSGGVYYL-------SFDATIVRITTDTGIEGWGESTPFGSNYIASHPRGVRAGIATMAPSLIGLDPRRVDRINDAMDDALLGHEDAKTAIDVACWDIFGKSVGLPVCELLGGRTNTRLPLISSIYVGEPEDMRARVAKYRAKGYKGQSVKISGEPVTDAKRITAALANQQPDEFFIVDANGKLSVETALRLLRLLPHGLDFALEAPCATWRECISLRRKTDIPIIYDELATNEMSIVKILADDAAEGIDLKISKAGGLTRGRRQRDICLAAGYSVSVQETCGSDIAFAAIVHLAQTIPERSLRCILECRDMVTVKTADGAFDIQDGFATAPTTPGLGIMPRLDVLGEAVASY 370
                                    12        22  |      -|       42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362
                                                 25      33

Chain C from PDB  Type:PROTEIN  Length:361
 aligned with Q2U1E8_ASPOR | Q2U1E8 from UniProtKB/TrEMBL  Length:371

    Alignment length:368
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362
         Q2U1E8_ASPOR     3 DLKIARIDVFQVDLPYSGGVYYLSAGREYRSFDATIVRITTDTGIEGWGESTPFGSNYIASHPRGVRAGIATMAPSLIGLDPRRVDRINDAMDDALLGHEDAKTAIDVACWDIFGKSVGLPVCELLGGRTNTRLPLISSIYVGEPEDMRARVAKYRAKGYKGQSVKISGEPVTDAKRITAALANQQPDEFFIVDANGKLSVETALRLLRLLPHGLDFALEAPCATWRECISLRRKTDIPIIYDELATNEMSIVKILADDAAEGIDLKISKAGGLTRGRRQRDICLAAGYSVSVQETCGSDIAFAAIVHLAQTIPERSLRCILECRDMVTVKTADGAFDIQDGFATAPTTPGLGIMPRLDVLGEAVASY 370
               SCOP domains d2ps2c1 C:3-130 automat       ed matches                                                                                        d2ps2c2 C:131-370 automated matches                                                                                                                                                                                                              SCOP domains
               CATH domains 2ps2C01 C:3-121,C:360-3       70 Enolase-like, N-terminal domain                                                       ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------2ps2C01     CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeeeeeee.........-------.eeeeeeeeee....eeeeee..........hhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhh..hhhhhh.......ee.eeee...hhhhhhhhhhhhhhh...eeeee...hhhhhhhhhhhhh.......eeeee.....hhhhhhhhhhhh......eee....hhhhhhhhhh.....eee.....hhhhhhhhhhhh...eeeeehhhhhhhhhhhhhhhhhhhhh.eeeee....hhhhhhhhhhhhh......eeee.hhhhhh....ee........ee..........eehhhhhh...eee Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ps2 C   3 DLKIARIDVFQVDLPYSGGVYYL-------SFDATIVRITTDTGIEGWGESTPFGSNYIASHPRGVRAGIATMAPSLIGLDPRRVDRINDAMDDALLGHEDAKTAIDVACWDIFGKSVGLPVCELLGGRTNTRLPLISSIYVGEPEDMRARVAKYRAKGYKGQSVKISGEPVTDAKRITAALANQQPDEFFIVDANGKLSVETALRLLRLLPHGLDFALEAPCATWRECISLRRKTDIPIIYDELATNEMSIVKILADDAAEGIDLKISKAGGLTRGRRQRDICLAAGYSVSVQETCGSDIAFAAIVHLAQTIPERSLRCILECRDMVTVKTADGAFDIQDGFATAPTTPGLGIMPRLDVLGEAVASY 370
                                    12        22  |      -|       42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362
                                                 25      33

Chain D from PDB  Type:PROTEIN  Length:361
 aligned with Q2U1E8_ASPOR | Q2U1E8 from UniProtKB/TrEMBL  Length:371

    Alignment length:368
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362
         Q2U1E8_ASPOR     3 DLKIARIDVFQVDLPYSGGVYYLSAGREYRSFDATIVRITTDTGIEGWGESTPFGSNYIASHPRGVRAGIATMAPSLIGLDPRRVDRINDAMDDALLGHEDAKTAIDVACWDIFGKSVGLPVCELLGGRTNTRLPLISSIYVGEPEDMRARVAKYRAKGYKGQSVKISGEPVTDAKRITAALANQQPDEFFIVDANGKLSVETALRLLRLLPHGLDFALEAPCATWRECISLRRKTDIPIIYDELATNEMSIVKILADDAAEGIDLKISKAGGLTRGRRQRDICLAAGYSVSVQETCGSDIAFAAIVHLAQTIPERSLRCILECRDMVTVKTADGAFDIQDGFATAPTTPGLGIMPRLDVLGEAVASY 370
               SCOP domains d2ps2d1 D:3-130 automat       ed matches                                                                                        d2ps2d2 D:131-370 automated matches                                                                                                                                                                                                              SCOP domains
               CATH domains 2ps2D01 D:3-121,D:360-3       70 Enolase-like, N-terminal domain                                                       ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------2ps2D01     CATH domains
           Pfam domains (1) ------------------------------MR_MLE_N-2ps2D01 D:33-129                                                                        -------------------------------------------------MR_MLE-2ps2D05 D:179-245                                           ----------------------------------------------------------------------------------------------------------------------------- Pfam domains (1)
           Pfam domains (2) ------------------------------MR_MLE_N-2ps2D02 D:33-129                                                                        -------------------------------------------------MR_MLE-2ps2D06 D:179-245                                           ----------------------------------------------------------------------------------------------------------------------------- Pfam domains (2)
           Pfam domains (3) ------------------------------MR_MLE_N-2ps2D03 D:33-129                                                                        -------------------------------------------------MR_MLE-2ps2D07 D:179-245                                           ----------------------------------------------------------------------------------------------------------------------------- Pfam domains (3)
           Pfam domains (4) ------------------------------MR_MLE_N-2ps2D04 D:33-129                                                                        -------------------------------------------------MR_MLE-2ps2D08 D:179-245                                           ----------------------------------------------------------------------------------------------------------------------------- Pfam domains (4)
           Pfam domains (5) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------MR_MLE_C-2ps2D09 D:245-357                                                                                       ------------- Pfam domains (5)
           Pfam domains (6) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------MR_MLE_C-2ps2D10 D:245-357                                                                                       ------------- Pfam domains (6)
           Pfam domains (7) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------MR_MLE_C-2ps2D11 D:245-357                                                                                       ------------- Pfam domains (7)
           Pfam domains (8) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------MR_MLE_C-2ps2D12 D:245-357                                                                                       ------------- Pfam domains (8)
         Sec.struct. author ...eeeeeeeeeee.........-------.eeeeeeeeee....eeeeee..........hhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhh.hhhhhh.......ee.eeee...hhhhhhhhhhhhhhh...eeeee...hhhhhhhhhhhhh.......eeeee.....hhhhhhhhhhhh......eee....hhhhhhhhhh.....eee.....hhhhhhhhhhh....eeeeehhhhhhhhhhhhhhhhhhhhh.eeeee....hhhhhhhhhhhhh......eeee.hhhhhh....ee........ee..........eehhhhhh...eee Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ps2 D   3 DLKIARIDVFQVDLPYSGGVYYL-------SFDATIVRITTDTGIEGWGESTPFGSNYIASHPRGVRAGIATMAPSLIGLDPRRVDRINDAMDDALLGHEDAKTAIDVACWDIFGKSVGLPVCELLGGRTNTRLPLISSIYVGEPEDMRARVAKYRAKGYKGQSVKISGEPVTDAKRITAALANQQPDEFFIVDANGKLSVETALRLLRLLPHGLDFALEAPCATWRECISLRRKTDIPIIYDELATNEMSIVKILADDAAEGIDLKISKAGGLTRGRRQRDICLAAGYSVSVQETCGSDIAFAAIVHLAQTIPERSLRCILECRDMVTVKTADGAFDIQDGFATAPTTPGLGIMPRLDVLGEAVASY 370
                                    12        22  |      -|       42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362
                                                 25      33

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: Enolase N-terminal domain-like (211)

Superfamily: Enolase N-terminal domain-like (211)

Family: automated matches (123)

Protein domain: automated matches (123)

Aspergillus oryzae [TaxId: 510516] (1)

1a	d2ps2a1	A:3-130
1b	d2ps2b1	B:3-130
1c	d2ps2c1	C:3-130
1d	d2ps2d1	D:3-130

Class: Alpha and beta proteins (a/b) (23833)

Fold: TIM beta/alpha-barrel (3956)

Superfamily: Enolase C-terminal domain-like (212)

Family: automated matches (102)

Protein domain: automated matches (102)

Aspergillus oryzae [TaxId: 510516] (1)

2a	d2ps2a2	A:131-370
2b	d2ps2b2	B:131-370
2c	d2ps2c2	C:131-370
2d	d2ps2d2	D:131-370

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 2-Layer Sandwich (8480)

Topology: Enolase-like; domain 1 (252)

Homologous Superfamily: Enolase-like, N-terminal domain (130)

Aspergillus oryzae rib40. Organism_taxid: 510516. Strain: rib 40. (1)

1a	2ps2A01	A:3-121,A:360-370
1b	2ps2B01	B:3-121,B:360-370
1c	2ps2C01	C:3-121,C:360-370
1d	2ps2D01	D:3-121,D:360-370

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: Enolase_N (69)

Family: MR_MLE_N (47)

Aspergillus oryzae (strain ATCC 42149 / RIB 40) (1)

1a	MR_MLE_N-2ps2D01	D:33-129
1b	MR_MLE_N-2ps2D02	D:33-129
1c	MR_MLE_N-2ps2D03	D:33-129
1d	MR_MLE_N-2ps2D04	D:33-129

Clan: Enolase_TIM (82)

Family: MR_MLE (48)

Aspergillus oryzae (strain ATCC 42149 / RIB 40) (1)

2a	MR_MLE-2ps2D05	D:179-245
2b	MR_MLE-2ps2D06	D:179-245
2c	MR_MLE-2ps2D07	D:179-245
2d	MR_MLE-2ps2D08	D:179-245

Family: MR_MLE_C (29)

Aspergillus oryzae (strain ATCC 42149 / RIB 40) (1)

3a	MR_MLE_C-2ps2D09	D:245-357
3b	MR_MLE_C-2ps2D10	D:245-357
3c	MR_MLE_C-2ps2D11	D:245-357
3d	MR_MLE_C-2ps2D12	D:245-357

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D (Q2U1E8_ASPOR | Q2U1E8)

molecular function
	GO:0003824	catalytic activity	Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0003674	molecular_function	Elemental activities, such as catalysis or binding, describing the actions of a gene product at the molecular level. A given gene product may exhibit one or more molecular functions.
biological process
	GO:0008150	biological_process	Any process specifically pertinent to the functioning of integrated living units: cells, tissues, organs, and organisms. A process is a collection of molecular events with a defined beginning and end.
	GO:0008152	metabolic process	The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
cellular component
	GO:0005575	cellular_component	The part of a cell, extracellular environment or virus in which a gene product is located. A gene product may be located in one or more parts of a cell and its location may be as specific as a particular macromolecular complex, that is, a stable, persistent association of macromolecules that function together.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		MG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2ps2)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]
		Biological Unit 4	[ Jena3D ]
		Biological Unit 5	[ Jena3D ]
		Biological Unit 6	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format \| Biol. Unit 4 PNG format \| Biol. Unit 5 PNG format \| Biol. Unit 6 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	2ps2
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	Q2U1E8_ASPOR \| Q2U1E8
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/TrEMBL

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	Q2U1E8_ASPOR \| Q2U1E8
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 2PS2)

(no "Related Entries Specified in the PDB File" available for 2PS2)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 4)

Sites (4, 4)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (2, 8)

CATH Domains (1, 4)

Pfam Domains (3, 12)

Gene Ontology (6, 6)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
