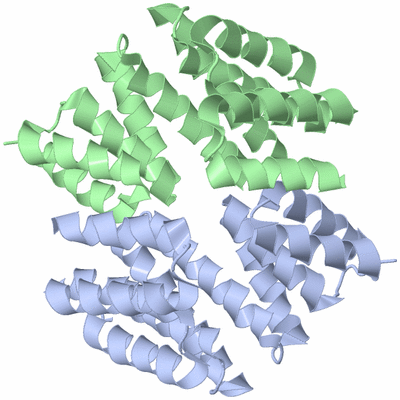

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF TTC0263: A THERMOPHILIC TPR PROTEIN IN THERMUS THERMOPHILUS HB27

Authors :  H. Lim, K. Kim, D. Han, J. Oh
Date :  18 Apr 07  (Deposition) - 04 Mar 08  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Tpr, Protein Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. Lim, K. Kim, D. Han, J. Oh, Y. Kim
Crystal Structure Of Ttc0263, A Thermophilic Tpr Protein From Thermus Thermophilus Hb27.
Mol. Cell V. 24 27 2007
PubMed-ID: 17846496

(-) Compounds

Molecule 1 - HYPOTHETICAL CONSERVED PROTEIN TTC0263
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET 24A(+)
    Expression System Strain: BL21(DE3) CODON PLUS RIL
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: RESIDUES 25-241
    Organism Scientific: THERMUS THERMOPHILUS
    Organism Taxid: 262724
    Strain: HB27

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2PL2)

(-) Sites  (0, 0)

(no "Site" information available for 2PL2)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2PL2)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2PL2)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2PL2)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2PL2)

(-) Exons   (0, 0)

(no "Exon" information available for 2PL2)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:194
 aligned with Q72L02_THET2 | Q72L02 from UniProtKB/TrEMBL  Length:355

    Alignment length:194
                                    37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217
         Q72L02_THET2    28 AEQNPLRLGVQLYALGRYDAALTLFERALKENPQDPEALYWLARTQLKLGLVNPALENGKTLVARTPRYLGGYMVLSEAYVALYRQAEDRERGKGYLEQALSVLKDAERVNPRYAPLHLQRGLVYALLGERDKAEASLKQALALEDTPEIRSALAELYLSMGRLDEALAQYAKALEQAPKDLDLRVRYASALLL 221
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhh.hhhhhhhhhhhhhh....hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2pl2 A  28 AEQNPLRLGVQLYALGRYDAALTLFERALKENPQDPEALYWLARTQLKLGLVNPALENGKTLVARTPRYLGGYMVLSEAYVALYRQAEDRERGKGYLEQALSVLKDAERVNPRYAPLHLQRGLVYALLGERDKAEASLKQALALEDTPEIRSALAELYLSMGRLDEALAQYAKALEQAPKDLDLRVRYASALLL 221
                                    37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217


Chain B from PDB  Type:PROTEIN  Length:194
 aligned with Q72L02_THET2 | Q72L02 from UniProtKB/TrEMBL  Length:355

    Alignment length:194
                                    37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217
         Q72L02_THET2    28 AEQNPLRLGVQLYALGRYDAALTLFERALKENPQDPEALYWLARTQLKLGLVNPALENGKTLVARTPRYLGGYMVLSEAYVALYRQAEDRERGKGYLEQALSVLKDAERVNPRYAPLHLQRGLVYALLGERDKAEASLKQALALEDTPEIRSALAELYLSMGRLDEALAQYAKALEQAPKDLDLRVRYASALLL 221
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) -----TPR_16-2pl2B05 B:33-96                                          -------------------------------------------TPR_11-2pl2B01 B:140-206                                           --------------- Pfam domains (1)
           Pfam domains (2) -----TPR_16-2pl2B06 B:33-96                                          -------------------------------------------TPR_11-2pl2B02 B:140-206                                           --------------- Pfam domains (2)
           Pfam domains (3) ------------------------------------------------------------TPR_15-2pl2B03 B:88-221                                                                                                                Pfam domains (3)
           Pfam domains (4) ------------------------------------------------------------TPR_15-2pl2B04 B:88-221                                                                                                                Pfam domains (4)
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2pl2 B  28 AEQNPLRLGVQLYALGRYDAALTLFERALKENPQDPEALYWLARTQLKLGLVNPALENGKTLVARTPRYLGGYMVLSEAYVALYRQAEDRERGKGYLEQALSVLKDAERVNPRYAPLHLQRGLVYALLGERDKAEASLKQALALEDTPEIRSALAELYLSMGRLDEALAQYAKALEQAPKDLDLRVRYASALLL 221
                                    37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2PL2)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2PL2)

(-) Pfam Domains  (3, 6)

Asymmetric/Biological Unit
(-)
Clan: TPR (230)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 2PL2)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2pl2)

  Sites
(no "Sites" information available for 2pl2)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2pl2)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

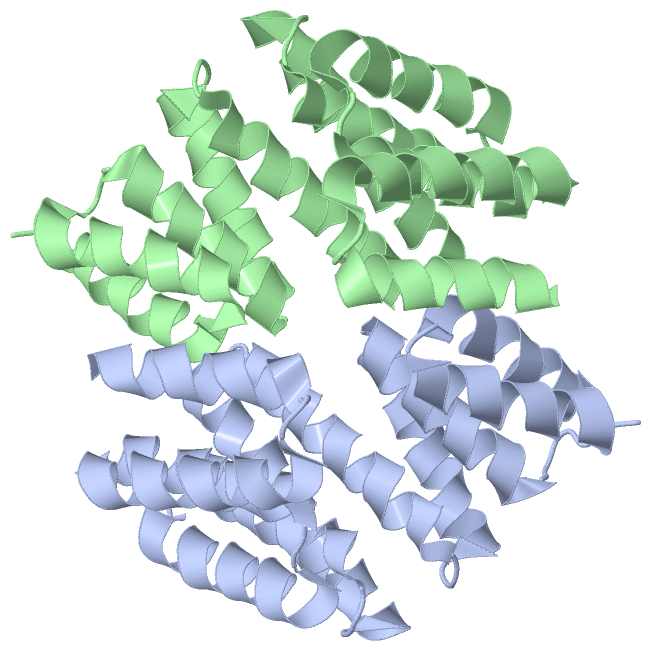

[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
