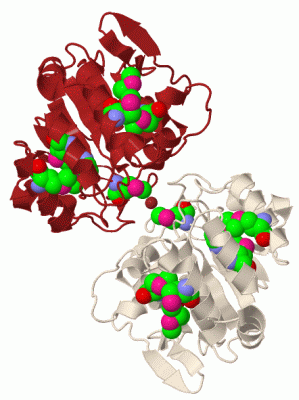

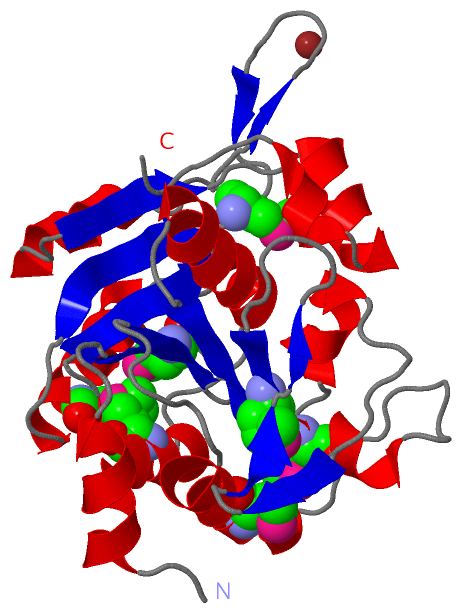

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

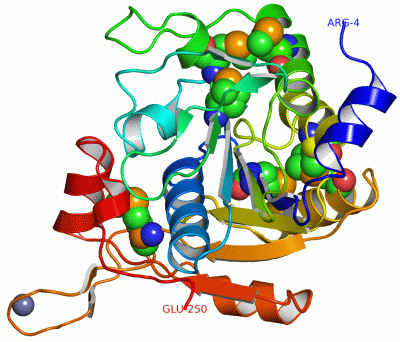

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

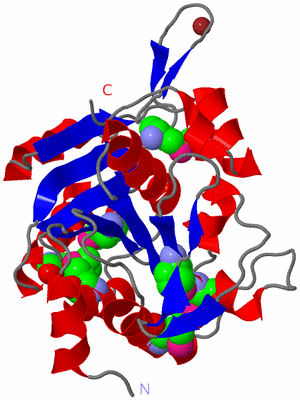

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

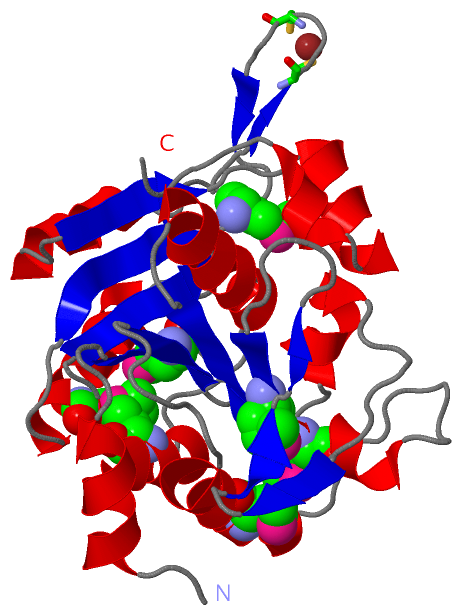

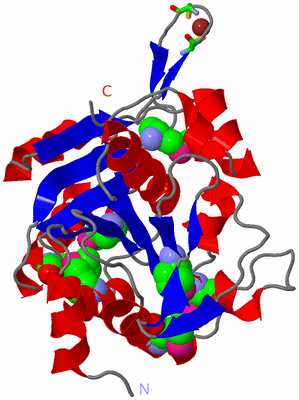

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

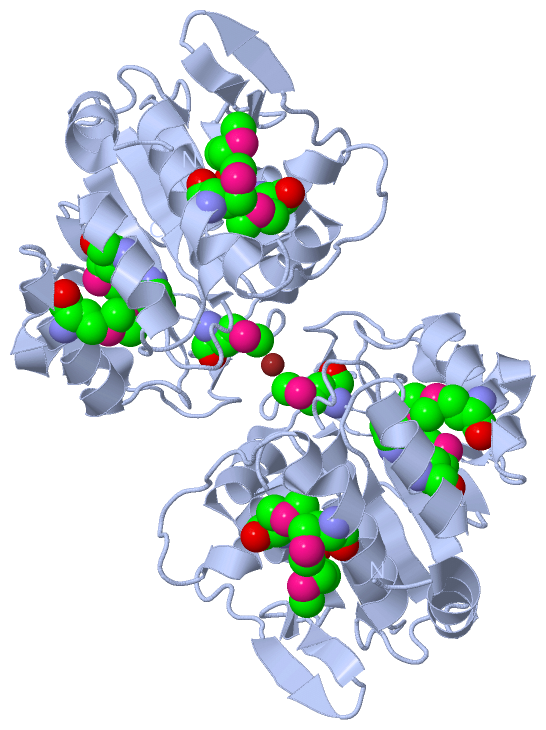

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

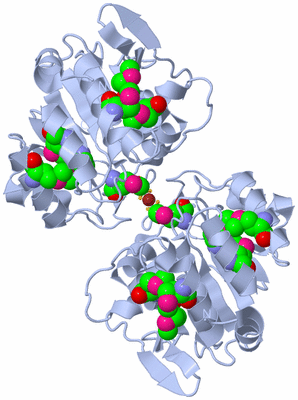

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

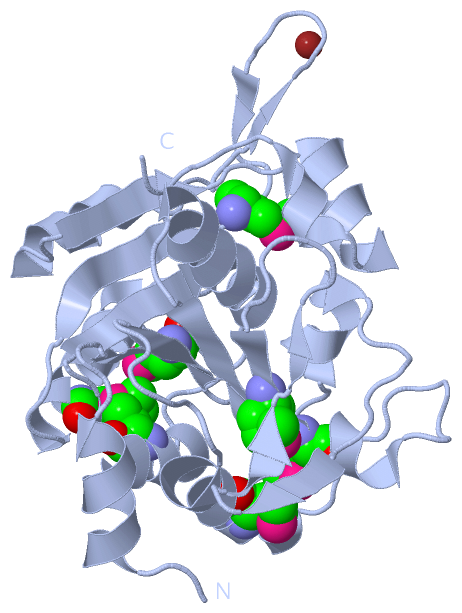

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF NUCLEOTIDE-BINDING PROTEIN AF2382 FROM ARCHAEOGLOBUS FULGIDUS, NORTHEAST STRUCTURAL GENOMICS TARGET GR165

Authors :  F. Forouhar, M. Abashidze, J. Seetharaman, H. Janjua, Y. Fang, R. Xiao, M. C. Baran, T. B. Acton, G. T. Montelione, J. F. Hunt, L. Tong, Northeas Structural Genomics Consortium (Nesg)
Date :  10 Apr 07  (Deposition) - 24 Apr 07  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.70
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Biol. Unit 2:  A  (1x)
Keywords :  Alpha-Beta Protein, Structural Genomics, Psi-2, Protein Structure Initiative, Northeast Structural Genomics Consortium, Nesg, Ligand Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  F. Forouhar, M. Abashidze, J. Seetharaman, H. Janjua, Y. Fang, R. Xiao J. Liu, M. C. Baran, T. B. Acton, G. T. Montelione, J. F. Hunt, L. Tong
Crystal Structure Of Nucleotide-Binding Protein Af2382 From Archaeoglobus Fulgidus.
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - NUCLEOTIDE-BINDING PROTEIN
    Atcc: 49558
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET21
    Expression System Strain: BL21(DE3)+MAGIC
    Expression System Taxid: 562
    Expression System Vector: BL21
    Expression System Vector Type: PLASMID
    Gene: AF_2382
    Organism Scientific: ARCHAEOGLOBUS FULGIDUS DSM 4304
    Organism Taxid: 224325
    Strain: DSM 4304, VC-16, JCM 9628, NBRC 100126

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A
Biological Unit 2 (1x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 8)

Asymmetric Unit (2, 8)
No.NameCountTypeFull Name
1MSE7Mod. Amino AcidSELENOMETHIONINE
2ZN1Ligand/IonZINC ION
Biological Unit 1 (1, 14)
No.NameCountTypeFull Name
1MSE14Mod. Amino AcidSELENOMETHIONINE
2ZN-1Ligand/IonZINC ION
Biological Unit 2 (1, 7)
No.NameCountTypeFull Name
1MSE7Mod. Amino AcidSELENOMETHIONINE
2ZN-1Ligand/IonZINC ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWARECYS A:196 , CYS A:199BINDING SITE FOR RESIDUE ZN A 301

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2PH1)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2PH1)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2PH1)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2PH1)

(-) Exons   (0, 0)

(no "Exon" information available for 2PH1)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:247
 aligned with O30288_ARCFU | O30288 from UniProtKB/TrEMBL  Length:254

    Alignment length:247
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243
         O30288_ARCFU     4 RVTDEEIKERLGKIKSRIAVMSGKGGVGKSTVTALLAVHYARQGKKVGILDADFLGPSIPILFGLRNARIAVSAEGLEPVLTQKYGIKVMSMQFLLPKENTPVIWRGPLIAGMIREFLGRVAWGELDHLLIDLPPGTGDAPLTVMQDAKPTGVVVVSTPQELTAVIVEKAINMAEETNTSVLGLVENMSYFVCPNCGHKSYIFGEGKGESLAKKYNIGFFTSIPIEEELIKLADSGRIEEYEKDWFE 250
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 2ph1A00 A:4-250 P-loop containing nucleotide triphosphate hydrolases                                                                                                                                                                                    CATH domains
               Pfam domains ---------------AAA_31-2ph1A01 A:19-96                                                        --------------------------------ParA-2ph1A02 A:129-209                                                           ----------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhh....eeeee......hhhhhhhhhhhhhhhh...eeeee.....hhhhhhh.......eee..eee.ee......eeehhhhhh..........hhhhhhhhhhhhhh.......eeeee......hhhhhhhhhhh..eeeeee.....hhhhhhhhhhhhhh....eeeeee....ee......ee......hhhhhhhhh...eeee...hhhhhhhhhh.hhhhh...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ph1 A   4 RVTDEEIKERLGKIKSRIAVmSGKGGVGKSTVTALLAVHYARQGKKVGILDADFLGPSIPILFGLRNARIAVSAEGLEPVLTQKYGIKVmSmQFLLPKENTPVIWRGPLIAGmIREFLGRVAWGELDHLLIDLPPGTGDAPLTVmQDAKPTGVVVVSTPQELTAVIVEKAINmAEETNTSVLGLVENmSYFVCPNCGHKSYIFGEGKGESLAKKYNIGFFTSIPIEEELIKLADSGRIEEYEKDWFE 250
                                    13        23|       33        43        53        63        73        83        93 |     103       113  |    123       133       143    |  153       163       173  |    183       193       203       213       223       233       243
                                               24-MSE                                                               93-MSE                116-MSE                         148-MSE                     176-MSE        191-MSE
                                                                                                                      95-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2PH1)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (2, 2)

Asymmetric Unit
(-)
Clan: P-loop_NTPase (1112)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)
Chain A   (O30288_ARCFU | O30288)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0016887    ATPase activity    Catalysis of the reaction: ATP + H2O = ADP + phosphate + 2 H+. May or may not be coupled to another reaction.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0051536    iron-sulfur cluster binding    Interacting selectively and non-covalently with an iron-sulfur cluster, a combination of iron and sulfur atoms.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
