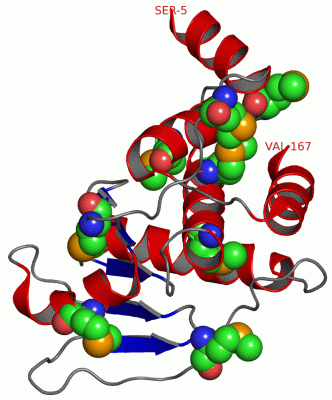

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

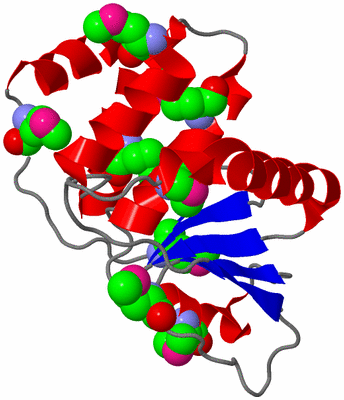

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  STRUCTURE-ASSISTED DISCOVERY OF VARIOLA MAJOR H1 PHOSPHATASE INHIBITORS

Authors :  J. Phan, J. E. Tropea, D. S. Waugh
Date :  12 Mar 07  (Deposition) - 29 May 07  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym./Biol. Unit :  A
Keywords :  Dual Specificity Phosphatase, Enzyme, Small Pox, Drug Design, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. Phan, J. E. Tropea, D. S. Waugh
Structure-Assisted Discovery Of Variola Major H1 Phosphatase Inhibitors
Acta Crystallogr. , Sect. D V. D63 698 2007
PubMed-ID: 17505108  |  Reference-DOI: 10.1107/S0907444907014904
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - DUAL SPECIFICITY PROTEIN PHOSPHATASE
    Chains: A
    EC Number: 3.1.3.48, 3.1.3.16
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PVPPASE2
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: ENZYME
    Organism Scientific: VARIOLA VIRUS
    Organism Taxid: 10255
    Synonym: LATE PROTEIN H1

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 8)

Asymmetric/Biological Unit (1, 8)
No.NameCountTypeFull Name
1MSE8Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 2P4D)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2P4D)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2P4D)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2P4D)

(-) PROSITE Motifs  (3, 3)

Asymmetric/Biological Unit (3, 3)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1TYR_PHOSPHATASE_DUALPS50054 Dual specificity protein phosphatase family profile.DUSP_VAR6726-164  1A:26-164
2TYR_PHOSPHATASE_2PS50056 Tyrosine specific protein phosphatases family profile.DUSP_VAR6786-160  1A:86-160
3TYR_PHOSPHATASE_1PS00383 Tyrosine specific protein phosphatases active site.DUSP_VAR67108-118  1A:108-118

(-) Exons   (0, 0)

(no "Exon" information available for 2P4D)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:163
 aligned with DUSP_VAR67 | P33064 from UniProtKB/Swiss-Prot  Length:171

    Alignment length:163
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164
           DUSP_VAR67     5 SLYKYLLLRSTGDMRRAKSPTIMTRVTNNVYLGNYKNAMNAPSSEVKFKYVLNLTMDKYTLPNSNINIIHIPLVDDTTTDISKYFDDVTAFLSKCDQRNEPVLVHCVAGVNRSGAMILAYLMSKNKESSPMLYFLYVYHSMRDLRGAFVENPSFKRQIIEKYV 167
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -----------------------------DSPc-2p4dA01 A:34-167                                                                                                                  Pfam domains
         Sec.struct. author hhhhhhhhhhh............ee....eeeehhhhhhhhhhh.....eeee.............eeee..........hhhhhhhhhhhhhhhhhhh..eeee.....hhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ---------------------TYR_PHOSPHATASE_DUAL  PDB: A:26-164 UniProt: 26-164                                                                                        --- PROSITE (1)
                PROSITE (2) ---------------------------------------------------------------------------------TYR_PHOSPHATASE_2  PDB: A:86-160 UniProt: 86-160                           ------- PROSITE (2)
                PROSITE (3) -------------------------------------------------------------------------------------------------------TYR_PHOSPHA------------------------------------------------- PROSITE (3)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2p4d A   5 SLYKYLLLRSTGDmRRAKSPTImTRVTNNVYLGNYKNAmNAPSSEVKFKYVLNLTmDKYTLPNSNINIIHIPLVDDTTTDISKYFDDVTAFLSKCDQRNEPVLVHCVAGVNRSGAmILAYLmSKNKESSPmLYFLYVYHSmRDLRGAFVENPSFKRQIIEKYV 167
                                    14   |    24  |     34        44        54     |  64        74        84        94       104       114     | 124 |     134|      144|      154       164
                                        18-MSE   27-MSE          43-MSE           60-MSE                                                     120-MSE |      135-MSE   145-MSE
                                                                                                                                                   126-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2P4D)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2P4D)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: Phosphatase (121)

(-) Gene Ontology  (15, 15)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (DUSP_VAR67 | P33064)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016791    phosphatase activity    Catalysis of the hydrolysis of phosphoric monoesters, releasing inorganic phosphate.
    GO:0004721    phosphoprotein phosphatase activity    Catalysis of the reaction: a phosphoprotein + H2O = a protein + phosphate. Together with protein kinases, these enzymes control the state of phosphorylation of cell proteins and thereby provide an important mechanism for regulating cellular activity.
    GO:0004725    protein tyrosine phosphatase activity    Catalysis of the reaction: protein tyrosine phosphate + H2O = protein tyrosine + phosphate.
    GO:0008138    protein tyrosine/serine/threonine phosphatase activity    Catalysis of the reactions: protein serine + H2O = protein serine + phosphate; protein threonine phosphate + H2O = protein threonine + phosphate; and protein tyrosine phosphate + H2O = protein tyrosine + phosphate.
biological process
    GO:0016311    dephosphorylation    The process of removing one or more phosphoric (ester or anhydride) residues from a molecule.
    GO:0030683    evasion or tolerance by virus of host immune response    Any process, either active or passive, by which a virus avoids the effects of the host organism's immune response. The host is defined as the larger of the organisms involved in a symbiotic interaction.
    GO:0035335    peptidyl-tyrosine dephosphorylation    The removal of phosphoric residues from peptidyl-O-phospho-tyrosine to form peptidyl-tyrosine.
    GO:0006470    protein dephosphorylation    The process of removing one or more phosphoric residues from a protein.
    GO:0039563    suppression by virus of host STAT1 activity    Any process in which a virus stops, prevents, or reduces the frequency, rate or extent of host STAT1 (signal transducer and activator of transcription-1) activity. STATs are SH2 domain-containing proteins which lie downstream of many signaling receptors. Upon phosphorylation by JAKs, STAT proteins hetero- or homo-dimerize and translocate to the nucleus to activate transcription of target genes.
    GO:0039503    suppression by virus of host innate immune response    Any process in which a virus stops, prevents, or reduces the frequency, rate or extent of the innate immune response of the host organism, the host's first line of defense.
    GO:0039502    suppression by virus of host type I interferon-mediated signaling pathway    Any process in which a virus stops, prevents, or reduces the frequency, rate or extent of type I interferon-mediated signaling in the host organism. Type I interferons include the interferon-alpha, beta, delta, episilon, zeta, kappa, tau, and omega gene families.
    GO:0016032    viral process    A multi-organism process in which a virus is a participant. The other participant is the host. Includes infection of a host cell, replication of the viral genome, and assembly of progeny virus particles. In some cases the viral genetic material may integrate into the host genome and only subsequently, under particular circumstances, 'complete' its life cycle.
cellular component
    GO:0030430    host cell cytoplasm    The cytoplasm of a host cell.
    GO:0019012    virion    The complete fully infectious extracellular virus particle.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 2p4d)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2p4d)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

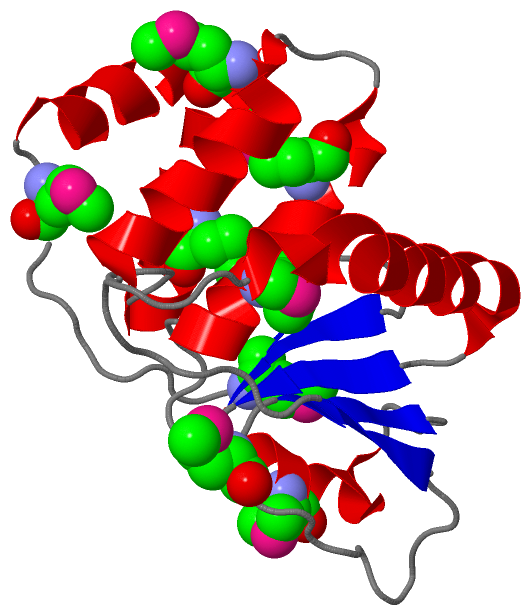

[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
