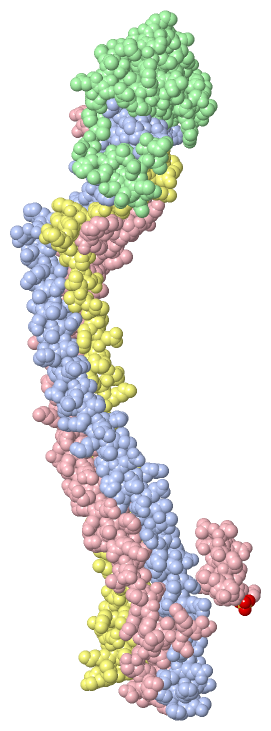

Biological Unit 1 (Jmol Viewer)

Biol. Unit 1 - sites (Jmol Viewer)

Biological Unit 2 (Jmol Viewer)

Biological Unit 3 (Jmol Viewer)

Biological Unit 4 (Jmol Viewer)

Biological Unit 5 (Jmol Viewer)

Biological Unit 6 (Jmol Viewer)

Title :   STRUCTURE OF THE YEAST ESCRT-I HETEROTETRAMER CORE

Authors :   Ms Kostelansky, J. H. Hurley

Date :   06 Mar 07 (Deposition) - 05 Jun 07 (Release) - 24 Jun 15 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.70

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: A,B,C,D  (1x)
Biol. Unit 2: A,B,C,D  (4x)
Biol. Unit 3: A (2x),B (2x),C (2x),D (2x)
Biol. Unit 4: A,B,C,D  (2x)
Biol. Unit 5: A,B,C,D  (2x)
Biol. Unit 6: A,B,C,D  (2x)

Keywords :   Endosome, Trafficking Complex, Vps23, Vps28, Vps37, Mvb12, Vacuolar Protein Sorting, Escrt Protein Complexes, Endosomal Sorting Complex Required For Transport, Escrt-I, Ubiquitin, Tsg101, Transport Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. S. Kostelansky, C. Schluter, Y. Y. Tam, S. Lee, R. Ghirlando, B. Beach, E. Conibear, J. H. Hurley
Molecular Architecture And Functional Model Of The Complete Yeast Escrt-I Heterotetramer.
Cell(Cambridge, Mass. ) V. 129 485 2007
PubMed-ID: 17442384 | Reference-DOI: 10.1016/J.CELL.2007.03.016

Molecule 1 - SUPPRESSOR PROTEIN STP22 OF TEMPERATURE-SENSITIVE ALPHA- FACTOR RECEPTOR AND ARGININE PERMEASE
	Chains	:	A
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PST39
	Expression System Strain	:	BL21DE3 RIL
	Expression System Taxid	:	562
	Expression System Vector Type	:	POLYCYSTRONIC
	Fragment	:	VPS23 (215-385)
	Gene	:	VPS23
	Organism Common	:	BAKER'S YEAST
	Organism Scientific	:	SACCHAROMYCES CEREVISIAE
	Organism Taxid	:	4932
	Synonym	:	VACUOLAR PROTEIN SORTING-ASSOCIATED PROTEIN 23

Molecule 2 - VACUOLAR PROTEIN SORTING-ASSOCIATED PROTEIN 28
	Chains	:	B
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PST39
	Expression System Strain	:	BL21DE3 RIL
	Expression System Taxid	:	562
	Expression System Vector Type	:	POLYCYSTRONIC
	Fragment	:	VPS28N-TERMINAL DOMAIN (1-118)
	Gene	:	VPT28
	Mutation	:	YES
	Organism Common	:	BAKER'S YEAST
	Organism Scientific	:	SACCHAROMYCES CEREVISIAE
	Organism Taxid	:	4932

Molecule 3 - PROTEIN SRN2
	Chains	:	C
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PST39
	Expression System Strain	:	BL21DE3 RIL
	Expression System Taxid	:	562
	Expression System Vector Type	:	POLYCYSTRONIC
	Fragment	:	VPS37 (22-213)
	Gene	:	VPS37
	Mutation	:	YES
	Organism Common	:	BAKER'S YEAST
	Organism Scientific	:	SACCHAROMYCES CEREVISIAE
	Organism Taxid	:	4932
	Synonym	:	VACUOLAR PROTEIN SORTING-ASSOCIATED PROTEIN 37

Molecule 4 - HYPOTHETICAL 12.0 KDA PROTEIN IN ADE3-SER2 INTERGENIC REGION
	Chains	:	D
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PST39
	Expression System Strain	:	BL21DE3 RIL
	Expression System Taxid	:	562
	Expression System Vector Type	:	POLYCYSTRONIC
	Fragment	:	MVB12 (4-81)
	Gene	:	MVB12
	Organism Common	:	BAKER'S YEAST
	Organism Scientific	:	SACCHAROMYCES CEREVISIAE
	Organism Taxid	:	4932

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A	B	C	D
Biological Unit 2 (4x)	:	A	B	C	D
Biological Unit 3 (2x)	:	A (2x)	B (2x)	C (2x)	D (2x)
Biological Unit 4 (2x)	:	A	B	C	D
Biological Unit 5 (2x)	:	A	B	C	D
Biological Unit 6 (2x)	:	A	B	C	D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 4)

No.	Name	Count	Type	Full Name
1	SO4	4	Ligand/Ion	SULFATE ION

Biological Unit 1 (1, 4)

No.	Name	Count	Type	Full Name
1	SO4	4	Ligand/Ion	SULFATE ION

Biological Unit 2 (1, 16)

No.	Name	Count	Type	Full Name
1	SO4	16	Ligand/Ion	SULFATE ION

Biological Unit 3 (0, 0)

No.	Name	Count	Type	Full Name
1	SO4	-1	Ligand/Ion	SULFATE ION

Biological Unit 4 (1, 8)

No.	Name	Count	Type	Full Name
1	SO4	8	Ligand/Ion	SULFATE ION

Biological Unit 5 (1, 8)

No.	Name	Count	Type	Full Name
1	SO4	8	Ligand/Ion	SULFATE ION

Biological Unit 6 (1, 8)

No.	Name	Count	Type	Full Name
1	SO4	8	Ligand/Ion	SULFATE ION

Asymmetric Unit (4, 4)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	HIS C:71 , HIS C:73 , GLN C:74	BINDING SITE FOR RESIDUE SO4 C 214
2	AC2	SOFTWARE	TYR A:336 , HOH C:21 , HIS C:196 , ARG C:199 , GLU D:6	BINDING SITE FOR RESIDUE SO4 C 215
3	AC3	SOFTWARE	LYS C:113 , PRO D:38 , ALA D:39 , LEU D:40 , GLN D:41 , HOH D:104	BINDING SITE FOR RESIDUE SO4 D 103
4	AC4	SOFTWARE	SER C:22 , ARG C:23 , HIS C:73 , ALA D:39	BINDING SITE FOR RESIDUE SO4 C 216

(no "SS Bond" information available for 2P22)

(no "Cis Peptide Bond" information available for 2P22)

(no "SAP(SNP)/Variant" information available for 2P22)

Asymmetric Unit (3, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	VPS28_N	PS51313	VPS28 N-terminal domain profile.	VPS28_YEAST	11-125	1	B:11-117
2	VPS37_C	PS51314	VPS37 C-terminal domain profile.	SRN2_YEAST	128-213	1	C:128-213
3	SB	PS51312	Steadiness box (SB) domain profile.	STP22_YEAST	322-385	1	A:322-385

Biological Unit 1 (3, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	VPS28_N	PS51313	VPS28 N-terminal domain profile.	VPS28_YEAST	11-125	1	B:11-117
2	VPS37_C	PS51314	VPS37 C-terminal domain profile.	SRN2_YEAST	128-213	1	C:128-213
3	SB	PS51312	Steadiness box (SB) domain profile.	STP22_YEAST	322-385	1	A:322-385

Biological Unit 2 (3, 12)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	VPS28_N	PS51313	VPS28 N-terminal domain profile.	VPS28_YEAST	11-125	4	B:11-117
2	VPS37_C	PS51314	VPS37 C-terminal domain profile.	SRN2_YEAST	128-213	4	C:128-213
3	SB	PS51312	Steadiness box (SB) domain profile.	STP22_YEAST	322-385	4	A:322-385

Biological Unit 3 (3, 6)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	VPS28_N	PS51313	VPS28 N-terminal domain profile.	VPS28_YEAST	11-125	2	B:11-117
2	VPS37_C	PS51314	VPS37 C-terminal domain profile.	SRN2_YEAST	128-213	2	C:128-213
3	SB	PS51312	Steadiness box (SB) domain profile.	STP22_YEAST	322-385	2	A:322-385

Biological Unit 4 (3, 6)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	VPS28_N	PS51313	VPS28 N-terminal domain profile.	VPS28_YEAST	11-125	2	B:11-117
2	VPS37_C	PS51314	VPS37 C-terminal domain profile.	SRN2_YEAST	128-213	2	C:128-213
3	SB	PS51312	Steadiness box (SB) domain profile.	STP22_YEAST	322-385	2	A:322-385

Biological Unit 5 (3, 6)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	VPS28_N	PS51313	VPS28 N-terminal domain profile.	VPS28_YEAST	11-125	2	B:11-117
2	VPS37_C	PS51314	VPS37 C-terminal domain profile.	SRN2_YEAST	128-213	2	C:128-213
3	SB	PS51312	Steadiness box (SB) domain profile.	STP22_YEAST	322-385	2	A:322-385

Biological Unit 6 (3, 6)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	VPS28_N	PS51313	VPS28 N-terminal domain profile.	VPS28_YEAST	11-125	2	B:11-117
2	VPS37_C	PS51314	VPS37 C-terminal domain profile.	SRN2_YEAST	128-213	2	C:128-213
3	SB	PS51312	Steadiness box (SB) domain profile.	STP22_YEAST	322-385	2	A:322-385

Asymmetric Unit (4, 4)

	ENSEMBL					UniProtKB			PDB
No.	Transcript ID	Exon	Exon ID	Genome Location	Length	ID	Location	Length	Count	Location	Length
1.1	YCL008C	1	YCL008C.1	III:106853-105696	1158	STP22_YEAST	1-385	385	1	A:218-385	168

2.1	YGR206W	1	YGR206W.1	VII:910437-910742	306	MVB12_YEAST	1-101	101	1	D:3-81 (gaps)	81

3.1	YLR119W	1	YLR119W.1	XII:385535-386176	642	SRN2_YEAST	1-213	213	1	C:22-213 (gaps)	192

4.1	YPL065W	1	YPL065W.1	XVI:427924-428652	729	VPS28_YEAST	1-242	242	1	B:7-117 (gaps)	111

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:168
 aligned with STP22_YEAST | P25604 from UniProtKB/Swiss-Prot  Length:385

    Alignment length:168
                                   227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377
          STP22_YEAST   218 PTNHHEMLQNLQTVVNELYREDVDYVADKILTRQTVMQESIARFHEIIAIDKNHLRAVEQAIEQTMHSLNAQIDVLTANRAKVQQFSSTSHVDDEDVNSIAVAKTDGLNQLYNLVAQDYALTDTIECLSRMLHRGTIPLDTFVKQGRELARQQFLVRWHIQRITSPLS 385
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------Vps23_core-2p22A01 A:315-379                                     ------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhh.ee..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------SB  PDB: A:322-385 UniProt: 322-385                              PROSITE
               Transcript 1 Exon 1.1  PDB: A:218-385 UniProt: 1-385 [INCOMPLETE]                                                                                                                     Transcript 1
                 2p22 A 218 PTNHHEMLQNLQTVVNELYREDVDYVADKILTRQTVMQESIARFHEIIAIDKNHLRAVEQAIEQTMHSLNAQIDVLTANRAKVQQFSSTSHVDDEDVNSIAVAKTDGLNQLYNLVAQDYALTDTIECLSRMLHRGTIPLDTFVKQGRELARQQFLVRWHIQRITSPLS 385
                                   227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377

Chain B from PDB  Type:PROTEIN  Length:92
 aligned with VPS28_YEAST | Q02767 from UniProtKB/Swiss-Prot  Length:242

    Alignment length:111
                                    16        26        36        46        56        66        76        86        96       106       116
          VPS28_YEAST     7 KLNQNQDISQLFHDEVPLFDNSITSKDKEVIETLSEIYSIVITLDHVEKAYLKDSIDDTQYTNTVDKLLKQFKVYLNSQNKEEINKHFQSIEAFCDTYNITASNAITRLER 117
               SCOP domains d2p22b_ B: automated matches                                                                                    SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------VPS28-2p22B01 B:40-117                                                         Pfam domains
         Sec.struct. author ......hhhhhhh..........hhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh.....-------------------.hhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----VPS28_N  PDB: B:11-117 UniProt: 11-125                                                                      PROSITE
               Transcript 4 Exon 4.1  PDB: B:7-117 (gaps) UniProt: 1-242 [INCOMPLETE]                                                       Transcript 4
                 2p22 B   7 KLNQNQDISQLFHDEVPLFDNSITSKDKEVIETLSEIYSIVITLDHVEKAYLKDSIDDTQYTNTVDKLLKQFKVYLNSQNKEE-------------------SNAITRLER 117
                                    16        26        36        46        56        66        76        86  |      -         -  |    116
                                                                                                             89                 109

Chain C from PDB  Type:PROTEIN  Length:186
 aligned with SRN2_YEAST | Q99176 from UniProtKB/Swiss-Prot  Length:213

    Alignment length:192
                                    31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211
           SRN2_YEAST    22 SRLDIIRAEMDVVPSPGLPEKVNEKSKNIPLPEGINLLSSKEIIDLIQTHRHQLELYVTKFNPLTDFAGKIHAFRDQFKQLEENFEDLHEQKDKVQALLENCRILESKYVASWQDYHSEFSKKYGDIALKKKLEQNTKKLDEESSQLETTTRSIDSADDLDQFIKNYLDIRTQYHLRREKLATWDKQGNLKY 213
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ----------------------------------Mod_r-2p22C01 C:56-202                                                                                                                             ----------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhh......------.......hhhhh..hhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------VPS37_C  PDB: C:128-213 UniProt: 128-213                                               PROSITE
               Transcript 3 Exon 3.1  PDB: C:22-213 (gaps) UniProt: 1-213 [INCOMPLETE]                                                                                                                                       Transcript 3
                 2p22 C  22 SRLDIIRAEMDVVPSPGLP------SKNIPLPEGINLLSSKEIIDLIQTHRHQLELYVTKFNPLTDFAGKIHAFRDQFKQLEENFEDLHEQKDKVQALLENARILESKYVASWQDYHSEFSKKYGDIALKKKLEQNTKKLDEESSQLETTTRSIDSADDLDQFIKNYLDIRTQYHLRREKLATWDKQGNLKY 213
                                    31        |-     |  51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211
                                             40     47

Chain D from PDB  Type:PROTEIN  Length:79
 aligned with MVB12_YEAST | P42939 from UniProtKB/Swiss-Prot  Length:101

    Alignment length:81
                                    10        20        30        40        50        60        70        80
          MVB12_YEAST     1 MNNNVEELLRRIPLYNKYGKDFPQETVTRFQMPEFKLPALQPTRDLLCPWYEECDNITKVCQLHDSSNKKFDQWYKEQYLS  81
               SCOP domains --------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------- CATH domains
               Pfam domains -------Mvb12-2p22D01 D:8-81                                                       Pfam domains
         Sec.struct. author hh--hhhhhhhh..ee.......................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------- PROSITE
               Transcript 2 Exon 2.1  PDB: D:3-81 (gaps) UniProt: 1-101 [INCOMPLETE]                          Transcript 2
                 2p22 D   3 MN--VEELLRRIPLYNKYGKDFPQETVTRFQMPEFKLPALQPTRDLLCPWYEECDNITKVCQLHDSSNKKFDQWYKEQYLS  81
                             |  |   10        20        30        40        50        60        70        80
                             4  5

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All alpha proteins (14657)

Fold: Long alpha-hairpin (315)

Superfamily: Endosomal sorting complex assembly domain (9)

Family: VPS28 N-terminal domain (4)

Protein domain: automated matches (1)

Baker's yeast (Saccharomyces cerevisiae) [TaxId: 4932] (1)

d2p22b_

(no "CATH Domain" information available for 2P22)

Asymmetric Unit(hide GO term definitions)

Chain A (STP22_YEAST | P25604)

molecular function
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0043130	ubiquitin binding	Interacting selectively and non-covalently with ubiquitin, a protein that when covalently bound to other cellular proteins marks them for proteolytic degradation.
biological process
	GO:0006464	cellular protein modification process	The covalent alteration of one or more amino acids occurring in proteins, peptides and nascent polypeptides (co-translational, post-translational modifications) occurring at the level of an individual cell. Includes the modification of charged tRNAs that are destined to occur in a protein (pre-translation modification).
	GO:0045324	late endosome to vacuole transport	The directed movement of substances from late endosomes to the vacuole. In yeast, after transport to the prevacuolar compartment, endocytic content is delivered to the late endosome and on to the vacuole. This pathway is analogous to endosome to lysosome transport.
	GO:1902915	negative regulation of protein polyubiquitination	Any process that stops, prevents or reduces the frequency, rate or extent of protein polyubiquitination.
	GO:0006612	protein targeting to membrane	The process of directing proteins towards a membrane, usually using signals contained within the protein.
	GO:0006623	protein targeting to vacuole	The process of directing proteins towards the vacuole, usually using signals contained within the protein.
	GO:0015031	protein transport	The directed movement of proteins into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
	GO:0043162	ubiquitin-dependent protein catabolic process via the multivesicular body sorting pathway	The chemical reactions and pathways resulting in the breakdown of a protein or peptide covalently tagged with ubiquitin, via the multivesicular body (MVB) sorting pathway; ubiquitin-tagged proteins are sorted into MVBs, and delivered to a lysosome/vacuole for degradation.
cellular component
	GO:0000813	ESCRT I complex	An endosomal sorting complex required for transport. It consists of the class E vacuolar protein sorting (Vps) proteins and interacts with ubiquitinated cargoes.
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0009898	cytoplasmic side of plasma membrane	The leaflet the plasma membrane that faces the cytoplasm and any proteins embedded or anchored in it or attached to its surface.
	GO:0005768	endosome	A vacuole to which materials ingested by endocytosis are delivered.
	GO:0031902	late endosome membrane	The lipid bilayer surrounding a late endosome.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

Chain B (VPS28_YEAST | Q02767)

molecular function
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0032403	protein complex binding	Interacting selectively and non-covalently with any protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
	GO:0006612	protein targeting to membrane	The process of directing proteins towards a membrane, usually using signals contained within the protein.
	GO:0006623	protein targeting to vacuole	The process of directing proteins towards the vacuole, usually using signals contained within the protein.
	GO:0015031	protein transport	The directed movement of proteins into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0043328	protein transport to vacuole involved in ubiquitin-dependent protein catabolic process via the multivesicular body sorting pathway	The process of directing proteins towards the vacuole that contributes to protein catabolism via the multivesicular body (MVB) pathway.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
	GO:0043162	ubiquitin-dependent protein catabolic process via the multivesicular body sorting pathway	The chemical reactions and pathways resulting in the breakdown of a protein or peptide covalently tagged with ubiquitin, via the multivesicular body (MVB) sorting pathway; ubiquitin-tagged proteins are sorted into MVBs, and delivered to a lysosome/vacuole for degradation.
cellular component
	GO:0000813	ESCRT I complex	An endosomal sorting complex required for transport. It consists of the class E vacuolar protein sorting (Vps) proteins and interacts with ubiquitinated cargoes.
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005768	endosome	A vacuole to which materials ingested by endocytosis are delivered.
	GO:0031902	late endosome membrane	The lipid bilayer surrounding a late endosome.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

Chain C (SRN2_YEAST | Q99176)

molecular function
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
	GO:0006612	protein targeting to membrane	The process of directing proteins towards a membrane, usually using signals contained within the protein.
	GO:0006623	protein targeting to vacuole	The process of directing proteins towards the vacuole, usually using signals contained within the protein.
	GO:0015031	protein transport	The directed movement of proteins into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
	GO:0043162	ubiquitin-dependent protein catabolic process via the multivesicular body sorting pathway	The chemical reactions and pathways resulting in the breakdown of a protein or peptide covalently tagged with ubiquitin, via the multivesicular body (MVB) sorting pathway; ubiquitin-tagged proteins are sorted into MVBs, and delivered to a lysosome/vacuole for degradation.
cellular component
	GO:0000813	ESCRT I complex	An endosomal sorting complex required for transport. It consists of the class E vacuolar protein sorting (Vps) proteins and interacts with ubiquitinated cargoes.
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005768	endosome	A vacuole to which materials ingested by endocytosis are delivered.
	GO:0031902	late endosome membrane	The lipid bilayer surrounding a late endosome.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

Chain D (MVB12_YEAST | P42939)

molecular function
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0043130	ubiquitin binding	Interacting selectively and non-covalently with ubiquitin, a protein that when covalently bound to other cellular proteins marks them for proteolytic degradation.
biological process
	GO:0032509	endosome transport via multivesicular body sorting pathway	The directed movement of substances from endosomes to lysosomes or vacuoles by a pathway in which molecules are sorted into multivesicular bodies, which then fuse with the target compartment.
	GO:0031333	negative regulation of protein complex assembly	Any process that stops, prevents, or reduces the frequency, rate or extent of protein complex assembly.
	GO:0006623	protein targeting to vacuole	The process of directing proteins towards the vacuole, usually using signals contained within the protein.
	GO:0015031	protein transport	The directed movement of proteins into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
	GO:0000813	ESCRT I complex	An endosomal sorting complex required for transport. It consists of the class E vacuolar protein sorting (Vps) proteins and interacts with ubiquitinated cargoes.
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005829	cytosol	The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
	GO:0005768	endosome	A vacuole to which materials ingested by endocytosis are delivered.
	GO:0031902	late endosome membrane	The lipid bilayer surrounding a late endosome.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2p22)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]
		Biological Unit 4	[ Jena3D ]
		Biological Unit 5	[ Jena3D ]
		Biological Unit 6	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format \| Biol. Unit 4 PNG format \| Biol. Unit 5 PNG format \| Biol. Unit 6 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	2p22
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	MVB12_YEAST \| P42939
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	SRN2_YEAST \| Q99176
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	STP22_YEAST \| P25604
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	VPS28_YEAST \| Q02767
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	MVB12_YEAST \| P42939
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	SRN2_YEAST \| Q99176
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	STP22_YEAST \| P25604
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	VPS28_YEAST \| Q02767
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	SRN2_YEAST \| Q99176	:	2caz 2f66
	STP22_YEAST \| P25604	:	1uzx 2caz 2f66 2f6m 3r3q 3r42
	VPS28_YEAST \| Q02767	:	2caz 2f66 2f6m 2g3k 2j9u 2j9v

2caz	RELATED ID: 1UZX' RELATED DB: PDB
2f66
2f6m
2j9u
2j9v

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 4)

Sites (4, 4)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (3, 3)

Exons (4, 4)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (0, 0)

Pfam Domains (4, 4)

Gene Ontology (21, 53)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
