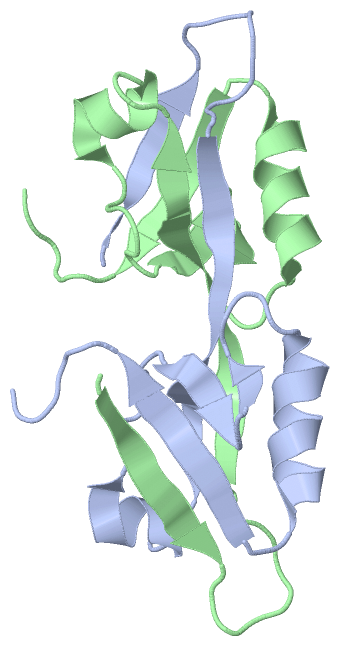

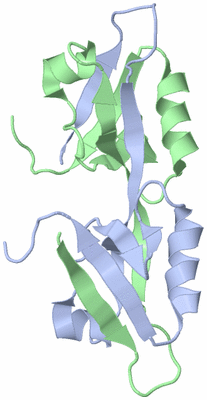

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

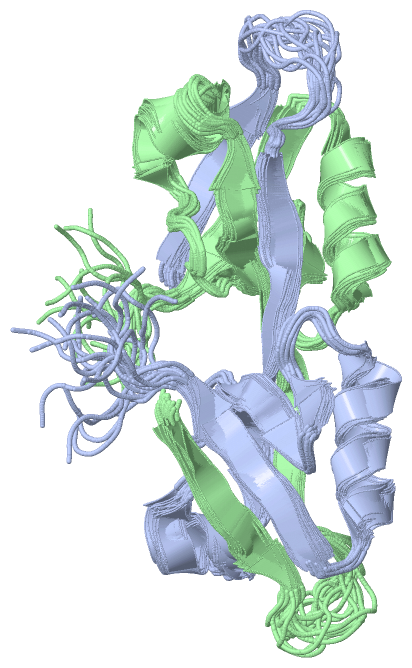

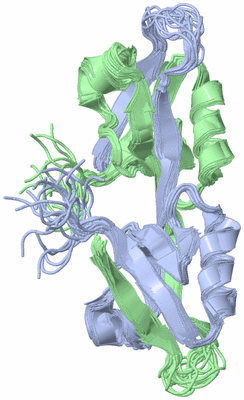

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE AND BINDING PROPERTY OF THE DOMAIN-SWAPPED DIMER OF ZO2PDZ2

Authors :  J. W. Wu, Y. S. Yang, J. H. Zhang, P. Ji, J. H. Wu, Y. Y. Shi
Date :  05 Feb 07  (Deposition) - 25 Sep 07  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A,B  (20x)
Keywords :  Tight Junction, Zo-2, Pdz Domain, Homodimer, Domain Swapping, Nmr Structure, Cell Adhesion (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  J. W. Wu, Y. S. Yang, J. H. Zhang, P. Ji, W. J. Du, P. Jiang, D. H. Xie, H. D. Huang, M. Wu, G. Z. Zhang, J. H. Wu, Y. Y. Shi
Domain-Swapped Dimerization Of The Second Pdz Domain Of Zo2 May Provide A Structural Basis For The Polymerization Of Claudins
J. Biol. Chem. V. 282 35988 2007
PubMed-ID: 17897942  |  Reference-DOI: 10.1074/JBC.M703826200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - TIGHT JUNCTION PROTEIN ZO-2
    ChainsA, B
    EngineeredYES
    Expression SystemESCHERICHIA COLI BL21(DE3)
    Expression System PlasmidPET22B (+)
    Expression System StrainBL21(DE3)
    Expression System Taxid469008
    Expression System Vector TypePLASMID
    FragmentZO2PDZ2 DOMAIN
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    SynonymTIGHT JUNCTION ASSOCIATED PROTEIN, ZONULA OCCLUDENS 2 PROTEIN, ZONA OCCLUDENS 2 PROTEIN, TIGHT JUNCTION PROTEIN 2
    TissueBRAIN

 Structural Features

(-) Chains, Units


NMR Structure (20x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2OSG)

(-) Sites  (0, 0)

(no "Site" information available for 2OSG)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2OSG)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2OSG)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2OSG)

(-) PROSITE Motifs  (1, 2)

NMR Structure (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PDZPS50106 PDZ domain profile.ZO2_HUMAN33-120
307-385

509-590
  2-
A:3-81
B:86-164
-

(-) Exons   (3, 6)

NMR Structure (3, 6)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.2aENST000003772452aENSE00001639423chr9:71789081-71789348268ZO2_HUMAN1-20200--
1.3ENST000003772453ENSE00001637501chr9:71827464-7182751754ZO2_HUMAN21-38180--
1.4ENST000003772454ENSE00000803615chr9:71831255-71831379125ZO2_HUMAN39-80420--
1.5aENST000003772455aENSE00001229544chr9:71833173-71833275103ZO2_HUMAN80-114350--
1.6bENST000003772456bENSE00000803618chr9:71835803-71836412610ZO2_HUMAN115-3182042A:1-14
B:84-97
14
14
1.7ENST000003772457ENSE00000803619chr9:71840220-71840323104ZO2_HUMAN318-352352A:14-48
B:97-131
35
35
1.8ENST000003772458ENSE00000803622chr9:71840938-71841091154ZO2_HUMAN353-404522A:49-83
B:132-166
35
35
1.9ENST000003772459ENSE00000803624chr9:71842681-71842789109ZO2_HUMAN404-440370--
1.10ENST0000037724510ENSE00000803626chr9:71842897-71843030134ZO2_HUMAN440-485460--
1.11ENST0000037724511ENSE00000803627chr9:71844100-7184416667ZO2_HUMAN485-507230--
1.12ENST0000037724512ENSE00000803630chr9:71844998-71845148151ZO2_HUMAN507-557510--
1.13ENST0000037724513ENSE00000705645chr9:71849355-71849463109ZO2_HUMAN558-594370--
1.14ENST0000037724514ENSE00000705644chr9:71850944-71851154211ZO2_HUMAN594-664710--
1.15ENST0000037724515ENSE00000803633chr9:71851865-71852052188ZO2_HUMAN664-727640--
1.16ENST0000037724516ENSE00000705642chr9:71852794-7185288996ZO2_HUMAN727-759330--
1.17ENST0000037724517ENSE00000705641chr9:71853626-7185370580ZO2_HUMAN759-785270--
1.18ENST0000037724518ENSE00000803637chr9:71854853-71855063211ZO2_HUMAN786-856710--
1.19bENST0000037724519bENSE00000803638chr9:71861606-71861706101ZO2_HUMAN856-889340--
1.20bENST0000037724520bENSE00000803640chr9:71862928-71863140213ZO2_HUMAN890-960710--
1.21ENST0000037724521ENSE00000705638chr9:71864291-71864401111ZO2_HUMAN961-997370--
1.22ENST0000037724522ENSE00001229349chr9:71865951-71866280330ZO2_HUMAN998-11071100--
1.23ENST0000037724523ENSE00001229501chr9:71867731-7186781686ZO2_HUMAN1108-1136290--
1.24ENST0000037724524ENSE00001524662chr9:71869125-71870120996ZO2_HUMAN1136-1190550--

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:83
 aligned with ZO2_HUMAN | Q9UDY2 from UniProtKB/Swiss-Prot  Length:1190

    Alignment length:83
                                   314       324       334       344       354       364       374       384
            ZO2_HUMAN   305 PIGVLLMKSRANEEYGLRLGSQIFVKEMTRTGLATKDGNLHEGDIILKINGTVTENMSLTDARKLIEKSRGKLQLVVLRDSQQ 387
               SCOP domains ----------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee.........eeeeeeeeeeee...hhhhhhh.......eeee..ee....hhhhhhhhhhhh..eeeeee...... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --PDZ  PDB: A:3-81 UniProt: 307-385                                              -- PROSITE
           Transcript 1 (1) Exon 1.6b     ----------------------------------Exon 1.8  PDB: A:49-83 [INCOMPLETE] Transcript 1 (1)
           Transcript 1 (2) -------------Exon 1.7  PDB: A:14-48             ----------------------------------- Transcript 1 (2)
                 2osg A   1 MIGVLLMKSRANEEYGLRLGSQIFVKEMTRTGLATKDGNLHEGDIILKINGTVTENMSLTDARKLIEKSRGKLQLVVLRDSLE  83
                                    10        20        30        40        50        60        70        80

Chain B from PDB  Type:PROTEIN  Length:83
 aligned with ZO2_HUMAN | Q9UDY2 from UniProtKB/Swiss-Prot  Length:1190

    Alignment length:83
                                   314       324       334       344       354       364       374       384
            ZO2_HUMAN   305 PIGVLLMKSRANEEYGLRLGSQIFVKEMTRTGLATKDGNLHEGDIILKINGTVTENMSLTDARKLIEKSRGKLQLVVLRDSQQ 387
               SCOP domains ----------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) -PDZ-2osgB01 B:85-161                                                         ----- Pfam domains (1)
           Pfam domains (2) -PDZ-2osgB02 B:85-161                                                         ----- Pfam domains (2)
         Sec.struct. author .eeeeee.........eeeeeeeeeeee...hhhhhhh.......eeee..ee....hhhhhhhhhhhh..eeeeee...... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --PDZ  PDB: B:86-164 UniProt: 307-385                                            -- PROSITE
           Transcript 1 (1) Exon 1.6b     ----------------------------------Exon 1.8  PDB: B:132-166            Transcript 1 (1)
           Transcript 1 (2) -------------Exon 1.7  PDB: B:97-131            ----------------------------------- Transcript 1 (2)
                 2osg B  84 MIGVLLMKSRANEEYGLRLGSQIFVKEMTRTGLATKDGNLHEGDIILKINGTVTENMSLTDARKLIEKSRGKLQLVVLRDSLE 166
                                    93       103       113       123       133       143       153       163

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2OSG)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2OSG)

(-) Pfam Domains  (1, 2)

NMR Structure
(-)
Clan: PDZ-like (184)
(-)
Family: PDZ (172)
1aPDZ-2osgB01B:85-161
1bPDZ-2osgB02B:85-161

(-) Gene Ontology  (23, 23)

NMR Structure(hide GO term definitions)
Chain A,B   (ZO2_HUMAN | Q9UDY2)
molecular function
    GO:0004385    guanylate kinase activity    Catalysis of the reaction: ATP + GMP = ADP + GDP.
    GO:0008022    protein C-terminus binding    Interacting selectively and non-covalently with a protein C-terminus, the end of any peptide chain at which the 1-carboxy function of a constituent amino acid is not attached in peptide linkage to another amino-acid residue.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0030674    protein binding, bridging    The binding activity of a molecule that brings together two or more protein molecules, or a protein and another macromolecule or complex, through a selective, non-covalent, often stoichiometric interaction, permitting those molecules to function in a coordinated way.
    GO:0019904    protein domain specific binding    Interacting selectively and non-covalently with a specific domain of a protein.
biological process
    GO:0046710    GDP metabolic process    The chemical reactions and pathways involving GDP, guanosine 5'-diphosphate.
    GO:0046037    GMP metabolic process    The chemical reactions and pathways involving GMP, guanosine monophosphate.
    GO:0071847    TNFSF11-mediated signaling pathway    A series of molecular signals initiated by the binding of tumor necrosis factor ligand superfamily member 11 (TNFSF11) to a receptor on the surface of a cell, and ending with regulation of a downstream cellular process, e.g. transcription.
    GO:0090557    establishment of endothelial intestinal barrier    The establishment of a barrier between endothelial cell layers of the intestine to exert specific and selective control over the passage of water and solutes, thus allowing formation and maintenance of compartments that differ in fluid and solute composition.
    GO:0035329    hippo signaling    The series of molecular signals mediated by the serine/threonine kinase Hippo or one of its orthologs. In Drosophila, Hippo in complex with the scaffold protein Salvador (Sav), phosphorylates and activates Warts (Wts), which in turn phosphorylates and inactivates the Yorkie (Yki) transcriptional activator. The core fly components hippo, sav, wts and mats are conserved in mammals as STK4/3 (MST1/2), SAV1/WW45, LATS1/2 and MOB1.
    GO:0050892    intestinal absorption    Any process in which nutrients are taken up from the contents of the intestine.
    GO:2001205    negative regulation of osteoclast development    Any process that stops, prevents or reduces the frequency, rate or extent of osteoclast development.
    GO:0090559    regulation of membrane permeability    Any process that modulates the frequency, rate or extent of the passage or uptake of molecules by a membrane.
    GO:0010033    response to organic substance    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an organic substance stimulus.
cellular component
    GO:0005912    adherens junction    A cell junction at which anchoring proteins (cadherins or integrins) extend through the plasma membrane and are attached to actin filaments.
    GO:0005923    bicellular tight junction    An occluding cell-cell junction that is composed of a branching network of sealing strands that completely encircles the apical end of each cell in an epithelial sheet; the outer leaflets of the two interacting plasma membranes are seen to be tightly apposed where sealing strands are present. Each sealing strand is composed of a long row of transmembrane adhesion proteins embedded in each of the two interacting plasma membranes.
    GO:0030054    cell junction    A cellular component that forms a specialized region of connection between two or more cells or between a cell and the extracellular matrix. At a cell junction, anchoring proteins extend through the plasma membrane to link cytoskeletal proteins in one cell to cytoskeletal proteins in neighboring cells or to proteins in the extracellular matrix.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
