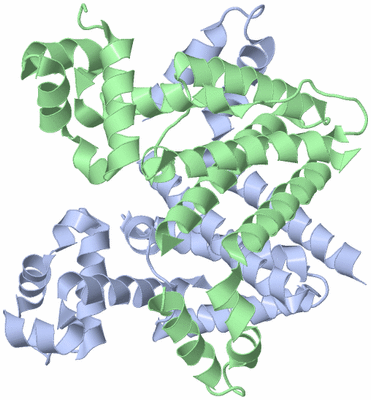

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF APO ACTR FROM STREPTOMYCES COELICOLOR.

Authors :  A. R. Willems, M. S. Junop
Date :  30 Jan 07  (Deposition) - 05 Feb 08  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.05
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Helical Protein, Tetr Family, Apo-Protein, Transcriptional Repressor, Transcription (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. R. Willems, K. Tahlan, T. Taguchi, K. Zhang, Z. Z. Lee, K. Ichinose, M. S. Junop, J. R. Nodwell
Crystal Structures Of The Streptomyces Coelicolor Tetr-Like Protein Actr Alone And In Complex With Actinorhodin Or The Actinorhodin Biosynthetic Precursor (S)-Dnpa.
J. Mol. Biol. V. 376 1377 2008
PubMed-ID: 18207163  |  Reference-DOI: 10.1016/J.JMB.2007.12.061

(-) Compounds

Molecule 1 - ACTII PROTEIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PROEX-HTA
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: N-TERMINAL TRUNCATION (RESIDUES 30-259)
    Gene: ACTII
    Organism Scientific: STREPTOMYCES COELICOLOR
    Organism Taxid: 1902
    Strain: M145
    Synonym: PUTATIVE TRANSCRIPTIONAL REGULATORY PROTEIN

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2OPT)

(-) Sites  (0, 0)

(no "Site" information available for 2OPT)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2OPT)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2OPT)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2OPT)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2OPT)

(-) Exons   (0, 0)

(no "Exon" information available for 2OPT)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:209
 aligned with Q53901_STRCH | Q53901 from UniProtKB/TrEMBL  Length:259

    Alignment length:219
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236
         Q53901_STRCH    27 PRMPLTQDRIVVTALGILDAEGLDALSMRRLAQELKTGHASLYAHVGNRDELLDLVFDIVLTEVEVPEPEPGRWAEQVKEMCRSLRRMFLAHRDLARIAIDRVPLGPNGMVGMERTMNLLRSGGLHDELAAYGGDLLSTFVTAEALEQSSRNPGTEQGREQAGVFADQLHGYLKSLPATSFPNLVHLAGPITSLDSDRRFELGLEIIIAGLLAGAGEAA 245
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhh.hhhhhhh.....hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhh.----------hhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2opt A  27 AMAPLTQDRIVVTALGILDAEGLDALSMRRLAQELKTGHASLYAHVGNRDELLDLVFDIVLTEVEVPEPEPGRWAEQVKEMCRSLRRMFLAHRDLARIAIDRVPLGPNGMVGMERTMNLLRSGGLHDELAAYGGDLLSTFVTAEALEQSSR----------AGVFADQLHGYLKSLPATSFPNLVHLAGPITSLDSDRRFELGLEIIIAGLLAGAGEAA 245
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176|        - |     196       206       216       226       236
                                                                                                                                                                                177        188


Chain B from PDB  Type:PROTEIN  Length:205
 aligned with Q53901_STRCH | Q53901 from UniProtKB/TrEMBL  Length:259

    Alignment length:215
                                    38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238
         Q53901_STRCH    29 MPLTQDRIVVTALGILDAEGLDALSMRRLAQELKTGHASLYAHVGNRDELLDLVFDIVLTEVEVPEPEPGRWAEQVKEMCRSLRRMFLAHRDLARIAIDRVPLGPNGMVGMERTMNLLRSGGLHDELAAYGGDLLSTFVTAEALEQSSRNPGTEQGREQAGVFADQLHGYLKSLPATSFPNLVHLAGPITSLDSDRRFELGLEIIIAGLLAGAGE 243
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhh.hhhhhhh.....hhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhh.----------.hhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2opt B  29 APLTQDRIVVTALGILDAEGLDALSMRRLAQELKTGHASLYAHVGNRDELLDLVFDIVLTEVEVPEPEPGRWAEQVKEMCRSLRRMFLAHRDLARIAIDRVPLGPNGMVGMERTMNLLRSGGLHDELAAYGGDLLSTFVTAEALEQSSRN----------GVFADQLHGYLKSLPATSFPNLVHLAGPITSLDSDRRFELGLEIIIAGLLAGAGE 243
                                    38        48        58        68        78        88        98       108       118       128       138       148       158       168       178         -|      198       208       218       228       238
                                                                                                                                                                               178        189
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2OPT)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2OPT)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2OPT)

(-) Gene Ontology  (5, 5)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (Q53901_STRCH | Q53901)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
    GO:0045892    negative regulation of transcription, DNA-templated    Any process that stops, prevents, or reduces the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0046677    response to antibiotic    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an antibiotic stimulus. An antibiotic is a chemical substance produced by a microorganism which has the capacity to inhibit the growth of or to kill other microorganisms.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2opt)

  Sites
(no "Sites" information available for 2opt)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2opt)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2opt
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q53901_STRCH | Q53901
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q53901_STRCH | Q53901
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q53901_STRCH | Q53901: 3b6a 3b6c
