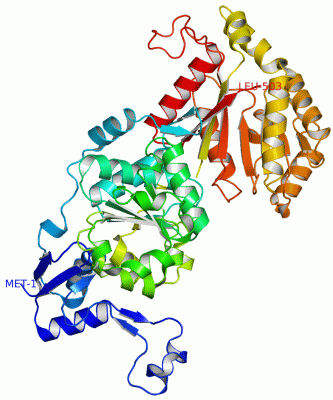

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

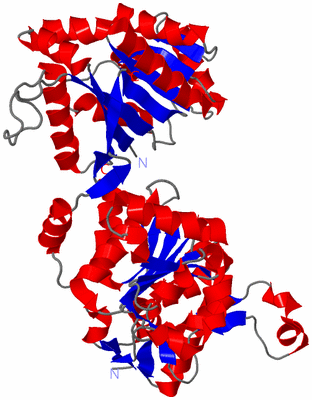

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  THE CRYSTAL STRUCTURE OF T4 UVSW

Authors :  I. D. Kerr, S. W. White
Date :  20 Dec 06  (Deposition) - 16 Oct 07  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.70
Chains :  Asym./Biol. Unit :  A
Keywords :  Atp-Dependant Helicase, T4-Bacteriophage, Recombination, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  I. D. Kerr, S. Sivakolundu, Z. Li, J. C. Buchsbaum, L. A. Knox, R. Kriwacki, S. W. White
Crystallographic And Nmr Analyses Of Uvsw And Uvsw. 1 From Bacteriophage T4.
J. Biol. Chem. V. 282 34392 2007
PubMed-ID: 17878153  |  Reference-DOI: 10.1074/JBC.M705900200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ATP-DEPENDENT DNA HELICASE UVSW
    ChainsA
    EC Number3.6.1.8
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPET28A
    Expression System StrainBL21(DE3) CODON PLUS
    Expression System Taxid562
    Expression System Vector TypePLASMID
    GeneUVSW, DAR
    MutationYES
    Organism ScientificENTEROBACTERIA PHAGE T4
    Organism Taxid10665
    SynonymDAR PROTEIN

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2OCA)

(-) Sites  (0, 0)

(no "Site" information available for 2OCA)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2OCA)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2OCA)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2OCA)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2OCA)

(-) Exons   (0, 0)

(no "Exon" information available for 2OCA)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:494
 aligned with UVSW_BPT4 | P20703 from UniProtKB/Swiss-Prot  Length:587

    Alignment length:503
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500
            UVSW_BPT4     1 MDIKVHFHDFSHVRIDCEESTFHELRDFFSFEADGYRFNPRFRYGNWDGRIRLLDYNRLLPFGLVGQIKKFCDNFGYKAWIDPQINEKEELSRKDFDEWLSKLEIYSGNKRIEPHWYQKDAVFEGLVNRRRILNLPTSAGKSLIQALLARYYLENYEGKILIIVPTTALTTQMADDFVDYRLFSHAMIKKIGGGASKDDKYKNDAPVVVGTWQTVVKQPKEWFSQFGMMMNDECHLATGKSISSIISGLNNCMFKFGLSGSLRDGKANIMQYVGMFGEIFKPVTTSKLMEDGQVTELKINSIFLRYPDEFTTKLKGKTYQEEIKIITGLSKRNKWIAKLAIKLAQKDENAFVMFKHVSHGKAIFDLIKNEYDKVYYVSGEVDTETRNIMKTLAENGKGIIIVASYGVFSTGISVKNLHHVVLAHGVKSKIIVLQTIGRVLRKHGSKTIATVWDLIDSAGVKPKSANTKKKYVHLNYLLKHGIDRIQRYADEKFNYVMKTVNLI 503
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------DEAD-2ocaA01 A:116-262                                                                                                                             ------------------------------------------------------------------------------------------------------Helicase_C-2ocaA02 A:365-443                                                   ------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeee....eeeee.hhhhhhhhhhhheee..hhhhhhhhhh.....eee......eee.hhhhhhhhhhhhhh..eee.hhhh.....hhhhhhhhhhh..eee..eee..hhhhhhhhhhhhhhheeeee.....hhhhhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhh...hhh.eee.hhhh..hhhhh....eeeeehhhhhhhhhhhhh.eeeeeee.hhhhhhhhhhhhhhhh....eeeeee.hhhhh..hhhhhhhhhh.ee......---------..eeeeeeee.hhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeeeee.hhhhhhhhhhhhhh....eeee....hhhhhhhhhhhhhhh...eeeeehhhhhhh.....eeeeee.......hhhhhhhhhhhh........eeeeeeee.................hhhhhhhhhhhhhhhhh...eeeeeee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2oca A   1 MDIKVHFHDFSHVRIDCEESTFHELRDFFSFEADGYRFNPRFRYGNWDGRIRLLDYNRLLPFGLVGQIKKFCDNFGYKAWIDPQINEKEELSRKDFDEWLSKLEIYSGNKRIEPHWYQKDAVFEGLVNRRRILNLPTSAGRSLIQALLARYYLENYEGKILIIVPTTALTTQMADDFVDYRLFSHAMIKKIGGGASKDDKYKNDAPVVVGTWQTVVKQPKEWFSQFGMMMNDECHLATGKSISSIISGLNNCMFKFGLSGSLRDGKANIMQYVGMFGEIFKPVTTS---------ELKINSIFLRYPDEFTTKLKGKTYQEEIKIITGLSKRNKWIAKLAIKLAQKDENAFVMFKHVSHGKAIFDLIKNEYDKVYYVSGEVDTETRNIMKTLAENGKGIIIVASYGVFSTGISVKNLHHVVLAHGVKSKIIVLQTIGRVLRKHGSKTIATVWDLIDDAGVKPKSANTKKKYVHLNYLLKHGIDRIQRYADEKFNYVMKTVNLL 503
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280     |   -     | 300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500
                                                                                                                                                                                                                                                                                                                       286       296

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2OCA)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2OCA)

(-) Pfam Domains  (2, 2)

Asymmetric/Biological Unit

(-) Gene Ontology  (5, 5)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (UVSW_BPT4 | P20703)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0004386    helicase activity    Catalysis of the reaction: NTP + H2O = NDP + phosphate, to drive the unwinding of a DNA or RNA helix.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2oca)

  Sites
(no "Sites" information available for 2oca)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2oca)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2oca
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  UVSW_BPT4 | P20703
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.6.1.8
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  UVSW_BPT4 | P20703
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        UVSW_BPT4 | P207031rif 2jpn
