(-) Description

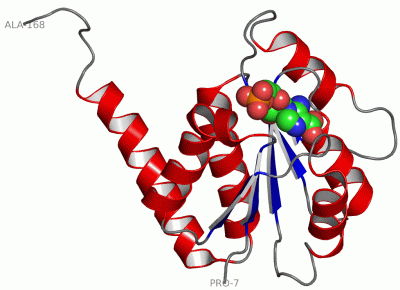

Title :  E. COLI PURE H45Q MUTANT COMPLEXED WITH CAIR

Authors :  S. E. Ealick, M. Morar
Date :  04 Nov 06  (Deposition) - 24 Apr 07  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.31
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (8x)
Keywords :  Central Three-Layer Alpha-Beta-Alpha Sandwich, Kinked C-Terminal Helix, Lyase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. A. Hoskins, M. Morar, T. J. Kappock, I. I. Mathews, J. B. Zaugg, T. E. Barder, P. Peng, A. Okamoto, S. E. Ealick, J. Stubbe
N(5)-Cair Mutase: Role Of A Co(2) Binding Site And Substrat Movement In Catalysis.
Biochemistry V. 46 2842 2007
PubMed-ID: 17298082  |  Reference-DOI: 10.1021/BI602436G

(-) Compounds

Molecule 1 - PHOSPHORIBOSYLAMINOIMIDAZOLE CARBOXYLASE CATALYTIC SUBUNIT
    Chains: A
    EC Number: 4.1.1.21
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: PURE
    Mutation: YES
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Synonym: AIR CARBOXYLASE, AIRC

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (8x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric Unit (1, 1)
No.NameCountTypeFull Name
1C2R1Ligand/Ion5-AMINO-1-(5-O-PHOSPHONO-BETA-D-RIBOFURANOSYL)-1H-IMIDAZOLE-4-CARBOXYLIC ACID
Biological Unit 1 (1, 8)
No.NameCountTypeFull Name
1C2R8Ligand/Ion5-AMINO-1-(5-O-PHOSPHONO-BETA-D-RIBOFURANOSYL)-1H-IMIDAZOLE-4-CARBOXYLIC ACID

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLY A:15 , SER A:16 , SER A:18 , ASP A:19 , SER A:43 , ALA A:44 , GLN A:45 , ARG A:46 , ALA A:70 , GLY A:71 , ALA A:73 , ALA A:74 , HIS A:75 , LEU A:76 , PRO A:111 , HOH A:265BINDING SITE FOR RESIDUE C2R A 242

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2NSJ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2NSJ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2NSJ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2NSJ)

(-) Exons   (0, 0)

(no "Exon" information available for 2NSJ)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:162
 aligned with PURE_ECOLI | P0AG18 from UniProtKB/Swiss-Prot  Length:169

    Alignment length:162
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166
           PURE_ECOLI     7 PARVAIVMGSKSDWATMQFAAEIFEILNVPHHVEVVSAHRTPDKLFSFAESAEENGYQVIIAGAGGAAHLPGMIAAKTLVPVLGVPVQSAALSGVDSLYSIVQMPRGIPVGTLAIGKAGAANAALLAAQILATHDKELHQRLNDWRKAQTDEVLENPDPRGA 168
               SCOP domains d2nsja_ A: N5-CAIR mutase (phosphoribosylaminoimidazole carboxylase, PurE)                                                                                         SCOP domains
               CATH domains 2nsjA00 A:7-168  [code=3.40.50.7700, no name defined]                                                                                                              CATH domains
               Pfam domains -AIRC-2nsjA01 A:8-159                                                                                                                                    --------- Pfam domains
         Sec.struct. author ...eeeee.hhhhhhhhhhhhhhhhhh...eeeee.....hhhhhhhhhhh.......eeeeeee...hhhhhhhhhh...eeeeee......hhhhhhhhhh.......ee...hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2nsj A   7 PARVAIVMGSKSDWATMQFAAEIFEILNVPHHVEVVSAQRTPDKLFSFAESAEENGYQVIIAGAGGAAHLPGMIAAKTLVPVLGVPVQSAALSGVDSLYSIVQMPRGIPVGTLAIGKAGAANAALLAAQILATHDKELHQRLNDWRKAQTDEVLENPDPRGA 168
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: no clan defined [family: AIRC] (12)

(-) Gene Ontology  (5, 5)

Asymmetric Unit(hide GO term definitions)
Chain A   (PURE_ECOLI | P0AG18)
molecular function
    GO:0034023    5-(carboxyamino)imidazole ribonucleotide mutase activity    Catalysis of the reaction: 5-carboxyamino-1-(5-phospho-D-ribosyl)imidazole = 5-amino-1-(5-phospho-D-ribosyl)imidazole-4-carboxylate.
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
biological process
    GO:0006189    'de novo' IMP biosynthetic process    The chemical reactions and pathways resulting in the formation of IMP, inosine monophosphate, by the stepwise assembly of a purine ring on ribose 5-phosphate.
    GO:0006164    purine nucleotide biosynthetic process    The chemical reactions and pathways resulting in the formation of a purine nucleotide, a compound consisting of nucleoside (a purine base linked to a deoxyribose or ribose sugar) esterified with a phosphate group at either the 3' or 5'-hydroxyl group of the sugar.
cellular component
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
