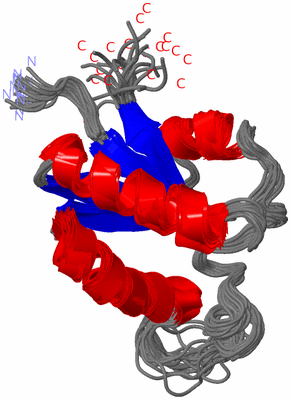

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE RRM1 OF HUMAN LARP6

Authors :  L. Martino, A. R. Atkinson, G. Kelly, M. R. Conte
Date :  18 Aug 14  (Deposition) - 24 Dec 14  (Release) - 28 Jan 15  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
NMR Structure *:  A  (1x)
Keywords :  Larp6, Rrm, La-Related Proteins, Acheron, Larp, Rna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  L. Martino, S. Pennell, G. Kelly, B. Busi, P. Brown, R. A. Atkinson, N. J. Salisbury, Z. H. Ooi, K. W. See, S. J. Smerdon, C. Alfano, T. T. Bui, M. R. Conte
Synergic Interplay Of The La Motif, Rrm1 And The Interdomai Linker Of Larp6 In The Recognition Of Collagen Mrna Expands The Rna Binding Repertoire Of The La Module.
Nucleic Acids Res. V. 43 645 2015
PubMed-ID: 25488812  |  Reference-DOI: 10.1093/NAR/GKU1287
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - LA-RELATED PROTEIN 6
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Expression System Vector: PET-DUET1
    Gene: LARP6
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: ACHERON, ACHN, LA RIBONUCLEOPROTEIN DOMAIN FAMILY MEMBER 6

 Structural Features

(-) Chains, Units

  1
NMR Structure (20x): A
NMR Structure * (1x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2MTG)

(-) Sites  (0, 0)

(no "Site" information available for 2MTG)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2MTG)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2MTG)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2MTG)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2MTG)

(-) Exons   (0, 0)

(no "Exon" information available for 2MTG)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:116

               SCOP domains -------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeee..................hhhhhhhhhhhhhhhhhh.eeeeeee......hhhhhhhh..........eeeeee.hhhhhhhhhhhhhhhh......eeeee.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------- Transcript
                 2mtg A 180 NLPSKMLLVYDLYLSPKLWALATPQKNGRVQEKVMEHLLKLFGTFGVISSVRILKPGRELPPDIRRISSRYSQVGTQECAIVEFEEVEAAIKAHEFMITESQGKENMKAVLIGMKP 295
                                   189       199       209       219       229       239       249       259       269       279       289
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2MTG)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2MTG)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2MTG)

(-) Gene Ontology  (7, 7)

NMR Structure(hide GO term definitions)

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2mtg)

  Sites
(no "Sites" information available for 2mtg)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2mtg)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2mtg
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  LARP6_HUMAN | Q9BRS8
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  LARP6_HUMAN | Q9BRS8
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        LARP6_HUMAN | Q9BRS8: 2mtf

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2MTG)
