(-)NMR Structure - model 1
(-)NMR Structure - all models
collapse expand < >

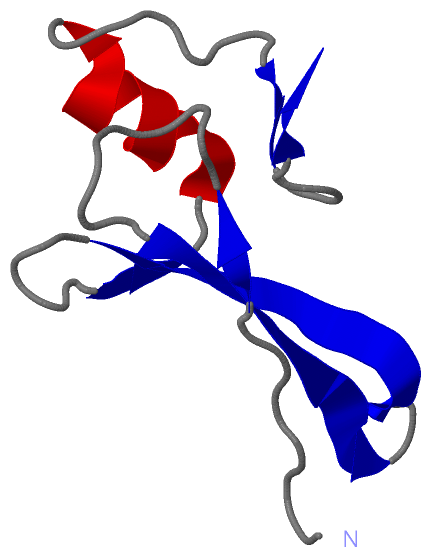

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

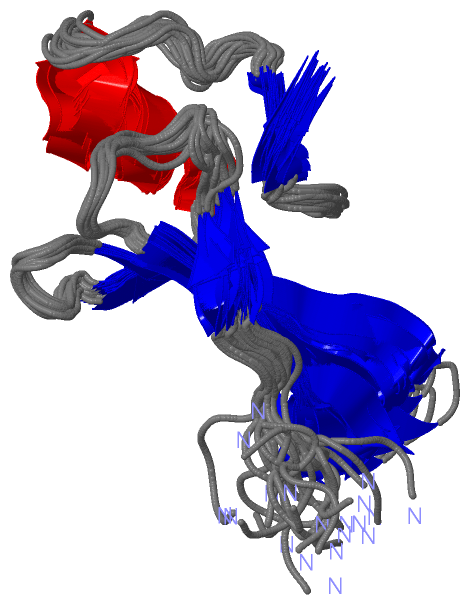

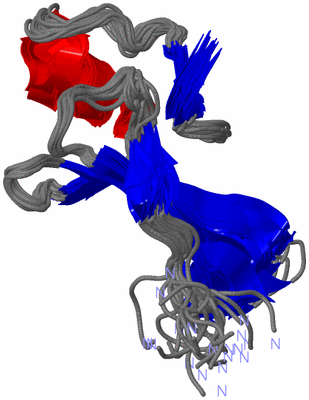

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF MBD3 METHYLCYTOSINE BINDING DOMAIN

Authors :  D. C. Williams Jr. , J. N. Scarsdale
Date :  26 Jul 13  (Deposition) - 11 Dec 13  (Release) - 05 Feb 14  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
NMR Structure *:  A  (1x)
Keywords :  Mbd3, Dna Methylation, Nurd, Chromatin, Transcription (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  J. M. Cramer, J. N. Scarsdale, N. M. Walavalkar, W. A. Buchwald, G. D. Ginder, D. C. Williams
Probing The Dynamic Distribution Of Bound States For Methylcytosine-Binding Domains On Dna.
J. Biol. Chem. V. 289 1294 2014
PubMed-ID: 24307175  |  Reference-DOI: 10.1074/JBC.M113.512236

(-) Compounds

Molecule 1 - METHYL-CPG-BINDING DOMAIN PROTEIN 3
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPET32A
    Expression System Taxid562
    Expression System Vector TypePLASMID
    FragmentMETHYL-CPG-BINDING DOMAIN (UNP RESIDUES 1-70)
    GeneMBD3
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    SynonymMETHYL-CPG-BINDING PROTEIN MBD3

 Structural Features

(-) Chains, Units

  1
NMR Structure (20x)A
NMR Structure * (1x)A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2MB7)

(-) Sites  (0, 0)

(no "Site" information available for 2MB7)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2MB7)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2MB7)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2MB7)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1MBDPS50982 Methyl-CpG-binding domain (MBD) profile.MBD3_HUMAN1-69  1A:3-71
NMR Structure * (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1MBDPS50982 Methyl-CpG-binding domain (MBD) profile.MBD3_HUMAN1-69  1A:3-71

(-) Exons   (0, 0)

(no "Exon" information available for 2MB7)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:72
 aligned with MBD3_HUMAN | O95983 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:72
                              1
                              |      8        18        28        38        48        58        68
            MBD3_HUMAN    - --MERKRWECPALPQGWEREEVPRRSGLSAGHRDVFYYSPSGKKFRSKPQLARYLGGSMDLSTFDFRTGKML 70
               SCOP domains d2mb7a_ A: automated matches                                             SCOP domains
               CATH domains ------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......ee........eeeeeeeee..eeeeeeeeee.....ee.hhhhhhhhhh.......ee....ee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE --MBD  PDB: A:3-71 UniProt: 1-69                                       - PROSITE
                 Transcript ------------------------------------------------------------------------ Transcript
                  2mb7 A  1 GSMERKRWECPALPQGWEREEVPRRSGLSAGHRDVFYYSPSGKKFRSKPQLARYLGGSMDLSTFDFRTGKML 72
                                    10        20        30        40        50        60        70

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2MB7)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2MB7)

(-) Gene Ontology  (35, 35)

NMR Structure(hide GO term definitions)
Chain A   (MBD3_HUMAN | O95983)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0000978    RNA polymerase II core promoter proximal region sequence-specific DNA binding    Interacting selectively and non-covalently with a sequence of DNA that is in cis with and relatively close to a core promoter for RNA polymerase II.
    GO:0000980    RNA polymerase II distal enhancer sequence-specific DNA binding    Interacting selectively and non-covalently with a RNA polymerase II (Pol II) distal enhancer. In mammalian cells, enhancers are distal sequences that increase the utilization of some promoters, and can function in either orientation and in any location (upstream or downstream) relative to the core promoter.
    GO:0003682    chromatin binding    Interacting selectively and non-covalently with chromatin, the network of fibers of DNA, protein, and sometimes RNA, that make up the chromosomes of the eukaryotic nucleus during interphase.
    GO:0004407    histone deacetylase activity    Catalysis of the reaction: histone N6-acetyl-L-lysine + H2O = histone L-lysine + acetate. This reaction represents the removal of an acetyl group from a histone, a class of proteins complexed to DNA in chromatin and chromosomes.
    GO:0008327    methyl-CpG binding    Interacting selectively and non-covalently with a methylated cytosine/guanine dinucleotide.
    GO:0031492    nucleosomal DNA binding    Interacting selectively and non-covalently with the DNA portion of a nucleosome.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0043044    ATP-dependent chromatin remodeling    Dynamic structural changes to eukaryotic chromatin that require energy from the hydrolysis of ATP, ranging from local changes necessary for transcriptional regulation to global changes necessary for chromosome segregation, mediated by ATP-dependent chromatin-remodelling factors.
    GO:0007568    aging    A developmental process that is a deterioration and loss of function over time. Aging includes loss of functions such as resistance to disease, homeostasis, and fertility, as well as wear and tear. Aging includes cellular senescence, but is more inclusive. May precede death and may succeed developmental maturation (GO:0021700).
    GO:0007420    brain development    The process whose specific outcome is the progression of the brain over time, from its formation to the mature structure. Brain development begins with patterning events in the neural tube and ends with the mature structure that is the center of thought and emotion. The brain is responsible for the coordination and control of bodily activities and the interpretation of information from the senses (sight, hearing, smell, etc.).
    GO:0048568    embryonic organ development    Development, taking place during the embryonic phase, of a tissue or tissues that work together to perform a specific function or functions. Development pertains to the process whose specific outcome is the progression of a structure over time, from its formation to the mature structure. Organs are commonly observed as visibly distinct structures, but may also exist as loosely associated clusters of cells that work together to perform a specific function or functions.
    GO:0007507    heart development    The process whose specific outcome is the progression of the heart over time, from its formation to the mature structure. The heart is a hollow, muscular organ, which, by contracting rhythmically, keeps up the circulation of the blood.
    GO:0016573    histone acetylation    The modification of a histone by the addition of an acetyl group.
    GO:0016575    histone deacetylation    The modification of histones by removal of acetyl groups.
    GO:0001701    in utero embryonic development    The process whose specific outcome is the progression of the embryo in the uterus over time, from formation of the zygote in the oviduct, to birth. An example of this process is found in Mus musculus.
    GO:0006346    methylation-dependent chromatin silencing    Repression of transcription by methylation of DNA, leading to the formation of heterochromatin.
    GO:0000122    negative regulation of transcription from RNA polymerase II promoter    Any process that stops, prevents, or reduces the frequency, rate or extent of transcription from an RNA polymerase II promoter.
    GO:0044030    regulation of DNA methylation    Any process that modulates the frequency, rate or extent of the covalent transfer of a methyl group to either N-6 of adenine or C-5 or N-4 of cytosine.
    GO:1901796    regulation of signal transduction by p53 class mediator    Any process that modulates the frequency, rate or extent of signal transduction by p53 class mediator.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0032355    response to estradiol    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of stimulus by estradiol, a C18 steroid hormone hydroxylated at C3 and C17 that acts as a potent estrogen.
    GO:0031667    response to nutrient levels    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a stimulus reflecting the presence, absence, or concentration of nutrients.
    GO:0014070    response to organic cyclic compound    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an organic cyclic compound stimulus.
    GO:0009888    tissue development    The process whose specific outcome is the progression of a tissue over time, from its formation to the mature structure.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
cellular component
    GO:0016581    NuRD complex    An approximately 2 MDa multi-subunit complex that exhibits ATP-dependent chromatin remodeling activity in addition to histone deacetylase (HDAC) activity, and has been shown to establish transcriptional repression of a number of target genes in vertebrates, invertebrates and fungi. Amongst its subunits, the NuRD complex contains histone deacetylases, histone binding proteins and Mi-2-like proteins.
    GO:0000785    chromatin    The ordered and organized complex of DNA, protein, and sometimes RNA, that forms the chromosome.
    GO:0005694    chromosome    A structure composed of a very long molecule of DNA and associated proteins (e.g. histones) that carries hereditary information.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0000792    heterochromatin    A compact and highly condensed form of chromatin.
    GO:0000790    nuclear chromatin    The ordered and organized complex of DNA, protein, and sometimes RNA, that forms the chromosome in the nucleus.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
    GO:0043234    protein complex    A stable macromolecular complex composed (only) of two or more polypeptide subunits along with any covalently attached molecules (such as lipid anchors or oligosaccharide) or non-protein prosthetic groups (such as nucleotides or metal ions). Prosthetic group in this context refers to a tightly bound cofactor. The component polypeptide subunits may be identical.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2mb7)

  Sites
(no "Sites" information available for 2mb7)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2mb7)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2mb7
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  MBD3_HUMAN | O95983
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  MBD3_HUMAN | O95983
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
