(-)NMR Structure - model 1
(-)NMR Structure - all models
collapse expand < >

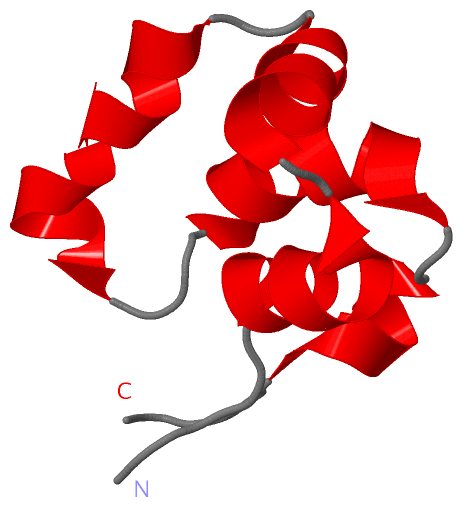

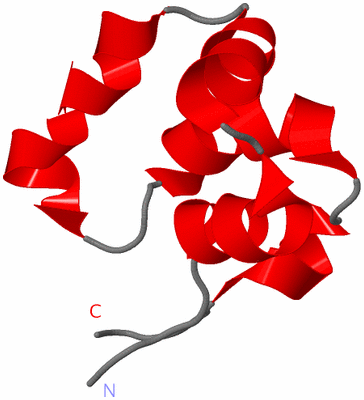

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

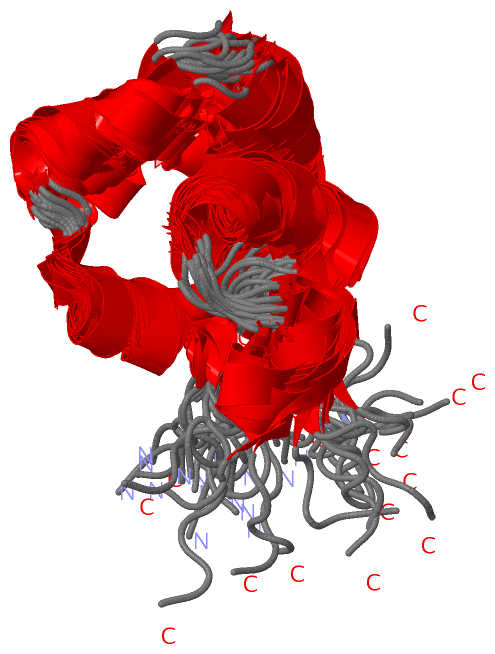

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NOE-BASED 3D STRUCTURE OF THE MONOMERIC PARTIALLY-FOLDED INTERMEDIATE OF CYLR2 AT 257K (-16 CELSIUS DEGREES)

Authors :  M. Jaremko, L. Jaremko, H. Kim, M. Cho, C. D. Schwieters, K. Giller, S. Be M. Zweckstetter
Date :  19 Sep 12  (Deposition) - 20 Feb 13  (Release) - 03 Apr 13  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
NMR Structure *:  A  (1x)
Keywords :  Cylr2, Dna Binding Protein, Noe-Based Structure, Protein Folding, Cold Denaturation, Cytolysin Repressor 2, Helix-Turn-Helix, Partially Folded (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  M. Jaremko, L. Jaremko, H. Y. Kim, M. K. Cho, C. D. Schwieters, K. Giller S. Becker, M. Zweckstetter
Cold Denaturation Of A Protein Dimer Monitored At Atomic Resolution.
Nat. Chem. Biol. V. 9 264 2013
PubMed-ID: 23396077  |  Reference-DOI: 10.1038/NCHEMBIO.1181

(-) Compounds

Molecule 1 - CYLR2
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPET32A
    Expression System StrainBL21(DE3)
    Expression System Taxid469008
    Expression System Vector TypePLASMID
    GeneCYLR2
    Organism ScientificENTEROCOCCUS FAECALIS
    Organism Taxid1351
    SynonymPUTATIVE TRANSCRIPTION REGULATOR

 Structural Features

(-) Chains, Units

  1
NMR Structure (20x)A
NMR Structure * (1x)A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2LYS)

(-) Sites  (0, 0)

(no "Site" information available for 2LYS)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2LYS)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2LYS)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2LYS)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2LYS)

(-) Exons   (0, 0)

(no "Exon" information available for 2LYS)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:66
 aligned with Q8VL32_ENTFL | Q8VL32 from UniProtKB/TrEMBL  Length:66

    Alignment length:66
                                    10        20        30        40        50        60
          Q8VL32_ENTFL    1 MIINNLKLIREKKKISQSELAALLEVSRQTINGIEKNKYNPSLQLALKIAYYLNTPLEDIFQWQPE 66
               SCOP domains d2lysa_ A: Putative transcription regulator CylR2                  SCOP domains
               CATH domains ------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------ Pfam domains
         Sec.struct. author ....hhhhhhhhhh.hhhhhhhhh..hhhhhhhhhhhh...hhhhhhhhhhhh..hhhhhh..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------ Transcript
                  2lys A  1 MIINNLKLIREKKKISQSELAALLEVSRQTINGIEKNKYNPSLQLALKIAYYLNTPLEDIFQWQPE 66
                                    10        20        30        40        50        60

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2LYS)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2LYS)

(-) Gene Ontology  (2, 2)

NMR Structure(hide GO term definitions)
Chain A   (Q8VL32_ENTFL | Q8VL32)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0043565    sequence-specific DNA binding    Interacting selectively and non-covalently with DNA of a specific nucleotide composition, e.g. GC-rich DNA binding, or with a specific sequence motif or type of DNA e.g. promotor binding or rDNA binding.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2lys)

  Sites
(no "Sites" information available for 2lys)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2lys)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2lys
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q8VL32_ENTFL | Q8VL32
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  Q8VL32_ENTFL | Q8VL32
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q8VL32_ENTFL | Q8VL321utx 2gzu 2lyj 2lyk 2lyl 2lyp 2lyq 2lyr 2xi8 2xiu 2xj3

(-) Related Entries Specified in the PDB File

1utx X-RAY STRUCTURE OF THE SAME PROTEIN AT 1.9 A RESOLUTION
2gzu STRUCTURE OF THE SAME PROTEIN USING INTERMONOMER DISTANCES FROM PARAMAGNETIC RELAXATION ENHANCEMENT AND NMR DIPOLAR COUPLINGS
2lyj
2lyk
2lyl
2lyp
2lyq
2lyr RELATED ID: 17898 RELATED DB: BMRB
2xi8 X-RAY STRUCTURE OF THE SAME PROTEIN AT 1.21 A RESOLUTION
2xiu X-RAY STRUCTURE OF MTSL-TAGGED CYLR2
2xj3 X-RAY STRUCTURE OF T55C MUTANT OF CYLR2
