2LDU - JenaLib

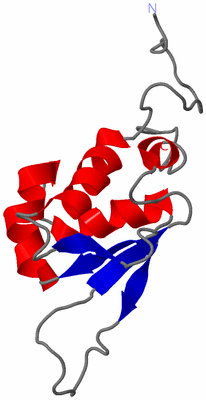

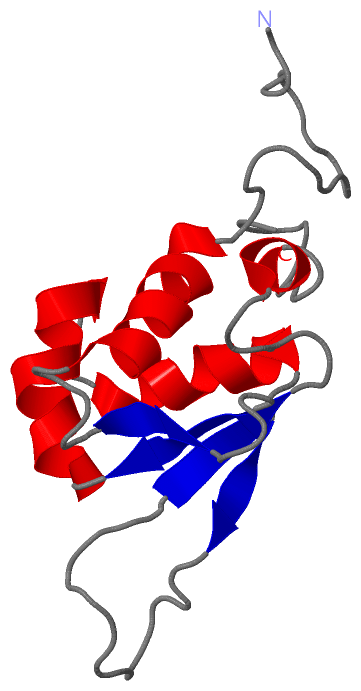

NMR Structure - model 1 (Jmol Viewer)

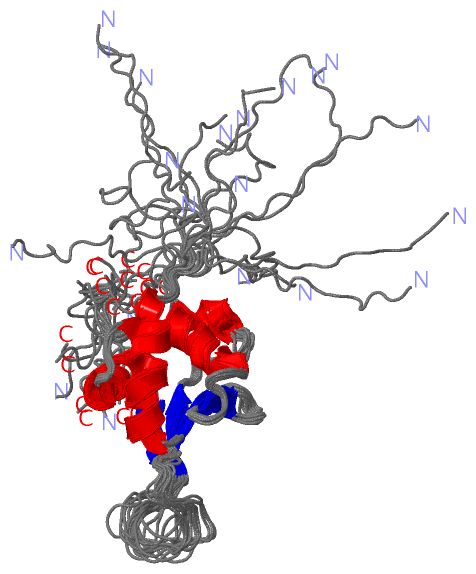

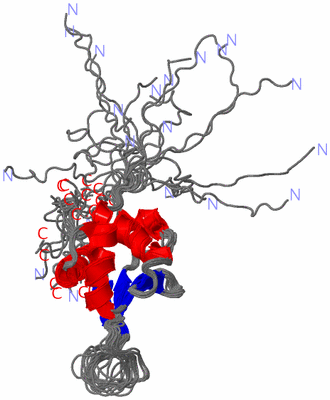

NMR Structure - all models (Jmol Viewer)

Title :   SOLUTION NMR STRUCTURE OF HEAT SHOCK FACTOR PROTEIN 1 DNA BINDING DOMAIN FROM HOMO SAPIENS, NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET HR3023C

Authors :   G. Liu, R. Xiao, C. Ciccosanti, H. Janjua, T. B. Acton, H. Lee, H. B. Wang, Y. B. Huang, J. K. Everett, G. T. Montelione, Northeast Structural G Consortium (Nesg)

Date :   01 Jun 11 (Deposition) - 06 Jul 11 (Release) - 22 Feb 12 (Revision)

Method :   SOLUTION NMR

Resolution :   NOT APPLICABLE

Chains :   NMR Structure  : A  (20x)
NMR Structure *: A  (1x)

Keywords :   Structural Genomics, Northeast Structural Genomics Consortium (Nesg), Dna-Binding, Psi-Biology, Protein Structure Initiative, Chaperone (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   G. Liu, R. Xiao, C. Ciccosanti, H. Janjua, T. B. Acton, H. Wang, H. B. Lee Y. T. Huang, J. K. Everett, G. T. Montelione
Northeast Structural Genomics Consortium Target Hr3023C
To Be Published
PubMed: search

Molecule 1 - HEAT SHOCK FACTOR PROTEIN 1
	Chains	:	A
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Expression System Vector	:	PET 14-15C
	Fragment	:	DNA BINDING REGION, RESIDUES 10-123
	Gene	:	HSF1, HSF1_HUMAN, HSTF1
	Organism Common	:	HUMAN
	Organism Scientific	:	HOMO SAPIENS
	Organism Taxid	:	9606
	Synonym	:	HSF 1, HEAT SHOCK TRANSCRIPTION FACTOR 1, HSTF 1

		1
NMR Structure (20x)	:	A
NMR Structure * (1x)	:	A

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 2LDU)

(no "Site" information available for 2LDU)

(no "SS Bond" information available for 2LDU)

(no "Cis Peptide Bond" information available for 2LDU)

(no "SAP(SNP)/Variant" information available for 2LDU)

NMR Structure (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	HSF_DOMAIN	PS00434	HSF-type DNA-binding domain signature.	HSF1_HUMAN	57-81	1	A:59-83

NMR Structure * (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	HSF_DOMAIN	PS00434	HSF-type DNA-binding domain signature.	HSF1_HUMAN	57-81	1	A:59-83

(no "Exon" information available for 2LDU)

NMR Structure

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:125
 aligned with HSF1_HUMAN | Q00613 from UniProtKB/Swiss-Prot  Length:529

    Alignment length:125
                              1
                              |      8        18        28        38        48        58        68        78        88        98       108       118
           HSF1_HUMAN     - --MDLPVGPGAAGPSNVPAFLTKLWTLVSDPDTDALICWSPSGNSFHVFDQGQFAKEVLPKYFKHNNMASFVRQLNMYGFRKVVHIEQGGLVKPERDDTEFQHPCFLRGQEQLLENIKRKVTSVS 123
               SCOP domains d2ldua_ A: automated matches                                                                                                  SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------HSF_DNA-bind-2lduA01 A:19-124                                                                             - Pfam domains
         Sec.struct. author .................hhhhhhhhhhhhh......eee.....eeee.hhhhhhhhhhhhhh...hhhhhhhhhhhh..eeee..............eeee.......hhhhh........... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------HSF_DOMAIN  PDB: A:59-83 ------------------------------------------ PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ldu A   1 MGHHHHHHSHMAGPSNVPAFLTKLWTLVSDPDTDALICWSPSGNSFHVFDQGQFAKEVLPKYFKHNNMASFVRQLNMYGFRKVVHIEQGGLVKPERDDTEFQHPCFLRGQEQLLENIKRKVTSVS 125
                                    10        20        30        40        50        60        70        80        90       100       110       120

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

NMR Structure

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All alpha proteins (14657)

Fold: DNA/RNA-binding 3-helical bundle (1299)

Superfamily: Winged helix DNA-binding domain (576)

Family: Heat-shock transcription factor (12)

Protein domain: automated matches (1)

Human (Homo sapiens) [TaxId: 9606] (1)

d2ldua_

(no "CATH Domain" information available for 2LDU)

NMR Structure

Clans(

)

Families(

)

Organisms( (-)

)

Clan: HTH (544)

Family: HSF_DNA-bind (1)

Homo sapiens (Human) (1)

HSF_DNA-bind-2lduA01

A:19-124

NMR Structure(hide GO term definitions)

Chain A (HSF1_HUMAN | Q00613)

molecular function
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
	GO:0000978	RNA polymerase II core promoter proximal region sequence-specific DNA binding	Interacting selectively and non-covalently with a sequence of DNA that is in cis with and relatively close to a core promoter for RNA polymerase II.
	GO:0000979	RNA polymerase II core promoter sequence-specific DNA binding	Interacting selectively and non-covalently with the regulatory region composed of the transcription start site and binding sites for transcription factors of the RNA polymerase II basal transcription machinery.
	GO:0001162	RNA polymerase II intronic transcription regulatory region sequence-specific DNA binding	Interacting selectively and non-covalently with an RNA polymerase II intronic DNA sequence that regulates the transcription of the transcript it is contained within.
	GO:0003682	chromatin binding	Interacting selectively and non-covalently with chromatin, the network of fibers of DNA, protein, and sometimes RNA, that make up the chromosomes of the eukaryotic nucleus during interphase.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0043565	sequence-specific DNA binding	Interacting selectively and non-covalently with DNA of a specific nucleotide composition, e.g. GC-rich DNA binding, or with a specific sequence motif or type of DNA e.g. promotor binding or rDNA binding.
	GO:0003700	transcription factor activity, sequence-specific DNA binding	Interacting selectively and non-covalently with a specific DNA sequence in order to modulate transcription. The transcription factor may or may not also interact selectively with a protein or macromolecular complex.
	GO:0001078	transcriptional repressor activity, RNA polymerase II core promoter proximal region sequence-specific binding	Interacting selectively and non-covalently with a sequence of DNA that is in cis with and relatively close to a core promoter for RNA polymerase II (RNAP II) in order to stop, prevent, or reduce the frequency, rate or extent of transcription from an RNA polymerase II promoter.
biological process
	GO:0034605	cellular response to heat	Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a heat stimulus, a temperature stimulus above the optimal temperature for that organism.
	GO:0006952	defense response	Reactions, triggered in response to the presence of a foreign body or the occurrence of an injury, which result in restriction of damage to the organism attacked or prevention/recovery from the infection caused by the attack.
	GO:0001892	embryonic placenta development	The embryonically driven process whose specific outcome is the progression of the placenta over time, from its formation to the mature structure. The placenta is an organ of metabolic interchange between fetus and mother, partly of embryonic origin and partly of maternal origin.
	GO:0060136	embryonic process involved in female pregnancy	A reproductive process occurring in the embryo or fetus that allows the embryo or fetus to develop within the mother.
	GO:0007143	female meiotic nuclear division	A cell cycle process by which the cell nucleus divides as part of a meiotic cell cycle in the female germline.
	GO:0001701	in utero embryonic development	The process whose specific outcome is the progression of the embryo in the uterus over time, from formation of the zygote in the oviduct, to birth. An example of this process is found in Mus musculus.
	GO:0009299	mRNA transcription	The cellular synthesis of messenger RNA (mRNA) from a DNA template.
	GO:0008285	negative regulation of cell proliferation	Any process that stops, prevents or reduces the rate or extent of cell proliferation.
	GO:0000122	negative regulation of transcription from RNA polymerase II promoter	Any process that stops, prevents, or reduces the frequency, rate or extent of transcription from an RNA polymerase II promoter.
	GO:0032720	negative regulation of tumor necrosis factor production	Any process that stops, prevents, or reduces the frequency, rate, or extent of tumor necrosis factor production.
	GO:0040018	positive regulation of multicellular organism growth	Any process that activates or increases the frequency, rate or extent of growth of an organism to reach its usual body size.
	GO:0045944	positive regulation of transcription from RNA polymerase II promoter	Any process that activates or increases the frequency, rate or extent of transcription from an RNA polymerase II promoter.
	GO:0006468	protein phosphorylation	The process of introducing a phosphate group on to a protein.
	GO:1900034	regulation of cellular response to heat	Any process that modulates the frequency, rate or extent of cellular response to heat.
	GO:0006355	regulation of transcription, DNA-templated	Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
	GO:0009408	response to heat	Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a heat stimulus, a temperature stimulus above the optimal temperature for that organism.
	GO:0032496	response to lipopolysaccharide	Any process that results in a change in state or activity of an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a lipopolysaccharide stimulus; lipopolysaccharide is a major component of the cell wall of gram-negative bacteria.
	GO:0007283	spermatogenesis	The process of formation of spermatozoa, including spermatocytogenesis and spermiogenesis.
	GO:0006351	transcription, DNA-templated	The cellular synthesis of RNA on a template of DNA.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005829	cytosol	The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
	GO:0005654	nucleoplasm	That part of the nuclear content other than the chromosomes or the nucleolus.
	GO:0005634	nucleus	A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
	GO:0045120	pronucleus	The nucleus of either the ovum or the spermatozoon following fertilization. Thus, in the fertilized ovum, there are two pronuclei, one originating from the ovum, the other from the spermatozoon that brought about fertilization; they approach each other, but do not fuse until just before the first cleavage, when each pronucleus loses its membrane to release its contents.
	GO:0043234	protein complex	A stable macromolecular complex composed (only) of two or more polypeptide subunits along with any covalently attached molecules (such as lipid anchors or oligosaccharide) or non-protein prosthetic groups (such as nucleotides or metal ions). Prosthetic group in this context refers to a tightly bound cofactor. The component polypeptide subunits may be identical.

NMR Structure
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2ldu)

	Sites
(no "Sites" information available for 2ldu)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2ldu)

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ NMR Structure - model 1 PNG format \| NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	2ldu
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	HSF1_HUMAN \| Q00613
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	HSF1_HUMAN \| Q00613
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	HSF1_HUMAN \| Q00613	:	5d5u 5d5v 5hdg 5hdn
