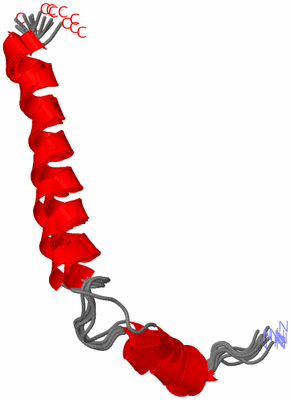

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  STRUCTURE AND DYNAMICS OF THE MEMBRANE-BOUND FORM OF PF1 COAT PROTEIN: IMPLICATIONS FOR STRUCTURAL REARRANGEMENT DURING VIRUS ASSEMBLY

Authors :  S. Park, F. Marassi, D. Black, S. J. Opella
Date :  05 Jan 10  (Deposition) - 10 Nov 10  (Release) - 10 Nov 10  (Revision)
Method :  SOLUTION NMR; SOLID-STATE NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (10x)
NMR Structure *:  A  (1x)
Keywords :  Membrane Protein, Capsid Protein, Host Membrane, Membrane, Transmembrane, Virion, Viral Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  S. H. Park, F. M. Marassi, D. Black, S. J. Opella
Structure And Dynamics Of The Membrane-Bound Form Of Pf1 Coat Protein: Implications Of Structural Rearrangement For Virus Assembly.
Biophys. J. V. 99 1465 2010
PubMed-ID: 20816058  |  Reference-DOI: 10.1016/J.BPJ.2010.06.009

(-) Compounds

Molecule 1 - CAPSID PROTEIN G8P
    ChainsA
    EngineeredYES
    FragmentUNP RESIDUES 37-82
    GeneVIII
    Organism CommonBACTERIOPHAGE PF1
    Organism ScientificPSEUDOMONAS PHAGE PF1
    Organism Taxid10871
    SynonymGENE 8 PROTEIN, G8P, COAT PROTEIN B, MAJOR COAT PROTEIN

 Structural Features

(-) Chains, Units

  1
NMR Structure (10x)A
NMR Structure * (1x)A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2KSJ)

(-) Sites  (0, 0)

(no "Site" information available for 2KSJ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2KSJ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2KSJ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2KSJ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2KSJ)

(-) Exons   (0, 0)

(no "Exon" information available for 2KSJ)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:46
 aligned with CAPSD_BPPF1 | P03621 from UniProtKB/Swiss-Prot  Length:82

    Alignment length:46
                                    46        56        66        76
           CAPSD_BPPF1   37 GVIDTSAVESAITDGQGDMKAIGGYIVGALVILAVAGLIYSMLRKA 82
               SCOP domains d2ksja_ A:                                     SCOP domains
               CATH domains ---------------------------------------------- CATH domains
               Pfam domains Phage_Coat_B-2ksjA01 A:1-46                    Pfam domains
         Sec.struct. author ...hhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------- PROSITE
                 Transcript ---------------------------------------------- Transcript
                  2ksj A  1 GVIDTSAVESAITDGQGDMKAIGGYIVGALVILAVAGLIYSMLRKA 46
                                    10        20        30        40

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2KSJ)

(-) Pfam Domains  (1, 1)

NMR Structure

(-) Gene Ontology  (6, 6)

NMR Structure(hide GO term definitions)
Chain A   (CAPSD_BPPF1 | P03621)
cellular component
    GO:0019029    helical viral capsid    The protein coat that surrounds the infective nucleic acid in some virus particles; the subunits are arranged to form a protein helix with the genetic material contained within. Tobacco mosaic virus has such a capsid structure.
    GO:0033644    host cell membrane    Double layer of lipid molecules as it encloses host cells, and, in eukaryotes, many organelles; may be a single or double lipid bilayer; also includes associated proteins. The host is defined as the larger of the organisms involved in a symbiotic interaction.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0019028    viral capsid    The protein coat that surrounds the infective nucleic acid in some virus particles. It comprises numerous regularly arranged subunits, or capsomeres.
    GO:0019012    virion    The complete fully infectious extracellular virus particle.
