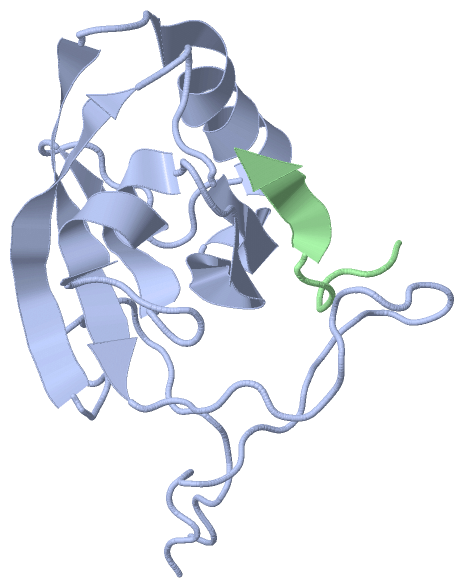

NMR Structure - model 1 (Jmol Viewer)

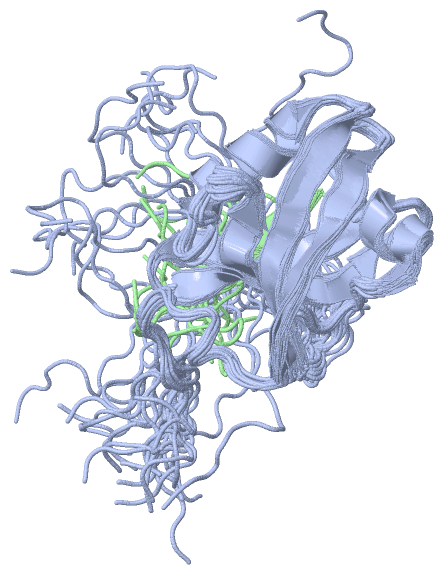

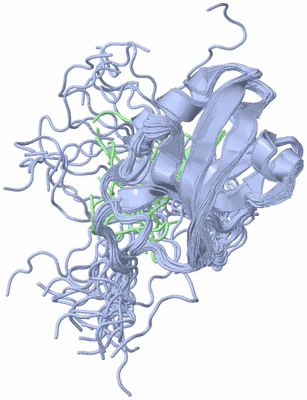

NMR Structure - all models (Jmol Viewer)

Title :   MAGI-1 PDZ1 / E6CT

Authors :   S. Charbonnier, Y. Nomine, J. Ramirez, K. Luck, R. H. Stote, G. Trave, B. R. A. Atkinson

Date :   16 Oct 09 (Deposition) - 27 Oct 10 (Release) - 02 Feb 11 (Revision)

Method :   SOLUTION NMR

Resolution :   NOT APPLICABLE

Chains :   NMR Structure  : A,B  (20x)
NMR Structure *: A,B  (1x)

Keywords :   Pdz Domain, Atp-Binding, Cell Junction, Cell Membrane, Membrane, Nucleotide-Binding, Phosphoprotein, Tight Junction, Activator, Dna- Binding, Early Protein, Host-Virus Interaction, Metal-Binding, Nucleus, Oncogene, Transcription, Transcription Regulation, Zinc- Finger, Protein Binding-Oncoprotein Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   S. Charbonnier, Y. Nomine, J. Ramirez, K. Luck, A. Chapelle, R. H. Stote, G. Trave, B. Kieffer, R. A. Atkinson
The Structural And Dynamic Response Of Magi-1 Pdz1 With Non-Canonical Domain Boundaries To Binding Of Human Papillomavirus (Hpv) E6
J. Mol. Biol. 2011
PubMed-ID: 21238461 | Reference-DOI: 10.1016/J.JMB.2011.01.015

Molecule 1 - MEMBRANE-ASSOCIATED GUANYLATE KINASE, WW AND PDZ DOMAIN- CONTAINING PROTEIN 1
	Chains	:	A
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PETM-41
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Fragment	:	UNP RESIDUES 455-580
	Gene	:	BAIAP1, BAP1, MAGI1, TNRC19
	Organism Common	:	HUMAN
	Organism Scientific	:	HOMO SAPIENS
	Organism Taxid	:	9606
	Synonym	:	BAI1-ASSOCIATED PROTEIN 1, BAP-1, MEMBRANE-ASSOCIATED GUANYLATE KINASE INVERTED 1, MAGI-1, ATROPHIN-1-INTERACTING PROTEIN 3, AIP3, WW DOMAIN-CONTAINING PROTEIN 3, WWP3, TRINUCLEOTIDE REPEAT- CONTAINING GENE 19 PROTEIN

Molecule 2 - PROTEIN E6
	Chains	:	B
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Gene	:	E6
	Organism Scientific	:	HUMAN PAPILLOMAVIRUS TYPE 16
	Organism Taxid	:	333760
	Synonym	:	E6CT

		1	2
NMR Structure (20x)	:	A	B
NMR Structure * (1x)	:	A	B

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 2KPL)

(no "Site" information available for 2KPL)

(no "SS Bond" information available for 2KPL)

(no "Cis Peptide Bond" information available for 2KPL)

(no "SAP(SNP)/Variant" information available for 2KPL)

NMR Structure (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PDZ	PS50106	PDZ domain profile.	MAGI1_HUMAN	17-105 472-541 643-721 841-923 998-1094 1152-1234	1	- A:17-86 - - - -

NMR Structure * (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PDZ	PS50106	PDZ domain profile.	MAGI1_HUMAN	17-105 472-541 643-721 841-923 998-1094 1152-1234	1	- A:17-86 - - - -

(no "Exon" information available for 2KPL)

NMR Structure

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:129
 aligned with MAGI1_HUMAN | Q96QZ7 from UniProtKB/Swiss-Prot  Length:1491

    Alignment length:129
                                   461       471       481       491       501       511       521       531       541       551       561       571
          MAGI1_HUMAN   452 PLQGKPFFTRNPSELKGKFIHTKLRKSSRGFGFTVVGGDEPDEFLQIKSLVLDGPAALDGKMETGDVIVSVNDTCVLGHTHAQVVKIFQSIPIGASVDLELCRGYPLPFDPDDPNTSLVTSVAILDKEP 580
               SCOP domains d2kpla_ A: automated matches                                                                                                      SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------PDZ-2kplA01 A:17-97                                                              ---------------------------- Pfam domains
         Sec.struct. author .................eeeeeeeee......eeeeeeee..eeeeeeee...hhhhhhh......eeeee........hhhhhhhhhhhh...eeeeeeeee.......................... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------PDZ  PDB: A:17-86 UniProt: 472-541                                    --------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2kpl A  -3 GAMGKPFFTRNPSELKGKFIHTKLRKSSRGFGFTVVGGDEPDEFLQIKSLVLDGPAALDGKMETGDVIVSVNDTCVLGHTHAQVVKIFQSIPIGASVDLELCRGYPLPFDPDDPNTSLVTSVAILDKEP 125
                                     6        16        26        36        46        56        66        76        86        96       106       116

Chain B from PDB  Type:PROTEIN  Length:11
 aligned with VE6_HPV16 | P03126 from UniProtKB/Swiss-Prot  Length:158

    Alignment length:11
                                   157
            VE6_HPV16   148 RSSRTRRETQL 158
               SCOP domains ----------- SCOP domains
               CATH domains ----------- CATH domains
               Pfam domains ----------- Pfam domains
         Sec.struct. author ......eeee. Sec.struct. author
                 SAPs(SNPs) ----------- SAPs(SNPs)
                    PROSITE ----------- PROSITE
                 Transcript ----------- Transcript
                 2kpl B 151 RSSRTRRETQV 161
                                   160

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

NMR Structure

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: PDZ domain-like (299)

Superfamily: PDZ domain-like (299)

Family: PDZ domain (180)

Protein domain: automated matches (53)

Human (Homo sapiens) [TaxId: 9606] (34)

d2kpla_

(no "CATH Domain" information available for 2KPL)

NMR Structure

Clans(

)

Families(

)

Organisms( (-)

)

Clan: PDZ-like (184)

Family: PDZ (172)

Homo sapiens (Human) (96)

PDZ-2kplA01

A:17-97

NMR Structure(hide GO term definitions)

Chain A (MAGI1_HUMAN | Q96QZ7)

molecular function
	GO:0005524	ATP binding	Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
	GO:0051393	alpha-actinin binding	Interacting selectively and non-covalently with alpha-actinin, one of a family of proteins that cross-link F-actin as antiparallel homodimers. Alpha-actinin has a molecular mass of 93-103 KDa; at the N-terminus there are two calponin homology domains, at the C-terminus there are two EF-hands. These two domains are connected by the rod domain. This domain is formed by triple-helical spectrin repeats.
	GO:0000166	nucleotide binding	Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
	GO:0008022	protein C-terminus binding	Interacting selectively and non-covalently with a protein C-terminus, the end of any peptide chain at which the 1-carboxy function of a constituent amino acid is not attached in peptide linkage to another amino-acid residue.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0032947	protein complex scaffold activity	A structural molecule activity that provides a physical support for the assembly of a multiprotein complex. The scaffold may or may not be part of the final complex.
biological process
	GO:0007155	cell adhesion	The attachment of a cell, either to another cell or to an underlying substrate such as the extracellular matrix, via cell adhesion molecules.
	GO:0007166	cell surface receptor signaling pathway	A series of molecular signals initiated by activation of a receptor on the surface of a cell. The pathway begins with binding of an extracellular ligand to a cell surface receptor, or for receptors that signal in the absence of a ligand, by ligand-withdrawal or the activity of a constitutively active receptor. The pathway ends with regulation of a downstream cellular process, e.g. transcription.
	GO:0070997	neuron death	The process of cell death in a neuron.
	GO:0006461	protein complex assembly	The aggregation, arrangement and bonding together of a set of components to form a protein complex.
cellular component
	GO:0005912	adherens junction	A cell junction at which anchoring proteins (cadherins or integrins) extend through the plasma membrane and are attached to actin filaments.
	GO:0005923	bicellular tight junction	An occluding cell-cell junction that is composed of a branching network of sealing strands that completely encircles the apical end of each cell in an epithelial sheet; the outer leaflets of the two interacting plasma membranes are seen to be tightly apposed where sealing strands are present. Each sealing strand is composed of a long row of transmembrane adhesion proteins embedded in each of the two interacting plasma membranes.
	GO:0030054	cell junction	A cellular component that forms a specialized region of connection between two or more cells or between a cell and the extracellular matrix. At a cell junction, anchoring proteins extend through the plasma membrane to link cytoskeletal proteins in one cell to cytoskeletal proteins in neighboring cells or to proteins in the extracellular matrix.
	GO:0042995	cell projection	A prolongation or process extending from a cell, e.g. a flagellum or axon.
	GO:0005911	cell-cell junction	A cell junction that forms a connection between two or more cells in a multicellular organism; excludes direct cytoplasmic junctions such as ring canals.
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
	GO:0005654	nucleoplasm	That part of the nuclear content other than the chromosomes or the nucleolus.
	GO:0005886	plasma membrane	The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

Chain B (VE6_HPV16 | P03126)

molecular function
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
	GO:0030165	PDZ domain binding	Interacting selectively and non-covalently with a PDZ domain of a protein, a domain found in diverse signaling proteins.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
	GO:0090630	activation of GTPase activity	Any process that initiates the activity of an inactive GTPase through the replacement of GDP by GTP.
	GO:0030683	evasion or tolerance by virus of host immune response	Any process, either active or passive, by which a virus avoids the effects of the host organism's immune response. The host is defined as the larger of the organisms involved in a symbiotic interaction.
	GO:0039648	modulation by virus of host protein ubiquitination	Any process in which a virus modulates the frequency, rate or extent of protein ubiquitination in the host organism. Ubiquitination is the process in which one or more ubiquitin groups are added to a protein.
	GO:0039649	modulation by virus of host ubiquitin-protein ligase activity	The process in which a virus effects a change in host ubiquitin-protein ligase activity. Ubiquitin-protein ligase activity catalyzes the reaction: ATP + ubiquitin + protein lysine = AMP + diphosphate + protein N-ubiquityllysine.
	GO:0045944	positive regulation of transcription from RNA polymerase II promoter	Any process that activates or increases the frequency, rate or extent of transcription from an RNA polymerase II promoter.
	GO:0006355	regulation of transcription, DNA-templated	Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
	GO:0039548	suppression by virus of host IRF3 activity	Any process in which a virus stops, prevents, or reduces the activity of host IRF3 (interferon regulatory factor-3), a transcription factor in the RIG-I/MDA-5 signaling pathway. Viral infection triggers phosphorylation of cytoplasmic IRF3, which allows IRF3 to form a homodimer, migrate to the nucleus, and activate transcription of IFN-alpha and IFN-beta genes.
	GO:0039580	suppression by virus of host PKR activity	Any process in which a virus stops, prevents, or reduces the frequency, rate or extent of host PKR (protein kinase regulated by RNA) activity. Activation of PKR involves dsRNA binding followed by autophosphorylation. Phosphorylated PKR can then phosphorylate downstream targets such as the translation initiation factor eIF2 to inhibit protein synthesis. Viruses encode a number of mechanisms to inhibit the host antiviral response via PKR, including direct interaction with PKR, promoting degradation of PKR or altering the subcellular location of PKR.
	GO:0039503	suppression by virus of host innate immune response	Any process in which a virus stops, prevents, or reduces the frequency, rate or extent of the innate immune response of the host organism, the host's first line of defense.
	GO:0039653	suppression by virus of host transcription	Any process in which a virus stops, prevents, or reduces the activity of host DNA-dependent transcription; the cellular synthesis of RNA on a template of DNA. Viral proteins can interfere with either host RNA polymerase or with transcription factors.
	GO:0039502	suppression by virus of host type I interferon-mediated signaling pathway	Any process in which a virus stops, prevents, or reduces the frequency, rate or extent of type I interferon-mediated signaling in the host organism. Type I interferons include the interferon-alpha, beta, delta, episilon, zeta, kappa, tau, and omega gene families.
	GO:0006351	transcription, DNA-templated	The cellular synthesis of RNA on a template of DNA.
	GO:0016032	viral process	A multi-organism process in which a virus is a participant. The other participant is the host. Includes infection of a host cell, replication of the viral genome, and assembly of progeny virus particles. In some cases the viral genetic material may integrate into the host genome and only subsequently, under particular circumstances, 'complete' its life cycle.
cellular component
	GO:0044204	host cell nuclear matrix	The dense fibrillar network lying on the inner side of the host nuclear membrane.
	GO:0042025	host cell nucleus	A membrane-bounded organelle as it is found in the host cell in which chromosomes are housed and replicated. The host is defined as the larger of the organisms involved in a symbiotic interaction.
