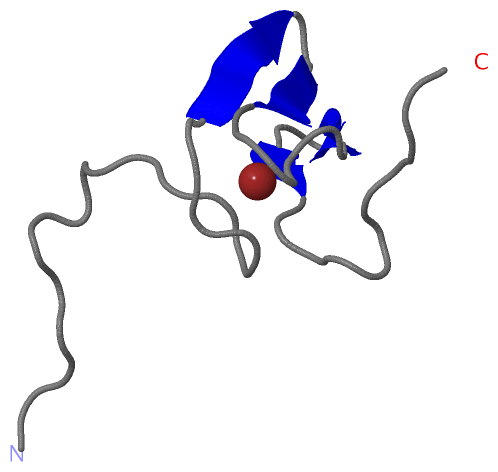

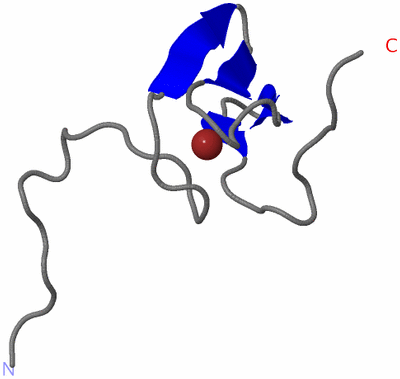

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

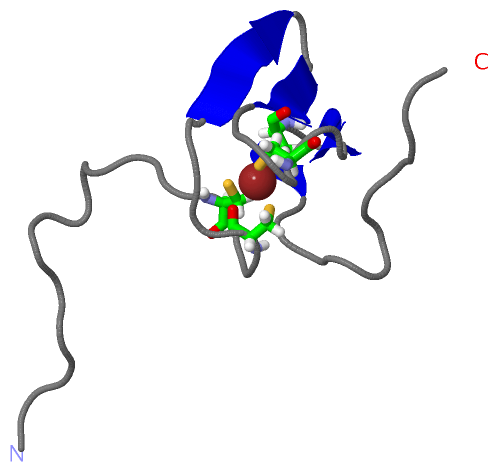

Image NMR Structure - model 1, sites
NMR Structure - model 1, sites  (Jmol Viewer)

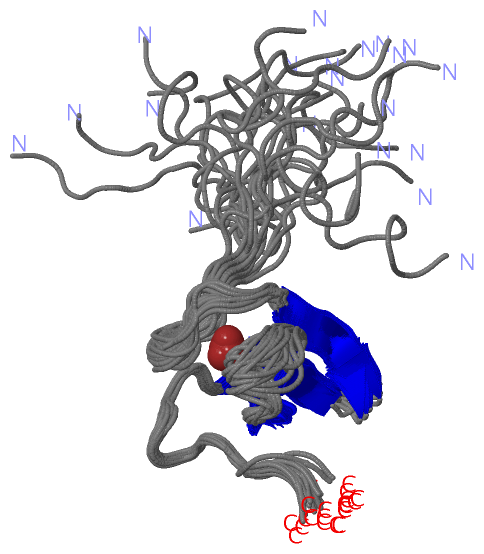

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION NMR STRUCTURE OF STREPTOMYCES COELICOLOR SCO3027 MODELED WITH ZN+2 BOUND, NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET RR58

Authors :  T. A. Ramelot, J. R. Cort, M. Garcia, A. Yee, C. H. Arrowmith, G. T. Montelione, M. A. Kennedy, Northeast Structural Genomics Consortium (Nesg)
Date :  15 Oct 09  (Deposition) - 02 Feb 10  (Release) - 02 Feb 10  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Zinc Finger, Psi-2, Nesg, All Beta, Structural Genomics, Protein Structure Initiative, Northeast Structural Genomics Consortium (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. A. Ramelot, J. R. Cort, M. Garcia, A. Yee, C. H. Arrowmith, G. T. Montelione, M. A. Kennedy
Solution Nmr Structure Of Streptomyces Coelicolor Sco3027 Modeled With Zn+2 Bound, Northeast Structural Genomics Consortium Target Rr58
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - UNCHARACTERIZED PROTEIN SCO3027
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21(DE3) GOLD PMGK
    Expression System Taxid: 469008
    Expression System Vector: P15TV
    Gene: SCD84.08C, SCE34.08C, SCO3027
    Organism Scientific: STREPTOMYCES COELICOLOR
    Organism Taxid: 1902

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

NMR Structure (1, 1)
No.NameCountTypeFull Name
1ZN1Ligand/IonZINC ION

(-) Sites  (1, 1)

NMR Structure (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWARECYS A:13 , CYS A:16 , CYS A:29 , CYS A:34BINDING SITE FOR RESIDUE ZN A 150

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2KPI)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2KPI)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2KPI)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2KPI)

(-) Exons   (0, 0)

(no "Exon" information available for 2KPI)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:56
 aligned with Q9KZL7_STRCO | Q9KZL7 from UniProtKB/TrEMBL  Length:56

    Alignment length:56
                                    10        20        30        40        50
          Q9KZL7_STRCO    1 MPLEAGLLEILACPACHAPLEERDAELICTGQDCGLAYPVRDGIPVLLVDEARRPE 56
               SCOP domains -------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------- CATH domains
               Pfam domains ---Trm112p-2kpiA01 A:4-43                  ------------- Pfam domains
         Sec.struct. author ...................eeee..eeee.......eeeee..ee........... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------- Transcript
                  2kpi A  1 MPLEAGLLEILACPACHAPLEERDAELICTGQDCGLAYPVRDGIPVLLVDEARRPE 56
                                    10        20        30        40        50
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2KPI)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2KPI)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: Zn_Beta_Ribbon (109)

(-) Gene Ontology  (1, 1)

NMR Structure(hide GO term definitions)
Chain A   (Q9KZL7_STRCO | Q9KZL7)
molecular function
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ZN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2kpi)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - model 1, sites PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2kpi
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q9KZL7_STRCO | Q9KZL7
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q9KZL7_STRCO | Q9KZL7
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 2KPI)

(-) Related Entries Specified in the PDB File

rr58 RELATED ID: 16556 RELATED DB: BMRB
