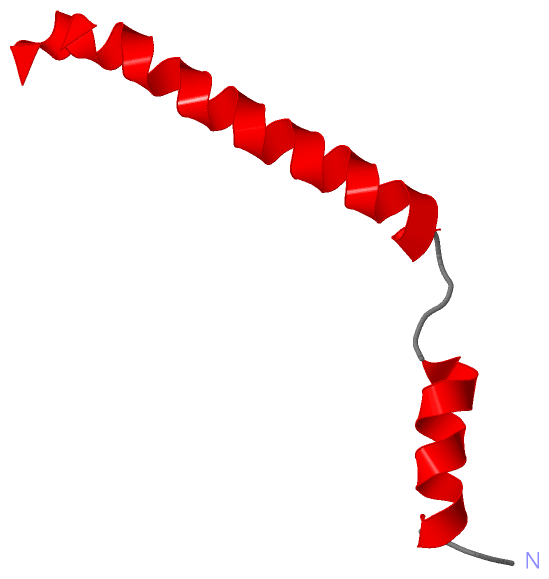

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

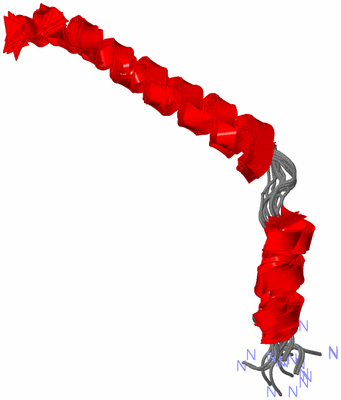

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  MEMBRANE-BOUND STRUCTURE OF THE PF1 MAJOR COAT PROTEIN IN DHPC MICELLE

Authors :  S. Park, W. Son, R. Mukhopadhyay, H. Valafar, S. J. Opella
Date :  08 Jul 09  (Deposition) - 06 Oct 09  (Release) - 20 Oct 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (15x)
Keywords :  Membrane Protein, Alignment, Alpha Helix, Capsid Protein, Membrane, Transmembrane, Virion (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. H. Park, W. S. Son, R. Mukhopadhyay, H. Valafar, S. J. Opella
Phage-Induced Alignment Of Membrane Proteins Enables The Measurement And Structural Analysis Of Residual Dipolar Couplings With Dipolar Waves And Lambda-Maps.
J. Am. Chem. Soc. V. 131 14140 2009
PubMed-ID: 19761238  |  Reference-DOI: 10.1021/JA905640D
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CAPSID PROTEIN G8P
    Chains: A
    Engineered: YES
    Expression System: PSEUDOMONAS AERUGINOSA
    Expression System Taxid: 287
    Expression System Vector: PF1 PHAGE
    Gene: VIII
    Organism Common: BACTERIOPHAGE PF1
    Organism Scientific: PSEUDOMONAS PHAGE PF1
    Organism Taxid: 10871
    Synonym: GENE 8 PROTEIN, G8P, COAT PROTEIN B, MAJOR COAT PROTEIN

 Structural Features

(-) Chains, Units


NMR Structure (15x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2KLV)

(-) Sites  (0, 0)

(no "Site" information available for 2KLV)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2KLV)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2KLV)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2KLV)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2KLV)

(-) Exons   (0, 0)

(no "Exon" information available for 2KLV)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:46
 aligned with CAPSD_BPPF1 | P03621 from UniProtKB/Swiss-Prot  Length:82

    Alignment length:46
                                    46        56        66        76
           CAPSD_BPPF1   37 GVIDTSAVESAITDGQGDMKAIGGYIVGALVILAVAGLIYSMLRKA 82
               SCOP domains d2klva_ A:                                     SCOP domains
               CATH domains ---------------------------------------------- CATH domains
               Pfam domains Phage_Coat_B-2klvA01 A:1-46                    Pfam domains
         Sec.struct. author ...hhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------- PROSITE
                 Transcript ---------------------------------------------- Transcript
                  2klv A  1 GVIDTSAVESAITDGQGDMKAIGGYIVGALVILAVAGLIYSMLRKA 46
                                    10        20        30        40
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Coiled coil proteins (689)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2KLV)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: Inovirus-Coat (9)

(-) Gene Ontology  (6, 6)

NMR Structure(hide GO term definitions)
Chain A   (CAPSD_BPPF1 | P03621)
cellular component
    GO:0019029    helical viral capsid    The protein coat that surrounds the infective nucleic acid in some virus particles; the subunits are arranged to form a protein helix with the genetic material contained within. Tobacco mosaic virus has such a capsid structure.
    GO:0033644    host cell membrane    Double layer of lipid molecules as it encloses host cells, and, in eukaryotes, many organelles; may be a single or double lipid bilayer; also includes associated proteins. The host is defined as the larger of the organisms involved in a symbiotic interaction.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0019028    viral capsid    The protein coat that surrounds the infective nucleic acid in some virus particles. It comprises numerous regularly arranged subunits, or capsomeres.
    GO:0019012    virion    The complete fully infectious extracellular virus particle.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2klv)

  Sites
(no "Sites" information available for 2klv)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2klv)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2klv
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CAPSD_BPPF1 | P03621
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CAPSD_BPPF1 | P03621
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CAPSD_BPPF1 | P03621: 1ifm 1ifn 1pfi 1pjf 1ql1 1ql2 1zn5 2ifm 2ifn 2ksj 2xkm 3ifm 4ifm

(-) Related Entries Specified in the PDB File

1pjf SOLID STATE NMR STRUCTURE OF THE PF1 MAJOR COAT PROTEIN IN MAGNETICALLY ALIGNED BACTERIOPHAGE
