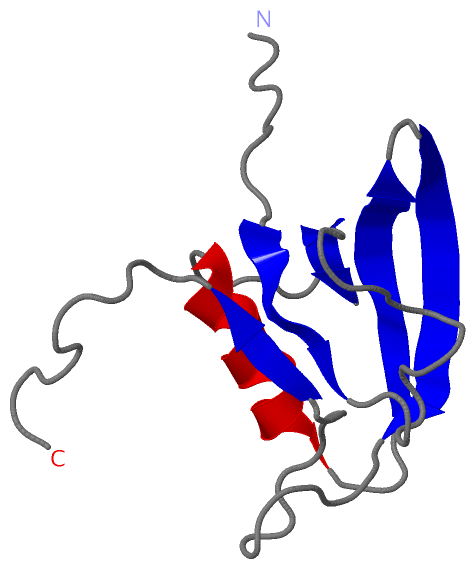

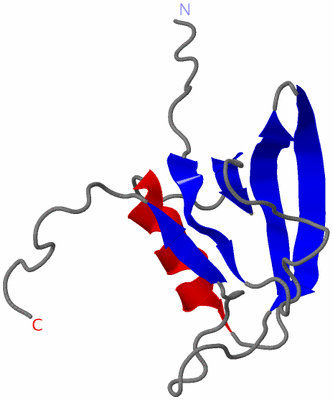

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

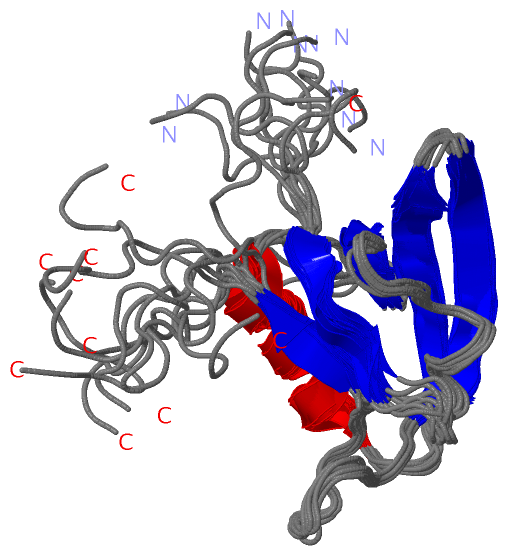

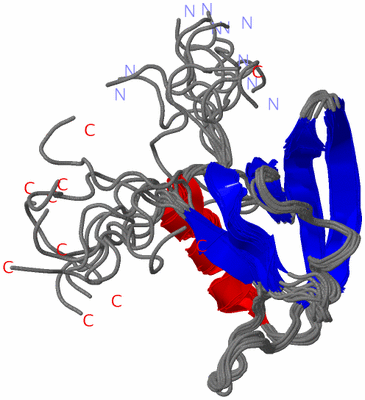

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE SECOND DOMAIN OF THE LISTERIA PROTEIN LIN2157, NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET LKR136B

Authors :  X. Wang, K. Hamilton, R. H. Xiao, D. Lee, C. H. Ciccosanti, R. Nair, B. Rost, T. B. Acton, G. Swapna, J. K. Everett, G. T. Montelione, J. H. Prestegard, Northeast Structural Genomics Consortium (Nesg)
Date :  29 May 09  (Deposition) - 07 Jul 09  (Release) - 07 Jul 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (10x)
Keywords :  Pdz Domain, Structural Genomics, Psi-2, Protein Structure Initiative, Northeast Structural Genomics Consortium, Nesg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. Wang, G. T. Montelione, J. Prestegard
Solution Structure Of Lkr136B
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - LIN2157 PROTEIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21
    Expression System Taxid: 562
    Expression System Vector: PET121
    Gene: LIN2157
    Organism Scientific: LISTERIA INNOCUA
    Organism Taxid: 1642

 Structural Features

(-) Chains, Units


NMR Structure (10x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2KJK)

(-) Sites  (0, 0)

(no "Site" information available for 2KJK)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2KJK)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2KJK)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2KJK)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2KJK)

(-) Exons   (0, 0)

(no "Exon" information available for 2KJK)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:100
 aligned with Q929W6_LISIN | Q929W6 from UniProtKB/TrEMBL  Length:346

    Alignment length:126
                                   132       142       152       162       172       182       192       202       212       222       232       242
         Q929W6_LISIN   123 KVKVTYDGVYVLSVKEDVPAAGILHAGDLITEIDGQSFKSSQEFIDYIHSKKVGDTVKIKYKHGNKNEEASIKLTAIDKKGTPGIGITLVDDEKITADPTVKIDSEKIGGPSAGLMFSLEIYSRFQ 248
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains -PDZ_2-2kjkA01 A:2-74                                                     ---------------------------------------------------- Pfam domains
         Sec.struct. author ........eeeeee..............eeeee......hhhhhhhhhhhh....eeeeeeee..eeeeeeee.............eee...--------------------------........ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2kjk A   1 MVKVTYDGVYVLSVKEDVPAAGILHAGDLITEIDGQSFKSSQEFIDYIHSKKVGDTVKIKYKHGNKNEEASIKLTAIDKKGTPGIGITLVDD--------------------------LEHHHHHH 100
                                    10        20        30        40        50        60        70        80        90 |       -         -        94
                                                                                                                      92                         93
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2KJK)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2KJK)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: PDZ-like (184)

(-) Gene Ontology  (7, 7)

NMR Structure(hide GO term definitions)
Chain A   (Q929W6_LISIN | Q929W6)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0004176    ATP-dependent peptidase activity    Catalysis of the reaction: ATP + H2O = ADP + phosphate, to drive the hydrolysis of peptide bonds.
    GO:0004252    serine-type endopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
biological process
    GO:0030163    protein catabolic process    The chemical reactions and pathways resulting in the breakdown of a protein by the destruction of the native, active configuration, with or without the hydrolysis of peptide bonds.
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2kjk)

  Sites
(no "Sites" information available for 2kjk)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2kjk)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2kjk
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q929W6_LISIN | Q929W6
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q929W6_LISIN | Q929W6
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q929W6_LISIN | Q929W6: 3i1e

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2KJK)
