2JT1 - JenaLib

Title :   SOLUTION NMR STRUCTURE OF PEFI (PLASMID-ENCODED FIMBRIAE REGULATORY) PROTEIN FROM SALMONELLA TYPHIMURIUM. NORTHEAST STRUCTURAL GENOMICS TARGET STR82

Authors :   J. M. Aramini, P. Rossi, H. Wang, C. Nwosu, K. Cunningham, L-C. Ma, R. Xia M. C. Baran, G. V. T. Swapna, T. B. Acton, B. Rost, G. T. Montelione, Nort Structural Genomics Consortium (Nesg)

Date :   17 Jul 07 (Deposition) - 09 Oct 07 (Release) - 23 Feb 11 (Revision)

Method :   SOLUTION NMR

Resolution :   NOT APPLICABLE

Chains :   NMR Structure  : A  (20x)
NMR Structure *: A  (1x)

Keywords :   Solution Nmr Structure, Winged Helix-Turn-Helix, Transcription Regulatory Protein, Structural Genomics, Psi-2, Protein Structure Initiative, Northeast Structural Genomics Consortium, Nesg, Transcription (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   J. M. Aramini, P. Rossi, J. R. Cort, L. C. Ma, R. Xiao, T. B. Acton, G. T. Montelione
Solution Nmr Structure Of The Plasmid-Encoded Fimbriae Regulatory Protein Pefi From Salmonella Enterica Serovar Typhimurium.
Proteins V. 79 335 2011
PubMed-ID: 20979070 | Reference-DOI: 10.1002/PROT.22869

Compounds

Molecule 1 - PEFI PROTEIN
	Atcc	:	700720
	Chains	:	A
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET21
	Expression System Strain	:	BL21(DE3)MGK
	Expression System Taxid	:	562
	Expression System Vector	:	STR82-21.1
	Expression System Vector Type	:	PLASMID
	Gene	:	PEFI, PSLT013
	Organism Scientific	:	SALMONELLA TYPHIMURIUM LT2
	Organism Taxid	:	99287
	Strain	:	LT2, SGSC1412

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

NMR Structure

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:71
 aligned with Q04822_SALTM | Q04822 from UniProtKB/TrEMBL  Length:70

    Alignment length:71
                                                                                                70
                                    10        20        30        40        50        60        70
          Q04822_SALTM    1 MSESIVTKIISIVQERQNMDDGAPVKTRDIADAAGLSIYQVRLYLEQLHDVGVLEKVNAGKGVPGLWRLL-  -
               SCOP domains ----------------------------------------------------------------------- SCOP domains
               CATH domains 2jt1A00 A:1-71 'winged helix' repressor DNA binding domain              CATH domains
               Pfam domains ----------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhh...eehhhhhhhhh.hhhhhhhhhhhhhhh..eeee........eeee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------- Transcript
                  2jt1 A  1 MSESIVTKIISIVQERQNMDDGAPVKTRDIADAAGLSIYQVRLYLEQLHDVGVLEKVNAGKGVPGLWRLLE 71
                                    10        20        30        40        50        60        70

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (0, 0)

CATH Domains (1, 1)

Pfam Domains (0, 0)

Gene Ontology (2, 2)

NMR Structure(hide GO term definitions)

Chain A (Q04822_SALTM | Q04822)

biological process
	GO:0006355	regulation of transcription, DNA-templated	Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
cellular component
	GO:0009289	pilus	A proteinaceous hair-like appendage on the surface of bacteria ranging from 2-8 nm in diameter.

Visualization

Interactive Views

NMR Structure
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2jt1)

	Sites
(no "Sites" information available for 2jt1)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2jt1)

Still Images

Jmol

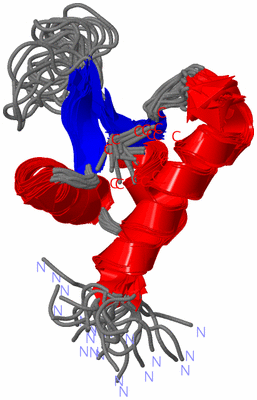

	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ NMR Structure - model 1 PNG format \| NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)
