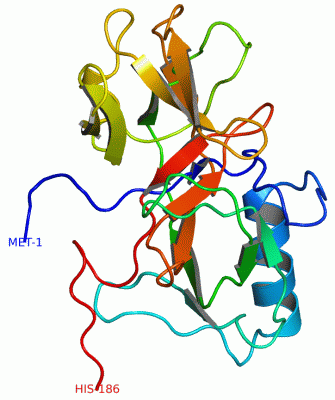

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)
Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

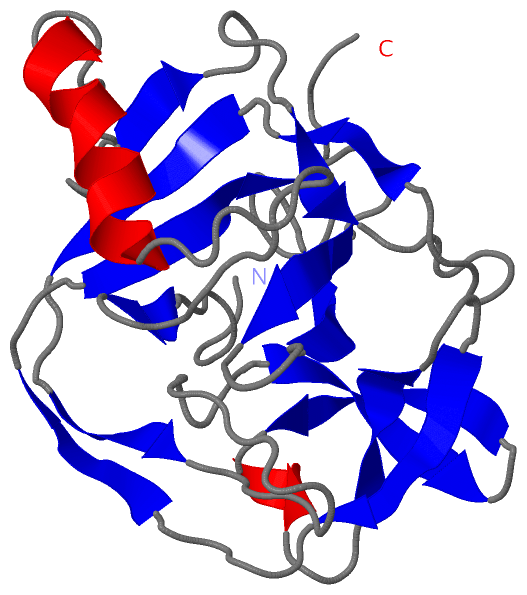

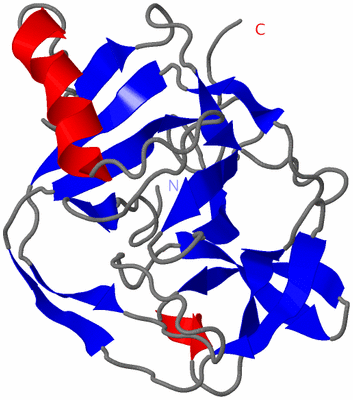

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF A KLBA INTEIN PRECURSOR FROM METHANOCOCCUS JANNASCHII

Authors :  M. A. Johnson, M. W. Southworth, T. Herrmann, L. Brace, F. B. Perler, K. A. Wuthrich
Date :  31 Jan 07  (Deposition) - 10 Jul 07  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A
Keywords :  Protein, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. A. Johnson, M. W. Southworth, T. Herrmann, L. Brace, F. B. Perler, K. Wuthrich
Nmr Structure Of A Klba Intein Precursor From Methanococcus Jannaschii
Protein Sci. V. 16 1316 2007
PubMed-ID: 17586768  |  Reference-DOI: 10.1110/PS.072816707
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN MJ0781
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PMJAKLBA
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: MJA KLBA INTEIN, RESIDUES 1-180
    Mutation: YES
    Organism Scientific: METHANOCALDOCOCCUS JANNASCHII
    Organism Taxid: 2190

 Structural Features

(-) Chains, Units


NMR Structure :

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2JNQ)

(-) Sites  (0, 0)

(no "Site" information available for 2JNQ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2JNQ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2JNQ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2JNQ)

(-) PROSITE Motifs  (2, 2)

NMR Structure (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1INTEIN_N_TERPS50817 Intein N-terminal splicing motif profile.Y781_METJA405-504  1A:8-107
2INTEIN_C_TERPS50818 Intein C-terminal splicing motif profile.Y781_METJA548-573  1A:151-174

(-) Exons   (0, 0)

(no "Exon" information available for 2JNQ)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:186
 aligned with Y781_METJA | Q58191 from UniProtKB/Swiss-Prot  Length:721

    Alignment length:186
                                   407       417       427       437       447       457       467       477       487       497       507       517       527       537       547       557       567       577
           Y781_METJA   398 MNTGHDGALAYDEPIYLSDGNIINIGEFVDKFFKKYKNSIKKEDNGFGWIDIGNENIYIKSFNKLSLIIEDKRILRVWRKKYSGKLIKITTKNRREITLTHDHPVYISKTGEVLEINAEMVKVGDYIYIPKNNTINLDEVIKVETVDYNGHIYDLTVEDNHTYIAGKNEGFAVSNCSGTLHANSAD 583
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains T2SE-2jnqA0----------------------------------------------------------------------------------------------------PT-HINT-2jnqA01 A:112-176                                        ---------- Pfam domains
         Sec.struct. author ........ee.............hhhhhhhhhhhhh............eee......eee..........eee..eeeee...eeee................eeeeee..eeeeee.hhh....eeeee....eeeee.....eeee...eeeee.....eeee.....eeee............ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE -------INTEIN_N_TER  PDB: A:8-107 UniProt: 405-504                                                         -------------------------------------------INTEIN_C_TER              ---------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2jnq A   1 MNTGHDGALAYDEPIYLSDGNIINIGEFVDKFFKKYKNSIKKEDNGFGWIDIGNENIYIKSFNKLSLIIEDKRILRVWRKKYSGKLIKITTKNRREITLTHDHPVYISKTGEVLEINAEMVKVGDYIYIPKNNTINLDEVIKVETVDYNGHIYDLTVEDNHTYIAGKNEGFAVSASSGTLHHHHHH 186
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2JNQ)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2JNQ)

(-) Pfam Domains  (2, 2)

NMR Structure
(-)
Clan: H-int (15)
(-)
Clan: P-loop_NTPase (1112)

(-) Gene Ontology  (6, 6)

NMR Structure(hide GO term definitions)
Chain A   (Y781_METJA | Q58191)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
biological process
    GO:0016539    intein-mediated protein splicing    The removal of an internal amino acid sequence (an intein) from a protein during protein maturation; the excision of inteins is precise and the N- and C-terminal exteins are joined by a normal peptide bond. Protein splicing involves 4 nucleophilic displacements by the 3 conserved splice junction residues.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2jnq)

  Sites
(no "Sites" information available for 2jnq)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2jnq)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2jnq
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Y781_METJA | Q58191
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Y781_METJA | Q58191
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        Y781_METJA | Q58191: 2jmz

(-) Related Entries Specified in the PDB File

2jmz ENSEMBLE OF CONFORMERS
